| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JANTXV1N6622DIODE GEN PURP 660V 1.2A AXIAL |
3,296 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Through Hole | - | 30 ns | 500 nA @ 660 V | 660 V | 1.2A | -65°C ~ 150°C | 1.4 V @ 1.2 A |
|
JANTXV1N6622USDIODE GEN PURP 660V 1.2A D5A |
3,033 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | - | 30 ns | 500 nA @ 660 V | 660 V | 1.2A | -65°C ~ 150°C | 1.4 V @ 1.2 A |
|
JANTXV1N6625DIODE GEN PURP 1.1KV 1A D5A |
3,283 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Through Hole | - | 60 ns | 1 µA @ 1100 V | 1100 V | 1A | -65°C ~ 150°C | 1.75 V @ 1 A |
|
|
JANTXV1N6626USDIODE GEN PURP 220V 1.75A D5B |
3,084 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/590 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 40pF @ 10V, 1MHz | 30 ns | 2 µA @ 220 V | 220 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 2 A |
|
|
JANTXV1N6627DIODE GEN PURP 440V 1.75A AXIAL |
3,048 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/590 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Through Hole | 40pF @ 10V, 1MHz | 30 ns | 2 µA @ 440 V | 440 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 2 A |
|
|
JANTXV1N6628USDIODE GEN PURP 660V 1.75A D5B |
2,152 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/590 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 40pF @ 10V, 1MHz | 30 ns | 2 µA @ 660 V | 660 V | 1.75A | -65°C ~ 150°C | 1.35 V @ 2 A |
|
|
JANTXV1N6629DIODE GEN PURP 880V 1.4A AXIAL |
3,457 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/590 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Through Hole | 40pF @ 10V, 1MHz | 50 ns | 2 µA @ 880 V | 880 V | 1.4A | -65°C ~ 150°C | 1.4 V @ 1.4 A |
|
MSG104DIODE SCHOTTKY 40V 1A DO204AL |
2,313 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 40 V | 40 V | 1A | -65°C ~ 175°C | 690 mV @ 1 A | |
|
|
MSG105DIODE SCHOTTKY 50V 1A DO204AL |
2,832 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 50 V | 50 V | 1A | -65°C ~ 175°C | 690 mV @ 1 A | |
|
|
MSG106DIODE SCHOTTKY 60V 1A DO204AL |
2,994 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 60 V | 60 V | 1A | -65°C ~ 175°C | 690 mV @ 1 A | |
|
|
MSG109DIODE SCHOTTKY 90V 1A DO204AL |
3,405 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 90 V | 90 V | 1A | -65°C ~ 175°C | 810 mV @ 1 A | |
|
|
MSG110DIODE SCHOTTKY 100V 1A DO204AL |
3,753 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 830 mV @ 1 A | |
|
|
MSG140DIODE SCHOTTKY 40V 1A DO204AL |
2,651 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 40 V | 40 V | 1A | -65°C ~ 150°C | 580 mV @ 1 A | |
|
|
MSG145DIODE SCHOTTKY 45V 1A DO204AL |
2,593 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 45 V | 45 V | 1A | -65°C ~ 150°C | 580 mV @ 1 A | |
|
|
MSG150DIODE SCHOTTKY 50V 1A DO204AL |
3,415 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 50 V | 50 V | 1A | -65°C ~ 150°C | 580 mV @ 1 A | |
|
MX1H5615DIODE GEN PURP 200V AXIAL |
2,034 | 0.00 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | - | 200 V | - | - | - | ||
|
1N3064DIODE GEN PURP 50V 75MA DO35 |
3,453 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | - | 4 ns | 100 nA @ 50 V | 50 V | 75mA | -65°C ~ 125°C | 1 V @ 75 mA | |
|

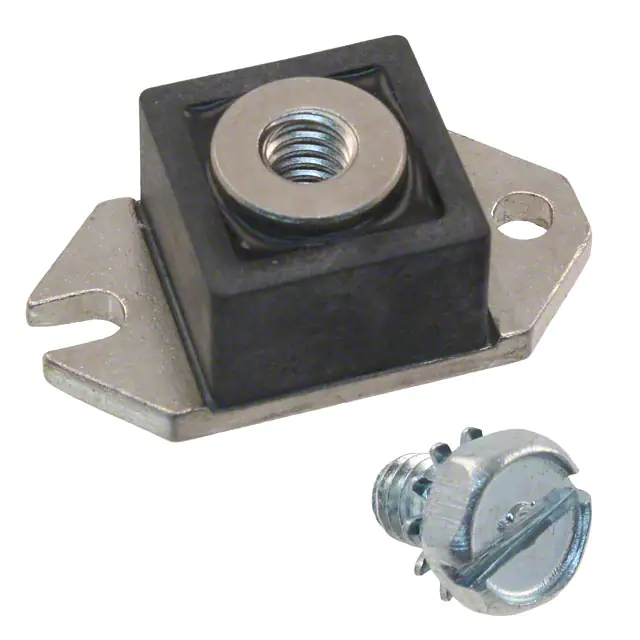

HS12045DIODE SCHOTTKY 45V 120A HALFPAK |
3,703 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 5500pF @ 5V, 1MHz | - | 5 mA @ 45 V | 45 V | 120A | - | 550 mV @ 120 A | |
|

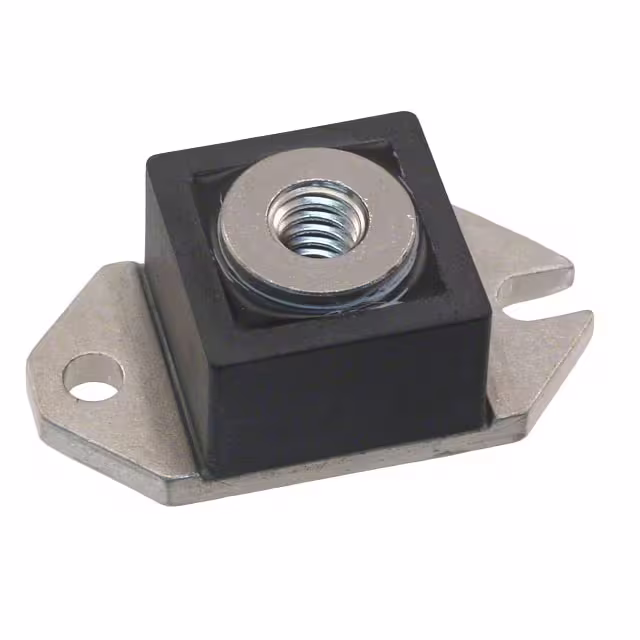

HS24040DIODE SCHOTTKY 40V 240A HALFPAK |
2,273 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 10500pF @ 5V, 1MHz | - | 12 mA @ 40 V | 40 V | 240A | - | 550 mV @ 240 A | |
|

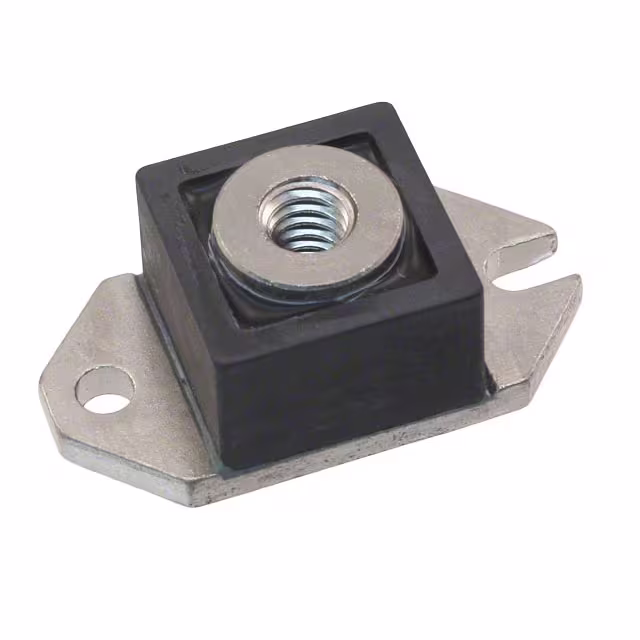

HS24045DIODE SCHOTTKY 45V 240A HALFPAK |
3,866 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 10500pF @ 5V, 1MHz | - | 12 mA @ 45 V | 45 V | 240A | - | 550 mV @ 240 A |
