| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N5711UBCCSCHOTTKY DIODE |
2,410 | 81.57 |
RFQ |
Bulk | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 200 nA @ 50 V | 50 V | - | -65°C ~ 150°C | 1 V @ 15 mA | |
|
JANS1N5619US/TRRECTIFIER UFR,FRR |
3,027 | 74.30 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 250 ns | - | 600 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|
|
R2080RECTIFIER |
2,451 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
JAN1N5711UBDSCHOTTKY DIODE |
3,042 | 81.57 |
RFQ |
Bulk | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 200 nA @ 50 V | 50 V | - | -65°C ~ 150°C | 1 V @ 15 mA | |
|
|
JANS1N5621US/TRRECTIFIER UFR,FRR |
3,218 | 74.30 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 300 ns | - | 800 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|
|
R21100RECTIFIER |
3,164 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
R21120RECTIFIER |
2,660 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | 10 µA @ 1200 V | 1200 V | 22A | -65°C ~ 200°C | 1.2 V @ 30 A | |
|
|
R21140RECTIFIER |
2,212 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
R21160RECTIFIER |
3,442 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
SD24145CRECTIFIER |
2,757 | 61.97 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1.5 mA @ 45 V | 45 V | 30A | -65°C ~ 175°C | 700 mV @ 30 A | ||
|

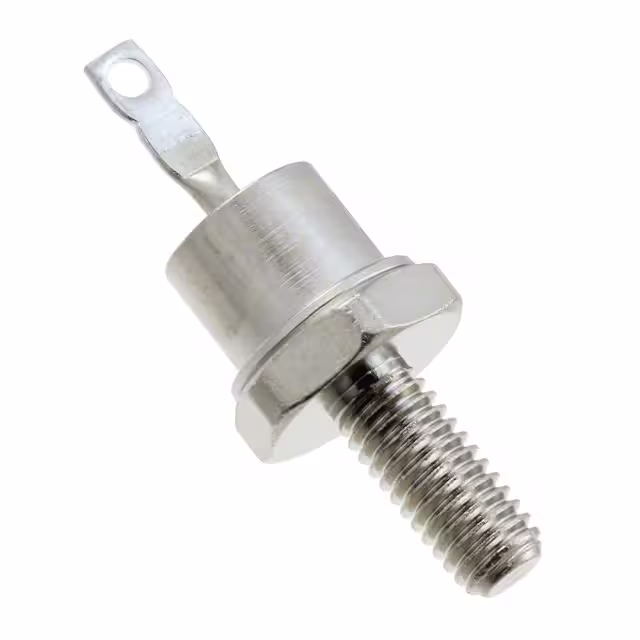

UFR3260DIODE GEN PURP 600V 30A DO4 |
3,028 | 81.84 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 60 ns | 15 µA @ 600 V | 600 V | 30A (DC) | -65°C ~ 175°C | 1.35 V @ 30 A | ||
|
|
R2120RECTIFIER |
3,304 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
SD241RECTIFIER |
2,370 | 61.97 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 1.5 mA @ 35 V | 35 V | 30A | -65°C ~ 175°C | 700 mV @ 30 A | |
|
|
UFR3150RECTIFIER |
2,577 | 81.84 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | 115pF @ 10V, 1MHz | 50 ns | - | 500 V | 30A | 175°C (Max) | 1.25 V @ 30 A | ||
|
|
R2140RECTIFIER |
2,233 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Stud Mount | - | - | 10 µA @ 400 V | 400 V | 22A | -65°C ~ 200°C | 1.2 V @ 30 A | |
|
|
SBR6035PFRECTIFIER |
3,729 | 82.01 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | - | 35 V | 60A | -65°C ~ 150°C | 600 mV @ 60 A | ||
|
|
JANTX1N3671ARDIODE GEN PURP 800V 12A DO203AA |
2,907 | 62.09 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/260 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 5 µA @ 800 V | 800 V | 12A | -65°C ~ 150°C | 1.35 V @ 38 A |
|
|
R2180RECTIFIER |
3,702 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
1N3296STANDARD RECTIFIER |
3,859 | 82.04 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
R25100RECTIFIER |
2,287 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - |
