| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R204100RECTIFIER |
3,804 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
JANTXV1N6078DIODE GEN PURP 150V 1.3A AXIAL |
3,251 | 26.55 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/503 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 1 µA @ 150 V | 150 V | 1.3A | -65°C ~ 155°C | 1.76 V @ 18.8 A |
|
|
R204120RECTIFIER |
3,828 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 1200 V | 1200 V | 12A | -55°C ~ 175°C | - | |
|

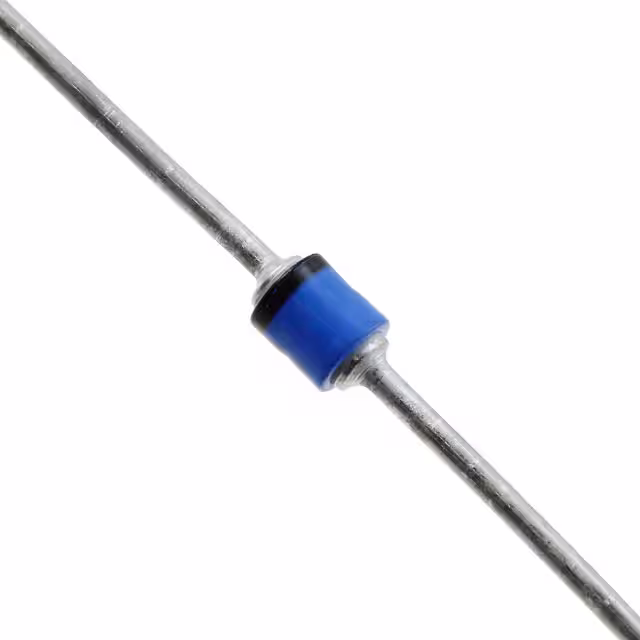

UES1305DIODE GEN PURP 300V 3A AXIAL |
2,960 | 26.58 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 20 µA @ 300 V | 300 V | 3A | -55°C ~ 150°C | 1.25 V @ 3 A | |
|
|
JANS1N5623RECTIFIER DIODE |
3,734 | 81.38 |
RFQ |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 500 ns | - | - | 1A | -65°C ~ 200°C | 1.6 V @ 3 A | |
|
|
JANS1N5619USRECTIFIER DIODE |
3,791 | 74.15 |
RFQ |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 250 ns | - | 600 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|
|
R20420RECTIFIER |
3,379 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 200 V | 200 V | 12A | -55°C ~ 175°C | - | |
|
|
UES801RRECTIFIER |
3,645 | 61.71 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 50 ns | 25 µA @ 50 V | 50 V | 70A | 175°C (Max) | 975 mV @ 70 A | |
|
|
JANS1N5621USRECTIFIER DIODE |
3,275 | 74.15 |
RFQ |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 300 ns | - | 800 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|
|
R20440RECTIFIER |
3,422 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
UES802RRECTIFIER |
3,560 | 61.71 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 50 ns | 25 µA @ 100 V | 100 V | 70A | - | - | |
|
JANS1N5623/TRRECTIFIER UFR,FRR |
2,999 | 81.53 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 500 ns | - | - | 1A | -65°C ~ 200°C | 1.6 V @ 3 A | |
|
|
R20460RECTIFIER |
3,539 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 600 V | 600 V | 12A | -55°C ~ 175°C | - | |
|
|
UES803RRECTIFIER |
2,875 | 61.71 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 50 ns | 25 µA @ 150 V | 150 V | 70A | -55°C ~ 175°C | - | |
|
|
1N5813RRECTIFIER DIODE |
3,558 | 74.25 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | 35 ns | 10 µA @ 75 V | 75 V | 20A | -55°C ~ 175°C | - | |
|
|
R20480RECTIFIER |
3,777 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Stud Mount | - | - | 10 µA @ 800 V | 800 V | 12A | -65°C ~ 200°C | 1.2 V @ 30 A | |
|
|
UES804RRECTIFIER |
3,015 | 61.71 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
JAN1N5711UBCASCHOTTKY DIODE |
3,668 | 81.57 |
RFQ |
Bulk | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 200 nA @ 50 V | 50 V | - | -65°C ~ 150°C | 1 V @ 15 mA | |
|
|
1N5815RRECTIFIER DIODE |
3,115 | 74.25 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
R2060RECTIFIER |
3,493 | 29.24 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - |
