| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM4007-CTCUT-TAPE VERSION. STANDARD RECO |
3,648 | 0.24 |
RFQ |
Datasheet |
Strip | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A | |
|
SKL34SchottkyD, 40V, 3A |
2,630 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 40 V | 40 V | 3A | -50°C ~ 150°C | 500 mV @ 3 A | |
|
ER2MSF Rect, 1000V, 2.00A, 75ns |
3,290 | 0.24 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 1000 V | 1000 V | 2A | -50°C ~ 150°C | 1.7 V @ 2 A | |
|
|
SKL33SchottkyD, 30V, 3A |
2,197 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 30 V | 30 V | 3A | -50°C ~ 150°C | 500 mV @ 3 A | |
|
BY134ST Rect, 600V, 1A |
2,145 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
|
ER2KSF Rect, 800V, 2.00A, 75ns |
2,234 | 0.24 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 800 V | 800 V | 2A | -50°C ~ 150°C | 1.7 V @ 2 A | |
|
|
SKL35SchottkyD, 50V, 3A |
3,150 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 50 V | 50 V | 3A | -50°C ~ 150°C | 700 mV @ 3 A | |
|
|
BY135ST Rect, 150V, 1A |
3,438 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 5 µA @ 150 V | 150 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
|
ER2DSF Rect, 200V, 2.00A, 35ns |
2,729 | 0.24 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 200 V | 200 V | 2A | -50°C ~ 150°C | 1 V @ 2 A | |
|
ES1CSF Rect, 150V, 1.00A, 15ns |
2,190 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 15 ns | 5 µA @ 150 V | 150 V | 1A | -50°C ~ 150°C | 920 mV @ 1 A | |
|
S1AST Rect, 50V, 1A |
3,525 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 50 V | 50 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
SK110-AQSchottkyD, 100V, 1A |
2,289 | 0.24 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 850 mV @ 1 A | |
|
SGL1-40R13SchottkyD, 40V, 1A |
2,021 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 1A | -50°C ~ 150°C | 500 mV @ 1 A | |
|

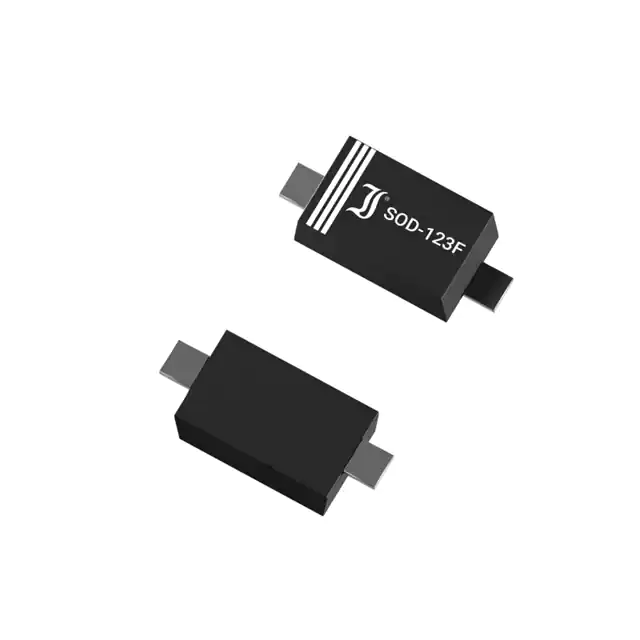

1N4148W-AQSmall Signal D, 100V, 0.15A, 4ns |
3,971 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 1 µA @ 75 V | 75 V | 150mA | -55°C ~ 150°C | 1.25 V @ 150 mA | |
|
|
ES1DSF Rect, 200V, 1.00A, 15ns |
3,533 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 15 ns | 5 µA @ 200 V | 200 V | 1A | -50°C ~ 150°C | 920 mV @ 1 A | |
|
|
S1GST Rect, 400V, 1A |
3,948 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 400 V | 400 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
2CL73AUF Rect, 12000V, 0.005A, 80ns |
2,617 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 80 ns | 2 µA @ 12000 V | 12000 V | 5mA | -40°C ~ 120°C | 45 V @ 10 mA | |
|
EGL1MSF Rect, 1000V, 1.00A, 75ns |
3,700 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -50°C ~ 175°C | 1.8 V @ 1 A | |
|
SM5063ST Rect, 1000V, 2A |
2,721 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 2A | -50°C ~ 175°C | 1.1 V @ 2 A | |
|
|
ES1FSF Rect, 300V, 1.00A, 25ns |
2,781 | 0.24 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 25 ns | 5 µA @ 300 V | 300 V | 1A | -50°C ~ 150°C | 1.3 V @ 1 A |
