| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BYW27-100ST Rect, 100V, 1A |
3,679 | 0.21 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 200 nA @ 100 V | 100 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
SM5405ST Rect, 500V, 3A |
2,033 | 0.21 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 500 V | 500 V | 3A | -50°C ~ 175°C | 1.2 V @ 3 A | |
|

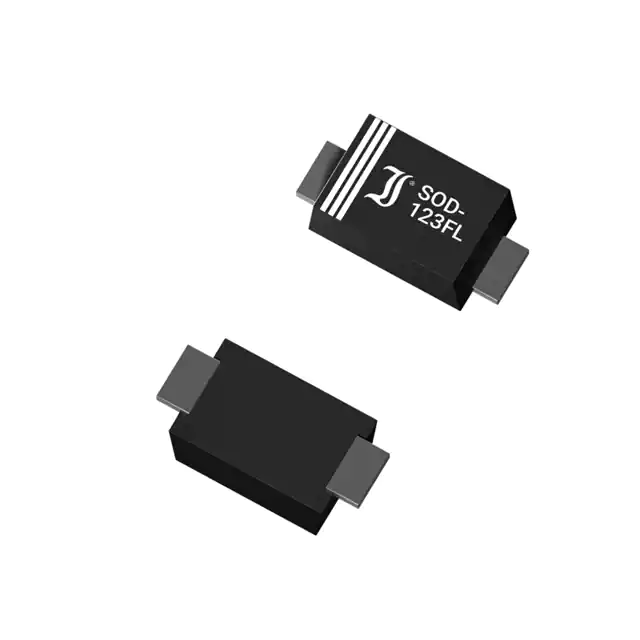

SKM14Schottky, 40V, 1A, 0.35V, 22A |
2,827 | 0.21 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 40 V | 40 V | 1A | -50°C ~ 150°C | 350 mV @ 1 A | |
|
SB230SchottkyD, 30V, 2A |
3,174 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 30 V | 30 V | 2A | -50°C ~ 150°C | 500 mV @ 2 A | |
|
|
SB220SchottkyD, 20V, 2A |
2,684 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 20 V | 20 V | 2A | -50°C ~ 150°C | 500 mV @ 2 A | |
|
SK14-AQSchottkyD, 40V, 1A |
2,499 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 1A | -50°C ~ 150°C | 500 mV @ 1 A | |
|
SFE1GSF Rect, 400V, 1.00A, 50ns |
3,667 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 400 V | 400 V | 1A | -50°C ~ 150°C | 1.25 V @ 1 A | |
|
SKL110SchottkyD, 100V, 1A |
3,776 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 100 V | 100 V | 1A | -50°C ~ 150°C | 850 mV @ 1 A | |
|
HV3HV Rect., 3000V, 0.20A, 400ns |
3,822 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 400 ns | 3 µA @ 3000 V | 3000 V | 200mA | -50°C ~ 150°C | 6 V @ 200 mA | |
|
BY500-50Fast Rect. 50V, 5.00A, 200ns |
3,840 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | - | Standard | Active | - | - | 200 ns | - | 50 V | 5A | - | - | |
|
SRL23Schottky, 30V, 2A, 0.45V, 4.40A |
3,827 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 40pF @ 10V, 1MHz | - | 250 µA @ 30 V | 30 V | 2A | -40°C ~ 125°C | 450 mV @ 2 A | |
|
SB260Schottky D, 60V, 2.00A |
2,003 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 60 V | 60 V | 2A | -50°C ~ 150°C | 700 mV @ 2 A | |
|
|
SB240Schottky D, 40V, 2.00A |
3,366 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 2A | -50°C ~ 150°C | 500 mV @ 2 A | |
|
SL1MST Rect, 1000V, 1A |
2,831 | 0.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1 µs | 1 µA @ 1000 V | 1000 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
|
SM2000ST Rect, 2000V, 1A |
3,031 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 2000 V | 2000 V | 1A | -50°C ~ 175°C | 1.1 V @ 1 A | |
|
|
SB250SchottkyD, 50V, 2A |
3,963 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 50 V | 50 V | 2A | -50°C ~ 150°C | 700 mV @ 2 A | |
|
SFE1JSF Rect, 600V, 1.00A, 75ns |
3,118 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.7 V @ 1 A | |
|
|
SKL310SchottkyD, 100V, 3A |
2,993 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 100 V | 100 V | 3A | -50°C ~ 150°C | 850 mV @ 3 A | |
|
SK36SMA-3GSchottky,60V, 3A, 0.55V, 80A |
3,753 | 0.24 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 60 V | 60 V | 3A | -50°C ~ 150°C | 700 mV @ 3 A | |
|
|
SKL36SchottkyD, 60V, 3A |
2,501 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 60 V | 60 V | 3A | -50°C ~ 150°C | 700 mV @ 3 A |
