| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KYZ35A3DIODE STD D12.77X6.6Z 300V 35A |
500 | 1.85 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 300 V | 300 V | 35A | -50°C ~ 175°C | 1.1 V @ 35 A | |
|
US1KDIODE UFR SMA 800V 1A |
52,500 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 800 V | 800 V | 1A | -50°C ~ 150°C | 1.7 V @ 1 A | |
|
RGL34MDIODE FR DO-213AA 1000V 0.5A |
2,500 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 500 ns | 5 µA @ 1000 V | 1000 V | 500mA | -50°C ~ 175°C | 1.3 V @ 500 mA | |
|
|
RGL1DDIODE FR DO-213AA 200V 1A |
2,500 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 5 µA @ 200 V | 200 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
|
GL34JR13DIODE STD DO-213AA 600V 0.5A |
10,000 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 500mA | -50°C ~ 175°C | 1.3 V @ 500 mA | |
|
|
SK13SCHOTTKY SMA 30V 1A |
7,500 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 30 V | 30 V | 1A | -50°C ~ 150°C | 500 mV @ 1 A | |
|

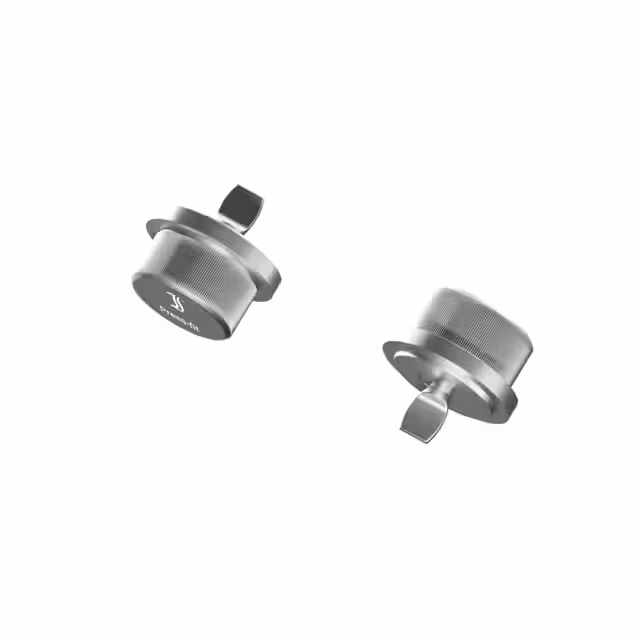

KYZ35A4DIODE STD D12.77X6.6Z 400V 35A |
500 | 1.90 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 400 V | 400 V | 35A | -50°C ~ 175°C | 1.1 V @ 35 A | |
|
|
GL1GDIODE STD DO-213AA 400V 1A |
2,500 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 400 V | 400 V | 1A | -50°C ~ 175°C | 1.2 V @ 1 A | |
|
|
KYZ35K4DIODE STD D12.77X6.6Z 400V 35A |
500 | 1.90 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 400 V | 400 V | 35A | -50°C ~ 175°C | 1.1 V @ 35 A | |
|
|
ER1GDIODE SFR SMA 400V 1A |
7,500 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 35 ns | 5 µA @ 400 V | 400 V | 1A | -50°C ~ 150°C | 1.25 V @ 1 A | |
|
GL34KDIODE STD DO-213AA 800V 0.5A |
32,500 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 800 V | 800 V | 500mA | -50°C ~ 175°C | 1.3 V @ 500 mA | |
|
|
ER1JDIODE SFR SMA 600V 1A |
45,000 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 75 ns | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.7 V @ 1 A | |
|
|
GL1JDIODE STD DO-213AA 600V 1A |
2,500 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
|
KYZ25K6DIODE STD D12.77X6.6Z 600V 25A |
500 | 1.91 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 600 V | 600 V | 25A | -50°C ~ 175°C | 1.1 V @ 25 A | |
|
|
EGL1DDIODE SFR DO-213AA 200V 1A |
2,500 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 200 V | 200 V | 1A | -50°C ~ 175°C | 1.25 V @ 1 A | |
|
|
RAL1GDIODE FR DO-213AA 400V 1A |
2,500 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 3 µA @ 400 V | 400 V | 1A | -50°C ~ 175°C | 1.3 V @ 1 A | |
|
|
GL34MR13DIODE STD DO-213AA 1000V 0.5A |
10,000 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 500mA | -50°C ~ 175°C | 1.3 V @ 500 mA | |
|
|
GL34MDIODE STD DO-213AA 1000V 0.5A |
2,500 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 1000 V | 1000 V | 500mA | -50°C ~ 175°C | 1.3 V @ 500 mA | |
|
|
BAV100DIODE SFR DO-213AA 60V 0.2A |
2,500 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 50 ns | 5 µA @ 50 V | 50 V | 200mA | -50°C ~ 175°C | 1.25 V @ 200 mA | |
|
KYW25A2DIODE STD D12.77X6.6W 200V 25A |
500 | 1.95 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 200 V | 200 V | 25A | -50°C ~ 175°C | 1.1 V @ 25 A |
