| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ES2FDIODE SFR SMB 300V 2A |
3,000 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 25 ns | 5 µA @ 300 V | 300 V | 2A | -50°C ~ 150°C | 1.3 V @ 2 A | |
|
P2000MTLDIODE STD D8X7.5 1000V 20A |
2,000 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 10 µA @ 1000 V | 1000 V | 20A | -50°C ~ 175°C | 1.1 V @ 20 A | |
|
DD600HV DIODE D2.5X6.5 6000V 0.02A |
5,000 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 150 ns | 5 µA @ 6000 V | 6000 V | 20mA | -50°C ~ 150°C | 40 V @ 10 mA | |
|
S3YDIODE STD SMC 2000V 3A |
504,000 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 1.5 µs | 5 µA @ 2000 V | 2000 V | 3A | -50°C ~ 150°C | 1.15 V @ 3 A | |
|

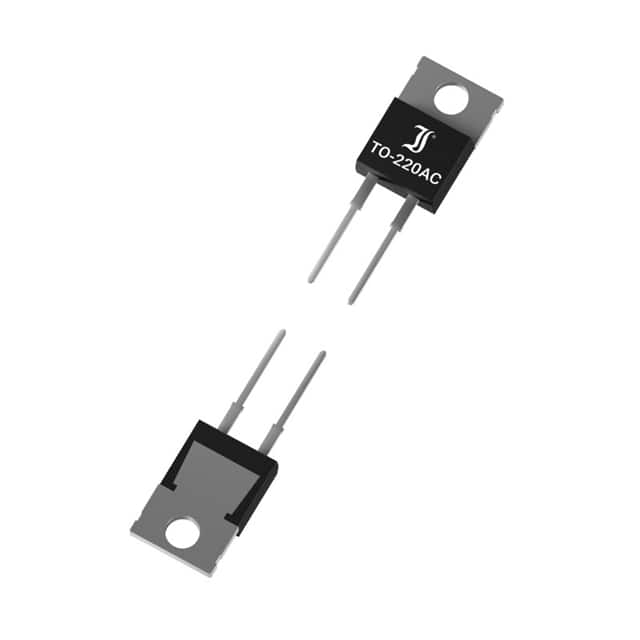

SBT1840SCHOTTKY DIODE, TO-220AC, 40V, 1 |
30,869 | 0.48 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 18A | -50°C ~ 150°C | 580 mV @ 18 A | |
|

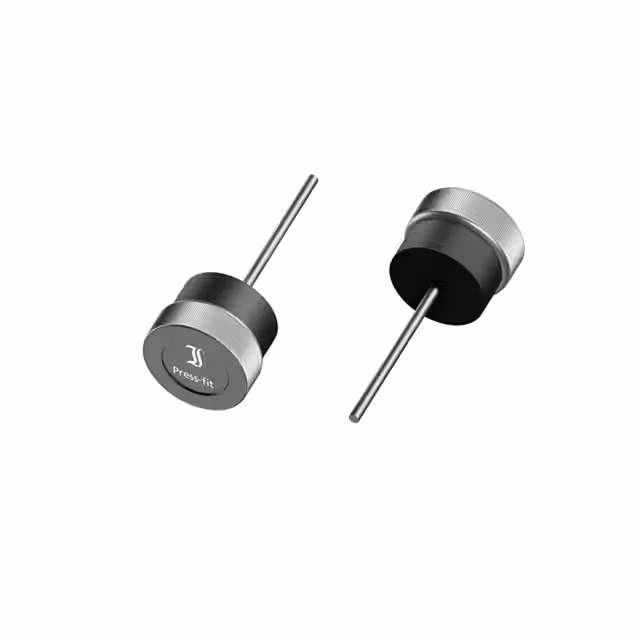

BYP25A3DIODE STD D13X10.7W 300V 25A |
12,000 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 300 V | 300 V | 25A | -50°C ~ 215°C | 1.1 V @ 25 A | |
|
|
BYP25K3DIODE STD D13X10.7W 300V 25A |
12,000 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 300 V | 300 V | 25A | -50°C ~ 215°C | 1.1 V @ 25 A | |
|
SB1540-3GSCHOTTKY D5.4X7.5 40V 15A |
2,500 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 15A | -50°C ~ 150°C | 550 mV @ 15 A | |
|

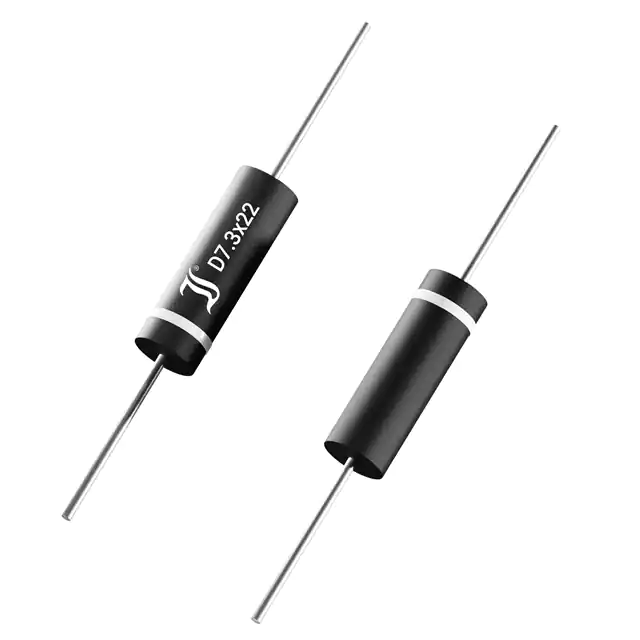

BY6HV DIODE D7.3X22 6000V 1A |
2,000 | 1.61 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 1 µA @ 6000 V | 6000 V | 1A | -50°C ~ 150°C | 6 V @ 1 A | |
|
SK1545YD2-3GSCHOTTKY D2PAK 45V 15A |
5,000 | 0.49 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 45 V | 45 V | 15A | -50°C ~ 150°C | 500 mV @ 15 A | |
|
SK1540YD2SCHOTTKY D2PAK 40V 15A |
5,000 | 0.49 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 40 V | 40 V | 15A | -50°C ~ 150°C | 650 mV @ 15 A | |
|
KYZ25K05DIODE STD D12.77X6.6Z 50V 25A |
500 | 1.64 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 50 V | 50 V | 25A | -50°C ~ 175°C | 1.1 V @ 25 A | |
|
|
KYZ25A05DIODE STD D12.77X6.6Z 50V 25A |
500 | 1.64 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 50 V | 50 V | 25A | -50°C ~ 175°C | 1.1 V @ 25 A | |
|
|
15SQ045-3GSCHOTTKY D5.4X7.5 45V 15A |
1,250 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 300 µA @ 45 V | 45 V | 15A | -50°C ~ 150°C | 530 mV @ 15 A | |
|
|
KYZ25A2DIODE STD D12.77X6.6Z 200V 25A |
500 | 1.73 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 200 V | 200 V | 25A | -50°C ~ 175°C | 1.1 V @ 25 A | |
|
|
KYZ25A3DIODE STD D12.77X6.6Z 300V 25A |
500 | 1.73 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 300 V | 300 V | 25A | -50°C ~ 175°C | 1.1 V @ 25 A | |
|
|
KYZ25K3DIODE STD D12.77X6.6Z 300V 25A |
500 | 1.73 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 300 V | 300 V | 25A | -50°C ~ 175°C | 1.1 V @ 25 A | |
|
|
KYZ25K2DIODE STD D12.77X6.6Z 200V 25A |
500 | 1.73 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 100 µA @ 200 V | 200 V | 25A | -50°C ~ 175°C | 1.1 V @ 25 A | |
|
|
BY8HV DIODE D7.3X22 8000V 0.5A |
2,000 | 1.74 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 1.5 µs | 1 µA @ 8000 V | 8 kV | 500mA | -50°C ~ 150°C | 8 V @ 500 mA | |
|
|
P2500YDIODE STD D8X7.5 2000V 25A |
1,000 | 1.77 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 1.5 µs | 10 µA @ 2000 V | 2000 V | 25A | -50°C ~ 175°C | 1.1 V @ 25 A |
