| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5059TRDIODE AVALANCHE 200V 2A SOD57 |
16,007 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | 40pF @ 0V, 1MHz | 4 µs | 1 µA @ 200 V | 200 V | 2A | -55°C ~ 175°C | 1.15 V @ 2.5 A | |
|

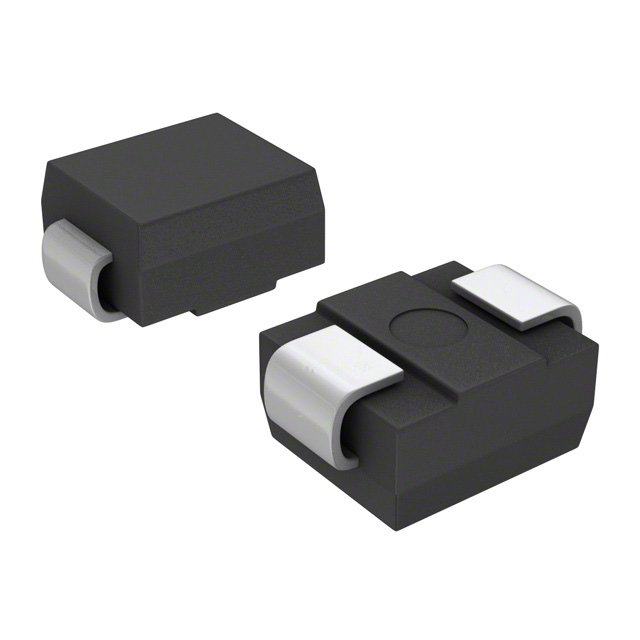

SSB44HE3_A/IDIODE SCHOTTKY 40V 4A DO214AA |
18,676 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 400 µA @ 40 V | 40 V | 4A | -65°C ~ 150°C | 490 mV @ 4 A |
|
|
1N5060TRDIODE AVALANCHE 400V 2A SOD57 |
13,339 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | 40pF @ 0V, 1MHz | 4 µs | 1 µA @ 400 V | 400 V | 2A | -55°C ~ 175°C | 1.15 V @ 2.5 A | |
.jpg)
|
V4PAL45HM3_A/IDIODE SCHOTTKY 45V 3A DO221BC |
44,806 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 450pF @ 4V, 1MHz | - | 450 µA @ 45 V | 45 V | 3A | -40°C ~ 150°C | 430 mV @ 2 A |
|
SB340-E3/73DIODE SCHOTTKY 40V 3A DO201AD |
45,284 | 0.47 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 3A | -65°C ~ 125°C | 490 mV @ 3 A | |
|
SD101C-TRDIODE SCHOTTKY 40V 30MA DO35 |
19,545 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 2.2pF @ 0V, 1MHz | - | 200 nA @ 30 V | 40 V | 30mA (DC) | 125°C (Max) | 900 mV @ 15 mA | |
|
|
BAT83S-TRDIODE SCHOTTKY 60V 30MA DO35 |
35,636 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 1.6pF @ 1V, 1MHz | - | 200 nA @ 60 V | 60 V | 30mA (DC) | 125°C (Max) | 1 V @ 15 mA |
|
|
ES2F-E3/52TDIODE GEN PURP 300V 2A DO214AA |
12,493 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 50 ns | 10 µA @ 300 V | 300 V | 2A | -50°C ~ 150°C | 1.1 V @ 2 A | |
|
|
ES2B-E3/52TDIODE GEN PURP 100V 2A DO214AA |
5,702 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 18pF @ 4V, 1MHz | 30 ns | 10 µA @ 100 V | 100 V | 2A | -55°C ~ 150°C | 900 mV @ 2 A | |
|

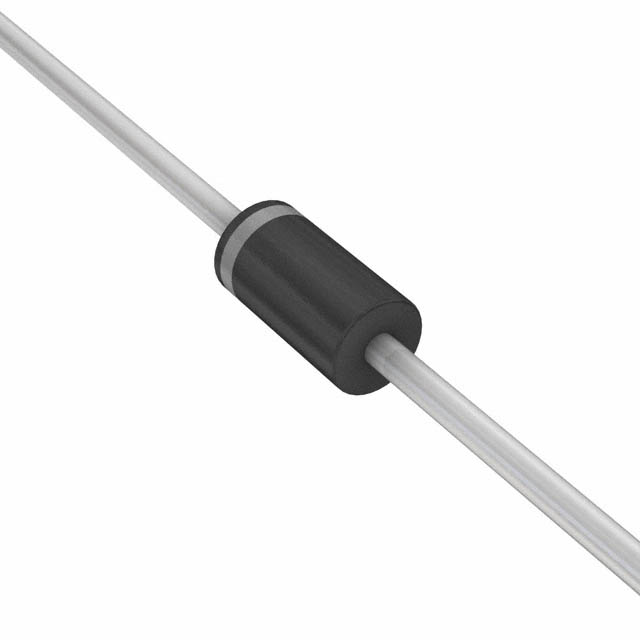

UF4007-E3/73DIODE GEN PURP 1KV 1A DO204AL |
3,119 | 0.43 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 17pF @ 4V, 1MHz | 75 ns | 10 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
1N4150W-HE3-08DIODE GEN PURP 50V 200MA SOD123 |
11,511 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2.5pF @ 0V, 1MHz | 4 ns | 100 nA @ 50 V | 50 V | 200mA | -55°C ~ 150°C | 1 V @ 200 mA |
|
|
UF4005-E3/54DIODE GEN PURP 600V 1A DO204AL |
70,306 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 17pF @ 4V, 1MHz | 75 ns | 10 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
RS07J-GS08DIODE GP 600V 500MA DO219AB |
6,302 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 9pF @ 4V, 1MHz | 250 ns | 10 µA @ 600 V | 600 V | 500mA | -55°C ~ 150°C | 1.15 V @ 700 mA |
|
|
RS07G-GS08DIODE GP 400V 500MA DO219AB |
12,027 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 9pF @ 4V, 1MHz | 150 ns | 10 µA @ 400 V | 400 V | 500mA | -55°C ~ 150°C | 1.15 V @ 700 mA |
|
|
1N5401-E3/54DIODE GEN PURP 100V 3A DO201AD |
8,626 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 30pF @ 4V, 1MHz | - | 5 µA @ 100 V | 100 V | 3A | -50°C ~ 150°C | 1.2 V @ 3 A | |
|
|
1N5405-E3/54DIODE GEN PURP 500V 3A DO201AD |
4,214 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 30pF @ 4V, 1MHz | - | 5 µA @ 500 V | 500 V | 3A | -50°C ~ 150°C | 1.2 V @ 3 A | |
|
SD101A-TAPDIODE SCHOTTKY 60V DO35 |
40,983 | 0.40 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 2pF @ 0V, 1MHz | - | 200 nA @ 50 V | 60 V | 30mA | 125°C (Max) | 1 V @ 15 mA |
|
|
1N5402-E3/54DIODE GEN PURP 200V 3A DO201AD |
2,173 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 30pF @ 4V, 1MHz | - | 5 µA @ 200 V | 200 V | 3A | -50°C ~ 150°C | 1.2 V @ 3 A | |
~~2.jpg)
|
SS2P5-M3/84ADIODE SCHOTTKY 50V 2A DO220AA |
18,980 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 100 µA @ 50 V | 50 V | 2A | -55°C ~ 150°C | 700 mV @ 2 A |
|
S5J-E3/57TDIODE GEN PURP 600V 5A DO214AB |
12,527 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | 2.5 µs | 10 µA @ 600 V | 600 V | 5A | -55°C ~ 150°C | 1.15 V @ 5 A |
