| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF4007-E3/54DIODE GEN PURP 1KV 1A DO204AL |
83,121 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 17pF @ 4V, 1MHz | 75 ns | 10 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
VS-15EWL06FNTR-M3DIODE GEN PURP 600V 15A DPAK |
7,594 | 1.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 220 ns | 10 µA @ 600 V | 600 V | 15A | -65°C ~ 175°C | 1.05 V @ 15 A |
|
SS2PH10HM3_A/HDIODE SCHOTTKY 100V 2A DO220AA |
42,390 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 65pF @ 4V, 1MHz | - | 1 µA @ 100 V | 100 V | 2A | -55°C ~ 175°C | 800 mV @ 2 A |
|
BYV28-200-TAPDIODE AVALANCHE 200V 3.5A SOD64 |
3,037 | 1.48 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 30 ns | 1 µA @ 200 V | 200 V | 3.5A | -55°C ~ 175°C | 1.1 V @ 5 A | |
|
VS-T40HF40DIODE GEN PURP 400V 40A D-55 |
1,163 | 26.81 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 15 mA @ 400 V | 400 V | 40A | - | - | |
|
EGP51G-E3/CDIODE GEN PURP 400V 5A DO201AD |
2,536 | 1.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 48pF @ 4V, 1MHz | 50 ns | 5 µA @ 400 V | 400 V | 5A | -65°C ~ 175°C | 1.25 V @ 5 A |
|
VB20100S-E3/8WDIODE SCHOTTKY 100V 20A TO263AB |
8,380 | 1.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 100 V | 100 V | 20A | -40°C ~ 150°C | 900 mV @ 20 A |
|
VSSA210-E3/61TDIODE SCHOTTKY 100V 1.7A DO214AC |
29,570 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 175pF @ 4V, 1MHz | - | 150 µA @ 100 V | 100 V | 1.7A (DC) | -40°C ~ 150°C | 700 mV @ 2 A |
|
|
VB30100S-E3/8WDIODE SCHOTTKY 100V 30A TO263AB |
20,980 | 1.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 100 V | 100 V | 30A | -40°C ~ 150°C | 910 mV @ 30 A |
|
1N4148TRDIODE GEN PURP 75V 300MA DO35 |
36,730 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 4pF @ 0V, 1MHz | 8 ns | 25 nA @ 20 V | 75 V | 300mA (DC) | -65°C ~ 150°C | 1 V @ 10 mA | |
|
|
1N4151TRDIODE GEN PURP 75V 150MA DO35 |
42,942 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 2pF @ 0V, 1MHz | 4 ns | 50 nA @ 50 V | 75 V | 150mA | 175°C (Max) | 1 V @ 50 mA | |
|
|
1N4154TRDIODE GEN PURP 25V 150MA DO35 |
27,172 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 4pF @ 0V, 1MHz | 4 ns | 100 nA @ 25 V | 25 V | 150mA | -65°C ~ 175°C | 1 V @ 30 mA | |
~~2.jpg)
|
VS-3EYH01-M3/HFRED PT RECTIFIER SLIMSMAW |
14,522 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 16pF @ 200V | 30 ns | 2 µA @ 100 V | 100 V | 3A | -55°C ~ 175°C | 950 mV @ 3 A |
|

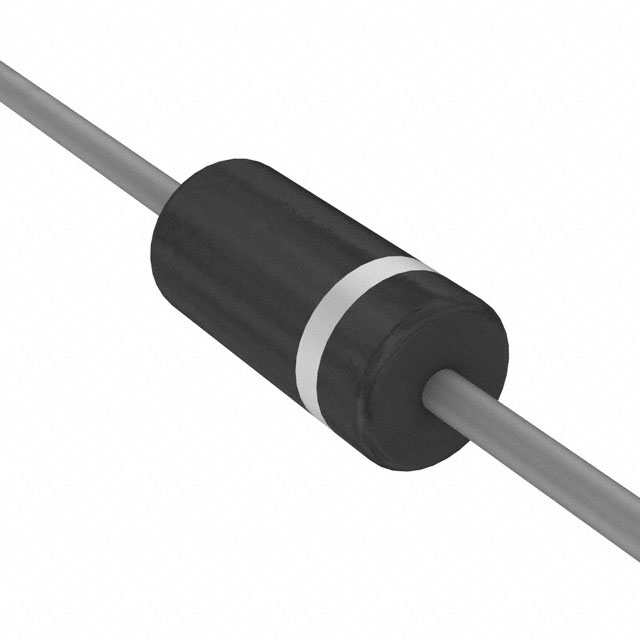

SB240-E3/54DIODE SCHOTTKY 40V 2A DO204AC |
9,440 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 2A | -65°C ~ 125°C | 500 mV @ 2 A | |
~~2.jpg)
|
SS3P4HM3/84ADIODE SCHOTTKY 3A 40V DO-220AA |
5,396 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 130pF @ 4V, 1MHz | - | 150 µA @ 40 V | 40 V | 3A | -55°C ~ 150°C | 600 mV @ 3 A |
|
ES2F-E3/5BTDIODE GEN PURP 300V 2A DO214AA |
9,617 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 50 ns | 10 µA @ 300 V | 300 V | 2A | -50°C ~ 150°C | 1.1 V @ 2 A | |
|
BAV21-TAPDIODE GEN PURP 200V 250MA DO35 |
34,063 | 0.19 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 1.5pF @ 0V, 1MHz | 50 ns | 100 nA @ 150 V | 200 V | 250mA (DC) | 175°C (Max) | 1 V @ 100 mA |
|
|
1N4150TAPDIODE GEN PURP 50V 150MA DO35 |
24,917 | 0.19 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 2.5pF @ 0V, 1MHz | 4 ns | 100 nA @ 50 V | 50 V | 150mA | -65°C ~ 175°C | 1 V @ 200 mA | |
|
|
SB240S-E3/54DIODE SCHOTTKY 40V 2A DO204AL |
20,810 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 2A | -65°C ~ 125°C | 550 mV @ 2 A | |
|
|
ES1PB-M3/84ADIODE GEN PURP 100V 1A DO220AA |
7,998 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 25 ns | 5 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 920 mV @ 1 A |
