| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSD30H100CWDIODE, SCHOTTKY, TRENCH, 30A, 10 |
636 | 2.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | - | - | - | - | - | - | - | - | Surface Mount |

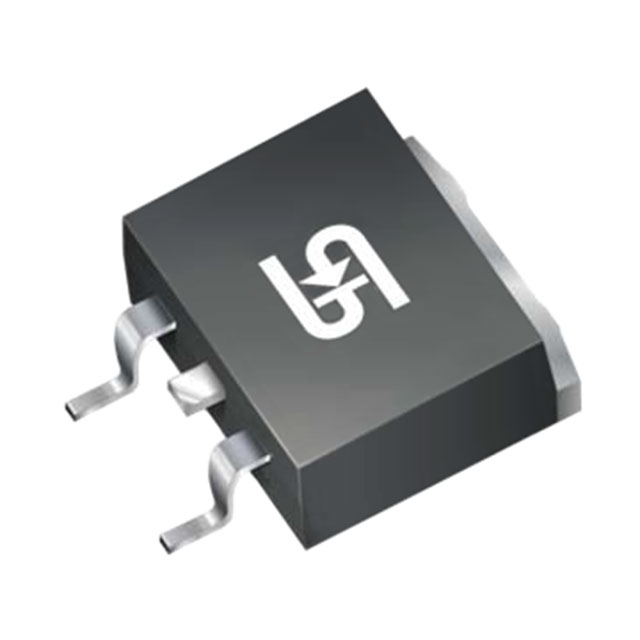

,-TO-263AB.jpg)
|
MBRS6040CTDIODE SCHOTTKY 40V 60A TO263AB |
392 | 2.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 60A | 1.05 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 40 V | -55°C ~ 150°C | Surface Mount |
|
|
TSD20H100CWDIODE, SCHOTTKY, TRENCH, 20A, 10 |
790 | 2.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
TSD20H120CWDIODE, SCHOTTKY, TRENCH, 20A, 12 |
778 | 2.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
TSD10L200CWDIODE, SCHOTTKY, TRENCH, 10A, 20 |
775 | 2.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | - | - | - | - | - | - | - | - | - | Surface Mount |
|
TSF10H45CDIODE ARRAY SCHOTT 45V ITO220AB |
836 | 2.45 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 5A | 480 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 45 V | -55°C ~ 150°C | Through Hole |
|
|
TSF20H150CDIODE ARRAY SCHOTT 150V ITO220AB |
979 | 2.46 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 10A | 750 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 150°C | Through Hole |
|
|
TSF30L200CDIODE ARRAY SCHOTT 200V ITO220AB |
970 | 2.46 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 15A | 960 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -55°C ~ 150°C | Through Hole |
|
|
TSF20U80CDIODE ARRAY SCHOTT 80V ITO220AB |
745 | 2.49 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 10A | 770 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 80 V | -55°C ~ 150°C | Through Hole |
|
TSI10H120CWDIODE ARRAY SCHOTTKY 120V I2PAK |
950 | 2.54 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 5A | 790 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 120 V | -55°C ~ 150°C | Through Hole |
|
|
TSI20H100CWDIODE ARRAY SCHOTTKY 100V I2PAK |
956 | 2.71 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 570 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
TSF20U60CDIODE ARRAY SCHOTT 60V ITO220AB |
950 | 2.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 10A | 540 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 60 V | -55°C ~ 150°C | Through Hole |
|
|
TSI20H120CWDIODE ARRAY SCHOTTKY 120V I2PAK |
939 | 2.71 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 10A | 620 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 120 V | -55°C ~ 150°C | Through Hole |
|
|
TSF40L45CDIODE ARRAY SCHOTT 45V ITO220AB |
959 | 2.79 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 20A | 600 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 45 V | -55°C ~ 150°C | Through Hole |
|
|
TSF40L60CDIODE ARRAY SCHOTT 60V ITO220AB |
616 | 2.79 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 20A | 630 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | -55°C ~ 150°C | Through Hole |
|
|
TSD10H100CWDIODE, SCHOTTKY, TRENCH, 10A, 10 |
760 | 2.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
TSF40L150CDIODE ARRAY SCHOTT 150V ITO220AB |
970 | 2.84 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 20A | 960 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 150°C | Through Hole |
|
|
TSF30U45CDIODE ARRAY SCHOTT 45V ITO220AB |
949 | 3.07 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 500 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 45 V | -55°C ~ 150°C | Through Hole |
|
|
TSI30H150CWDIODE ARRAY SCHOTTKY 150V I2PAK |
940 | 3.11 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 15A | 900 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 150 V | -55°C ~ 150°C | Through Hole |
|
|
TSF40H150CDIODE ARRAY SCHOTT 150V ITO220AB |
893 | 3.40 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 20A | 710 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 150 V | -55°C ~ 150°C | Through Hole |
