| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR20H150CTDIODE SCHOTTKY 150V 20A TO220AB |
887 | 1.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 20A | 970 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 150 V | -55°C ~ 175°C | Through Hole |
|
|
MBR20150CTDIODE SCHOTTKY 150V 20A TO220AB |
115 | 1.41 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 20A | 1.23 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 150°C | Through Hole |
|
|
MBR20100CTDIODE SCHOTTKY 100V 20A TO220AB |
865 | 1.47 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
MURF1640CTDIODE ARRAY GP 400V ITO-220AB |
419 | 1.63 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 400 V | 16A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 400 V | -55°C ~ 150°C | Through Hole |
|
|
MBR20H200CTDIODE SCHOTTKY 200V 20A TO220AB |
980 | 1.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 20A | 970 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 200 V | -55°C ~ 175°C | Through Hole |
|
|
TSF20L150CDIODE ARRAY SCHOTT 150V ITO220AB |
3,485 | 1.98 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 10A | 950 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 150°C | Through Hole |
|
|
TSF30L150CDIODE ARRAY SCHOTT 150V ITO220AB |
681 | 2.40 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 15A | 920 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 150°C | Through Hole |
|
|
TSF40L100CDIODE ARRAY SCHOTT 100V ITO220AB |
600 | 2.74 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|

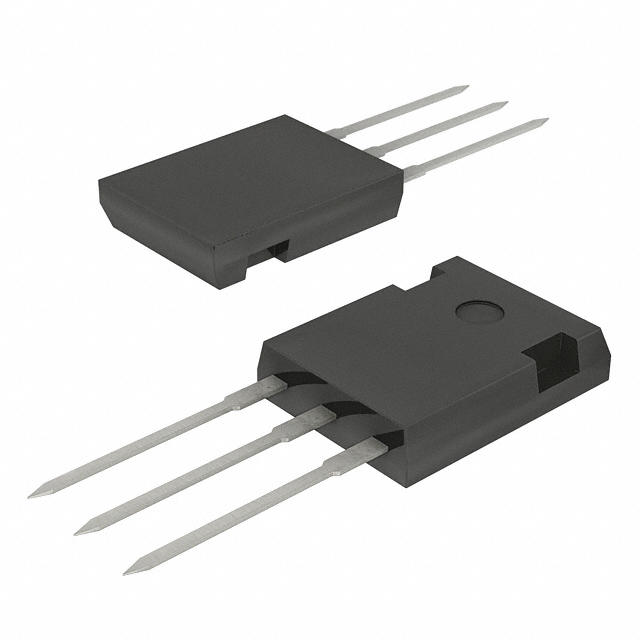

MBR6060PTDIODE SCHOTTKY 60V 60A TO247AD |
995 | 4.16 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 60A | 930 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 60 V | -55°C ~ 150°C | Through Hole |
|
|
MBRF10100CTDIODE SCHOTTKY 100V 10A ITO220AB |
744 | 1.09 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 10A | 950 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
MBR10H150CTDIODE SCHOTTKY 150V 10A TO220AB |
696 | 1.15 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 10A | 970 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 150 V | -55°C ~ 175°C | Through Hole |
|
|
MBR10150CTDIODE SCHOTTKY 150V 10A TO220AB |
2,496 | 1.22 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 10A | 980 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 150°C | Through Hole |
|
|
MBRF2060CTDIODE SCHOTTKY 60V 20A ITO220AB |
916 | 1.29 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 20A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | -55°C ~ 150°C | Through Hole |
|
|
SRF2060DIODE SCHOTTKY 60V 20A ITO220AB |
905 | 1.29 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 20A | 700 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | -55°C ~ 150°C | Through Hole |
|
|
UG1008GHDIODE ARRAY GP 600V 10A TO220AB |
807 | 1.31 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 600 V | 10A | 1.7 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 10 µA @ 600 V | -55°C ~ 150°C | Through Hole |
|
|
HERF1605GDIODE ARRAY GP 400V ITO-220AB |
884 | 1.65 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 400 V | 16A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 400 V | -55°C ~ 150°C | Through Hole |
|
|
TSF10U60CDIODE ARRAY SCHOTT 60V ITO220AB |
775 | 1.90 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 5A | 420 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | -55°C ~ 150°C | Through Hole |
|
|
TSF10L200CWDIODE ARRAY SCHOTT 200V ITO220AB |
949 | 2.24 |
RFQ |
Datasheet |
Tube | - | Not For New Designs | 1 Pair Common Cathode | Schottky | 200 V | 5A | 900 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 200 V | -55°C ~ 150°C | Through Hole |
|
|
MBRF30200CTDIODE SCHOTTKY 200V 30A ITO220AB |
768 | 2.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 30A | 1.05 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 200 V | -55°C ~ 150°C | Through Hole |
|
TSI20H200CWDIODE ARRAY SCHOTTKY 200V I2PAK |
761 | 2.73 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 200 V | 10A | 770 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -55°C ~ 150°C | Through Hole |
