| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBE818-TL-EDIODE ARRAY SCHOTTKY 30V 2A 8EMH |
3,010 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | 2 Independent | Schottky | 30 V | 2A | 620 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 7.5 µA @ 15 V | -55°C ~ 125°C | Surface Mount |
|
BAT54S-D87ZDIODE ARRAY SCHOTTKY 30V SOT23-3 |
2,411 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 Pair Series Connection | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -55°C ~ 150°C | Surface Mount |
|
|
MMBD2838DIODE ARRAY GP 75V 200MA SOT23-3 |
3,412 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 50 V | -55°C ~ 150°C | Surface Mount |
|
RURD620CCS9ADIODE ARRAY GP 200V 6A DPAK |
3,963 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 6A | 1 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 100 µA @ 200 V | -65°C ~ 175°C | Surface Mount |
|
RURG3060CC-F085DIODE ARRAY GP 600V 30A TO247 |
2,275 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 600 V | 30A | 1.5 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 250 µA @ 600 V | -55°C ~ 175°C | Through Hole |
|
|
BAV99-D87ZDIODE ARRAY GP 70V 200MA SOT23-3 |
2,405 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 Pair Series Connection | Standard | 70 V | 200mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 2.5 µA @ 70 V | -55°C ~ 150°C | Surface Mount |
|
|
BAW74-D87ZDIODE ARRAY GP 50V 200MA SOT23-3 |
2,539 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 Pair Common Anode | Standard | 50 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 µA @ 50 V | 150°C (Max) | Surface Mount |
|
|
BAW74DIODE ARRAY GP 50V 200MA SOT23-3 |
3,481 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 50 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 µA @ 50 V | 150°C (Max) | Surface Mount |
|
BAV23CLT3GDIODE ARRAY GP 250V 400MA SOT23 |
2,616 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Standard | 250 V | 400mA (DC) | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 100 nA @ 250 V | -55°C ~ 150°C | Surface Mount |
|
NRVBB2535CTLGDIODE SCHOTTKY 35V 12.5A D2PAK-3 |
200 | 1.50 |
RFQ |
Datasheet |
Bulk,Tube,Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 35 V | 12.5A | 470 mV @ 12.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 35 V | -65°C ~ 125°C | Surface Mount |
_418D-01.jpg)
|

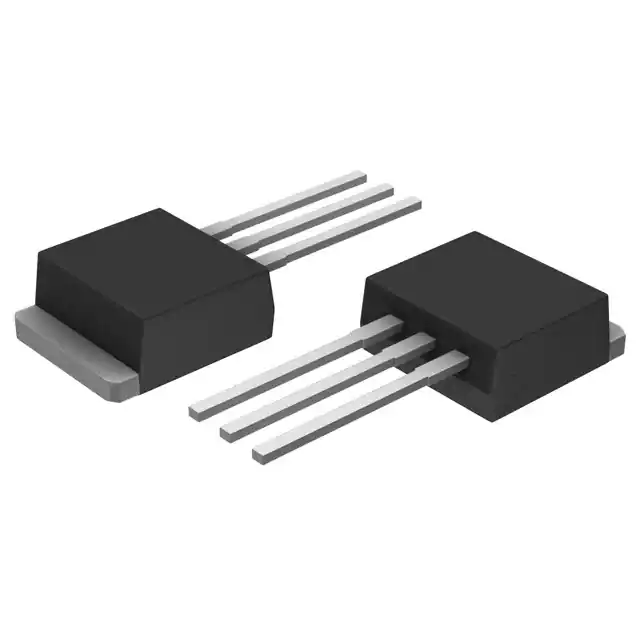

NTSB40100CT-1GDIODE ARRAY SCHOTTKY 100V I2PAK |
2,862 | 0.81 |
RFQ |
Datasheet |
Bulk,Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 12 µA @ 70 V | -40°C ~ 150°C | Through Hole |
|
|
NTSB40100CTGDIODE ARRAY SCHOTTKY 100V D2PAK |
3,894 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 12 µA @ 70 V | -40°C ~ 150°C | Surface Mount |
|
NTSJ40100CTGDIODE ARRAY SCHOTTKY 100V TO220F |
3,623 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 12 µA @ 70 V | -40°C ~ 150°C | Through Hole |
|
|
SB80W06T-P-TL-HDIODE ARRAY SCHOTTKY 60V 4A TPFA |
3,278 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 4A | 600 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 30 V | -55°C ~ 150°C | Surface Mount |
|
SBE805-S-TL-EDIODE ARRAY SCHOTTKY 30V 5CPH |
3,805 | 0.22 |
RFQ |
Bulk | - | Obsolete | 2 Independent | Schottky | 30 V | 500mA | 550 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 30 µA @ 15 V | -55°C ~ 125°C | Surface Mount | |
|
|
SBE805-S-TL-WDIODE ARRAY SCHOTTKY 30V 5CPH |
2,434 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 2 Independent | Schottky | 30 V | 500mA | 550 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 30 µA @ 15 V | -55°C ~ 125°C | Surface Mount | |
|
|
SBE807-S-TL-WDIODE ARRAY SCHOTTKY 30V 1A 5CPH |
3,189 | 0.19 |
RFQ |
Tape & Reel (TR),Bulk | - | Obsolete | 2 Independent | Schottky | 30 V | 1A | 530 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 15 µA @ 16 V | -55°C ~ 125°C | Surface Mount | |
|
|
SBS811-S-TL-EDIODE ARRAY SCHOTTKY 30V 2A 8VEC |
3,299 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 2 Independent | Schottky | 30 V | 2A | 400 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 1.25 mA @ 15 V | -55°C ~ 125°C | Surface Mount | |
, Flat Lead.jpg)
|
SBS822-S-TL-HDIODE ARRAY SCHOTTKY 20V 5MCPH |
3,194 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 2 Independent | Schottky | 20 V | 1A | 460 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 110 µA @ 10 V | -55°C ~ 125°C | Surface Mount | |
|
|
SBS822-S-TL-WDIODE ARRAY SCHOTTKY 20V 5MCPH |
2,075 | 1.00 |
RFQ |
Tape & Reel (TR),Bulk | - | Obsolete | 2 Independent | Schottky | 20 V | 1A | 460 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 110 µA @ 10 V | -55°C ~ 125°C | Surface Mount |
