| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

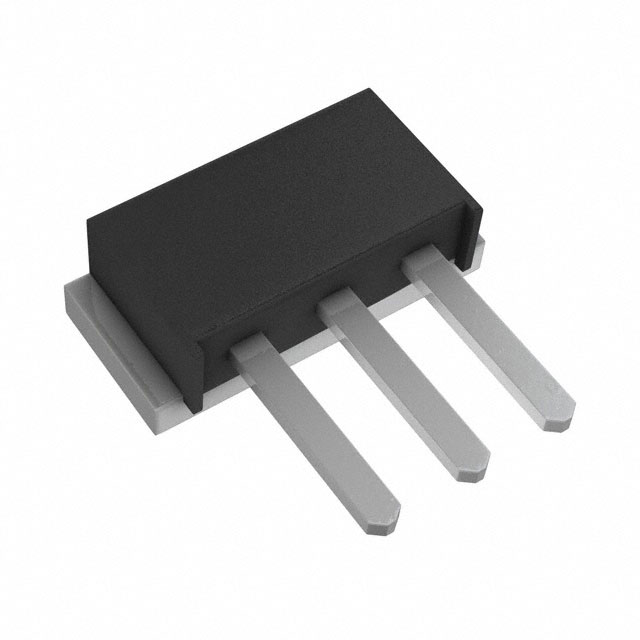

66CNQ200SMDIODE SCHOTTKY 200V 30A PRM3-SM |
2,297 | 20.61 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 30A | 920 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 200 V | -55°C ~ 175°C | Through Hole |
|
85CNQ015S2DIODE ARRAY SCHOTTKY 15V PRM2 |
2,168 | 23.23 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 15 V | 80A | 450 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 15 V | -55°C ~ 125°C | Chassis Mount |
|
113CNQ100SLPIV 100V, IO 110A, VF 0.81V PACK |
2,808 | 25.05 |
RFQ |
Datasheet |
Box | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 55A | 810 mV @ 55 A | Small Signal =< 200mA (Io), Any Speed | - | 1 mA @ 100 V | -55°C ~ 175°C | Surface Mount |
|
160CMQ035DIODE SCHOTTKY 35V 80A TO249AA |
3,194 | 40.48 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 80A | 860 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 35 V | -55°C ~ 150°C | Chassis Mount |
|
|
160CMQ040DIODE SCHOTTKY 40V 80A TO249AA |
2,607 | 40.48 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 80A | 860 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 40 V | -55°C ~ 150°C | Chassis Mount |
|
|
161CMQ035DIODE SCHOTTKY 35V 80A TO249AA |
3,453 | 40.48 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 80A | 880 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 35 V | -55°C ~ 175°C | Chassis Mount |
|
|
161CMQ040DIODE SCHOTTKY 40V 80A TO249AA |
3,445 | 40.48 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 80A | 880 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 40 V | -55°C ~ 175°C | Chassis Mount |
|
|
161CMQ045DIODE SCHOTTKY 45V 80A TO249AA |
2,865 | 40.48 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 80A | 880 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 175°C | Chassis Mount |
|
|
166CMQ200DIODE SCHOTTKY 200V 80A TO249AA |
3,991 | 40.73 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 80A | 1.1 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 200 V | -55°C ~ 175°C | Chassis Mount |
|
|
169CMQ135DIODE SCHOTTKY 135V 80A TO249AA |
3,360 | 40.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 135 V | 80A | 850 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 135 V | -55°C ~ 150°C | Chassis Mount |
|
|
169CMQ150DIODE SCHOTTKY 150V 80A TO249AA |
2,825 | 40.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 80A | 850 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 150 V | -55°C ~ 150°C | Chassis Mount |
;;.jpg)
|
200CMQ035DIODE SCHOTTKY 35V 100A PRM4 |
3,100 | 54.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 100A | 540 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 35 V | -55°C ~ 150°C | Chassis Mount |
|
|
200CMQ040DIODE SCHOTTKY 40V 100A PRM4 |
3,770 | 54.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 100A | 540 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 40 V | -55°C ~ 150°C | Chassis Mount |
|
|
200CMQ045DIODE SCHOTTKY 45V 100A PRM4 |
3,547 | 54.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 100A | 540 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | -55°C ~ 150°C | Chassis Mount |
;;.jpg)
|
200CNQ035DIODE SCHOTTKY 35V 100A PRM4 |
2,427 | 54.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 100A | 570 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 35 V | -55°C ~ 150°C | Chassis Mount |
|
|
200CNQ040DIODE SCHOTTKY 40V 100A PRM4 |
3,495 | 54.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 100A | 570 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 40 V | -55°C ~ 150°C | Chassis Mount |
|
|
200CNQ045DIODE SCHOTTKY 45V 100A PRM4 |
2,193 | 54.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 100A | 570 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | -55°C ~ 150°C | Chassis Mount |
|
|
201CMQ035DIODE SCHOTTKY 35V 100A PRM4 |
2,480 | 54.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 100A | 670 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 35 V | -55°C ~ 175°C | Chassis Mount |
|
|
201CMQ040DIODE SCHOTTKY 40V 100A PRM4 |
3,822 | 54.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 100A | 670 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 40 V | -55°C ~ 175°C | Chassis Mount |
|
|
201CMQ045DIODE SCHOTTKY 45V 100A PRM4 |
3,667 | 54.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 100A | 670 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | -55°C ~ 175°C | Chassis Mount |
