| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

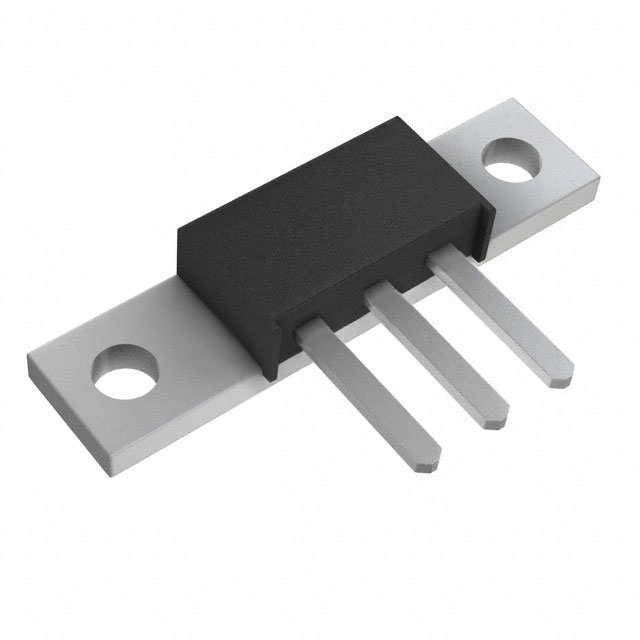

60CNQ040DIODE SCHOTTKY 40V 30A PRM3 |
3,215 | 17.03 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 30A | 640 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 40 V | -55°C ~ 150°C | Through Hole |
|
|
60CNQ045DIODE SCHOTTKY 45V 30A PRM3 |
3,683 | 17.03 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 640 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 150°C | Through Hole |
|
|
61CNQ035DIODE SCHOTTKY 35V 30A PRM3 |
2,771 | 17.03 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 30A | 680 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 35 V | -55°C ~ 175°C | Through Hole |
|
|
61CNQ040DIODE SCHOTTKY 40V 30A PRM3 |
2,805 | 17.03 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 30A | 680 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 40 V | -55°C ~ 175°C | Through Hole |
|
|
61CNQ045DIODE SCHOTTKY 45V 30A PRM3 |
3,712 | 17.03 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 680 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 175°C | Through Hole |
|
|
62CNQ030DIODE SCHOTTKY 30V 30A PRM3 |
2,144 | 17.03 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 30A | 530 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 30 V | -55°C ~ 150°C | Through Hole |
|
86CNQ200S2DIODE ARRAY SCHOTTKY 200V PRM2 |
3,584 | 17.03 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 80A | 1.14 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.1 mA @ 200 V | -55°C ~ 175°C | Chassis Mount |
|
89CNQ135S2DIODE ARRAY SCHOTTKY 135V PRM2 |
3,489 | 17.03 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 135 V | 80A | 1.14 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 135 V | -55°C ~ 175°C | Through Hole |
|
|
89CNQ150S2DIODE ARRAY SCHOTTKY 150V PRM2 |
2,694 | 17.03 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 80A | 1.14 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 150 V | -55°C ~ 175°C | Through Hole |
|
85CNQ015SMDIODE SCHOTTKY 15V 40A PRM2-SM |
3,002 | 17.05 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 15 V | 40A | 450 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 15 V | -55°C ~ 125°C | Through Hole |
|
|
86CNQ200SMDIODE SCHOTTKY 200V 40A PRM2-SM |
2,927 | 17.05 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 40A | 1.14 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.1 mA @ 200 V | -55°C ~ 175°C | Through Hole |
|
|
89CNQ135SMDIODE SCHOTTKY 135V 40A PRM2-SM |
3,630 | 17.05 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 135 V | 40A | 1.14 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 135 V | -55°C ~ 175°C | Through Hole |
|
|
89CNQ150SMDIODE SCHOTTKY 150V 40A PRM2-SM |
3,370 | 17.05 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 40A | 1.14 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 150 V | -55°C ~ 175°C | Through Hole |
|
|
83CNQ080SMDIODE SCHOTTKY 80V 40A PRM2-SM |
3,959 | 17.05 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 80 V | 40A | 1 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 80 V | -55°C ~ 175°C | Through Hole |
|
|
83CNQ100SMDIODE SCHOTTKY 100V 40A PRM2-SM |
3,686 | 17.05 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 40A | 1 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 100 V | -55°C ~ 175°C | Through Hole |
|
80CNQ035SLDIODE SCHOTTKY 35V 40A PRM2-SL |
3,704 | 17.14 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 40A | 660 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 35 V | -55°C ~ 175°C | Surface Mount |
|
|
80CNQ040SLDIODE SCHOTTKY 40V 40A PRM2-SL |
2,862 | 17.14 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 40A | 660 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 40 V | -55°C ~ 150°C | Surface Mount |
|
|
84CNQ060SMS2DIODE ARRAY SCHOTTKY 60V PRM2-SM |
3,198 | 17.35 |
RFQ |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | Through Hole |
|
87CNQ020SMS2DIODE ARRAY SCHOTTKY 20V PRM2-SM |
3,406 | 17.35 |
RFQ |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - |
|
|
88CNQ060SMS2DIODE ARRAY SCHOTTKY 60V PRM2-SM |
3,434 | 17.35 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 80A | 770 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 640 µA @ 60 V | -55°C ~ 175°C | Through Hole |
