| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

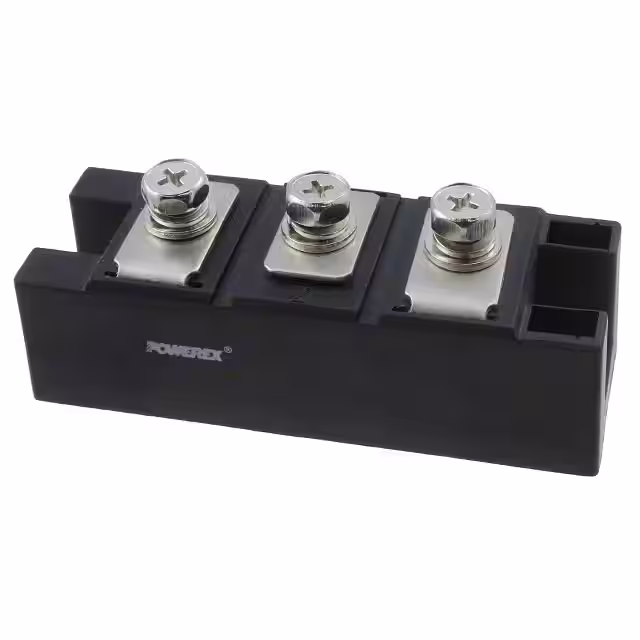

CD611616CDIODE MODULE 1.6KV 160A |
3,112 | 62.37 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 160A | - | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1600 V | -40°C ~ 150°C | Screw Mount |
|
CD611816CDIODE MODULE 1.8KV 160A |
2,812 | 65.41 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 160A | - | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1800 V | - | Chassis Mount |
|

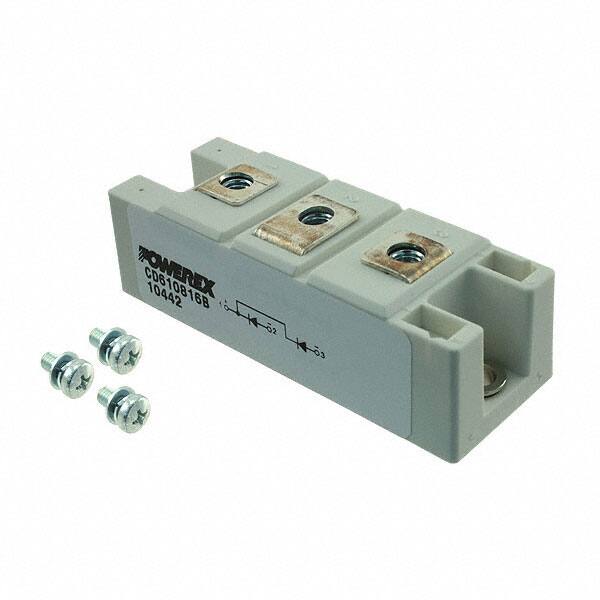

CD610816BDIODE MODULE 800V 160A POWRBLOK |
2,165 | 72.28 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 160A | 1.43 V @ 520 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
|
CD611016BDIODE MODULE 1KV 160A POW-R-BLOK |
3,307 | 81.68 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1000 V | 160A | 1.43 V @ 520 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1000 V | - | Chassis Mount |
|
|
CD611216BDIODE MODULE 1.2KV 160A POWRBLOK |
2,404 | 81.68 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 160A | 1.43 V @ 520 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | - | Chassis Mount |
|
|
CD611416BDIODE MODULE 1.4KV 160A POWRBLOK |
2,100 | 81.68 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 160A | 1.43 V @ 520 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1400 V | - | Chassis Mount |
|
|
ND410826DIODE MODULE 800V 260A POWRBLOK |
3,695 | 139.27 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | - | Chassis Mount |
|
ND411226DIODE MODULE 1.2KV 260A POWRBLOK |
2,484 | 140.52 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1200 V | - | Chassis Mount |
|
|
ND411426DIODE MODULE 1.4KV 260A POWRBLOK |
3,435 | 141.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1400 V | - | Chassis Mount |
|
|
ND411826DIODE MODULE 1.8KV 260A POWRBLOK |
3,587 | 145.77 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1800 V | - | Chassis Mount |
|
|
ND410835DIODE MODULE DUAL |
3,543 | 149.97 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 350A | 1.2 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 30 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
|
ND411235DIODE MODULE DUAL |
2,955 | 150.74 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 350A | 1.2 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 30 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|
|
ND412026DIODE MODULE 2KV 260A POW-R-BLOK |
2,145 | 150.78 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2000 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 2000 V | - | Chassis Mount |
|
|
ND411435DIODE MODULE DUAL |
2,758 | 151.52 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 350A | 1.2 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 30 mA @ 1400 V | -40°C ~ 150°C | Chassis Mount |
|
|
ND411626DIODE MODULE 1.6KV 260A POWRBLOK |
3,185 | 152.46 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 260A | - | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 50 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
ND412226DIODE MODULE DUAL |
2,547 | 153.87 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2200 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 50 mA @ 2200 V | -40°C ~ 150°C | Chassis Mount |
|
|
ND411735DIODE MODULE DUAL |
3,015 | 156.92 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1700 V | 350A | 1.2 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 30 mA @ 1700 V | -40°C ~ 150°C | Chassis Mount |
|
|
ND412426DIODE MODULE DUAL |
2,633 | 158.51 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2400 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 50 mA @ 2400 V | -40°C ~ 150°C | Chassis Mount |
|
LD412060DIODE MODULE 2KV 600A POW-R-BLOK |
3,062 | 248.66 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2000 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2000 V | - | Chassis Mount |
|
|
LD412260DIODE MODULE 2.2KV 600A POWRBLOK |
2,456 | 236.72 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2200 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2200 V | - | Chassis Mount |
