| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD411699CDIODE MODULE 1.6KV 100A |
2,606 | 41.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 8 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
ND411635DIODE MODULE DUAL |
3,874 | 162.29 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 350A | 1.2 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 30 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|

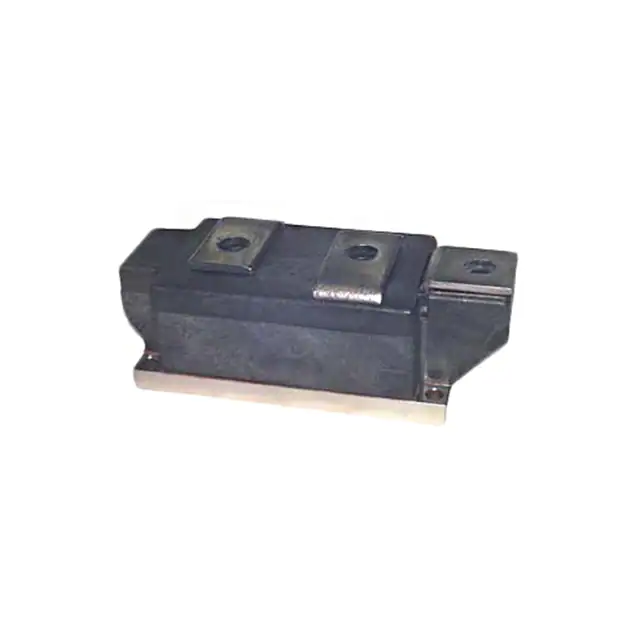

LDR11666DIODE MODULE 1.6KV POW-R-BLOK |
3,013 | 156.59 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | - | 660A (DC) | 1.4 V @ 1978 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 mA @ 1800 V | -40°C ~ 150°C | Chassis Mount |
|
CD412099CDIODE MODULE DUAL |
3,468 | 42.35 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2000 V | 100A | 1.65 V @ 330 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 2000 V | -40°C ~ 150°C | Chassis Mount |
|
|

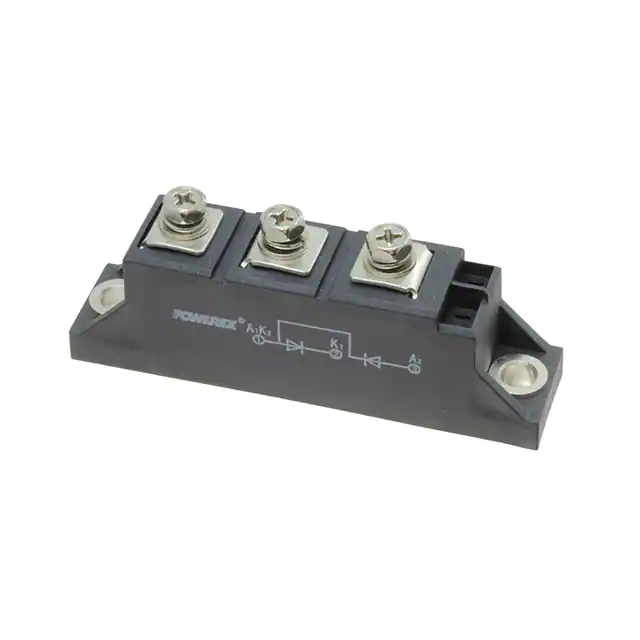

CD412499CDIODE MODULE DUAL |
2,999 | 43.05 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2400 V | 100A | 1.65 V @ 330 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 2400 V | -40°C ~ 150°C | Chassis Mount |
|
|
CD412299CDIODE MODULE DUAL |
3,613 | 42.77 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2200 V | 100A | 1.65 V @ 330 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 2200 V | -40°C ~ 150°C | Chassis Mount |
|
ND410635DIODE MODULE DUAL |
2,584 | 159.97 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 600 V | 350A | 1.2 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 30 mA @ 600 V | -40°C ~ 150°C | Chassis Mount |
|
|
LDR11866DIODE MODULE 1.8KV POW-R-BLOK |
2,045 | 162.79 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | - | 660A (DC) | 1.4 V @ 1978 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 mA @ 1800 V | -40°C ~ 150°C | Chassis Mount |
|

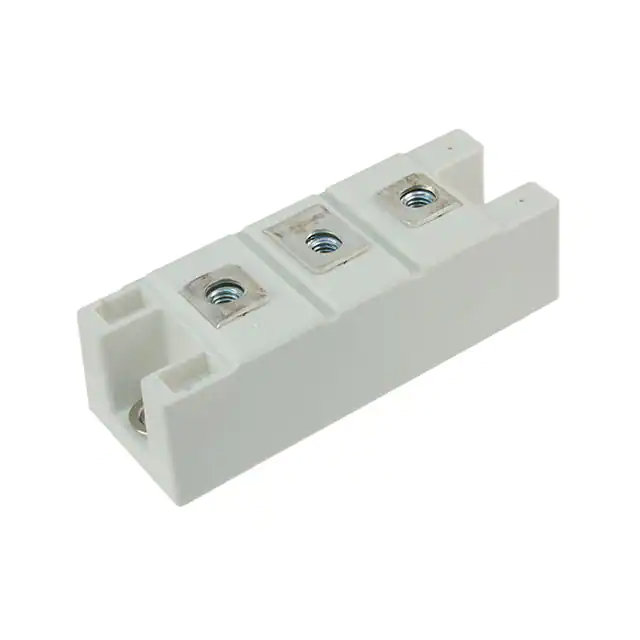

CD611616BDIODE MODULE 1.6KV 160A POWRBLOK |
3,478 | 84.66 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 160A | 1.43 V @ 520 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
LD412660DIODE MODULE DUAL |
3,538 | 263.38 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2600 V | 600A | 1.18 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2600 V | -40°C ~ 150°C | Chassis Mount |
|
|
CD411099CDIODE MODULE 1KV 100A |
2,052 | 36.45 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1000 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 8 mA @ 1000 V | - | Chassis Mount |
|
|
CD411299CDIODE MODULE 1.2KV 100A |
3,295 | 37.21 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 8 mA @ 1200 V | - | Chassis Mount |
|
|
CD410899CDIODE MODULE 800V 100A |
2,965 | 37.51 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 8 mA @ 800 V | - | Chassis Mount |
|
|
CD411499CDIODE MODULE 1.4KV 100A |
2,300 | 38.04 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 8 mA @ 1400 V | - | Chassis Mount |
|
|
CD411899CDIODE MODULE 1.8KV 100A |
3,909 | 39.07 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 8 mA @ 1800 V | - | Chassis Mount |
|
|
CD412599CDIODE MODULE DUAL |
2,165 | 41.19 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2000 V | 100A | 1.65 V @ 330 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 2000 V | -40°C ~ 150°C | Chassis Mount |
|
|
CD610816CDIODE MODULE 800V 160A |
3,780 | 61.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 160A | - | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 800 V | - | Chassis Mount |
|
|
CD611016CDIODE MODULE 1KV 160A |
3,733 | 61.68 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1000 V | 160A | - | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1000 V | - | Chassis Mount |
|
|
CD611216CDIODE MODULE 1.2KV 160A |
3,323 | 61.97 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 160A | - | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1200 V | - | Screw Mount |
|
|
CD611416CDIODE MODULE 1.4KV 160A |
3,416 | 62.19 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 160A | - | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1400 V | - | Screw Mount |
