| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DA227TLDIODE ARRAY GP 80V 100MA UMD4 |
3,122 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 Independent | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 70 V | 150°C (Max) | Surface Mount |
|
IMP11T110DIODE ARRAY GP 80V 100MA 6SMD |
2,101 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 2 Pair Common Anode | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 70 V | 150°C (Max) | Surface Mount |
|
|
IMN11T110DIODE ARRAY GP 80V 100MA 6SMD |
3,984 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 Pair Common Cathode | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 70 V | 150°C (Max) | Surface Mount |
|
BAT54SHMFHT116DIODE ARRAY SCHOT 30V 200MA SSD3 |
3,078 | 0.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Not For New Designs | 1 Pair Series Connection | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 2 µA @ 25 V | 150°C (Max) | Surface Mount |
|
RB705DFHT146ROHM'S SCHOTTKY BARRIER DIODES A |
2,770 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 40 V | 30mA | 370 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 10 V | 125°C (Max) | Surface Mount |
|
|
IMN10FHT108SWITCHING DIODES (CORRESPONDS TO |
2,743 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 3 Independent | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 70 V | 150°C (Max) | Surface Mount |
|
|
BAT54CHMT116BAT54CHM IS SCHOTTKY BARRIER DIO |
2,950 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 2 µA @ 25 V | 150°C (Max) | Surface Mount |
|
|
BAV170HMFHT116SWITCHING DIODE (LOW LEAKAGE) |
2,774 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 80 V | 215mA (DC) | 1.25 V @ 150 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 5 nA @ 75 V | 150°C (Max) | Surface Mount |
|
DAN217UMFHTLSWITCHING DIODES (CORRESPONDS TO |
2,005 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 200 nA @ 70 V | 150°C (Max) | Surface Mount |
|
RB706WM-40FHTLSCHOTTKY BARRIER DIODE (AEC-Q101 |
2,134 | 0.41 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Schottky | 40 V | 30mA | 370 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 500 nA @ 30 V | 125°C (Max) | Surface Mount | |
|
RBR10BM40AFHTLDIODE ARRAY SCHOTT 40V 10A TO252 |
3,061 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 40 V | 10A | 620 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 µA @ 40 V | 150°C (Max) | Surface Mount |
|
DAN222MT2LDIODE ARRAY GP 80V 100MA VMD3 |
2,789 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 Pair Common Cathode | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 70 V | 150°C (Max) | Surface Mount |
|

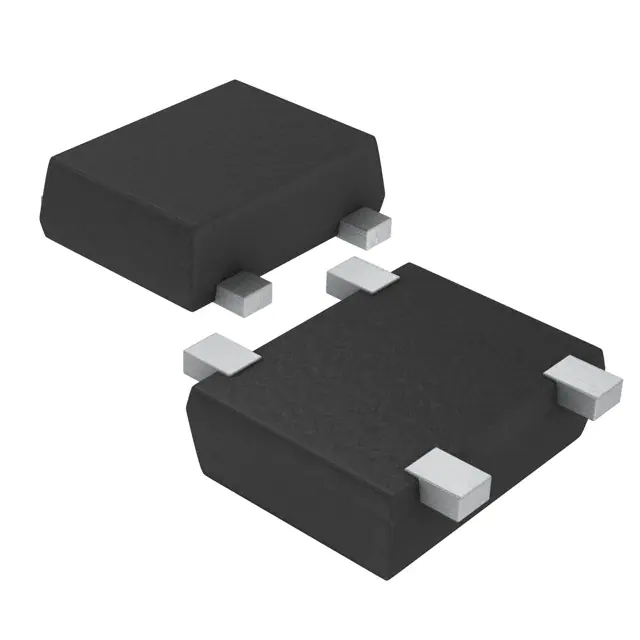

RB480YT2RDIODE ARRAY SCHOTTKY 30V EMD4 |
3,932 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 2 Independent | Schottky | 30 V | 100mA | 530 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 10 V | 125°C (Max) | Surface Mount |
|
RBQ10NS65AFHTLDIODE (RECTIFIER FRD) 65V-VRM 65 |
2,578 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 65 V | 10A | 690 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 70 µA @ 65 V | 150°C (Max) | Surface Mount |
|
RF601T2DDIODE ARRAY GP 200V 3A TO220FN |
2,053 | 0.91 |
RFQ |
Datasheet |
Bulk,Bulk | - | Active | 1 Pair Common Cathode | Standard | 200 V | 3A | 930 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 10 µA @ 200 V | 150°C (Max) | Through Hole |
|
RBQ10BM45ATLDIODE ARRAY SCHOTTKY 45V TO252 |
2,415 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 10A | 650 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 45 V | 150°C (Max) | Surface Mount |
|
|
RBQ10BM65ATLDIODE ARRAY SCHOTTKY 65V TO252 |
2,921 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 65 V | 10A | 690 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 65 V | 150°C (Max) | Surface Mount |
|
|
RBQ15BM45AFHTLDIODE ARRAY SCHOTT 45V 15A TO252 |
2,817 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 590 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 140 µA @ 45 V | 150°C (Max) | Surface Mount |
|
|
RBQ20NS65AFHTLDIODE ARRAY SCHOTT 65V 20A LPDS |
2,854 | 1.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 65 V | 20A | 690 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 140 µA @ 65 V | 150°C (Max) | Surface Mount |
|
|
RBQ15BM65ATLDIODE (RECTIFIER FRD) 65V-VRM 65 |
3,800 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 65 V | 15A | 630 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 140 µA @ 45 V | 150°C | Surface Mount |
