| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCS240KE2HRC11DIODE SIC |
2,319 | 24.97 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 1200 V | 20A (DC) | 1.6 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 1200 V | 175°C (Max) | Through Hole |
|
BAW156HYT116LOW-LEAKAGE, 80V, 215MA, SOT-23 |
2,278 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Anode | Standard | 80 V | 215mA (DC) | 1.25 V @ 150 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 5 nA @ 75 V | 150°C | Surface Mount |
|
DAN202FMT106HIGH-SPEED SWITCHING, 80V, 100MA |
3,236 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 70 V | 150°C | Surface Mount |
|
DAN222ZMT2LHIGH SPEED SWITCHING, 80V 100MA |
2,711 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 70 V | 150°C | Surface Mount |
|
RB558WTLDIODE ARRAY SCHOTTKY 30V EMD3 |
2,803 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Schottky | 30 V | 100mA | 490 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 10 V | 125°C (Max) | Surface Mount |
|
|
BAS40-04HYT11640V, 120MA, SOT-23, SERIES CONNE |
3,350 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Schottky | 40 V | 120mA (DC) | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 40 V | 150°C | Surface Mount |
|
|
BAS40-04HYFHT11640V, 120MA, SOT-23, SERIES CONNE |
2,465 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Schottky | 40 V | 120mA (DC) | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 40 V | 150°C | Surface Mount |
|
BAT54AHYFHT116DIODE SCHYKY ARRAY 30V .2A SOT23 |
2,415 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 2 µA @ 25 V | 150°C (Max) | Surface Mount |
.jpg)
|
RBE1KA20ATRHIGH EFFICIENCY TYPE, 20V, 1A, S |
3,404 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 Independent | Schottky | 20 V | 1A | 430 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 20 V | 125°C | Surface Mount |
|
RBQ10BM45AFHTLDIODE (RECTIFIER FRD) 45V-VRM 45 |
3,975 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 45 V | 10A | 650 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 45 V | 150°C (Max) | Surface Mount |
|
RB098BM-60TLSUPER LOW IR, 60V, 6A, TO-252 (D |
3,514 | 0.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 6A | 830 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 µA @ 60 V | 150°C | Surface Mount |
|
RBQ30NS45AFHTLDIODE ARRAY SCHOTT 45V 30A LPDS |
2,597 | 1.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 650 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | 150°C (Max) | Surface Mount |
|
RB098BM100TLRB098BM100 IS SUPER LOW IR< |
3,164 | 1.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 6A | 770 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 µA @ 100 V | 150°C | Surface Mount |
|
|
RBQ30NS65AFHTLDIODE ARRAY SCHOTT 65V 30A LPDS |
3,248 | 1.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 65 V | 30A | 690 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 16.1 ns | 450 µA @ 65 V | 150°C (Max) | Surface Mount |
|
RBR15BM60ATLRBR15BM60A IS SCHOTTKY BARRIER D |
3,010 | 0.68 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 7.5A | 580 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 400 µA @ 60 V | 150°C | Surface Mount | |
|

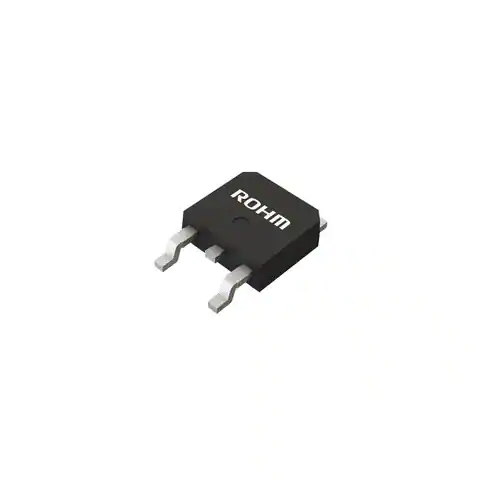

RB088BM100TLSUPER LOW IR, 100V, 10A, TO-252 |
3,905 | 1.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 10A | 870 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 100 V | 150°C | Surface Mount |
|
|
RBQ20BM65ATLDIODE (RECTIFIER FRD) 65V-VRM 65 |
2,941 | 0.74 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 65 V | 10A | 630 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 65 V | 150°C | Surface Mount | |
|
|
RBR20BM30AFHTLDIODE (RECTIFIER FRD) 30V-VR 20A |
2,566 | 1.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 30 V | 20A | 510 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 23.4 ns | 300 µA @ 30 V | 150°C (Max) | Surface Mount |
|
RBR30T40ANZC9RBR30T40ANZ IS LOW VF |
3,544 | 0.82 |
RFQ |
Datasheet |
Cut Tape (CT),Tube | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 360 µA @ 40 V | 150°C | Through Hole |
|
|
RBQ30T45ANZC9RBQ30T45ANZ IS LOW IR |
3,495 | 0.82 |
RFQ |
Datasheet |
Cut Tape (CT),Tube | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 650 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 450 µA @ 45 V | 150°C | Through Hole |
