| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBRT20045DIODE MODULE 45V 100A 3TOWER |
2,750 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT20045RDIODE MODULE 45V 100A 3TOWER |
2,207 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 45 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT20060RDIODE MODULE 60V 100A 3TOWER |
2,787 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 60 V | 100A | 800 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT20080DIODE MODULE 80V 100A 3TOWER |
3,315 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 80 V | 100A | 880 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT20080RDIODE MODULE 80V 100A 3TOWER |
2,212 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 80 V | 100A | 880 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
MBR400150CTDIODE SCHOTTKY 150V 200A 2 TOWER |
3,114 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 200A | 880 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 150 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR400150CTRDIODE SCHOTTKY 150V 200A 2 TOWER |
2,935 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 150 V | 200A | 880 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 150 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR400200CTDIODE SCHOTTKY 200V 200A 2 TOWER |
3,334 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 200A | 920 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 200 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR400200CTRDIODE SCHOTTKY 200V 200A 2 TOWER |
3,865 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 200 V | 200A | 920 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 200 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT200150DIODE SCHOTTKY 150V 100A 3 TOWER |
3,322 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 100A | 880 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT200150RDIODE SCHOTTKY 150V 100A 3 TOWER |
3,016 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 150 V | 100A | 880 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT200200DIODE SCHOTTKY 200V 100A 3 TOWER |
3,115 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 100A | 920 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT200200RDIODE SCHOTTKY 200V 100A 3 TOWER |
2,525 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 200 V | 100A | 920 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | Chassis Mount |
|

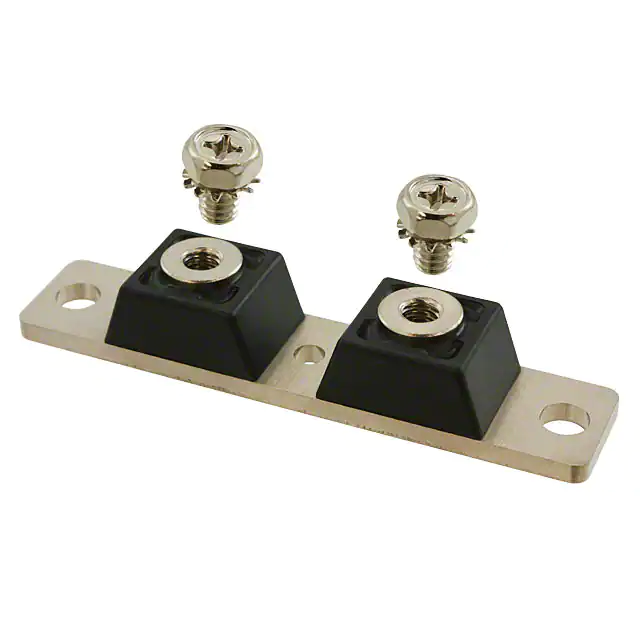

MUR20010CTDIODE MODULE 100V 100A 2TOWER |
3,279 | 101.66 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
|

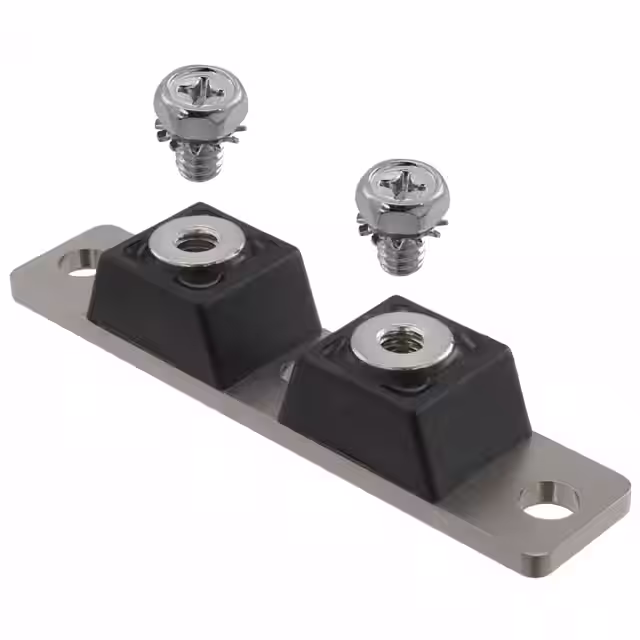

MUR20010CTRDIODE MODULE 100V 100A 2TOWER |
2,821 | 101.66 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 100 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
|
|
MURT20020DIODE MODULE 200V 100A 3TOWER |
2,268 | 104.49 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 200 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
|
|
MURT20020RDIODE MODULE 100A 3TOWER |
2,875 | 104.49 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 200 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
|
|
MURT20040DIODE MODULE 400V 100A 3TOWER |
3,572 | 104.49 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 400 V | 100A | 1.35 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
|
|
MURT20040RDIODE MODULE 400V 100A 3TOWER |
3,236 | 104.49 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 400 V | 100A | 1.35 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
|
|
MURT20060DIODE MODULE 600V 100A 3TOWER |
3,465 | 104.49 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 600 V | 100A | 1.7 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 160 ns | 25 µA @ 50 V | -55°C ~ 150°C | Chassis Mount |
