| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBRT20035RDIODE MODULE 35V 100A 3TOWER |
3,729 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 35 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT20040RDIODE MODULE 40V 100A 3TOWER |
2,642 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 40 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT20035DIODE MODULE 35V 100A 3TOWER |
2,023 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|

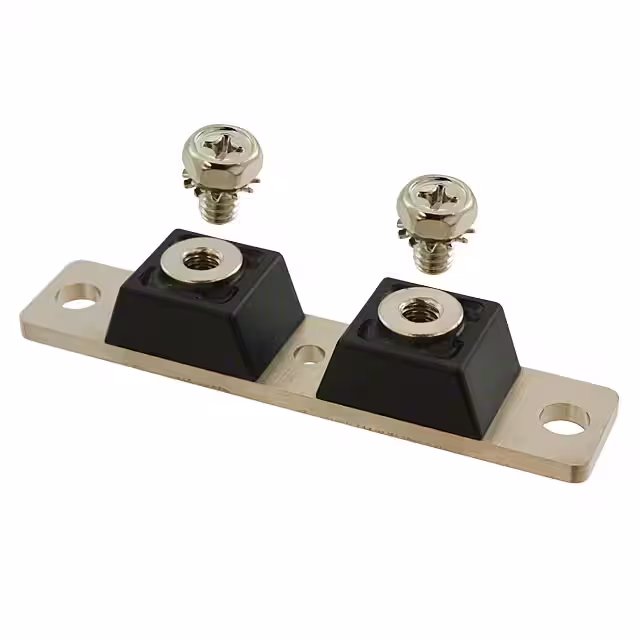

MBR40035CTDIODE MODULE 35V 200A 2TOWER |
2,191 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 200A | 700 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 35 V | -55°C ~ 150°C | Chassis Mount |
|
MBR40040CTDIODE MODULE 40V 200A 2TOWER |
2,885 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 200A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
MBR40020CTDIODE MODULE 20V 200A 2TOWER |
3,854 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 20 V | 200A | 650 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR40020CTRDIODE MODULE 20V 200A 2TOWER |
2,613 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 20 V | 200A | 650 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR40030CTDIODE MODULE 30V 200A 2TOWER |
3,504 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 200A | 650 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR40030CTRDIODE MODULE 30V 200A 2TOWER |
3,678 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 30 V | 200A | 650 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR40045CTDIODE MODULE 45V 200A 2TOWER |
3,882 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 200A | 650 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR40045CTRDIODE MODULE 45V 200A 2TOWER |
2,374 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 45 V | 200A | 650 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR40060CTDIODE MODULE 60V 200A 2TOWER |
2,225 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 200A | 800 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR40060CTRDIODE MODULE 60V 200A 2TOWER |
2,003 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 60 V | 200A | 800 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR40080CTDIODE MODULE 80V 200A 2TOWER |
3,339 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 80 V | 200A | 840 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR40080CTRDIODE MODULE 80V 200A 2TOWER |
2,686 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 80 V | 200A | 840 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT200100RDIODE MODULE 100V 100A 3TOWER |
3,411 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky, Reverse Polarity | 100 V | 100A | 880 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT20020DIODE MODULE 20V 100A 3TOWER |
3,000 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 20 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT20020RDIODE MODULE 20V 100A 3TOWER |
2,766 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 20 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT20030DIODE MODULE 30V 100A 3TOWER |
2,829 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBRT20030RDIODE MODULE 30V 100A 3TOWER |
3,847 | 98.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 30 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
