| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HFA240NJ40CDIODE MODULE 400V 244A TO244AB |
2,079 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 244A (DC) | 1.5 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 9 µA @ 400 V | - | Chassis Mount |
|

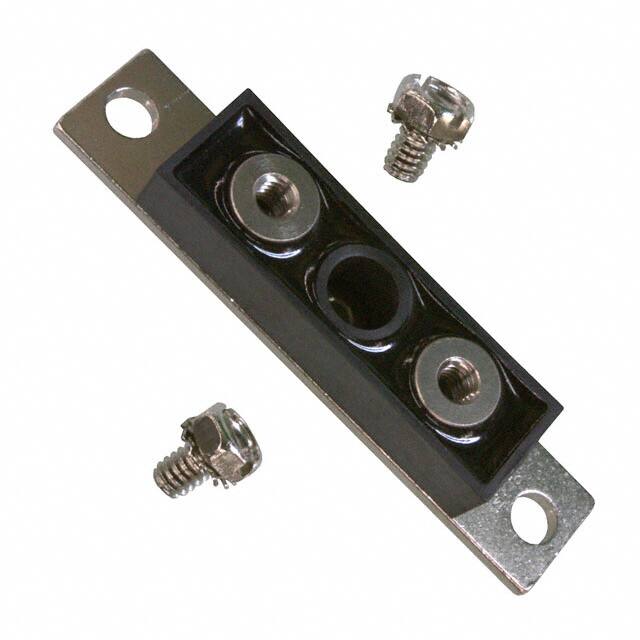

HFA240NJ40DDIODE MODULE 400V 244A TO244AB |
3,582 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFRED® | Obsolete | 1 Pair Series Connection | Standard | 400 V | 244A (DC) | 1.5 V @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 9 µA @ 400 V | - | Chassis Mount |
|

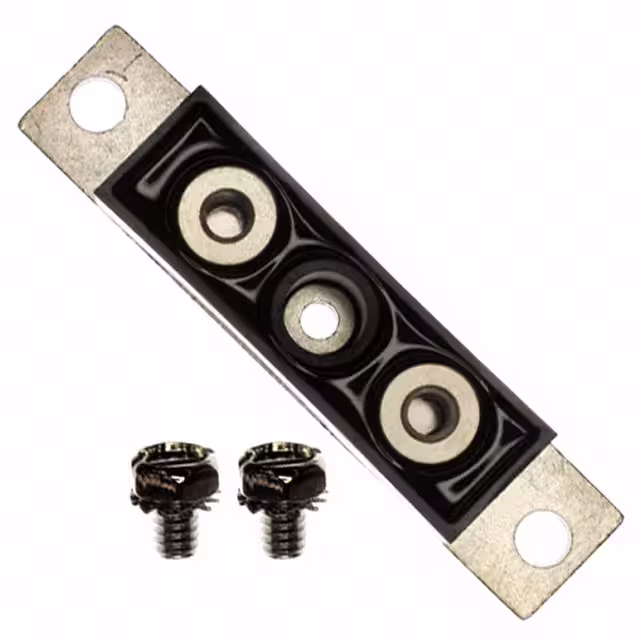

HFA280NJ60CDIODE MODULE 600V 222A TO244AB |
3,670 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 222A (DC) | 1.6 V @ 140 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 40 µA @ 600 V | - | Chassis Mount |
|
|
HFA320NJ40CDIODE MODULE 400V 321A TO244AB |
3,605 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 321A (DC) | 1.55 V @ 320 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 12 µA @ 400 V | - | Chassis Mount |
|
|
HFA320NJ40DDIODE MODULE 400V 321A TO244AB |
3,014 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFRED® | Obsolete | 1 Pair Series Connection | Standard | 400 V | 321A (DC) | 1.55 V @ 320 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 12 µA @ 400 V | - | Chassis Mount |
|
HFA80NK40CDIODE MODULE 400V 89A TO249AA |
2,255 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 89A (DC) | 1.5 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 3 µA @ 400 V | - | Chassis Mount |
|
HFA16PA120CDIODE ARRAY GP 1200V 8A TO247AC |
2,235 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 1200 V | 8A (DC) | 3.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 95 ns | 10 µA @ 1200 V | -55°C ~ 150°C | Through Hole |
|
153CNQ100DIODE ARRAY SCHOTTKY 100V D60 |
2,411 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 150A | 1.19 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
|
6CWQ03FNDIODE ARRAY SCHOTTKY 30V DPAK |
3,347 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 3.5A | 450 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 30 V | -40°C ~ 150°C | Surface Mount |
|
20CJQ060DIODE ARRAY SCHOTTKY 60V SOT223 |
3,505 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 1A | 590 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | -55°C ~ 150°C | Surface Mount |
|
|
20CJQ100DIODE ARRAY SCHOTTKY 100V SOT223 |
3,483 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 1A | 790 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 1000 V | -55°C ~ 175°C | Surface Mount |
|
12CTQ035DIODE ARRAY SCHOTTKY 35V TO220AB |
2,899 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 6A | 600 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 35 V | -55°C ~ 175°C | Through Hole |
|
|
400DMQ045DIODE MODULE 45V 400A TO244AB |
2,046 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Schottky | 45 V | 400A | 730 mV @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | -55°C ~ 150°C | Chassis Mount |
|

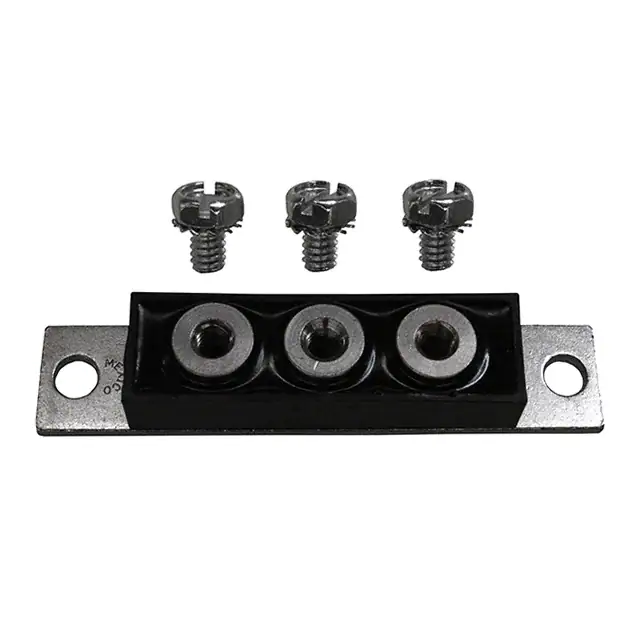

401CMQ045DIODE MODULE 45V 200A TO244AB |
3,532 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 200A | 670 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | -55°C ~ 175°C | Chassis Mount |
|
401CNQ045DIODE MODULE 45V 200A TO244AB |
3,523 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 200A | 670 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | -55°C ~ 175°C | Chassis Mount |
|
|
403CMQ080DIODE MODULE 80V 200A TO244AB |
3,020 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 200A | 830 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 80 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-403CMQ100DIODE MODULE 100V 200A TO244AB |
2,531 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 200A | 830 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | - | Chassis Mount |
|
|
HFA32PA120CDIODE ARRAY GP 1200V 16A TO247AC |
3,595 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 1200 V | 16A (DC) | 3 V @ 16 A | Fast Recovery =< 500ns, > 200mA (Io) | 135 ns | 20 µA @ 1200 V | -55°C ~ 150°C | Through Hole |
|
MUR3020WTDIODE ARRAY GP 200V 15A TO247AC |
2,381 | 0.00 |
RFQ |
Tube | FRED Pt® | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 15A | 1.05 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 200 V | -65°C ~ 175°C | Through Hole | |
|
|
HFA60MC60CDIODE MODULE 600V 50A TO249AA |
3,118 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 50A (DC) | 1.5 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 10 µA @ 600 V | - | Chassis Mount |
