| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSKJ270-12DIODE MODULE 1.2KV 270A MAGNAPAK |
3,116 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 1200 V | 270A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1200 V | - | Chassis Mount |
|
|
VSKJ320-04DIODE MODULE 400V 320A MAGNAPAK |
3,818 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 400 V | 320A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 400 V | - | Chassis Mount |
|
|
VSKJ320-08DIODE MODULE 800V 320A MAGNAPAK |
3,744 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 800 V | 320A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | - | Chassis Mount |
|
|
VSKJ320-12DIODE MODULE 1.2KV 320A MAGNAPAK |
3,264 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 1200 V | 320A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1200 V | - | Chassis Mount |
|
|
VSKJ320-16DIODE MODULE 1.6KV 320A MAGNAPAK |
3,089 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 1600 V | 320A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1600 V | - | Chassis Mount |
|
|
VSKJ320-20DIODE MODULE 2KV 320A MAGN-A-PAK |
3,654 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 2000 V | 320A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 2000 V | - | Chassis Mount |
|
|
VSKD600-08DIODE MODULE 800V 600A MAGNAPAK |
3,000 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 800 V | 600A | 1.24 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | - | Chassis Mount |
|
|
VSKD600-12DIODE MODULE 1.2KV 600A MAGNAPAK |
2,040 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 1200 V | 600A | 1.24 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1200 V | - | Chassis Mount |
|
|
VSKD600-16DIODE MODULE 1.6KV 600A MAGNAPAK |
3,200 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 600A | 1.24 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1600 V | - | Chassis Mount |
|
|
VSKD600-20DIODE MODULE 2KV 600A MAGN-A-PAK |
3,879 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 2000 V | 600A | 1.24 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 2000 V | - | Chassis Mount |
|
MURD620CTDIODE ARRAY GP 200V 6A DPAK |
3,794 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 6A | 1.2 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -65°C ~ 175°C | Surface Mount |
|
HFA60MB60CDIODE ARRAY GP 600V 50A D60 |
3,333 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 50A (DC) | 1.5 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 10 µA @ 600 V | -55°C ~ 150°C | Chassis Mount |
|
|
HFA75MB40CDIODE ARRAY GP 400V 75A D60 |
3,286 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 75A (DC) | 1.5 V @ 75 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 3 µA @ 400 V | -55°C ~ 150°C | Chassis Mount |
|
HFA120FA60DIODE MODULE 600V 75A SOT227B |
2,428 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFRED® | Obsolete | 2 Independent | Standard | 600 V | 75A (DC) | 1.7 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 98 ns | 20 µA @ 600 V | - | Chassis Mount |
|
HFA08TA60CSDIODE ARRAY GP 600V 4A D2PAK |
2,284 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 4A (DC) | 1.8 V @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 42 ns | 3 µA @ 600 V | -55°C ~ 150°C | Surface Mount |
|
|
HFA16TA60CSDIODE ARRAY GP 600V 8A D2PAK |
2,136 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 8A (DC) | 1.7 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 5 µA @ 600 V | -55°C ~ 150°C | Surface Mount |
|
|
HFA30TA60CSDIODE ARRAY GP 600V 15A D2PAK |
3,827 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 15A (DC) | 1.7 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 10 µA @ 600 V | -55°C ~ 150°C | Surface Mount |
|

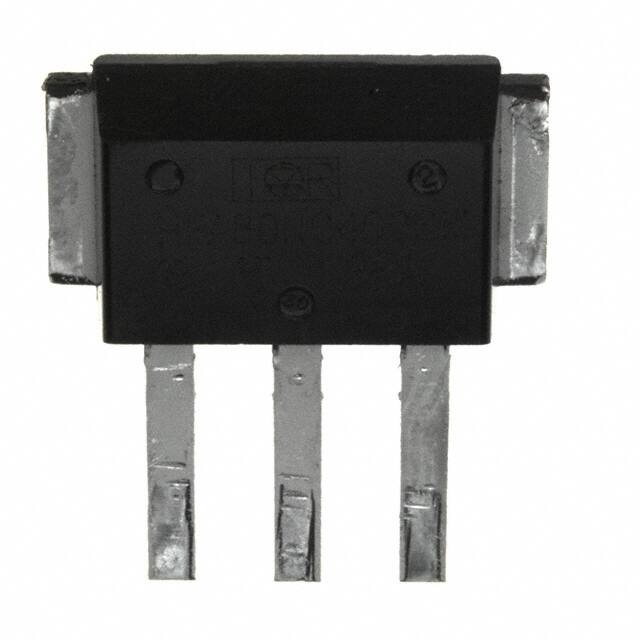

HFA80NC40CSMDIODE ARRAY GP 400V 85A D618SM |
2,727 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 85A (DC) | 1.5 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 3 µA @ 400 V | -55°C ~ 150°C | Through Hole |
|
HFA80NC40CDIODE ARRAY GP 400V 85A D618 |
2,156 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 85A (DC) | 1.5 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 3 µA @ 400 V | -55°C ~ 150°C | Chassis Mount |
|
HFA80NC40CSLDIODE ARRAY GP 400V 85A D618SL |
2,599 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFRED® | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 85A (DC) | 1.5 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 3 µA @ 400 V | -55°C ~ 150°C | Surface Mount |
