| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTE5322WR-SI BRIDGE 200V 25A |
2,527 | 6.33 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 200 V | 25 A | 1.2 V @ 12.5 A | 10 µA @ 200 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Square | ||||||
|
NTE5324WR-SI BRIDGE 400V 25A |
3,387 | 7.04 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 400 V | 25 A | 1.2 V @ 12.5 A | 10 µA @ 400 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Square | ||||||
|
NTE5326WR-SI BRIDGE 600V 25A |
2,699 | 7.48 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 600 V | 25 A | 1.2 V @ 12.5 A | 10 µA @ 600 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Square | ||||||
|
NTE5328WR-SI BRIDGE 1000V 25A |
3,308 | 9.24 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 1 kV | 25 A | 1.2 V @ 12.5 A | 10 µA @ 1000 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Square | ||||||
|

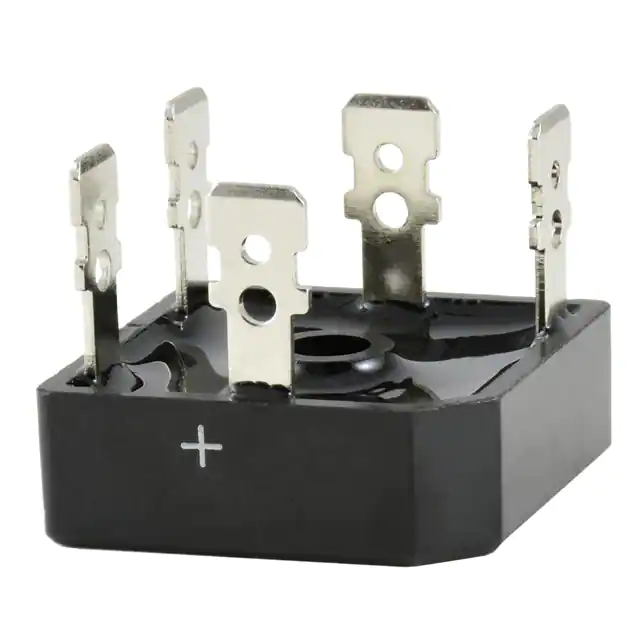

NTE535123-PHASE BRIDGE 1200V 35A |
3,521 | 9.70 |
RFQ |
Datasheet |
Bag | - | Active | Three Phase | Standard | 1.2 kV | 35 A | 1.19 V @ 40 A | 10 µA @ 1200 V | -40°C ~ 150°C (TJ) | QC Terminal | 4-Square | ||||||
|

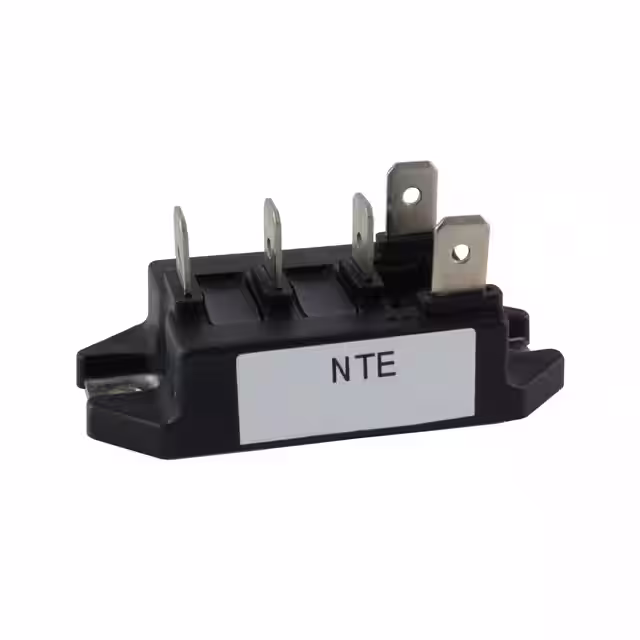

NTE57403 PHASE BRIDGE MODULE |
3,030 | 42.99 |
RFQ |
Datasheet |
Bag | - | Active | Three Phase | Standard | 800 V | 30 A | 1.1 V @ 30 A | 2 mA @ 800 V | - | Chassis Mount | Module | ||||||
|
NTE5743R-3 PHASE BRIDGE 1600V |
2,512 | 99.62 |
RFQ |
Datasheet |
Bag | - | Active | Three Phase | Standard | 1.6 kV | 75 A | 1.3 V @ 75 A | 8 mA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ||||||
|

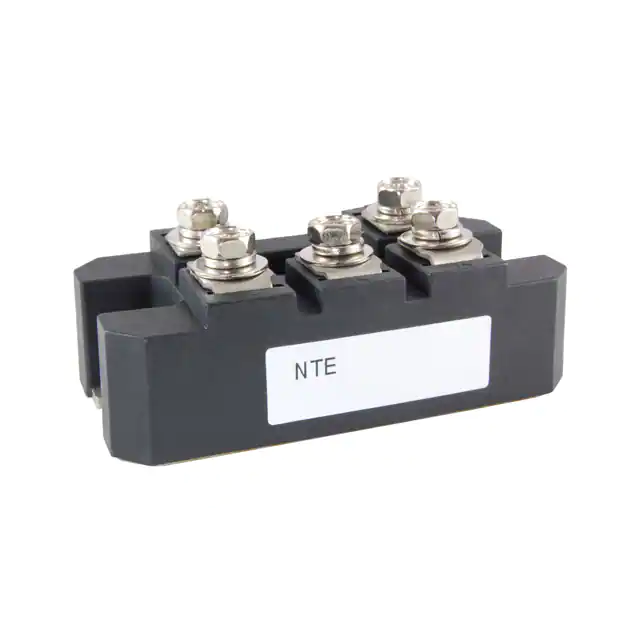

NTE5744R-3 PHASE BRIDGE 800V 100 |
2,338 | 105.00 |
RFQ |
Datasheet |
Bag | - | Active | Three Phase | Standard | 800 V | 100 A | 1.15 V @ 100 A | 10 mA @ 800 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ||||||
|

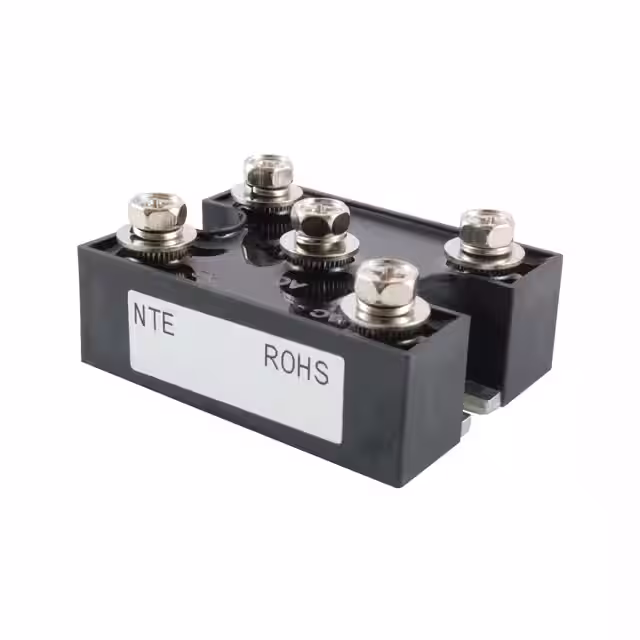

NTE5338R-SI BRIDGE 3-PHASE 100A |
2,128 | 109.89 |
RFQ |
Datasheet |
Bag | - | Active | Three Phase | Standard | 600 V | 100 A | 1.2 V @ 100 A | - | -40°C ~ 125°C (TJ) | Chassis Mount | 4-Rectangular | ||||||
|
NTE5742R-3 PHASE BRIDGE 800V 75A |
2,985 | 115.68 |
RFQ |
Datasheet |
Bag | - | Active | Three Phase | Standard | 800 V | 75 A | 1.15 V @ 100 A | 10 mA @ 800 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ||||||
|

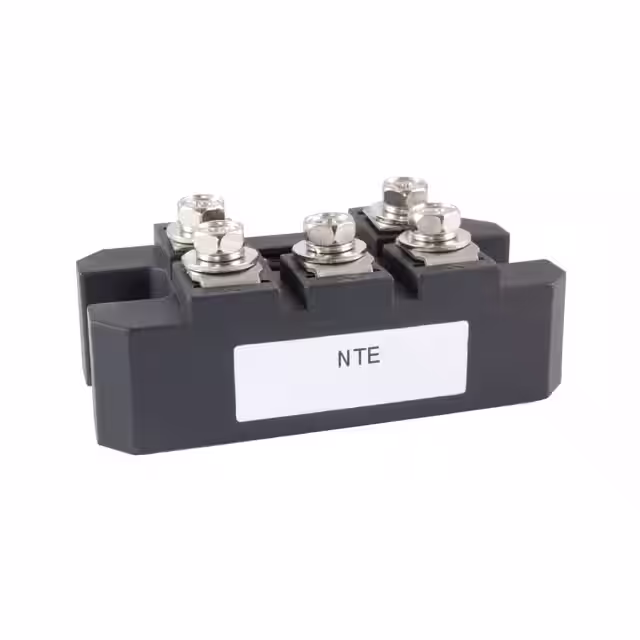

NTE5745R-3 PHASE BRIDGE 1600V |
2,294 | 137.00 |
RFQ |
Datasheet |
Bag | - | Active | Three Phase | Standard | 1.6 kV | 100 A | 1.3 V @ 100 A | 8 mA @ 1600 V | - | Chassis Mount | Module | ||||||
|

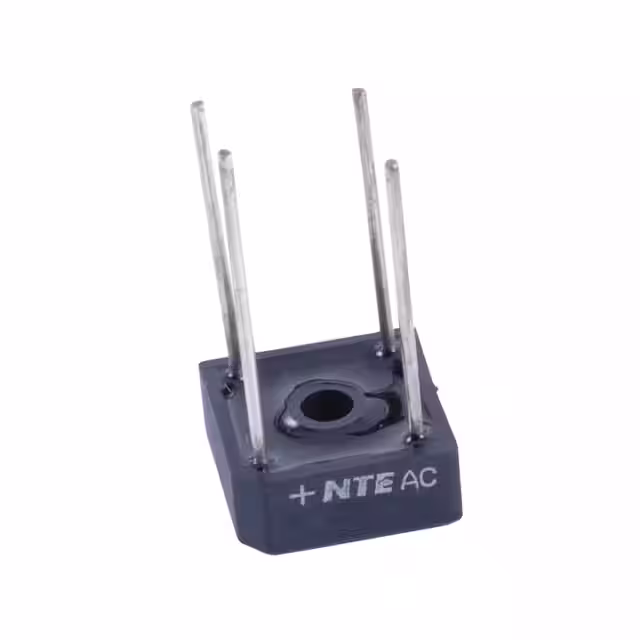

NTE5312R-SI BRIDGE 100V 8A |
3,510 | 3.72 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 100 V | 8 A | 1.1 V @ 4 A | 10 µA @ 100 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Square | ||||||
|

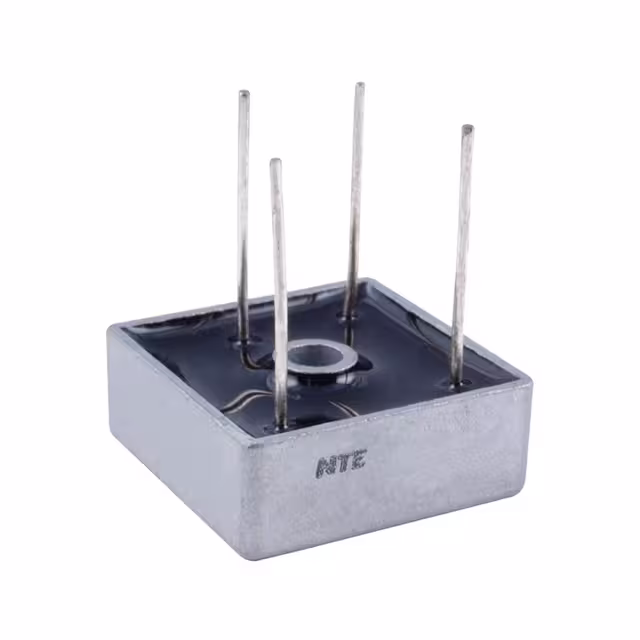

NTE5327WR-SI BRIDGE 800V 25A |
3,072 | 8.20 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 800 V | 25 A | 1.2 V @ 12.5 A | 10 µA @ 800 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Square | ||||||
|
NTE535043-PHASE BRIDGE 400V 35A |
2,530 | 8.89 |
RFQ |
Datasheet |
Bag | - | Active | Three Phase | Standard | 400 V | 35 A | 1.19 V @ 40 A | 10 µA @ 400 V | -40°C ~ 150°C (TJ) | QC Terminal | 4-Square | ||||||
|
NTE5348R-SI BRIDGE 600V 100AMP |
3,040 | 127.93 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 600 V | 100 A | 1.2 V @ 100 A | - | -40°C ~ 125°C (TJ) | Chassis Mount | 4-Rectangular |
