| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTE53016R-BRIDGE 200V 50A |
2,316 | 5.87 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 200 V | 50 A | 1.1 V @ 25 A | 50 µA @ 200 V | -65°C ~ 150°C (TJ) | QC Terminal | 4-Square | ||||||
|

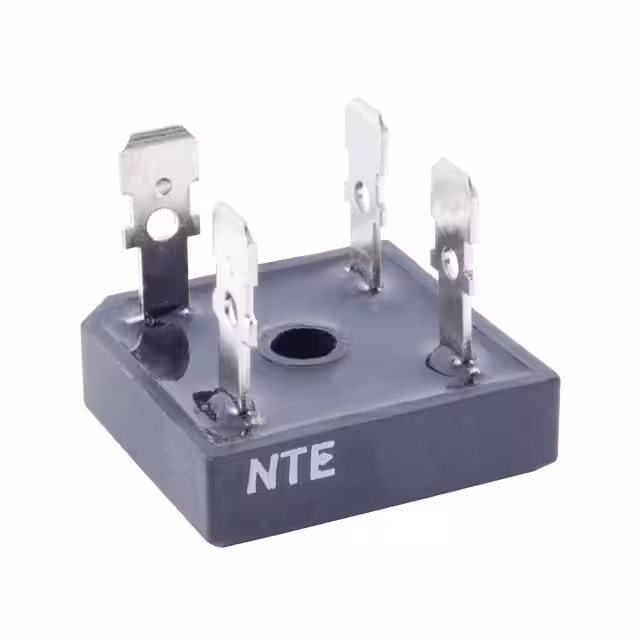

NTE53018R-BRIDGE 600V 50A |
336 | 6.00 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 600 V | 50 A | 1.1 V @ 25 A | 50 µA @ 600 V | -65°C ~ 150°C (TJ) | QC Terminal | 4-Square | ||||||
|
NTE53020R-BRIDGE 1000V 50A |
3,432 | 6.25 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 1 kV | 50 A | 1.1 V @ 25 A | 50 µA @ 1000 V | -65°C ~ 150°C (TJ) | QC Terminal | 4-Square | ||||||
|

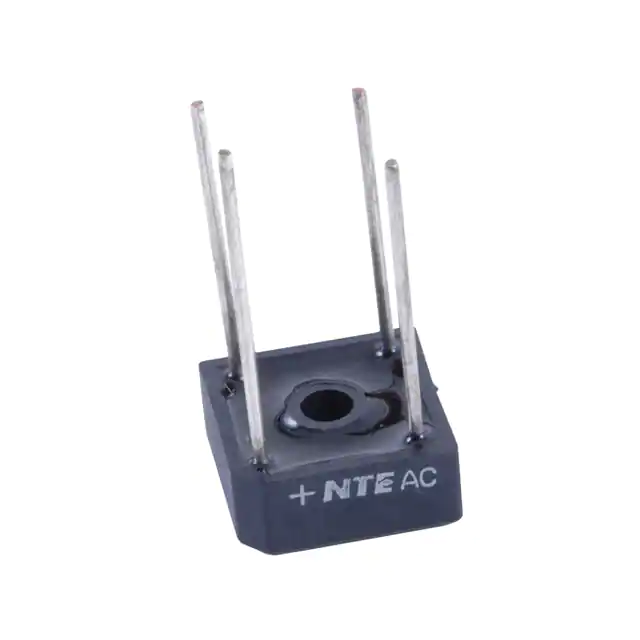

NTE5316R-SI BRIDGE 800V 8A |
465 | 6.26 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 800 V | 8 A | 1.1 V @ 4 A | 10 µA @ 800 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Square | ||||||
|
NTE5317R-SI BRIDGE 1000V 8A |
2,213 | 6.59 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 1 kV | 8 A | 1.1 V @ 4 A | 10 µA @ 1000 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Square | ||||||
|
NTE5324R-SI BRIDGE 400V 25A |
3,205 | 7.06 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 400 V | 25 A | 1.1 V @ 12.5 A | 10 µA @ 400 V | -55°C ~ 125°C (TJ) | QC Terminal | 4-Square | ||||||
|

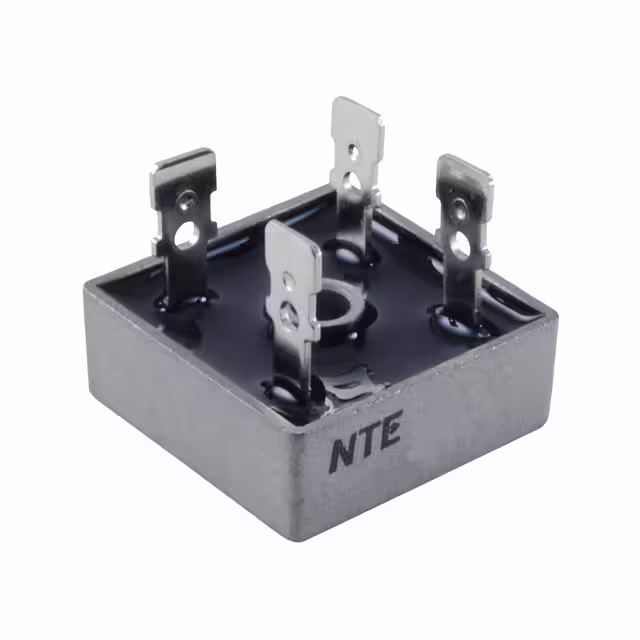

NTE5326R-SI BRIDGE 600V 25A |
3,720 | 7.24 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 600 V | 25 A | 1.1 V @ 12.5 A | 10 µA @ 600 V | -55°C ~ 125°C (TJ) | QC Terminal | 4-Square | ||||||
|

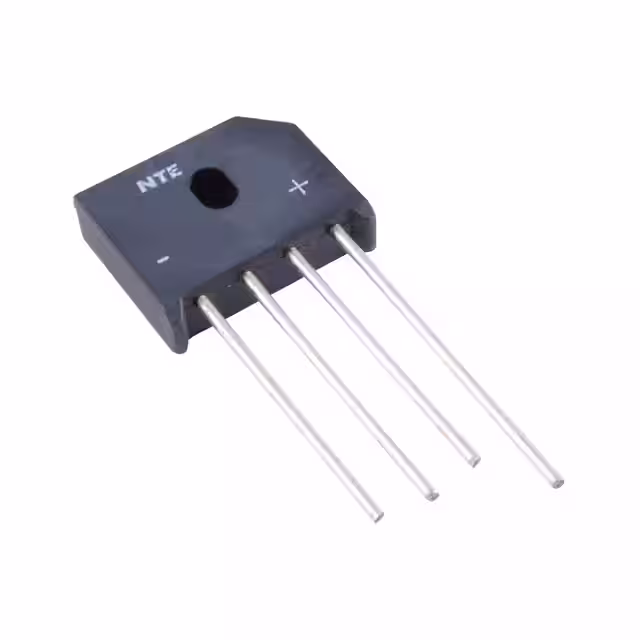

NTE5331R-SI BRIDGE 1000V 6A |
3,761 | 7.36 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 1 kV | 6 A | 1 V @ 6 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
NTE5327R-SI BRIDGE 800V 25A |
3,853 | 7.48 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 800 V | 25 A | 1.1 V @ 12.5 A | 10 µA @ 800 V | -55°C ~ 125°C (TJ) | QC Terminal | 4-Square | ||||||
|
NTE5322R-SI BRIDGE 200V 25A |
2,343 | 6.19 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 200 V | 25 A | 1.1 V @ 12.5 A | 10 µA @ 200 V | -55°C ~ 125°C (TJ) | QC Terminal | 4-Square | ||||||
|
NTE535083-PHASE BRIDGE 800V 35A |
180 | 9.09 |
RFQ |
Datasheet |
Bag | - | Active | Three Phase | Standard | 800 V | 35 A | 1.19 V @ 40 A | 10 µA @ 800 V | -40°C ~ 150°C (TJ) | QC Terminal | 4-Square | ||||||
|
NTE5328R-SI BRIDGE 1000V 25A |
3,774 | 9.18 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 1 kV | 25 A | 1.1 V @ 12.5 A | 10 µA @ 1000 V | -55°C ~ 125°C (TJ) | QC Terminal | 4-Square | ||||||
|

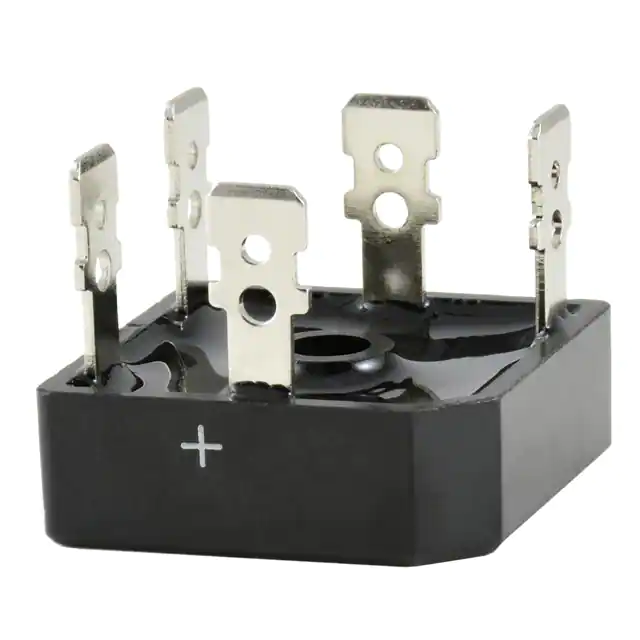

NTE535163-PHASE BRIDGE 1600V 35A |
358 | 10.10 |
RFQ |
Datasheet |
Bag | - | Active | Three Phase | Standard | 1.6 kV | 35 A | 1.19 V @ 40 A | 10 µA @ 1600 V | -40°C ~ 150°C (TJ) | QC Terminal | 4-Square | ||||||
|
NTE5342R-SI BRIDGE 600V 40A |
3,842 | 14.47 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 600 V | 40 A | 1.2 V @ 20 A | 10 µA @ 600 V | 175°C (TJ) | QC Terminal | 4-Square | ||||||
|
NTE5344R-SI BRIDGE 1000V 40A |
3,887 | 16.67 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 1 kV | 40 A | 1.2 V @ 20 A | 10 µA @ 1000 V | 175°C (TJ) | QC Terminal | 4-Square | ||||||
|

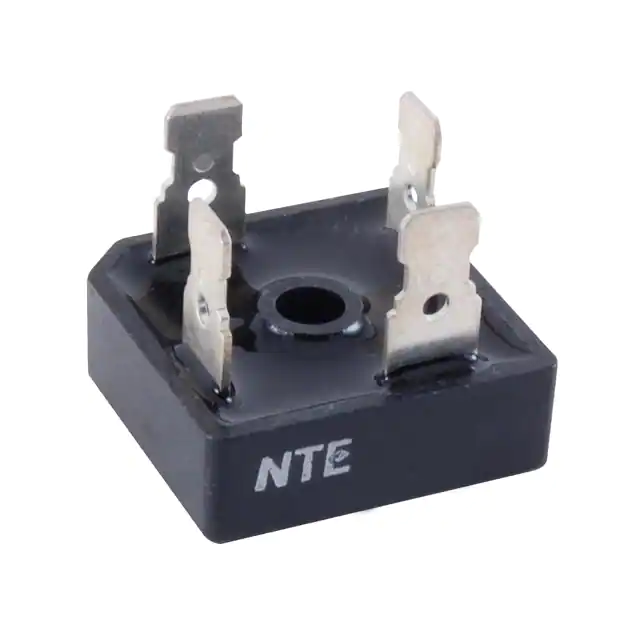

NTE5340R-SI BRIDGE 200V 40A |
3,911 | 11.55 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 200 V | 40 A | 1.2 V @ 20 A | 10 µA @ 200 V | 175°C (TJ) | QC Terminal | 4-Square | ||||||
|

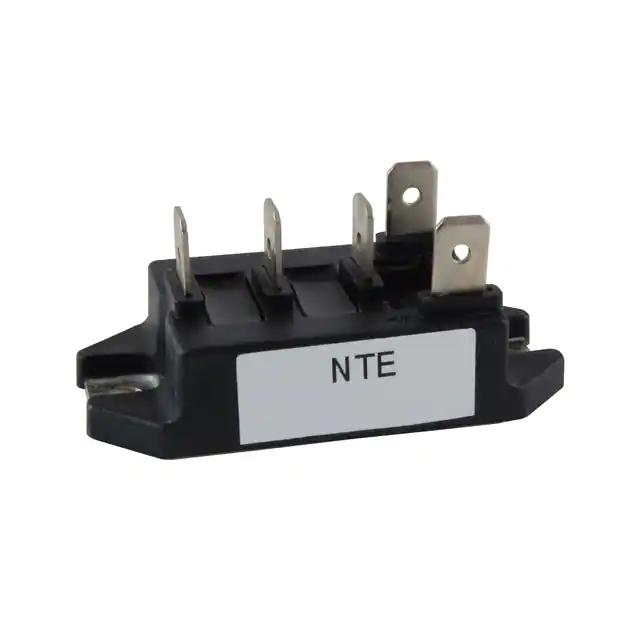

NTE5741R-3 PHASE BRIDGE 1600V 30 |
287 | 65.37 |
RFQ |
Datasheet |
Bag | - | Active | Three Phase | Standard | 1.6 kV | 30 A | 1.1 V @ 30 A | 2 mA @ 1600 V | -40°C ~ 125°C (TJ) | Chassis Mount | Module | ||||||
|

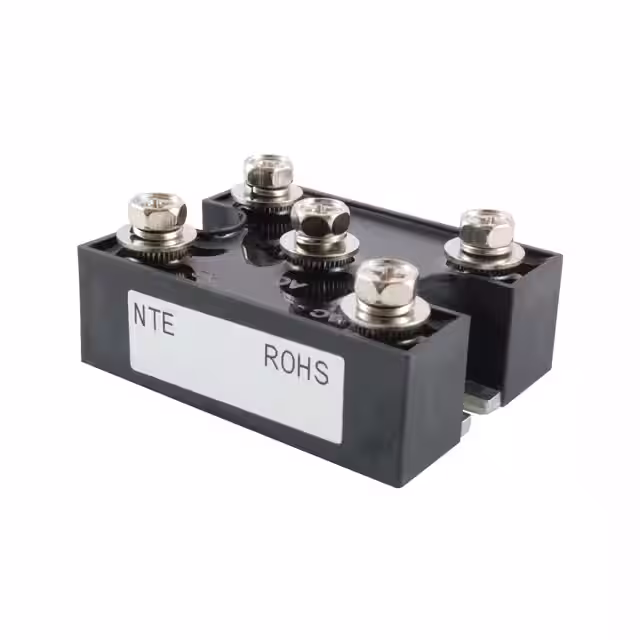

NTE5335R-SI BRIDGE 3-PHASE 60A |
2,041 | 96.05 |
RFQ |
Datasheet |
Bag | - | Active | Three Phase | Standard | 600 V | 60 A | 1.35 V @ 60 A | - | -40°C ~ 125°C (TJ) | Chassis Mount | 4-Rectangular | ||||||
|

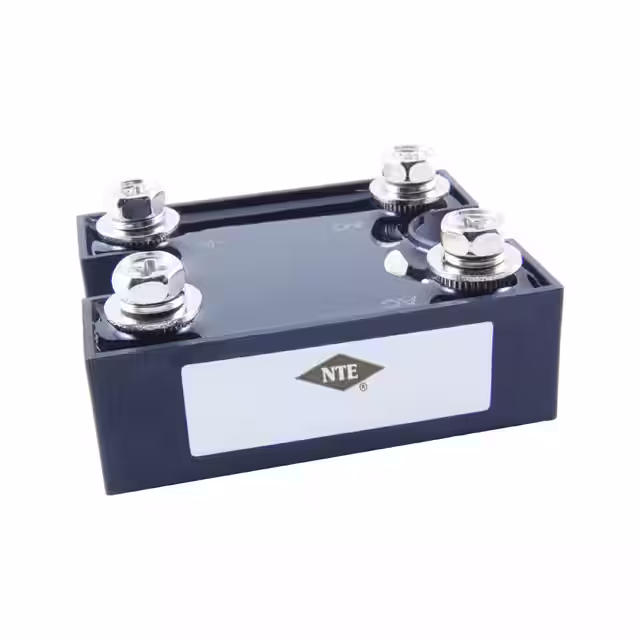

NTE5346R-SI BRIDGE 600V 80AMP |
2,569 | 112.24 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 600 V | 80 A | 1.2 V @ 100 A | - | -40°C ~ 125°C (TJ) | QC Terminal | 4-Square | ||||||
|
NTE5393R-SI BRIDGE 800V 35A |
3,235 | 4.19 |
RFQ |
Datasheet |
Bag | - | Active | Single Phase | Standard | 800 V | 35 A | 1.1 V @ 17.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP |
