| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KBP201G-BPBRIDGE RECT 1PHASE 100V 2A GBP |
2,817 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 100 V | 2 A | 1.1 V @ 2 A | 10 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBP | ||||||
|
KBP202G-BPBRIDGE RECT 1PHASE 200V 2A GBP |
3,580 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 200 V | 2 A | 1.1 V @ 2 A | 10 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBP | ||||||
|
KBP204G-BPBRIDGE RECT 1PHASE 400V 2A GBP |
3,448 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 400 V | 2 A | 1.1 V @ 2 A | 10 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBP | ||||||
|
KBP206G-BPBRIDGE RECT 1PHASE 600V 2A GBP |
2,503 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 600 V | 2 A | 1.1 V @ 2 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBP | ||||||
|
MB12S-TPBRIDGE RECT 1PHASE 20V 1A MBS-1 |
3,855 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Single Phase | Schottky | 20 V | 1 A | 500 mV @ 1 A | 500 µA @ 20 V | -55°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|
|
MB16S-TPBRIDGE RECT 1PHASE 60V 1A MBS-1 |
2,454 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Single Phase | Schottky | 60 V | 1 A | 700 mV @ 1 A | 500 nA @ 60 V | -55°C ~ 125°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|
|
MB110S-TPBRIDGE RECT 1PHASE 100V 1A MBS-1 |
2,704 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Single Phase | Schottky | 100 V | 1 A | 850 mV @ 1 A | 500 nA @ 100 V | -55°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|

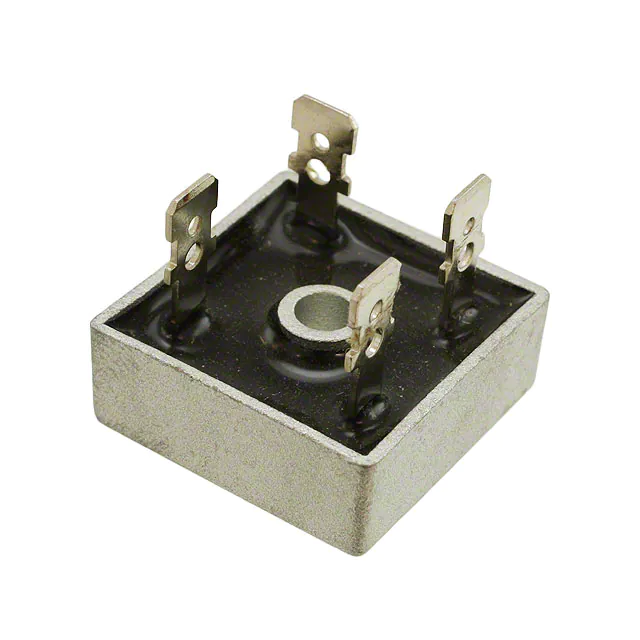

MB354-BPBRIDGE RECT 1P 400V 35A MB-35 |
2,689 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 400 V | 35 A | 1.2 V @ 17.5 A | 10 µA @ 400 V | -55°C ~ 175°C (TJ) | QC Terminal | 4-Square, MB-35 | ||||||
|

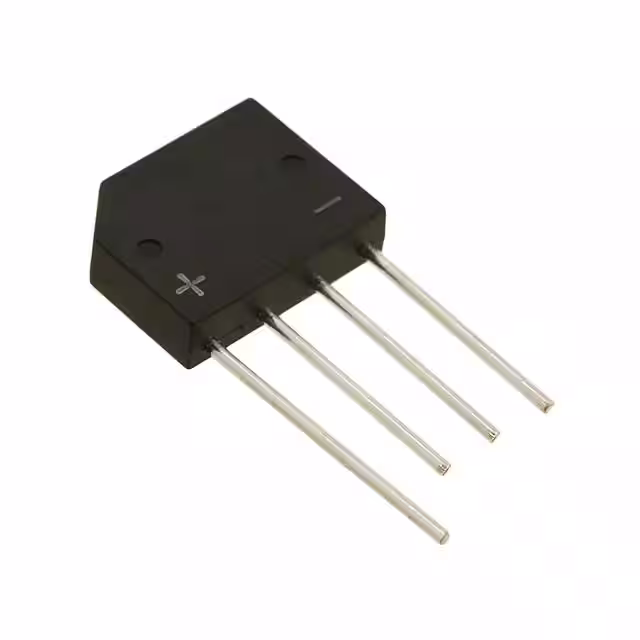

2KBP08-BPBRIDGE RECT 1PHASE 800V 2A KBPL |
2,012 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 800 V | 2 A | 1.2 V @ 2 A | 10 µA @ 800 V | -55°C ~ 165°C (TJ) | Through Hole | 4-SIP, KBPL | ||||||
|
2KBP10-BPBRIDGE RECT 1PHASE 1KV 2A KBPL |
3,951 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 1 kV | 2 A | 1.2 V @ 2 A | 10 µA @ 1000 V | -55°C ~ 165°C (TJ) | Through Hole | 4-SIP, KBPL | ||||||
|
MB10M-BPBRIDGE RECT 1P 1KV 500MA MB-1 |
3,719 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 1 kV | 500 mA | 1 V @ 400 mA | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-DIP (0.200, 5.08mm) | ||||||
|
GBJL1010-BPBRIDGE RECT 1PHASE 1KV 10A GBJL |
2,836 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 1 kV | 10 A | 1.05 V @ 5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJL | ||||||
|
|
GBJL1510-BPBRIDGE RECT 1PHASE 1KV 15A GBJL |
3,946 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 1 kV | 15 A | 1.05 V @ 7.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJL | ||||||
|
|
GBJL2010-BPBRIDGE RECT 1PHASE 1KV 20A GBJL |
3,220 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 1 kV | 20 A | 1.05 V @ 10 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJL | ||||||
|
|

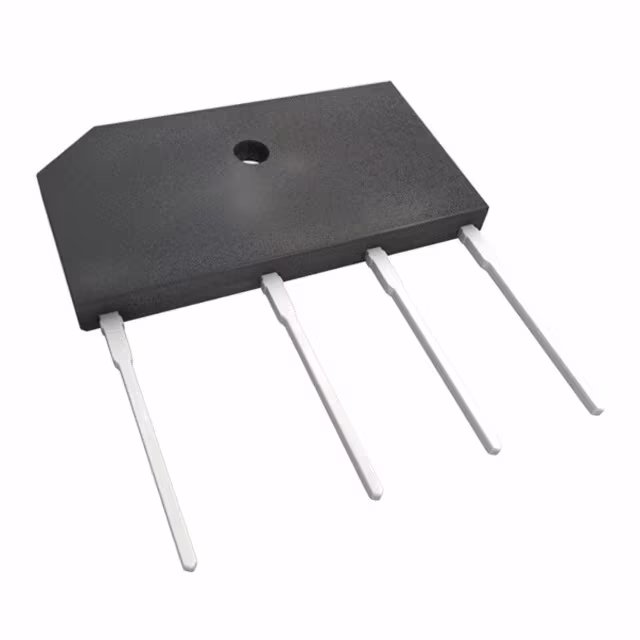

GBJL2510-BPBRIDGE RECT 1PHASE 1KV 25A GBJL |
2,263 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 1 kV | 25 A | 1.05 V @ 12.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJL | ||||||
|
|
GBJL3510-BPBRIDGE RECT 1PHASE 1KV 35A GBJL |
3,656 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 1 kV | 35 A | 1.05 V @ 17.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJL | ||||||
|
2KBP04-BPBRIDGE RECT 1PHASE 400V 2A KBPL |
2,845 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 400 V | 2 A | 1.2 V @ 2 A | 10 µA @ 400 V | -55°C ~ 165°C (TJ) | Through Hole | 4-SIP, KBPL | ||||||
|
|
2KBP06-BPBRIDGE RECT 1PHASE 600V 2A KBPL |
3,094 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 600 V | 2 A | 1.2 V @ 2 A | 10 µA @ 600 V | -55°C ~ 165°C (TJ) | Through Hole | 4-SIP, KBPL | ||||||
|
KBP06M-BPBRIDGE RECT 1P 600V 1.5A KBPR |
2,425 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 600 V | 1.5 A | 1.1 V @ 1.5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBPR | ||||||
|
|
KBP10M-BPBRIDGE RECT 1PHASE 1KV 1.5A KBPR |
2,842 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 1 kV | 1.5 A | 1.1 V @ 3.14 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBPR |
