| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS404L-BPBRIDGE RECT 1PHASE 400V 4A RS-4L |
3,076 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 400 V | 4 A | 1 V @ 3 A | 10 µA @ 400 V | -55°C ~ 125°C (TJ) | Through Hole | 4-SIP, RS-4L | ||||||
|
|
RS405L-BPBRIDGE RECT 1PHASE 600V 4A RS-4L |
3,489 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 600 V | 4 A | 1.1 V @ 3 A | 10 µA @ 600 V | -55°C ~ 125°C (TJ) | Through Hole | 4-SIP, RS-4L | ||||||
|
|
RS406L-BPBRIDGE RECT 1PHASE 800V 4A RS-4L |
2,217 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 800 V | 4 A | 1.1 V @ 3 A | 10 µA @ 800 V | -55°C ~ 125°C (TJ) | Through Hole | 4-SIP, RS-4L | ||||||
|
|
RS407L-BPBRIDGE RECT 1PHASE 1KV 4A RS-4L |
2,619 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 1 kV | 4 A | 1.1 V @ 3 A | 10 µA @ 1000 V | -55°C ~ 125°C (TJ) | Through Hole | 4-SIP, RS-4L | ||||||
|

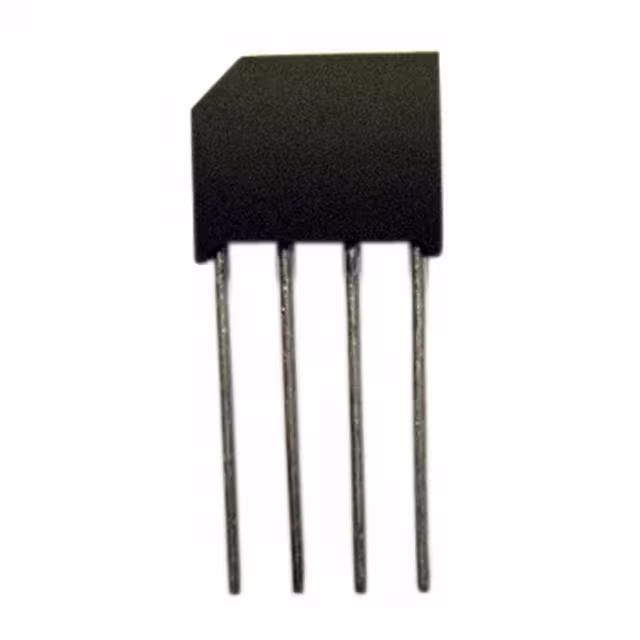

BR805DL-BPBRIDGE RECT 1PHASE 50V 2A BR-8D |
2,268 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 50 V | 2 A | 1.1 V @ 1 A | 10 µA @ 50 V | -55°C ~ 125°C (TJ) | Through Hole | 4-SIP, BR-8D | ||||||
|
|
BR81DL-BPBRIDGE RECT 1PHASE 100V 2A BR-8D |
3,096 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 100 V | 2 A | 1.1 V @ 1 A | 10 µA @ 100 V | -55°C ~ 125°C (TJ) | Through Hole | 4-SIP, BR-8D | ||||||
|
|
BR82DL-BPBRIDGE RECT 1PHASE 200V 2A BR-8D |
2,677 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 200 V | 2 A | 1.1 V @ 1 A | 10 µA @ 200 V | -55°C ~ 125°C (TJ) | Through Hole | 4-SIP, BR-8D | ||||||
|
|
BR84DL-BPBRIDGE RECT 1PHASE 400V 2A BR-8D |
2,098 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 400 V | 2 A | 1.1 V @ 1 A | 10 µA @ 400 V | -55°C ~ 125°C (TJ) | Through Hole | 4-SIP, BR-8D | ||||||
|
|
BR86DL-BPBRIDGE RECT 1PHASE 600V 2A BR-8D |
2,459 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 600 V | 2 A | 1.1 V @ 1 A | 10 µA @ 600 V | -55°C ~ 125°C (TJ) | Through Hole | 4-SIP, BR-8D | ||||||
|
|
BR88DL-BPBRIDGE RECT 1PHASE 800V 2A BR-8D |
3,999 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 800 V | 2 A | 1.1 V @ 1 A | 10 µA @ 800 V | -55°C ~ 125°C (TJ) | Through Hole | 4-SIP, BR-8D | ||||||
|
|
BR810DL-BPBRIDGE RECT 1PHASE 1KV 2A BR-8D |
2,617 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 1 kV | 2 A | 1.1 V @ 1 A | 10 µA @ 1000 V | -55°C ~ 125°C (TJ) | Through Hole | 4-SIP, BR-8D | ||||||
|

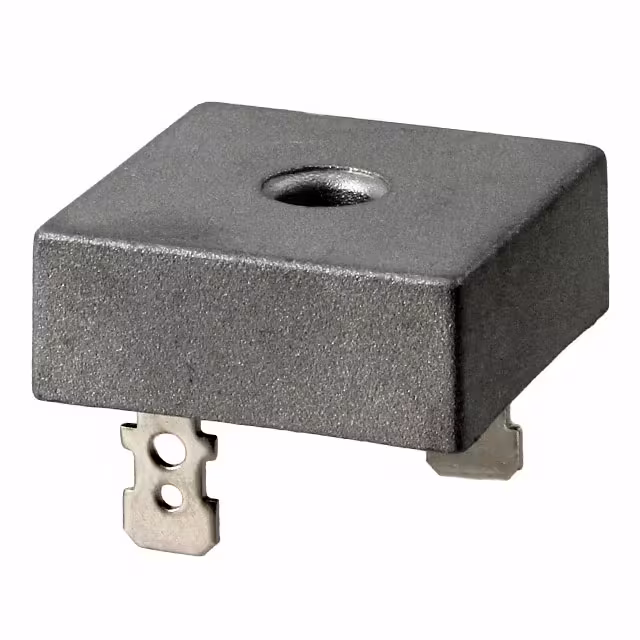

MB251D-BPBRIDGE RECT 1P 110V 25A MB-35D |
2,724 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Single Phase | Standard | 110 V | 25 A | 2.1 V @ 12.5 A | 2 µA @ 110 V | -55°C ~ 125°C (TJ) | QC Terminal | 4-Square, MB-35D | ||||||
|

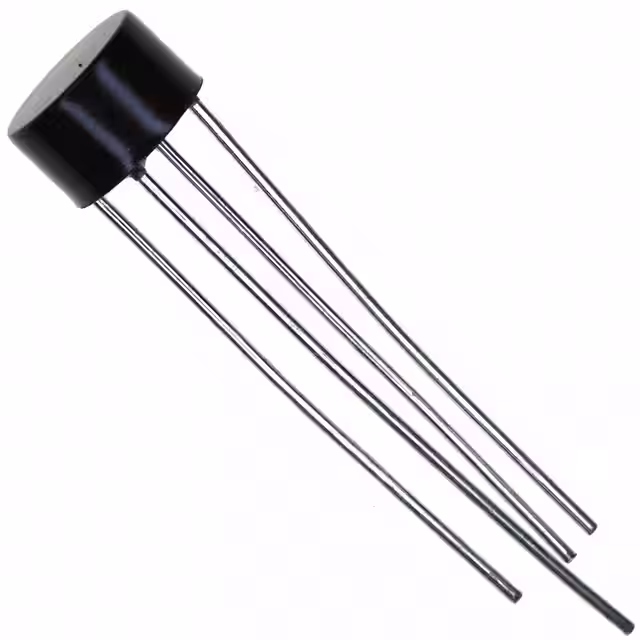

W005M-BPBRIDGE RECT 1PHASE 50V 1.5A WOM |
2,870 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 50 V | 1.5 A | 1 V @ 1.5 A | 10 µA @ 50 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Circular, WOM | ||||||
|
W01M-BPBRIDGE RECT 1PHASE 100V 1.5A WOM |
2,178 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 100 V | 1.5 A | 1 V @ 1.5 A | 10 µA @ 100 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Circular, WOM | ||||||
|

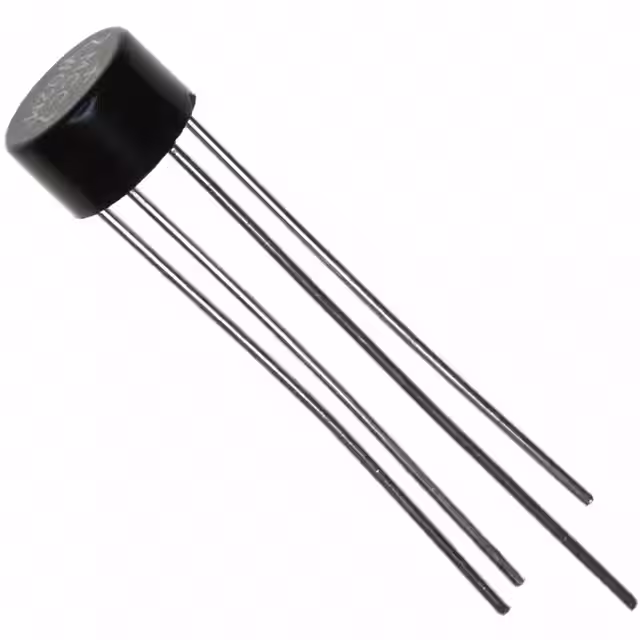

W02M-BPBRIDGE RECT 1PHASE 200V 1.5A WOM |
2,280 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 200 V | 1.5 A | 1 V @ 1.5 A | 10 µA @ 200 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Circular, WOM | ||||||
|

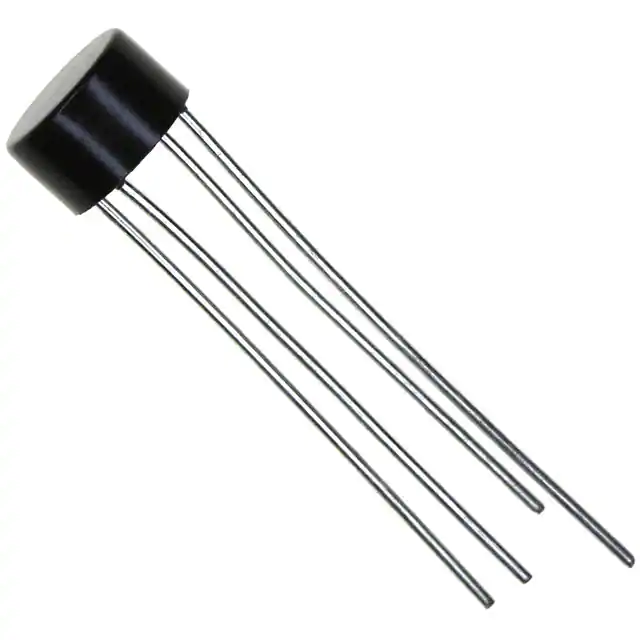

W04M-BPBRIDGE RECT 1PHASE 400V 1.5A WOM |
2,867 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 400 V | 1.5 A | 1 V @ 1.5 A | 10 µA @ 400 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Circular, WOM | ||||||
|

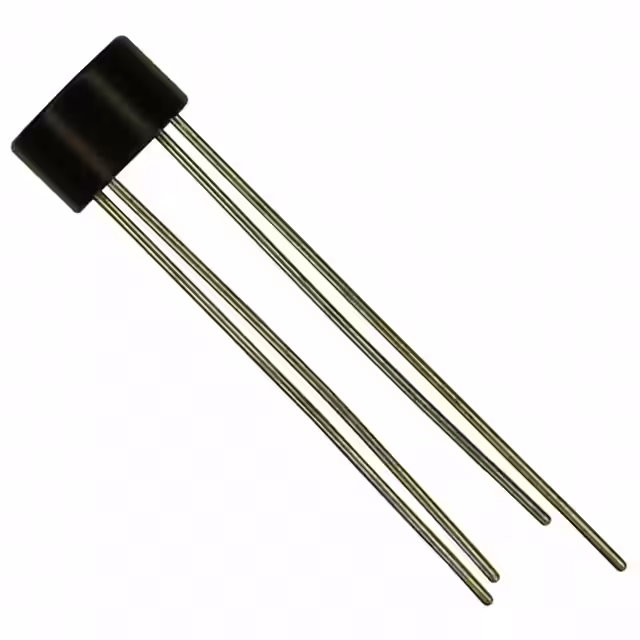

W06M-BPBRIDGE RECT 1PHASE 600V 1.5A WOM |
3,494 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 600 V | 1.5 A | 1 V @ 1.5 A | 10 µA @ 600 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Circular, WOM | ||||||
|

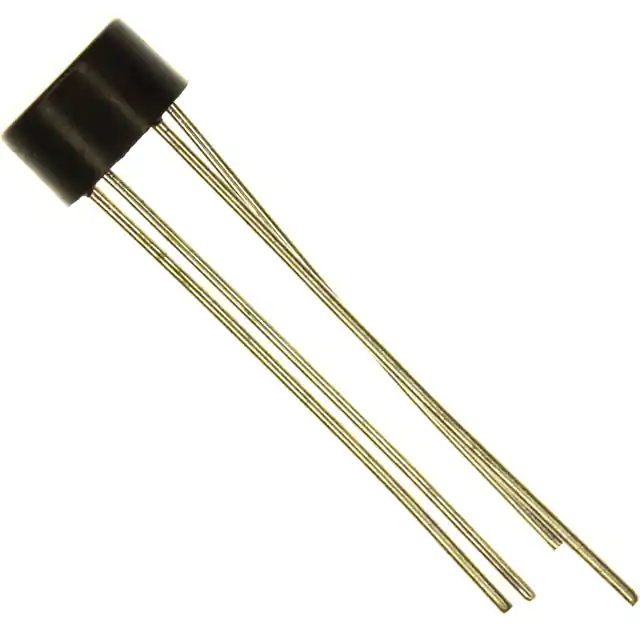

W08M-BPBRIDGE RECT 1PHASE 800V 1.5A WOM |
2,868 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 800 V | 1.5 A | 1 V @ 1.5 A | 5 µA @ 800 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Circular, WOM | ||||||
|

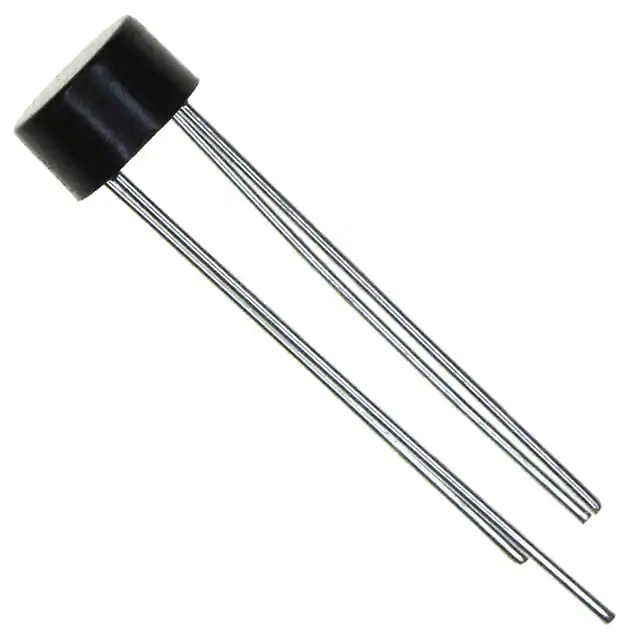

W10M-BPBRIDGE RECT 1PHASE 1KV 1.5A WOM |
3,857 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 1 kV | 1.5 A | 1 V @ 1.5 A | 10 µA @ 1000 V | -55°C ~ 125°C (TJ) | Through Hole | 4-Circular, WOM | ||||||
|
KBP2005G-BPBRIDGE RECT 1PHASE 50V 2A GBP |
2,835 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 50 V | 2 A | 1.1 V @ 2 A | 10 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBP |
