Diodes - Bridge Rectifiers(9417)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP351BRIDGE RECT GLASS 100V 35A MP-35 |
3,045 | 2.20 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 100 V | 35 A | 1.05 V @ 17.5 A | 500 nA @ 100 V | -55°C ~ 175°C (TJ) | Chassis Mount | 4-Square, MP-35 | ||||||
|
MP358WBRIDGE REC GLASS 800V 35A MP-35W |
3,691 | 2.20 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 800 V | 35 A | 1.05 V @ 17.5 A | 500 nA @ 800 V | -55°C ~ 175°C (TJ) | Through Hole | 4-Square, MP-25W | ||||||
|
|
MP3510BRIDGE RECT GLASS 1000V 35A MP35 |
3,320 | 2.20 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 1 kV | 35 A | 1.05 V @ 17.5 A | 500 nA @ 1000 V | -55°C ~ 175°C (TJ) | Chassis Mount | 4-Square, MP-35 | ||||||
|
|
MP352BRIDGE RECT GLASS 200V 35A MP-35 |
3,528 | 2.20 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 200 V | 35 A | 1.05 V @ 17.5 A | 500 nA @ 200 V | -55°C ~ 175°C (TJ) | Chassis Mount | 4-Square, MP-35 | ||||||
|
GBV15B1BRect, 100V, 15A |
3,677 | 1.84 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 100 V | 10.5 A | 1.1 V @ 7.5 A | 5 µA @ 100 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
GBV15G1Bridge, 400V, 15A, 1500ns |
3,804 | 1.84 |
RFQ |
Datasheet |
Bulk,Box | - | Active | Single Phase | Standard | 400 V | 10.5 A | 1.1 V @ 7.5 A | 5 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
GBV15J1Bridge, 600V, 15A, 1500ns |
3,990 | 1.84 |
RFQ |
Datasheet |
Bulk,Box | - | Active | Single Phase | Standard | 600 V | 10.5 A | 1.1 V @ 7.5 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
GBV15D1Bridge, 200V, 15A, 1500ns |
2,536 | 1.84 |
RFQ |
Datasheet |
Bulk,Box | - | Active | Single Phase | Standard | 200 V | 10.5 A | 1.1 V @ 7.5 A | 5 µA @ 200 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBV15K1BRect, 800V, 15A |
2,709 | 1.84 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 800 V | 10.5 A | 1.1 V @ 7.5 A | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBV15M1BRect, 1000V, 15A |
3,939 | 1.84 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 10.5 A | 1.1 V @ 7.5 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
MP252BRIDGE RECT GLASS 200V 25A MP-25 |
3,567 | 1.85 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 200 V | 25 A | 1.05 V @ 12.5 A | 500 nA @ 200 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, MP-25 | ||||||
|
|
MP254WBRIDGE REC GLASS 400V 25A MP-25W |
2,019 | 1.85 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 400 V | 25 A | 1.1 V @ 12.5 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, MP-25W | ||||||
|
|
MP156WBRIDGE REC GLASS 600V 15A MP-15W |
3,392 | 1.85 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 600 V | 15 A | 1.05 V @ 7.5 A | 500 nA @ 600 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, MP-15 | ||||||
|
|
MP154WBRIDGE REC GLASS 400V 15A MP-15W |
2,906 | 1.85 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 400 V | 15 A | 1.05 V @ 7.5 A | 500 nA @ 400 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, MP-15 | ||||||
|
|
MP151WBRIDGE REC GLASS 100V 15A MP-15W |
2,353 | 1.85 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 100 V | 15 A | 1.05 V @ 7.5 A | 500 nA @ 100 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, MP-15 | ||||||
|
|
MP151BRIDGE RECT GLASS 100V 15A MP-15 |
3,046 | 1.85 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 100 V | 15 A | 1.05 V @ 7.5 A | 500 nA @ 100 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, MP-15 | ||||||
|
|
MP152WBRIDGE REC GLASS 200V 15A MP-15W |
2,171 | 1.85 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 200 V | 15 A | 1.05 V @ 7.5 A | 500 nA @ 200 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, MP-15 | ||||||
|
|
MP251WBRIDGE REC GLASS 100V 25A MP-25W |
3,719 | 1.85 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 100 V | 25 A | 1.1 V @ 12.5 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, MP-25W | ||||||
|
|
MP2505WBRIDGE RECT GLASS 50V 25A MP-25W |
2,082 | 1.85 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 50 V | 25 A | 1.1 V @ 12.5 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, MP-25W | ||||||
|

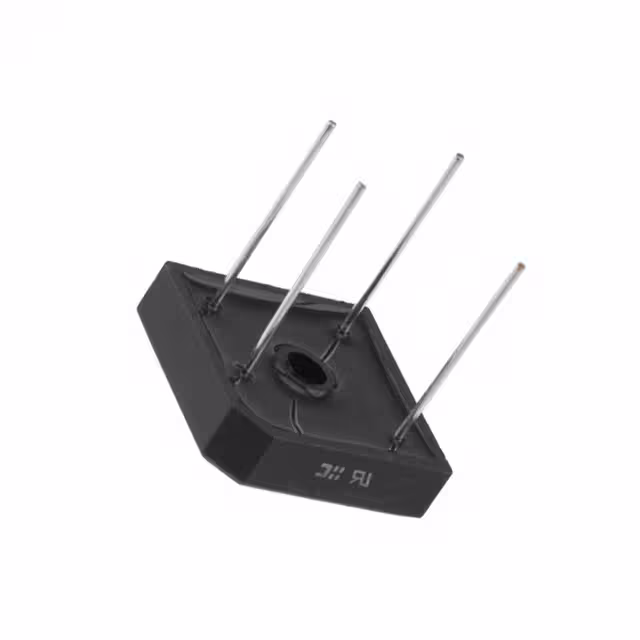

MP252WBRIDGE REC GLASS 200V 25A MP-25W |
3,254 | 1.85 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 200 V | 25 A | 1.1 V @ 12.5 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, MP-25W |
