| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KBPC5006RECT BRIDGE 600V 50A GBPC50-G |
2,073 | 2.48 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 50 A | 1.1 V @ 25 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-W | ||||||
|

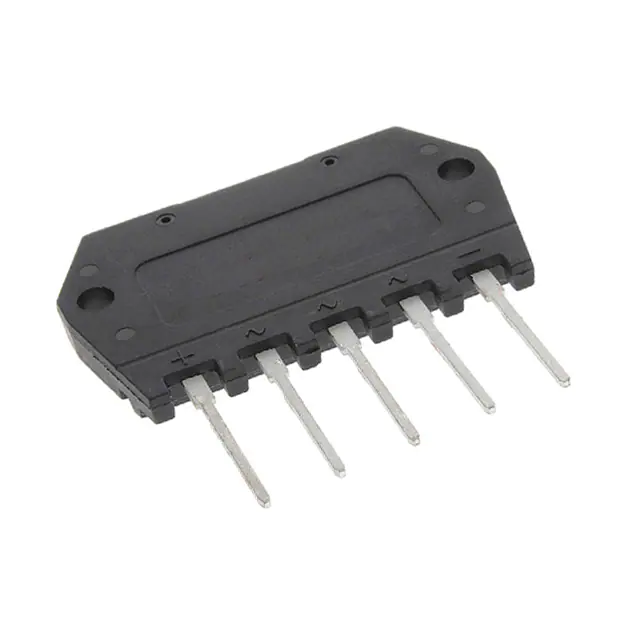

DF25NA160RECT BRIDGE 1600V 25A TSB-5 |
3,770 | 4.72 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 1.6 kV | 25 A | 1.1 V @ 12.5 A | 10 µA @ 1600 V | -55°C ~ 150°C (TJ) | Through Hole | 5-ESIP, TSB-5 | ||||||
|
BR2510LRECT BRIDGE 1000V 25A BR-L |
3,802 | 2.82 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 25 A | 1.1 V @ 12.5 A | 10 µA @ 1000 V | -55°C ~ 125°C (TJ) | Through Hole | 4-ESIP, with Heat Sink | ||||||
|
PB5010RECT BRIDGE 1000V 50A PB |
2,644 | 3.03 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 50 A | 1.1 V @ 25 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, PB | ||||||
|
GBPC3510RECT BRIDGE 1000V 35A GBPC |
3,813 | 3.07 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 35 A | 1.1 V @ 17.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, GBPC | ||||||
|
|
GBPC3506RECT BRIDGE 600V 35A GBPC |
3,135 | 3.07 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 35 A | 1.1 V @ 17.5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, GBPC | ||||||
|

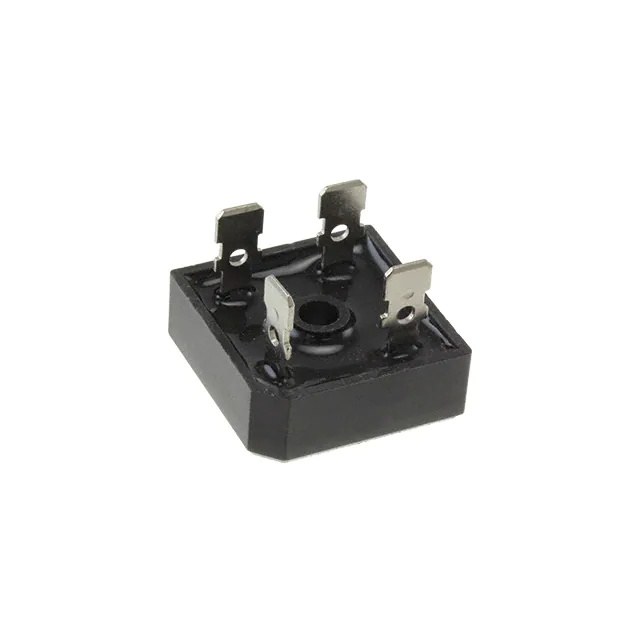

BR5010RECT BRIDGE 1000V 50A GBPC50-G |
3,771 | 3.15 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 50 A | 1.1 V @ 25 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, BR | ||||||
|
GBPC3510WRECT BRIDGE 1000V 35A GBPCW-G |
2,148 | 3.15 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 35 A | 1.1 V @ 17.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
|
GBPC5010RECT BRIDGE 1000V 50A GBPC |
3,427 | 3.15 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 50 A | 1.1 V @ 25 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, GBPC | ||||||
|
|

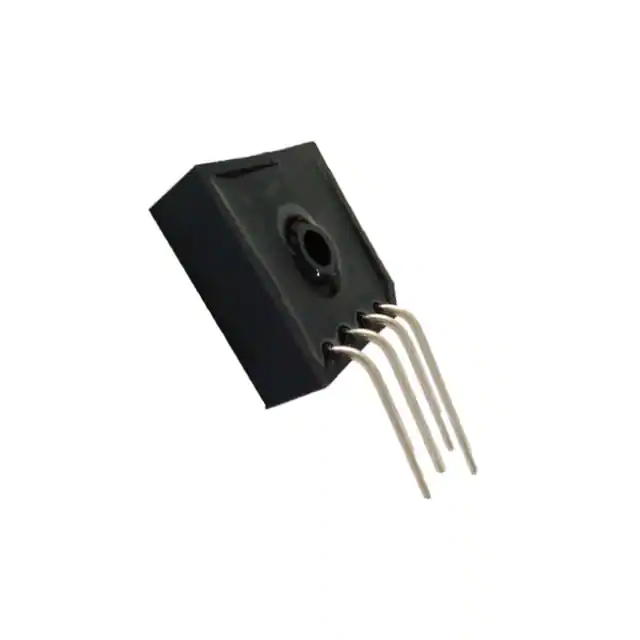

BR5010LRECT BRIDGE 1000V 50A BR-L |
2,690 | 3.15 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 10 V | 50 A | 1.1 V @ 25 A | 10 µA @ 1000 V | -55°C ~ 125°C (TJ) | Through Hole | 4-ESIP, with Heat Sink | ||||||
|
|
GBPC3508WRECT BRIDGE 800V 35A GBPCW-G |
3,172 | 3.15 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 800 V | 35 A | 1.1 V @ 17.5 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
KBPC2510RECT BRIDGE 1000V 25A GBPC25 |
3,819 | 2.24 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 25 A | 1.1 V @ 12.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, KBPC | ||||||
|
|
KBPC3510RECT BRIDGE 1000V 35A GBPC25 |
2,447 | 2.39 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 35 A | 1.1 V @ 17.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, KBPC | ||||||
|
|
DF25NA100RECT BRIDGE 1000V 25A TSB-5 |
2,617 | 4.02 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 1 kV | 25 A | 1.1 V @ 12.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 5-ESIP, TSB-5 | ||||||
|
|
DF35NA100RECT BRIDGE 1000V 35A TSB-5 |
2,852 | 5.38 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 1 kV | 35 A | 1.2 V @ 17.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 5-ESIP, TSB-5 | ||||||
|
SKBPC5010RECT BRIDGE 1000V 50A SKBPC |
3,477 | 6.73 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 1 kV | 50 A | 1.2 V @ 25 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Chassis Mount | 5-Square, KBPC-S | ||||||
|
|

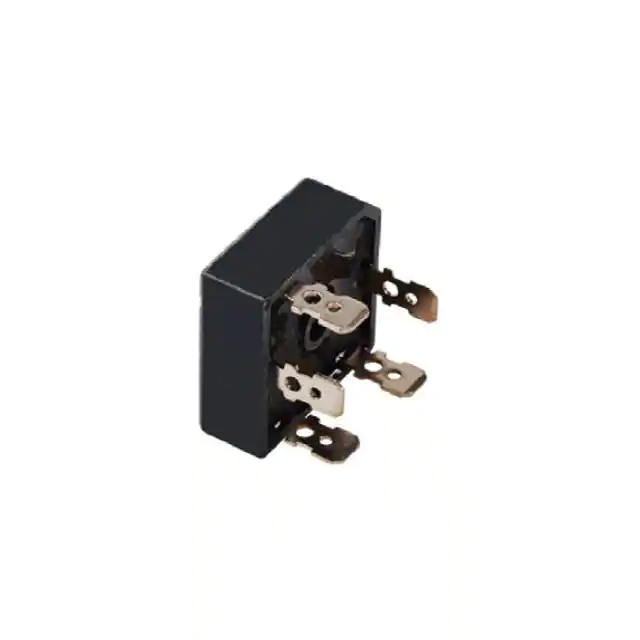

SKBPC3516RECT BRIDGE 1600V 35A SKBPC |
2,829 | 6.73 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 1.6 kV | 35 A | 1.2 V @ 17.5 A | 10 µA @ 1600 V | -55°C ~ 150°C (TJ) | Chassis Mount | 5-Square, KBPC-S | ||||||
|

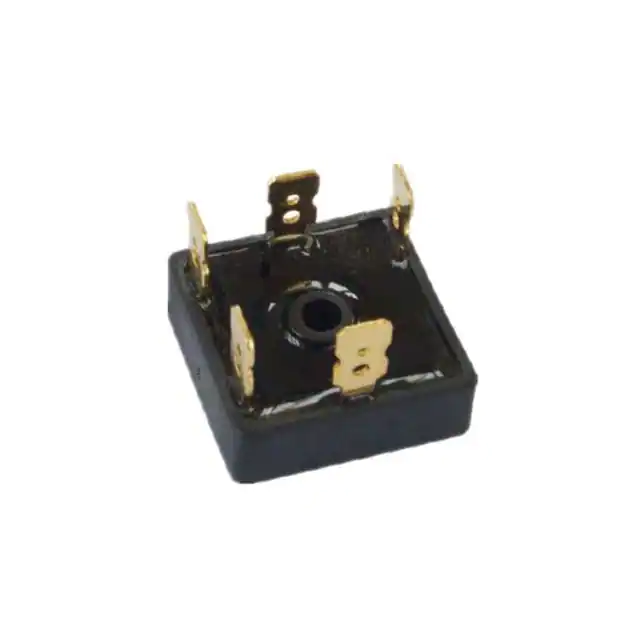

MT3510ARECT BRIDGE 1000V 35A MT35-A |
3,712 | 7.85 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 1 kV | 35 A | 1.2 V @ 17.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Chassis Mount | 5-Square, MT | ||||||
|
|
MT3516ARECT BRIDGE 1600V 35A MT35-A |
2,074 | 7.85 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 1.6 kV | 35 A | 1.2 V @ 17.5 A | 10 µA @ 1600 V | -55°C ~ 150°C (TJ) | Chassis Mount | 5-Square, MT | ||||||
|
|
MT5016ARECT BRIDGE 1600V 50A MT35-A |
3,236 | 9.07 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 1.6 kV | 50 A | 1.2 V @ 25 A | 10 µA @ 1600 V | -55°C ~ 150°C (TJ) | Chassis Mount | 5-Square, MT |
