| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GBU2508RECT BRIDGE 800V 25A GBU |
3,248 | 1.62 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 25 A | 1 V @ 12.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|
|
GBU2510RECT BRIDGE 1000V 25A GBU |
3,818 | 1.62 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 25 A | 1 V @ 12.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|
|
GBU1510ARECT BRIDGE 1000V 15A GBU |
3,345 | 1.67 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 15 A | 1 V @ 7.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|
GBJ2510RECT BRIDGE 1000V 25A 6KBJ |
2,385 | 1.17 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 25 A | 1 V @ 12.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | ||||||
|
GBJ3510ARECT BRIDGE 1000V 35A 6KBJ |
3,115 | 1.80 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 35 A | 1 V @ 17.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, KBJ | ||||||
|
KBU2510RECT BRIDGE 1000V 25A KBU |
2,199 | 1.82 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 25 A | 1.1 V @ 12.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, KBU | ||||||
|
|
KBU2506RECT BRIDGE 600V 25A KBU |
3,651 | 1.82 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 25 A | 1.1 V @ 12.5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, KBU | ||||||
|
KBPC1510RECT BRIDGE 1000V 15A GBPC25 |
2,511 | 2.19 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 15 A | 1.1 V @ 7.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-8 | ||||||
|
|
KBU3510RECT BRIDGE 1000V 35A KBU |
2,980 | 2.01 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 35 A | 1.1 V @ 17.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, KBU | ||||||
|
KBPC1506WRECT BRIDGE 600V 15A GBPCW-G |
3,149 | 2.19 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 15 A | 1.1 V @ 7.5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-W | ||||||
|
|
GBJ5010RECT BRIDGE 1000V 50A 6KBJ |
3,029 | 2.19 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 50 A | 1 V @ 25 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | ||||||
|
|
GBJ5006RECT BRIDGE 600V 50A 6KBJ |
3,698 | 2.19 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 50 A | 1 V @ 25 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | ||||||
|
|
GBU3008RECT BRIDGE 800V 30A GBU |
2,423 | 2.21 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 30 A | 1 V @ 15 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, GBU | ||||||
|
|
KBPC2510WRECT BRIDGE 1000V 25A GBPCW-G |
2,718 | 2.24 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 25 A | 1.1 V @ 12.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-W | ||||||
|

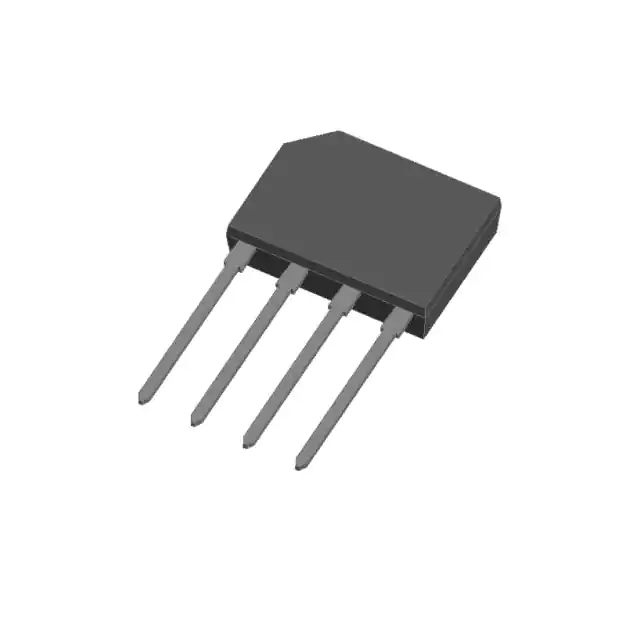

PB2510RECT BRIDGE 1000V 25A PB |
3,308 | 2.28 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 25 A | 1 V @ 12.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, PB | ||||||
|
|
KBPC3510WRECT BRIDGE 1000V 35A GBPCW-G |
2,387 | 2.39 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 35 A | 1.1 V @ 17.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-W | ||||||
|
KBPC3506RECT BRIDGE 600V 35A GBPC25 |
2,012 | 2.39 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 35 A | 1.1 V @ 17.5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, KBPC | ||||||
|
|
KBPC5010WRECT BRIDGE 1000V 50A GBPCW-G |
2,021 | 2.48 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 50 A | 1.1 V @ 25 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-8 | ||||||
|
|
KBPC5008RECT BRIDGE 800V 50A GBPC50-G |
3,472 | 2.48 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 800 V | 50 A | 1.1 V @ 25 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-W | ||||||
|
|
GBJL2506RECT BRIDGE 600V 25A 6KBJ |
3,298 | 2.48 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 25 A | 920 mV @ 12.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP, KBJ |
