| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GBU6A-T1BRect, 50V, 6A |
2,590 | 1.58 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 4.2 A | 1 V @ 6 A | 5 µA @ 50 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU6J-T1BRect, 600V, 6A |
2,566 | 1.58 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 4.2 A | 1 V @ 6 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU6M-T1BRect, 1000V, 6A |
3,059 | 1.58 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 4.2 A | 1 V @ 6 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU6D-T1BRect, 200V, 6A |
3,597 | 1.58 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 4.2 A | 1 V @ 6 A | 5 µA @ 200 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU6J1BRect, 600V, 6A |
2,808 | 1.58 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 4.2 A | 1 V @ 6 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU8A-T1BRect, 50V, 8A |
2,320 | 1.73 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 5.6 A | 1 V @ 8 A | 5 µA @ 50 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU8G-T1BRect, 400V, 8A |
3,785 | 1.73 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 5.6 A | 1 V @ 8 A | 5 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU8B1BRect, 100V, 8A |
3,968 | 1.73 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 100 V | 5.6 A | 1 V @ 8 A | 5 µA @ 100 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU8M1BRect, 1000V, 8A, 0ns |
2,482 | 1.73 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 5.6 A | 1 V @ 8 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU8J-T1BRect, 600V, 8A |
2,507 | 1.73 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 5.6 A | 1 V @ 8 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU8B-T1BRect, 100V, 8A |
3,091 | 1.73 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 5.6 A | 1 V @ 8 A | 5 µA @ 100 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU8D-T1BRect, 200V, 8A |
3,931 | 1.73 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 5.6 A | 1 V @ 8 A | 5 µA @ 200 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBV15B1BRect, 100V, 15A |
3,677 | 1.84 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 100 V | 10.5 A | 1.1 V @ 7.5 A | 5 µA @ 100 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
GBV15G1Bridge, 400V, 15A, 1500ns |
3,804 | 1.84 |
RFQ |
Datasheet |
Bulk,Box | - | Active | Single Phase | Standard | 400 V | 10.5 A | 1.1 V @ 7.5 A | 5 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|

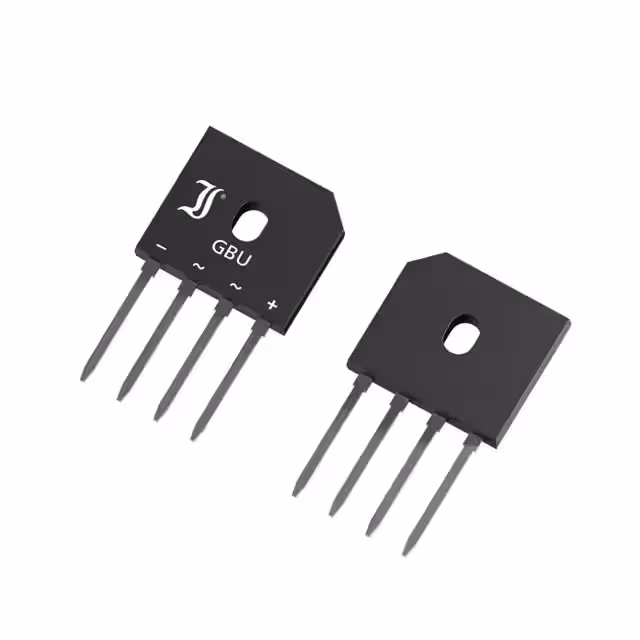

GBV15J1Bridge, 600V, 15A, 1500ns |
3,990 | 1.84 |
RFQ |
Datasheet |
Bulk,Box | - | Active | Single Phase | Standard | 600 V | 10.5 A | 1.1 V @ 7.5 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
GBV15D1Bridge, 200V, 15A, 1500ns |
2,536 | 1.84 |
RFQ |
Datasheet |
Bulk,Box | - | Active | Single Phase | Standard | 200 V | 10.5 A | 1.1 V @ 7.5 A | 5 µA @ 200 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBV15K1BRect, 800V, 15A |
2,709 | 1.84 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 800 V | 10.5 A | 1.1 V @ 7.5 A | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBV15M1BRect, 1000V, 15A |
3,939 | 1.84 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 10.5 A | 1.1 V @ 7.5 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
KBP208GBRIDGE RECTIFIER, SINGLE PHASE |
3,177 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 1.2 A | 1.1 V @ 2 A | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | |||||||
|
|
KBP204GBRIDGE RECTIFIER, SINGLE PHASE |
2,946 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 1.2 A | 1.1 V @ 2 A | 5 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole |
