| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

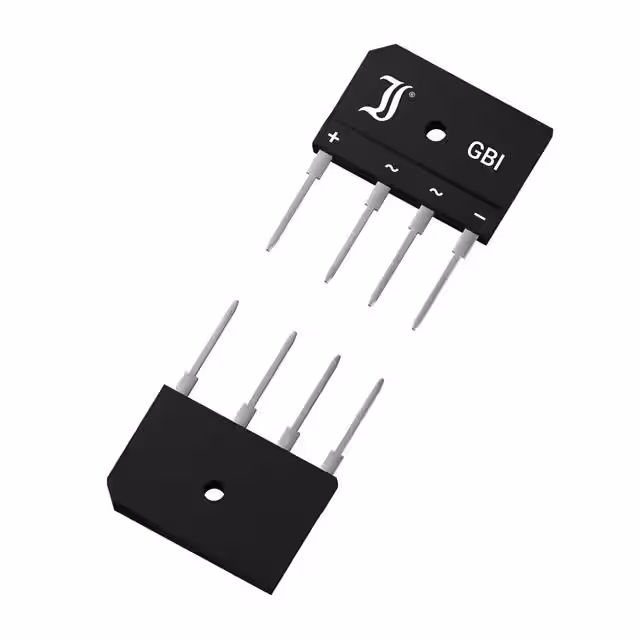

GBI10D1BRect, 200V, 10A |
3,586 | 2.84 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 200 V | 3 A | 1.1 V @ 5 A | 5 µA @ 200 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
GBI10K1BRect, 800V, 10A |
500 | 2.95 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 800 V | 3 A | 1.1 V @ 5 A | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
GBI20G1BRect, 400V, 20A |
500 | 3.26 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 400 V | 3.6 A | 1.1 V @ 10 A | 5 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
GBI25K1BRect, 800V, 25A |
2,021 | 3.53 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 800 V | 4.2 A | 1.1 V @ 12.5 A | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
GBU12J-T1BRect, 600V, 12A |
880 | 3.64 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 8.4 A | 1 V @ 12 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
B250C3700A1BRect, 600V, 3.7A |
500 | 4.16 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 2.7 A | 1 V @ 3 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|
|
B125C5000A1BRect, 250V, 5A |
500 | 4.29 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 250 V | 4 A | 1 V @ 5 A | 5 µA @ 250 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|
|
GBI35A1BRect, 50V, 35A |
500 | 4.30 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 50 V | 5 A | 1.1 V @ 17.5 A | 5 µA @ 50 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
|
GBI35B1BRect, 100V, 35A |
500 | 4.36 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 100 V | 5 A | 1.1 V @ 17.5 A | 5 µA @ 100 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
|
GBI35G1BRect, 400V, 35A |
500 | 4.48 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 400 V | 5 A | 1.1 V @ 17.5 A | 5 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
|
GBI35J1BRect, 600V, 35A |
500 | 4.54 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 5 A | 1.1 V @ 17.5 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
B500C5000A1BRect, 1000V, 5A |
500 | 4.71 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 4 A | 1 V @ 5 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|
|
B500C7000A1BRect, 1000V, 7A |
3,237 | 4.86 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 4.8 A | 1 V @ 5 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|

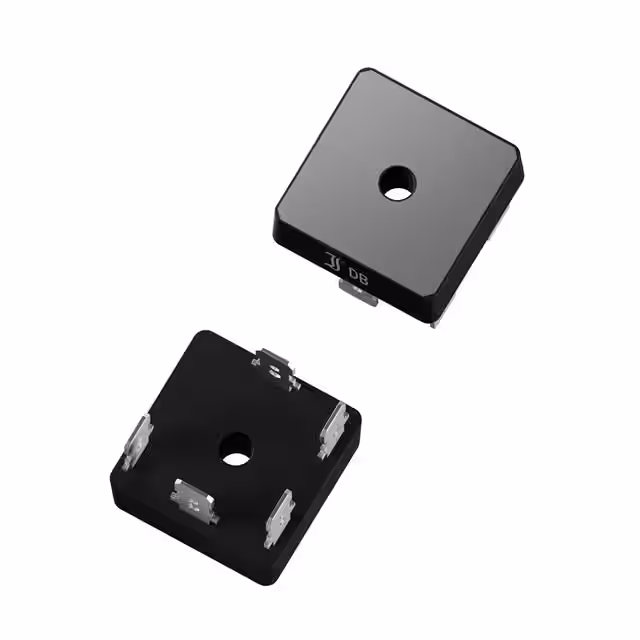

DB25-083P Rect, 800V, 25A, 350A, 1.05V |
3,088 | 15.62 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 800 V | 35 A | 1.05 V @ 12.5 A | 10 µA @ 800 V | -50°C ~ 150°C (TJ) | Chassis Mount | 5-Square, DB-35 | ||||||
|
DBI25-12A3P Rect, 1200V, 25A, 370A, 1.05V |
2,210 | 15.96 |
RFQ |
Datasheet |
Tube | - | Active | Three Phase | Standard | 1.2 kV | 4 A | 1.05 V @ 12.5 A | 5 µA @ 1200 V | -50°C ~ 175°C (TJ) | Through Hole | 5-SIP | ||||||
|

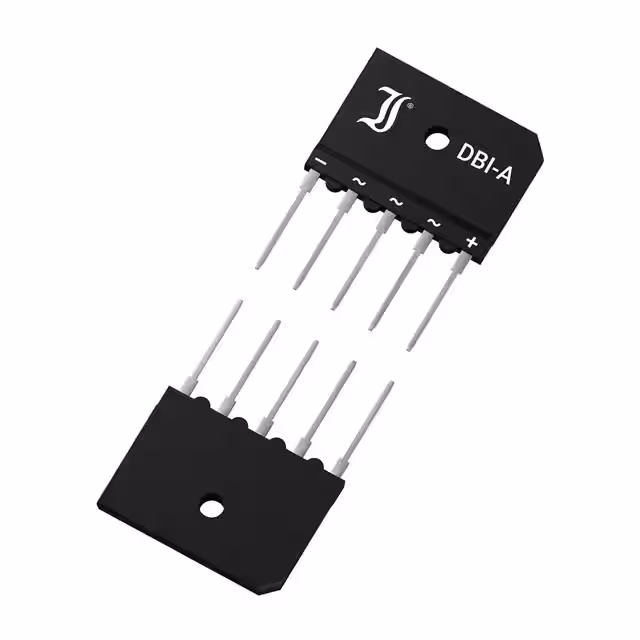

DBI20-16B3P Rect, 1600V, 20A, 200A, 1.3V |
990 | 18.42 |
RFQ |
Datasheet |
Tube | - | Active | Three Phase | Standard | 1.6 kV | 3 A | 1.3 V @ 20 A | 10 µA @ 1600 V | -50°C ~ 150°C (TJ) | Through Hole | 5-SIP | ||||||
|

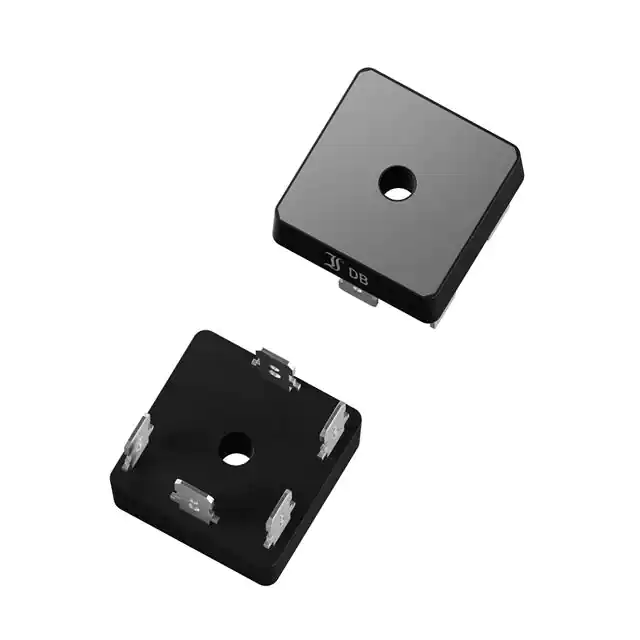

DB25-063P Rect, 600V, 25A, 350A, 1.05V |
250 | 33.36 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 600 V | 35 A | 1.05 V @ 12.5 A | 10 µA @ 600 V | -50°C ~ 150°C (TJ) | Chassis Mount | 5-Square, DB-35 | ||||||
|
DB35-023P Rect, 200V, 35A, 450A, 1.05V |
100 | 33.36 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 200 V | 35 A | 1.05 V @ 17.5 A | 5 µA @ 200 V | -50°C ~ 150°C (TJ) | Chassis Mount | 5-Square, DB-35 | ||||||
|
KBPC3501FP1PH BRIDGE KBPC 100V 35A |
480 | 7.67 |
RFQ |
Datasheet |
Box,Box | - | Active | Single Phase | Standard | 100 V | 35 A | 1.1 V @ 17.5 A | 10 µA @ 100 V | -50°C ~ 150°C (TJ) | Chassis Mount | 4-Square, KBPC35 | ||||||
|
DB25-063PH BRIDGE DB 600V 25A |
2,999 | 4.34 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 600 V | 25 A | 1.05 V @ 12.5 A | 10 µA @ 600 V | -50°C ~ 150°C (TJ) | Chassis Mount | 5-Square, DB-35 |
