| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB15-063PH BRIDGE DB 600V 25A |
2,775 | 4.34 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 600 V | 25 A | 1.05 V @ 12.5 A | 10 µA @ 600 V | -50°C ~ 150°C (TJ) | Chassis Mount | 5-Square, DB-35 | ||||||
|
|
DB25-103PH BRIDGE DB 1000V 25A |
2,216 | 4.34 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 1 kV | 25 A | 1.05 V @ 12.5 A | 10 µA @ 1000 V | -50°C ~ 150°C (TJ) | Chassis Mount | 5-Square, DB-35 | ||||||
|
|
DB15-143PH BRIDGE DB 1400V 25A |
2,755 | 4.96 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 1.4 kV | 25 A | 1.05 V @ 12.5 A | 10 µA @ 1400 V | -50°C ~ 150°C (TJ) | Chassis Mount | 5-Square, DB-35 | ||||||
|
|
DB15-123PH BRIDGE DB 1200V 25A |
3,127 | 4.96 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 1.2 kV | 25 A | 1.05 V @ 12.5 A | 10 µA @ 1200 V | -50°C ~ 150°C (TJ) | Chassis Mount | 5-Square, DB-35 | ||||||
|
|
DB15-163PH BRIDGE DB 1600V 25A |
3,370 | 4.96 |
RFQ |
Datasheet |
Box | - | Active | Three Phase | Standard | 1.6 kV | 25 A | 1.05 V @ 12.5 A | 10 µA @ 1600 V | -50°C ~ 150°C (TJ) | Chassis Mount | 5-Square, DB-35 | ||||||
|

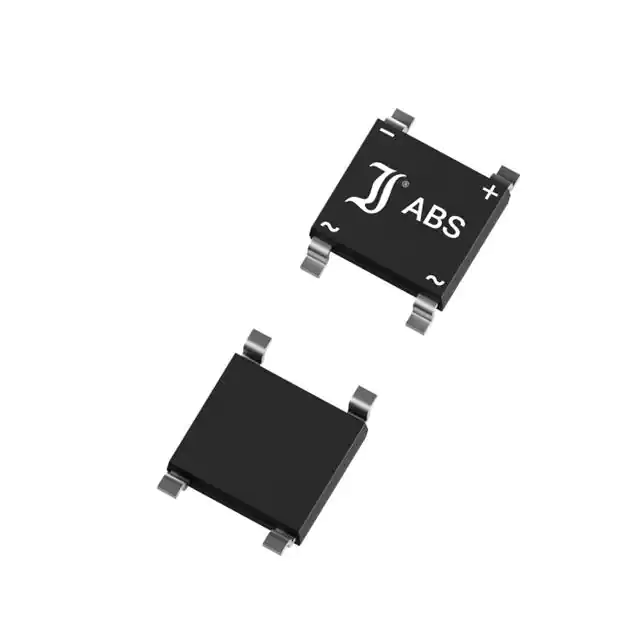

ABS15D1BRect, 200V, 2A, 1500ns |
3,753 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 200 V | 2 A | 1.1 V @ 2 A | 5 µA @ 200 V | -50°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
B80S15ABRIDGE RECTIFIER, SINGLE PHASE |
3,299 | 0.00 |
RFQ |
Datasheet |
Strip | - | Active | Single Phase | Standard | 160 V | 1.5 A | 1.1 V @ 1 A | 5 µA @ 160 V | -50°C ~ 150°C (TJ) | Surface Mount | |||||||
|
|
B125S15ABRIDGE RECTIFIER, SINGLE PHASE |
3,630 | 0.00 |
RFQ |
Datasheet |
Strip | - | Active | Single Phase | Standard | 250 V | 1.5 A | 1.1 V @ 1 A | 5 µA @ 250 V | -50°C ~ 150°C (TJ) | Surface Mount | |||||||
|
|
B80S2A-SLIMBRIDGE RECTIFIER, SINGLE PHASE |
2,253 | 0.00 |
RFQ |
Datasheet |
Strip | - | Active | Single Phase | Standard | 160 V | 2.3 A | 950 mV @ 2 A | 5 µA @ 160 V | -50°C ~ 150°C (TJ) | Surface Mount | |||||||
|
|
B40S2A-SLIMBRIDGE RECTIFIER, SINGLE PHASE |
2,374 | 0.00 |
RFQ |
Datasheet |
Strip | - | Active | Single Phase | Standard | 80 V | 2.3 A | 950 mV @ 2 A | 5 µA @ 80 V | -50°C ~ 150°C (TJ) | Surface Mount | |||||||
|
GBU6G1BRect, 400V, 6A |
800 | 1.39 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 400 V | 4.2 A | 1 V @ 6 A | 5 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU4J1BRect, 600V, 4A |
2,063 | 1.40 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 2.8 A | 1 V @ 4 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU4G1BRect, 400V, 4A |
2,506 | 1.40 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 400 V | 2.8 A | 1 V @ 4 A | 5 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU4B1BRect, 100V, 4A |
2,341 | 1.40 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 100 V | 2.8 A | 1 V @ 4 A | 5 µA @ 100 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU4D1BRect, 200V, 4A |
2,187 | 1.40 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 200 V | 2.8 A | 1 V @ 4 A | 5 µA @ 200 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU6K1BRect, 800V, 6A |
3,911 | 1.46 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 800 V | 4.2 A | 1 V @ 6 A | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU6M1BRect, 1000V, 6A |
2,995 | 1.46 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 4.2 A | 1 V @ 6 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU8G1BRect, 400V, 8A |
3,244 | 1.61 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 400 V | 5.6 A | 1 V @ 8 A | 5 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU8M-T1BRect, 1000V, 8A |
3,111 | 1.61 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 5.6 A | 1 V @ 8 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU8K-T1BRect, 800V, 8A |
3,232 | 1.73 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 5.6 A | 1 V @ 8 A | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU |
