| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P7815-500DC-DC NON-ISOLATED, 0.5 A, 20~90 |
3,237 | 6.38 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-500 | Active | Non-Isolated PoL Module | 1 | 20V | 90V | 15V | - | - | - | 500mA | 7.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | Through Hole | 0.45 L x 0.35 W x 0.69 H (11.5mm x 9.0mm x 17.5mm) | ||
|

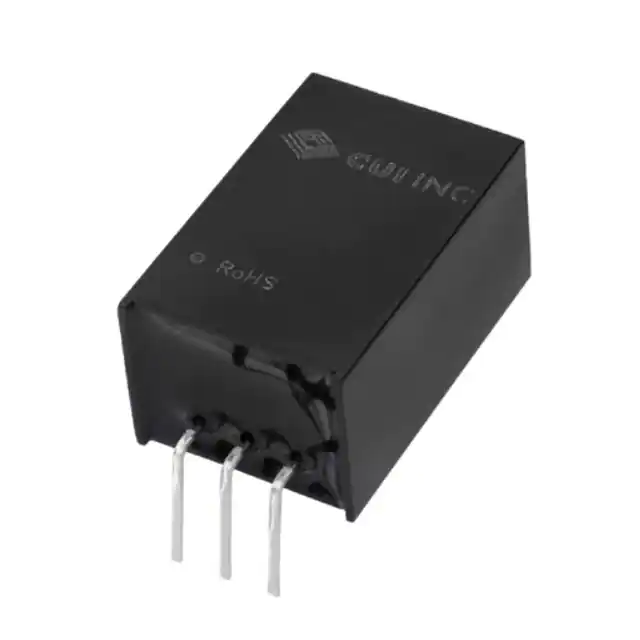

P7805-500RDC-DC NON-ISOLATED, 0.5 A, 9~90 |
3,269 | 6.38 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-500 | Active | Non-Isolated PoL Module | 1 | 9V | 90V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | Through Hole | 0.45 L x 0.69 W x 0.35 H (11.5mm x 17.5mm x 9.0mm) | ||
|
|
P7806-500DC-DC NON-ISOLATED, 0.5 A, 9~90 |
2,588 | 6.38 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-500 | Active | Non-Isolated PoL Module | 1 | 9V | 90V | 6.5V | - | - | - | 500mA | 3.25 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 0.45 L x 0.35 W x 0.69 H (11.5mm x 9.0mm x 17.5mm) | ||
|
|
P7809-500RDC-DC NON-ISOLATED, 0.5 A, 14~90 |
3,502 | 6.38 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-500 | Active | Non-Isolated PoL Module | 1 | 14V | 90V | 9V | - | - | - | 500mA | 4.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 0.45 L x 0.69 W x 0.35 H (11.5mm x 17.5mm x 9.0mm) | ||
|
|
P7824-500DC-DC NON-ISOLATED, 0.5 A, 36~90 |
2,151 | 6.38 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-500 | Active | Non-Isolated PoL Module | 1 | 36V | 90V | 24V | - | - | - | 300mA | 7.2 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | Through Hole | 0.45 L x 0.35 W x 0.69 H (11.5mm x 9.0mm x 17.5mm) | ||
|
|
P7803-500RDC-DC NON-ISOLATED, 0.5 A, 9~90 |
2,539 | 6.38 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-500 | Active | Non-Isolated PoL Module | 1 | 9V | 90V | 3.3V | - | - | - | 500mA | 1.65 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | Through Hole | 0.45 L x 0.69 W x 0.35 H (11.5mm x 17.5mm x 9.0mm) | ||
|
|
P7815-500RDC-DC NON-ISOLATED, 0.5 A, 20~90 |
3,125 | 6.38 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-500 | Active | Non-Isolated PoL Module | 1 | 20V | 90V | 15V | - | - | - | 500mA | 7.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | Through Hole | 0.45 L x 0.69 W x 0.35 H (11.5mm x 17.5mm x 9.0mm) | ||
|
|
P7805-500DC-DC NON-ISOLATED, 0.5 A, 9~90 |
3,988 | 6.38 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-500 | Active | Non-Isolated PoL Module | 1 | 9V | 90V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | Through Hole | 0.45 L x 0.35 W x 0.69 H (11.5mm x 9.0mm x 17.5mm) | ||
|
|
P7803-500DC-DC NON-ISOLATED, 0.5 A, 9~90 |
3,868 | 6.38 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-500 | Active | Non-Isolated PoL Module | 1 | 9V | 90V | 3.3V | - | - | - | 500mA | 1.65 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | Through Hole | 0.45 L x 0.35 W x 0.69 H (11.5mm x 9.0mm x 17.5mm) | ||
|
|
P7824-500RDC-DC NON-ISOLATED, 0.5 A, 36~90 |
2,796 | 6.38 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-500 | Active | Non-Isolated PoL Module | 1 | 36V | 90V | 24V | - | - | - | 300mA | 7.2 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | Through Hole | 0.45 L x 0.69 W x 0.35 H (11.5mm x 17.5mm x 9.0mm) | ||
|
|
P7812-500DC-DC NON-ISOLATED, 0.5 A, 18~90 |
2,136 | 6.38 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-500 | Active | Non-Isolated PoL Module | 1 | 18V | 90V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 0.45 L x 0.35 W x 0.69 H (11.5mm x 9.0mm x 17.5mm) | ||
|
|
P7812-500RDC-DC NON-ISOLATED, 0.5 A, 18~90 |
2,057 | 6.38 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-500 | Active | Non-Isolated PoL Module | 1 | 18V | 90V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 0.45 L x 0.69 W x 0.35 H (11.5mm x 17.5mm x 9.0mm) | ||
|
PRME1-S24-S15-MDC-DC ISOLATED 3K, 1 W, 22.8~25. |
2,739 | 6.41 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tube | PRME1-M (1W) | Active | Isolated Module | 1 | 22.8V | 25.2V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 71% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm) | ||
|
|
PRME1-S24-S5-MDC-DC ISOLATED 3K, 1 W, 22.8~25. |
3,178 | 6.41 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tube | PRME1-M (1W) | Active | Isolated Module | 1 | 22.8V | 25.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 69% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm) | ||
|
|
PRME1-S24-S12-MDC-DC ISOLATED 3K, 1 W, 22.8~25. |
3,437 | 6.41 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tube | PRME1-M (1W) | Active | Isolated Module | 1 | 22.8V | 25.2V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 71% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm) | ||
|
PESE2-S24-S12-MDC-DC 3KV ISOLATED, 2 W, 21.6~26 |
2,636 | 6.76 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | PESE2-M (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 167mA | 2.004 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PESE2-S24-S5-MDC-DC 3KV ISOLATED, 2 W, 21.6~26 |
3,420 | 6.76 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | PESE2-M (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PESE2-S24-S15-MDC-DC 3KV ISOLATED, 2 W, 21.6~26 |
3,321 | 6.76 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | PESE2-M (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 1.995 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PESE2-S24-S9-MDC-DC 3KV ISOLATED, 2 W, 21.6~26 |
2,865 | 6.76 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | PESE2-M (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 222mA | 1.998 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
PESE2-S12-S12-MDC-DC 3KV ISOLATED, 2 W, 10.8~13 |
3,217 | 6.78 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | PESE2-M (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2.004 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) |
