Data Acquisition - Digital to Analog Converters (DAC)(12303)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX5875EGK+DIC DAC 16BIT A-OUT 68QFN |
303 | 33.06 |
RFQ |
Datasheet |
68-VFQFN Exposed Pad | Tube | - | Active | 16 | 2 | 14ns | Current - Unbuffered | Yes | Parallel | External, Internal | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | ±3, ±2 | Current Steering | -40°C ~ 85°C |
|
MAX5719AGSD+IC DAC 20BIT 14SOIC |
1,300 | 33.10 |
RFQ |
Datasheet |
14-SOIC (0.154, 3.90mm Width) | Tube | - | Active | 20 | 1 | 1.5µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 4.5V ~ 5.5V | 4.5V ~ 5.5V | ±1, ±1 | R-2R | -40°C ~ 105°C |
|
DAC7800KUIC DAC 12BIT A-OUT 16SOIC |
345 | 33.63 |
RFQ |
Datasheet |
16-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 12 | 2 | 800ns | Current - Unbuffered | No | SPI | External | 5V | 5V | ±1 (Max), ±1 (Max) | Multiplying DAC | -40°C ~ 85°C |
|
AD9765ASTZIC DAC 12BIT A-OUT 48LQFP |
106 | 38.03 |
RFQ |
48-LQFP | Tray | TxDAC+® | Active | 12 | 2 | 35ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 5.5V | 2.7V ~ 5.5V | ±0.4, ±0.3 | Current Source | -40°C ~ 85°C | |
|
MAX5318GUG+IC DAC 18BIT V-OUT 24TSSOP |
493 | 38.52 |
RFQ |
Datasheet |
24-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | 18 | 1 | 3µs (Typ) | Voltage - Buffered | No | SPI | External | 2.7V ~ 3.3V, 5V, -1.25V | 1.8V ~ 5.5V | ±0.75, ±0.3 | - | -40°C ~ 105°C |
|
MAX525BCAP+IC DAC 12BIT V-OUT 20SSOP |
1,403 | 36.55 |
RFQ |
Datasheet |
20-SSOP (0.209, 5.30mm Width) | Tube | - | Active | 12 | 4 | 12µs (Typ) | Voltage - Buffered | No | SPI | External | 5V | 5V | ± 1 (Max), 1 (Max) | R-2R | 0°C ~ 70°C |
|
AD9106BCPZIC DAC 12BIT A-OUT 32LFCSP |
665 | 39.39 |
RFQ |
Datasheet |
32-WFQFN Exposed Pad, CSP | Tray | TxDAC® | Active | 12 | 4 | 31.2ns (Typ) | Current - Unbuffered | Yes | SPI | External, Internal | 1.7V ~ 3.6V | 1.7V ~ 3.6V | ±0.5, ±0.4 | Segmented DAC | -40°C ~ 85°C |
|
AD7233ANZIC DAC 12BIT V-OUT 8DIP |
249 | 39.54 |
RFQ |
Datasheet |
8-DIP (0.300, 7.62mm) | Tube | DACPORT® | Active | 12 | 1 | 10µs | Voltage - Buffered | No | SPI | Internal | ±10.8V ~ 16.5V | - | ±1 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C |
|
AD9747BCPZIC DAC 16BIT A-OUT 72LFCSP |
193 | 43.49 |
RFQ |
Datasheet |
72-VFQFN Exposed Pad, CSP | Tray | - | Active | 16 | 2 | - | Current - Unbuffered | Yes | Parallel | External, Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±4, ±2 | Quad-Switch | -40°C ~ 85°C |
|
AD7248AANZIC DAC 12BIT V-OUT 20DIP |
373 | 40.34 |
RFQ |
Datasheet |
20-DIP (0.300, 7.62mm) | Tube | DACPORT® | Active | 12 | 1 | 7µs | Voltage - Buffered | No | Parallel | Internal | ±10.8V ~ 16.5V | 10.8V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
AD7548JRZIC DAC 12BIT A-OUT 20SOIC |
680 | 40.70 |
RFQ |
Datasheet |
20-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 12 | 1 | 1.5µs (Typ) | Current - Unbuffered | No | Parallel | External | 5V, 11.4V ~ 15.75V | 5V, 11.4V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C |
|
AD767JNZIC DAC 12BIT V-OUT 24DIP |
156 | 48.90 |
RFQ |
Datasheet |
24-DIP (0.300, 7.62mm) | Tube | - | Active | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.5, ±0.5 | Current Steering | 0°C ~ 70°C |
|
AD669ARZIC DAC 16BIT V-OUT 28SOIC |
118 | 51.72 |
RFQ |
Datasheet |
28-SOIC (0.295, 7.50mm Width) | Tube | DACPORT® | Active | 16 | 1 | 13µs | Voltage - Buffered | No | Parallel | External, Internal | ±13.5V ~ 16.5V | 5V | ±4 (Max), ±4 (Max) | R-2R | -40°C ~ 85°C |
|

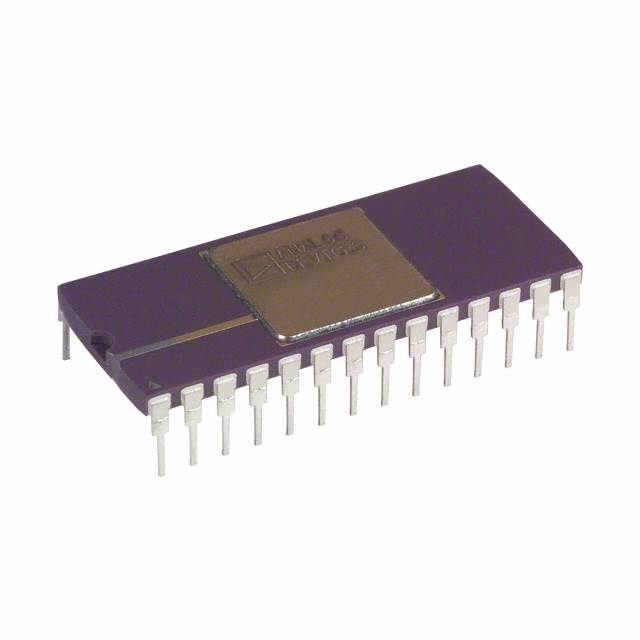

AD667ADIC DAC 12BIT V-OUT 28CDIP |
485 | 52.75 |
RFQ |
Datasheet |
28-CDIP (0.600, 15.24mm) | Tube | - | Active | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.5, ±0.5 | R-2R | -25°C ~ 85°C |
|
LTC1596-1ACSW#PBFIC DAC 16BIT A-OUT 16SOIC |
3,562 | 53.62 |
RFQ |
Datasheet |
16-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±0.35, ±0.2 | R-2R | 0°C ~ 70°C |
|
|
DAC8426FSZIC DAC 8BIT V-OUT 20SOIC |
322 | 61.16 |
RFQ |
Datasheet |
20-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 8 | 4 | 3µs (Typ) | Voltage - Buffered | No | Parallel | Internal | 13.5V ~ 16.5V | 13.5V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
AD5766BCBZ-RL7IC DAC 16BIT V-OUT 49WLCSP |
2,421 | 69.88 |
RFQ |
Datasheet |
49-UFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | 16 | 16 | 12µs | Voltage - Unbuffered | No | SPI, DSP | External | 2.97V ~ 16V | - | ±16, ±1 | String DAC | -40°C ~ 105°C |
|
LTC1597ACG#PBFIC DAC 16BIT A-OUT 28SSOP |
766 | 58.00 |
RFQ |
Datasheet |
28-SSOP (0.209, 5.30mm Width) | Tube | - | Active | 16 | 1 | 1µs (Typ) | Current - Unbuffered | No | Parallel | External | 5V | 5V | ±0.35, ±0.2 | R-2R | 0°C ~ 70°C |
|
DAC8871SBPWIC DAC 16BIT V-OUT 16TSSOP |
275 | 55.97 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI | External | ±13.5V ~ 19.8V | 2.7V ~ 5.5V | ±1, ±0.25 | R-2R | -40°C ~ 105°C |
|
AD7247ABRZIC DAC 12BIT V-OUT 24SOIC |
239 | 58.47 |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Tube | DACPORT® | Active | 12 | 2 | 8µs | Voltage - Buffered | No | Parallel | External, Internal | ±10.8V ~ 16.5V | 10.8V ~ 16.5V | ±0.5 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C |
