Data Acquisition - Digital to Analog Converters (DAC)(12303)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC1592AIG#PBFIC DAC 16BIT A-OUT 16SSOP |
416 | 63.42 |
RFQ |
Datasheet |
16-SSOP (0.209, 5.30mm Width) | Tube | SoftSpan™ | Active | 16 | 1 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±0.4, ±0.2 | Multiplying DAC | -40°C ~ 85°C |
|
MAX536BCPE+IC DAC 12BIT V-OUT 16DIP |
377 | 58.54 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | 12 | 4 | 3µs (Typ) | Voltage - Buffered | No | SPI | External | 10.8V ~ 13.2V, -5V | - | ±1 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C |
|
AD7839ASZIC DAC 13BIT V-OUT 44MQFP |
395 | 67.88 |
RFQ |
Datasheet |
44-QFP | Tray | - | Active | 13 | 8 | 40µs | Voltage - Buffered | No | Parallel | External | ±14.25V ~ 15.75V | 5V | ±2 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C |
|
MAX5891EGK+DIC DAC 16BIT A-OUT 68QFN |
132 | 65.14 |
RFQ |
Datasheet |
68-VFQFN Exposed Pad | Tube | - | Active | 16 | 1 | 11µs (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | ±3.8, ±2.8 | Current Steering | -40°C ~ 85°C |
|
|
AD7835ASZIC DAC 14BIT V-OUT 44MQFP |
3,997 | 76.01 |
RFQ |
Datasheet |
44-QFP | Tray | - | Active | 14 | 4 | 10µs (Typ) | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 15.75V | 5V | ±2 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C |
|
AD768ARZIC DAC 16BIT A-OUT 28SOIC |
185 | 76.10 |
RFQ |
28-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 16 | 1 | 35ns | Current - Unbuffered | Yes | Parallel | External, Internal | ±5V | - | ±8, ±8 | R-2R | -40°C ~ 85°C | |
|
AD9122BCPZIC DAC 16BIT A-OUT 72LFCSP |
1,288 | 80.92 |
RFQ |
Datasheet |
72-VFQFN Exposed Pad, CSP | Tray | TxDAC+® | Active | 16 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.71V ~ 1.89V | ±3.7, ±2.1 | Current Source | -40°C ~ 85°C |
|
AD9726BSVZIC DAC 16BIT A-OUT 80TQFP |
286 | 82.82 |
RFQ |
80-TQFP Exposed Pad | Tray | - | Active | 16 | 1 | 10.5ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 2.37V ~ 2.63V | ±1, ±0.5 | Current Source | -40°C ~ 85°C | |
|
|
AD7244JRZIC DAC 14BIT V-OUT 28SOIC |
166 | 85.88 |
RFQ |
Datasheet |
28-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 14 | 2 | 4µs | Voltage - Buffered | No | SPI | External, Internal | ±5V | - | ±2 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
|
AD9142ABCPZIC DAC 16BIT A-OUT 72LFCSP |
301 | 94.09 |
RFQ |
Datasheet |
72-VFQFN Exposed Pad, CSP | Tray | TxDAC+® | Active | 16 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V | ±3.7, ±2.1 | Oversampling Interpolating DAC | -40°C ~ 85°C |
|
|
AD9777BSVZIC DAC 16BIT A-OUT 80TQFP |
377 | 92.62 |
RFQ |
Datasheet |
80-TQFP Exposed Pad | Tray | TxDAC+® | Active | 16 | 2 | 11µs (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3.1V ~ 3.5V | 3.1V ~ 3.5V | ±6, ±3 | Oversampling Interpolating DAC | -40°C ~ 85°C |
|

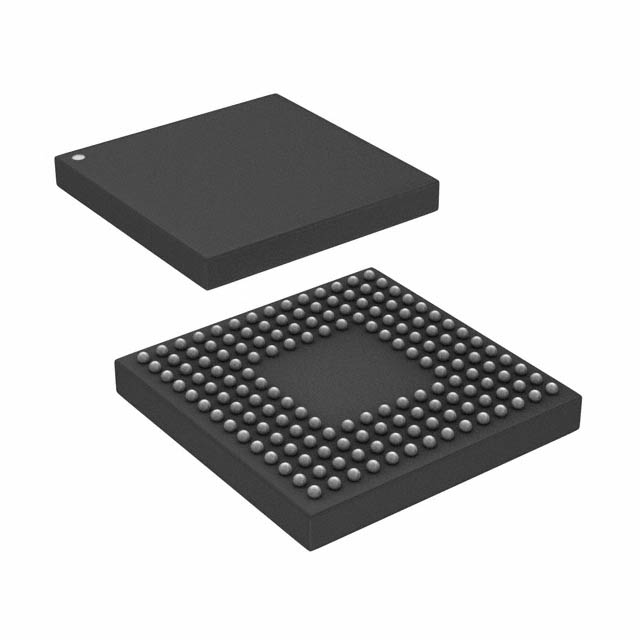

AD9739BBCZIC DAC 14BIT A-OUT 160CSPBGA |
733 | 102.28 |
RFQ |
Datasheet |
160-LFBGA, CSPBGA | Tray | - | Active | 14 | 1 | 13ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V, 3.1V ~ 3.5V | 1.7V ~ 1.9V, 3.1V ~ 3.5V | ±1.3, ±0.8 | Quad-Switch | -40°C ~ 85°C |
|
AD569KNZIC DAC 16BIT V-OUT 28DIP |
2,981 | 110.26 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Tube | - | Active | 16 | 1 | 6µs | Voltage - Buffered | No | Parallel | External | ±10.8V ~ 13.2V | - | ±0.020, ±0.5 | Segmented DAC | 0°C ~ 70°C |
|
AD5372BCPZIC DAC 16BIT V-OUT 56LFCSP |
3,938 | 114.93 |
RFQ |
Datasheet |
64-VFQFN Exposed Pad, CSP | Bulk,Tray | - | Active | 16 | 32 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 9V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±4 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C |
|
|
AD9129BBCZIC DAC 14BIT A-OUT 160CSPBGA |
134 | 128.05 |
RFQ |
160-LFBGA, CSPBGA | Tray | - | Active | 14 | 1 | 13ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.4, 1.1 | Quad-Switch | -40°C ~ 85°C | |
|
DAC38J84IAAVIC DAC 16BIT A-OUT 144FCBGA |
3,005 | 141.04 |
RFQ |
Datasheet |
144-FBGA, FCBGA | Tray | - | Active | 16 | 4 | 10ns (Typ) | Current - Unbuffered | Yes | JESD204B | External, Internal | 3.15V ~ 3.45V | 0.85V ~ 0.95V | ±6, ±4 | Current Source | -40°C ~ 85°C |
|
|
DAC37J84IAAVIC DAC 16BIT A-OUT 144FCBGA |
147 | 145.48 |
RFQ |
Datasheet |
144-FBGA, FCBGA | Tray | - | Active | 16 | 4 | 10ns (Typ) | Current - Unbuffered | Yes | JESD204B | External, Internal | 3.15V ~ 3.45V | 0.85V ~ 0.95V | ±6, ±4 | Current Source | -40°C ~ 85°C |
|
LTC2000AIY-16#PBFIC DAC 16BIT A-OUT 170BGA |
425 | 175.58 |
RFQ |
Datasheet |
170-LFBGA | Tray | - | Active | 16 | 1 | 2.2ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.8V ~ 1.92V, 3.135V ~ 3.465V | 1.8V ~ 1.92V, 3.135V ~ 3.465V | ±1, ±0.5 | Current Steering | -40°C ~ 85°C |
|
AD664AD-BIPIC DAC 12BIT V-OUT 28CDIP |
109 | 208.00 |
RFQ |
Datasheet |
28-CDIP (0.600, 15.24mm) | Tube | - | Active | 12 | 4 | 10µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 16.5V | 5V | ±0.75, ±0.75 (Max) | R-2R | -40°C ~ 85°C |
|
DAC081S101CIMK/NOPBIC DAC 8BIT V-OUT TSOT23-6 |
5,648 | 1.91 |
RFQ |
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | - | Active | 8 | 1 | 5µs | Voltage - Buffered | No | SPI, DSP | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | +0.16/-0.12, +0.04/-0.02 | String DAC | -40°C ~ 105°C |
