| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC2758BCLX#PBFIC DAC 18BIT A-OUT 48LQFP |
3,868 | 57.45 |
RFQ |
Datasheet |
48-LQFP | Tray | SoftSpan™ | Active | 18 | 2 | 2.1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C |
|
AD3552RBCPZ16DUAL CH 16 BIT IOUT |
3,392 | 65.50 |
RFQ |
Datasheet |
32-VFQFN Exposed Pad, CSP | Tray | - | Active | 16 | 2 | 100ns | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 1.71V ~ 1.89V | ±2, ±1 | Current Steering | -40°C ~ 105°C |
|
AD7237ABRZIC DAC 12BIT V-OUT 24SOIC |
2,611 | 69.98 |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Tube | DACPORT® | Active | 12 | 2 | 8µs | Voltage - Buffered | No | Parallel | External, Internal | ±10.8V ~ 16.5V | - | ±0.5 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C |
|
LTC2704IGW-16#PBFIC DAC 16BIT V-OUT 44SSOP |
2,983 | 71.88 |
RFQ |
Datasheet |
44-BSOP (0.295, 7.50mm Width) | Tube | SoftSpan™ | Active | 16 | 4 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | - | -40°C ~ 85°C |
|
LTC2668IUJ-16#PBFIC DAC 16BIT V-OUT 40QFN |
3,081 | 71.88 |
RFQ |
Datasheet |
40-WFQFN Exposed Pad | Tube | SoftSpan™ | Active | 16 | 16 | 20.5µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 1.71V ~ 5.5V | ±2.2, ±0.2 | - | -40°C ~ 85°C |
|
AD7836ASZIC DAC 14BIT V-OUT 44MQFP |
2,454 | 1.00 |
RFQ |
Datasheet |
44-QFP | Bulk,Tray | - | Active | 14 | 4 | 16µs (Typ) | Voltage - Buffered | Yes | Parallel | External | ±14.25V ~ 15.75V | 5V | ±2 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C |
|
AD7846JPZIC DAC 16BIT V-OUT 28PLCC |
3,031 | 81.75 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Bulk,Tube | - | Active | 16 | 1 | 9µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 15.75V | 5V | ±16 (Max), ±1 (Max) | String DAC | 0°C ~ 70°C |
|
AD7846JNZIC DAC 16BIT V-OUT 28DIP |
251 | 84.22 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Bulk,Tube | - | Active | 16 | 1 | 9µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 15.75V | 5V | ±16 (Max), ±1 (Max) | String DAC | 0°C ~ 70°C |
|
|
AD7841BSZIC DAC 14BIT V-OUT 44MQFP |
3,790 | 84.58 |
RFQ |
Datasheet |
44-QFP | Bulk,Tray | - | Active | 14 | 8 | 31µs (Typ) | Voltage - Buffered | No | Parallel | External | ±13.5V ~ 16.5V | 5V | ±2 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
|
DAC8412FPZIC DAC 12BIT V-OUT 28DIP |
209 | 96.15 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Bulk,Tube | - | Active | 12 | 4 | 10µs (Typ) | Voltage - Buffered | No | Parallel | External | 5V ~ 15V, -15V | 5V | ±2 (Max), -1 | R-2R | -40°C ~ 85°C |
|
|
AD7846KNZIC DAC 16BIT V-OUT 28DIP |
3,886 | 103.00 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Tube | - | Active | 16 | 1 | 9µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 15.75V | 5V | ±8 (Max), ±0.5 (Max) | String DAC | 0°C ~ 70°C |
|
AD5532ABCZ-1IC DAC 14BIT V-OUT 74CSPBGA |
3,858 | 110.80 |
RFQ |
74-LBGA, CSPBGA | Bulk,Tray | - | Active | 14 | 32 | 30µs | Voltage - Unbuffered | No | Parallel, SPI | External | 5V, 8V ~ 16.5V, -4.75V ~ 16.5V | 2.7V ~ 5.5V | ±0.39 (Max), ±1 (Max) | - | -40°C ~ 85°C | |
|
AD7228KNZIC DAC 8BIT V-OUT 24DIP |
3,576 | 114.04 |
RFQ |
Datasheet |
24-DIP (0.300, 7.62mm) | Bulk,Tube | - | Active | 8 | 8 | 5µs, 7µs | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, -5V | 13.5V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|

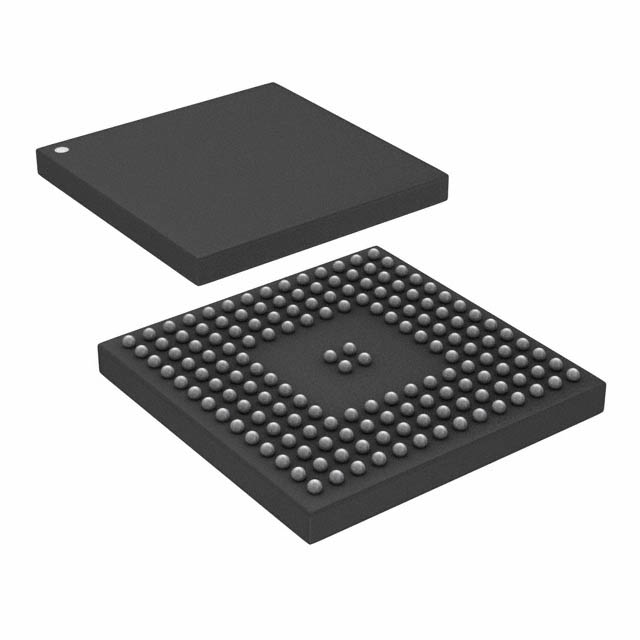

AD9789BBCZIC DAC 14BIT A-OUT 164CSPBGA |
3,918 | 1.00 |
RFQ |
164-LFBGA, CSPBGA | Bulk,Tray | - | Active | 14 | 1 | 13ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel, Parallel | External, Internal | 3.14V ~ 3.47V | 1.43V ~ 1.58V, 1.71V ~ 1.89V, 3.14V ~ 3.47V | - | Oversampling Interpolating DAC | -40°C ~ 85°C | |
|
AD5380BSTZ-5IC DAC 14BIT V-OUT 100LQFP |
3,926 | 126.77 |
RFQ |
100-LQFP | Tray | - | Active | 14 | 40 | 8µs | Voltage - Buffered | No | I²C, Parallel, SPI, DSP | External, Internal | 5V | 2.7V ~ 5.5V | ±4 (Max), -1/+2 (Max) | String DAC | -40°C ~ 85°C | |
|
AD5601BCPZ-RL7IC DAC 8BIT V-OUT 6LFCSP-WD |
2,303 | 1.00 |
RFQ |
Datasheet |
6-VDFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT),Bulk | nanoDAC® | Active | 8 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5 (Max), ±0.5 (Max) | String DAC | -40°C ~ 125°C |
|
LTC2630CSC6-HZ8#TRMPBFIC DAC 8BIT V-OUT SC70-6 |
3,528 | 3.40 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | - | Active | 8 | 1 | 3.7µs (Typ) | Voltage - Buffered | No | SPI | Internal, Supply | 5V | 5V | ±0.05, ±0.5 (Max) | - | 0°C ~ 70°C |
|
AD5602YKSZ-1500RL7IC DAC 8BIT V-OUT SC70-6 |
2,425 | 4.16 |
RFQ |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | nanoDAC® | Active | 8 | 1 | 10µs | Voltage - Buffered | No | I²C | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5 (Max), ±1 (Max) | String DAC | -40°C ~ 125°C | |
|
|
AD5612BKSZ-2500RL7IC DAC 10BIT V-OUT SC70-6 |
3,048 | 4.47 |
RFQ |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT),Bulk | nanoDAC® | Active | 10 | 1 | 10µs | Voltage - Buffered | No | I²C | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5 (Max), ±1 (Max) | String DAC | -40°C ~ 125°C | |
|
LTC2631CTS8-LM10#TRMPBFIC DAC 10BIT V-OUT TSOT23-8 |
2,904 | 4.75 |
RFQ |
Datasheet |
SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR),Cut Tape (CT) | - | Active | 10 | 1 | 3.8µs (Typ) | Voltage - Buffered | No | I²C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.5 (Max) | - | 0°C ~ 70°C |
