| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC2664CUH-12#PBFIC DAC 12BIT V-OUT 32QFN |
2,226 | 28.91 |
RFQ |
Datasheet |
32-WFQFN Exposed Pad | Tube | SoftSpan™ | Active | 12 | 4 | 15.5µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 1.71V ~ 5.5V | ±0.2, ±0.05 | - | 0°C ~ 70°C |
|
AD5735ACPZIC DAC 12BIT V OR A-OUT 64LFCSP |
3,364 | 29.19 |
RFQ |
Datasheet |
64-VFQFN Exposed Pad, CSP | Tray | - | Active | 12 | 4 | 18µs | Voltage or Current - Unbuffered | No | SPI, DSP | External, Internal | 9V ~ 33V, -10.8V ~ 26.4V | 2.7V ~ 5.5V | -, ±1 (Max) | R-2R | -40°C ~ 105°C |
|
AD5541LRZIC DAC 16BIT V-OUT 8SOIC |
2,623 | 31.61 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tube | - | Active | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | 0°C ~ 70°C |
|
LTC1458CG#PBFIC DAC 12BIT V-OUT 28SSOP |
2,686 | 31.71 |
RFQ |
Datasheet |
28-SSOP (0.209, 5.30mm Width) | Tube | - | Active | 12 | 4 | 14µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 5V | 5V | ±2.25, ±0.5 (Max) | R-2R | 0°C ~ 70°C |
|
|
LTC1595CCS8#PBFIC DAC 16BIT A-OUT 8SOIC |
3,562 | 31.75 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tube | - | Active | 16 | 1 | 1µs (Typ) | Current - Unbuffered | No | SPI | External | 5V | 5V | ±4 (Max), ±2 (Max) | R-2R | 0°C ~ 70°C |
|

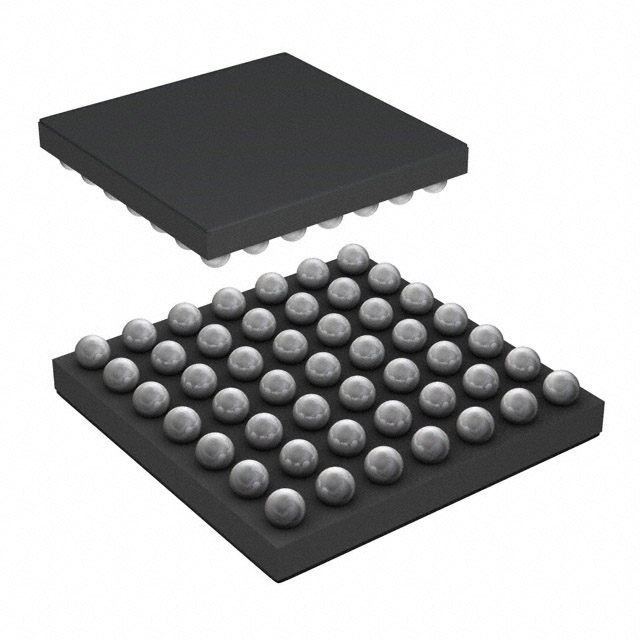

AD5770RBCBZ-RL7IC DAC 14BIT A-OUT 49WLCSP |
3,753 | 37.01 |
RFQ |
Datasheet |
49-WFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT) | AD5770R | Active | 14 | 6 | 13µs (Typ) | Current - Unbuffered | No | Serial, SPI | External, Internal | 2.9V ~ 5.5V | 2.9V ~ 5.5V | ±6.5 (Max), ±1 (Max) | Current Steering | -40°C ~ 105°C |
|
AD5546CRUZIC DAC 16BIT A-OUT 28TSSOP |
2,076 | 33.71 |
RFQ |
Datasheet |
28-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | 16 | 1 | 500ns (Typ) | Current - Unbuffered | No | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C |
|
|
LTC2672CUH-12#PBF5CH 12BIT CURRENTSOURCEOUT DAC |
3,124 | 34.39 |
RFQ |
Datasheet |
32-WFQFN Exposed Pad | Tube | SoftSpan™ | Active | 12 | 5 | 21.1µs (Typ) | Current - Unbuffered | No | Serial, SPI | External, Internal | 2.85V ~ 5.5V | 1.7V ~ 5.5V | 12LSB, 0.45LSB | Current Source | 0°C ~ 70°C |
|
|
AD5757ACPZIC DAC 16BIT A-OUT 64LFCSP |
3,389 | 36.72 |
RFQ |
Datasheet |
64-VFQFN Exposed Pad, CSP | Tray | - | Active | 16 | 4 | 15µs (Typ) | Current - Unbuffered | No | SPI, DSP | External, Internal | 9V ~ 33V | 2.7V ~ 5.5V | -, ±1 (Max) | R-2R | -40°C ~ 105°C |
|
|
LTC2672IUH-12#PBF5CH 12BIT CURRENTSOURCEOUT DAC |
3,698 | 39.10 |
RFQ |
Datasheet |
32-WFQFN Exposed Pad | Tube | SoftSpan™ | Active | 12 | 5 | 21.1µs (Typ) | Current - Unbuffered | No | Serial, SPI | External, Internal | 2.85V ~ 5.5V | 1.7V ~ 5.5V | 12LSB, 0.45LSB | Current Source | -40°C ~ 85°C |
|
DAC8043FPZIC DAC 12BIT A-OUT 8DIP |
16,559 | 39.40 |
RFQ |
Datasheet |
8-DIP (0.300, 7.62mm) | Bulk,Tube | - | Active | 12 | 1 | 1µs | Current - Unbuffered | No | SPI | External | 5V | 5V | 1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
LTC2600IUFD#PBFIC DAC 16BIT V-OUT 20QFN |
3,773 | 39.75 |
RFQ |
Datasheet |
20-WFQFN Exposed Pad | Tube | - | Active | 16 | 8 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±12, ±1 (Max) | - | -40°C ~ 85°C |
|
LTC1650ACS#PBFIC DAC 16BIT V-OUT 16SOIC |
3,770 | 40.16 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | 16 | 1 | 4µs (Typ) | Voltage - Buffered | No | SPI | External | ±5V | 5V | ±4, ±0.15 | - | 0°C ~ 70°C |
|
|
LTC1597BCG#PBFIC DAC 16BIT A-OUT 28SSOP |
2,348 | 38.18 |
RFQ |
Datasheet |
28-SSOP (0.209, 5.30mm Width) | Tube | - | Active | 16 | 1 | 1µs (Typ) | Current - Unbuffered | No | Parallel | External | 5V | 5V | ±2 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C |
|
AD7545AKNZIC DAC 12BIT A-OUT 20DIP |
2,214 | 38.21 |
RFQ |
Datasheet |
20-DIP (0.300, 7.62mm) | Tube | - | Active | 12 | 1 | 1µs | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.5 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C |
|
AD5679BCPZ-116-CH16-BITNANODAC+WITH2PPM/CREF |
2,672 | 39.31 |
RFQ |
Datasheet |
28-VFQFN Exposed Pad, CSP | Tray | nanoDAC+® | Active | 16 | 16 | 8µs | Voltage - Buffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 1.8V ~ 5.5V | ±1.8, ±0.7 | String DAC | -40°C ~ 125°C |
|
LTC2755BCUP-16#PBFIC DAC 16BIT A-OUT 64QFN |
3,636 | 40.00 |
RFQ |
Datasheet |
64-WFQFN Exposed Pad | Tube | SoftSpan™ | Active | 16 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C |
|
LTC2754BCUKG-16#PBFIC DAC 16BIT A-OUT 52QFN |
2,391 | 40.00 |
RFQ |
Datasheet |
52-WFQFN Exposed Pad | Tube | SoftSpan™ | Active | 16 | 4 | 2µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C |
|
AD7541AKNZIC DAC 12BIT A-OUT 18DIP |
2,387 | 40.36 |
RFQ |
Datasheet |
18-DIP (0.300, 7.62mm) | Bulk,Tube | - | Active | 12 | 1 | 600ns (Typ) | Current - Unbuffered | Yes | Parallel | External | 5V ~ 16V | 5V ~ 16V | ±0.5 (Max), ±0.5 (Max) | R-2R | 0°C ~ 70°C |
|
AD9780BCPZIC DAC 12BIT A-OUT 72LFCSP |
3,047 | 1.00 |
RFQ |
72-VFQFN Exposed Pad, CSP | Bulk,Tray | - | Active | 12 | 2 | - | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±0.25, ±0.13 | Quad-Switch | -40°C ~ 85°C |
