| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD3542RBCPZ16DUAL CH 16 BIT LVSS |
3,761 | 61.76 |
RFQ |
Datasheet |
28-VFQFN, CSP | Tray | - | Active | 16 | 2 | 100ns | Voltage - Unbuffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 1.71V ~ 1.89V | ±4 (Max), ±2 (Max) | Multiplying DAC | -40°C ~ 105°C |
|
ADV7150LS85TRIPLE 10-BIT VIDEO RAM-DAC |
2,475 | 54.85 |
RFQ |
Datasheet |
160-BQFP | Bulk | ADV7150 | Active | 10 | 3 | - | Current - Unbuffered | Yes | Parallel | External | 4.75V ~ 5.25V | 4.75V ~ 5.25V | ±1 (Max), ±1 (Max) | - | 0°C ~ 70°C |
|
AD9751ASTZIC DAC 10BIT A-OUT 48LQFP |
2,276 | 62.12 |
RFQ |
Datasheet |
48-LQFP | Tray | TxDAC+® | Active | 10 | 1 | 11ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 3.6V | 3V ~ 3.6V | ±0.3, ±0.2 | Current Source | -40°C ~ 85°C |
|
AD563JD/BIN/+12-BIT D/A CONVERTER |
3,141 | 55.29 |
RFQ |
Datasheet |
24-CDIP (0.300, 7.62mm) | Bulk | AD563 | Active | 12 | 1 | 1.5µs (Typ) | Current - Unbuffered | No | - | Internal | 4.75V ~ 15.8V | 4.75V ~ 15.8V | ±0.5 (Max), ±0.5 (Max) | Multiplying DAC | 0°C ~ 70°C |
|
DAC8408GPZIC DAC 8BIT A-OUT 28DIP |
3,802 | 57.73 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Tube | - | Active | 8 | 4 | 250ns | Current - Unbuffered | No | Parallel | External | 5V | 5V | ±0.25 (Max), ±0.5 (Max) | R-2R | 0°C ~ 70°C |
|
AD7537JRZIC DAC 12BIT A-OUT 24SOIC |
2,610 | 63.26 |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Bulk,Tube | - | Active | 12 | 2 | 1.5µs | Current - Unbuffered | No | Parallel | External | 10.8V ~ 16.5V | 10.8V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
AD766ANZIC DAC 16BIT V/A-OUT 16DIP |
2,577 | 63.59 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | DACPORT® | Active | 16 | 1 | 1.5µs (Typ) | Voltage - Buffered, Current - Unbuffered | No | SPI, DSP | Internal | ±4.75V ~ 13.2V | ±4.75V ~ 13.2V | - | Current Steering | -40°C ~ 85°C |
|
AD9787BSVZIC DAC 14BIT A-OUT 100TQFP |
428 | 65.48 |
RFQ |
Datasheet |
100-TQFP Exposed Pad | Bulk,Tray | TxDAC+® | Active | 14 | 2 | 20ns (Typ) | Current - Unbuffered | Yes | Parallel | Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±1, ±0.5 | Oversampling Interpolating DAC | -40°C ~ 85°C |
|
PM562BV12-BIT CURRENT-OUTPUT DAC |
2,824 | 58.26 |
RFQ |
Datasheet |
24-CDIP (0.300, 7.62mm) | Bulk | - | Active | 12 | 1 | 1.5µs | Current - Unbuffered | No | Parallel | External | 4.75V ~ 15.8V | 4.75V ~ 15.8V | ±0.5 (Max), ±0.5 (Max) | Multiplying DAC, R-2R | 0°C ~ 70°C |
|
AD9773BSVZIC DAC 12BIT A-OUT 80TQFP |
941 | 65.67 |
RFQ |
Datasheet |

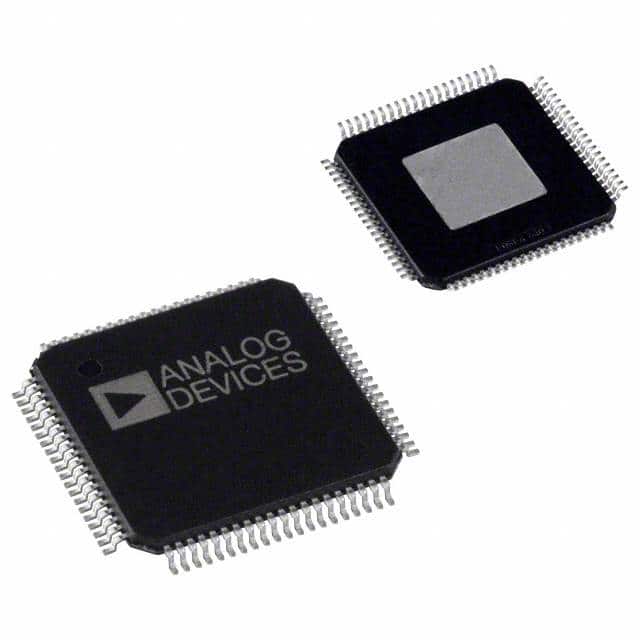

80-TQFP Exposed Pad | Bulk,Tray | TxDAC+® | Active | 12 | 2 | 11ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 3.1V ~ 3.5V | 3.1V ~ 3.5V | ±0.4, ±0.2 | Current Source | -40°C ~ 85°C |
|
JM38510/11302BEAIC DAC 8BIT 16CDIP |
2,564 | 66.64 |
RFQ |
- | Tube | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
DAC8426FPZIC DAC 8BIT V-OUT 20DIP |
3,921 | 67.28 |
RFQ |
Datasheet |
20-DIP (0.300, 7.62mm) | Tube | - | Active | 8 | 4 | 3µs (Typ) | Voltage - Buffered | No | Parallel | Internal | 13.5V ~ 16.5V | 13.5V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
ADDAC80D-CBI-VIC DAC 12BIT 24CERDIP |
2,789 | 68.37 |
RFQ |
Datasheet |
24-CDIP (0.600, 15.24mm) | Tube | - | Active | 12 | 1 | 4µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | 4.5V ~ 16V | ±0.5 (Max), ±0.75 (Max) | R-2R | 0°C ~ 70°C |
|
|
ADDAC80Z-CCD-VDAC, PARALLEL, WORD INPUT |
2,172 | 61.60 |
RFQ |
Datasheet |
24-CDIP (0.600, 15.24mm) | Bulk | - | Active | 12 | 1 | 4µs | Current - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±0.5, ±0.5 | - | -25°C ~ 85°C |
|
|
DAC8222FSZIC DAC 12BIT A-OUT 24SOIC |
3,507 | 67.92 |
RFQ |
Datasheet |
24-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 12 | 2 | 1µs | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±1 (Max), ±4 (Max) | R-2R | -40°C ~ 85°C |
|
AD7845TE/883BDAC, PARALLEL, WORD INPUT |
2,694 | 62.99 |
RFQ |
Datasheet |
28-CLCC | Bulk | - | Active | 12 | 1 | 5µs | Voltage - Buffered | No | Parallel | External | ±14.25V ~ 15.75V | ±14.25V ~ 15.75V | ±0.5 (Max), ±1 (Max) | Multiplying DAC, R-2R | -55°C ~ 125°C |
|
LTC1821-1BIGW#PBFIC DAC 16BIT V-OUT 36SSOP |
2,188 | 68.98 |
RFQ |
Datasheet |
36-BSOP (0.295, 7.50mm Width) | Tube | - | Active | 16 | 1 | 2µs (Typ) | Voltage - Buffered | No | Parallel | External | ±4.5V ~ 16.5V | 5V | ±2 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
AD558KDIC DAC 8BIT V-OUT 16CDIP |
2,451 | 69.30 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Bulk,Tube | DACPORT® | Active | 8 | 1 | 3µs | Voltage - Buffered | No | Parallel | Internal | 4.5V ~ 16.5V | 4.5V ~ 16.5V | ±0.25 (Max), - | R-2R | 0°C ~ 70°C |
|
AD7225KNZIC DAC 8BIT V-OUT 24DIP |
2,987 | 70.49 |
RFQ |
Datasheet |
24-DIP (0.300, 7.62mm) | Tube | - | Active | 8 | 4 | 4µs | Voltage - Buffered | No | Parallel | External | 11.4V ~ 16.5V, -5V | 14.25V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
DAC08RC/883CIC DAC 8BIT MULT HS MONO 20CLCC |
2,476 | 73.52 |
RFQ |
Datasheet |
20-CLCC | Tube | - | Active | 8 | 1 | 150µs | Current - Unbuffered | Yes | Parallel | External | ±4.5V ~ 18V | ±4.5V ~ 18V | - | Multiplying DAC | -55°C ~ 125°C |
