| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD565AJRZIC DAC 12BIT A-OUT 28SOIC |
2,753 | 57.63 |
RFQ |
Datasheet |
28-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 12 | 1 | 400ns | Current - Unbuffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.5, ±0.5 | R-2R | 0°C ~ 70°C |
|
LTC1821BCGW#PBFIC DAC 16BIT V-OUT 36SSOP |
2,921 | 64.68 |
RFQ |
Datasheet |
36-BSOP (0.295, 7.50mm Width) | Tube | - | Active | 16 | 1 | 2µs (Typ) | Voltage - Buffered | No | Parallel | External | ±4.5V ~ 16.5V | 5V | ±2 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C |
|
|
LTC1821ACGW#PBFIC DAC 16BIT V-OUT 36SSOP |
2,321 | 83.10 |
RFQ |
Datasheet |
36-BSOP (0.295, 7.50mm Width) | Tube | - | Active | 16 | 1 | 2µs (Typ) | Voltage - Buffered | No | Parallel | External | ±4.5V ~ 16.5V | 5V | ±0.35, ±0.2 | R-2R | 0°C ~ 70°C |
|
AD9737ABBCZIC DAC 11BIT A-OUT 160CSPBGA |
3,184 | 84.48 |
RFQ |
Datasheet |
160-LFBGA, CSPBGA | Tray | - | Active | 11 | 1 | 13µs (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V, 3.1V ~ 3.5V | 1.7V ~ 1.9V, 3.1V ~ 3.5V | ±0.5, ±0.5 | Quad-Switch | -40°C ~ 85°C |
|
|
AD9736BBCIC DAC 14BIT A-OUT 160CSPBGA |
3,865 | 95.64 |
RFQ |
160-LFBGA, CSPBGA | Tray | - | Active | 14 | 1 | - | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.7V ~ 1.9V, 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±1, ±0.6 | Oversampling Interpolating DAC | -40°C ~ 85°C | |
|
AD558TDIC DAC 8BIT V-OUT 16CDIP |
2,084 | 100.85 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Tube | DACPORT® | Active | 8 | 1 | 3µs | Voltage - Buffered | No | Parallel | Internal | 4.5V ~ 16.5V | 4.5V ~ 16.5V | ±0.375 (Max), - | R-2R | -55°C ~ 125°C |
|
AD664JNZ-UNIIC DAC 12BIT V-OUT 28DIP |
3,361 | 175.75 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Tube | - | Active | 12 | 4 | 10µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 16.5V | 5V | ±0.75, ±0.75 (Max) | R-2R | 0°C ~ 70°C |
|
AD664BD-UNIIC DAC 12BIT V-OUT 28CDIP |
2,239 | 264.18 |
RFQ |
Datasheet |
28-CDIP (0.600, 15.24mm) | Tube | - | Active | 12 | 4 | 10µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 16.5V | 5V | ±0.5, ±0.5 (Max) | R-2R | -40°C ~ 85°C |
|

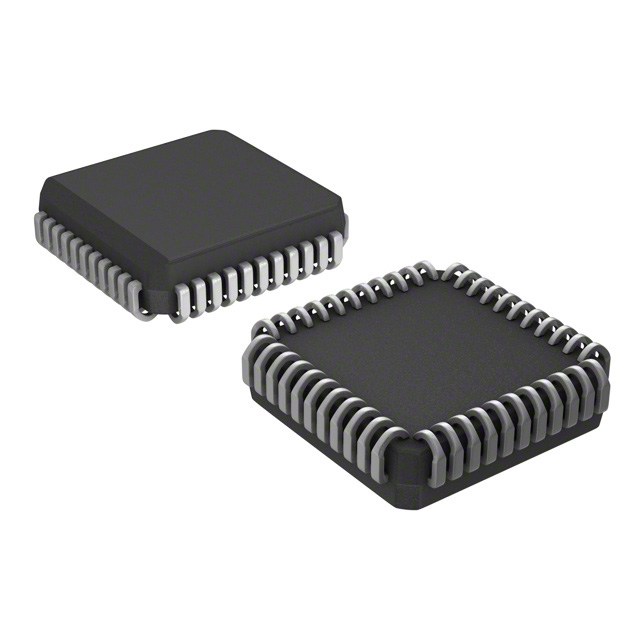

AD664BJIC DAC 12BIT V-OUT 44JLCC |
2,103 | 278.57 |
RFQ |
Datasheet |
44-CLCC (J-Lead) | Tube | - | Active | 12 | 4 | 10µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 16.5V | 5V | ±0.5, ±0.5 (Max) | R-2R | -40°C ~ 85°C |
|
AD1139JIC DAC 18BIT A-OUT 32BBDIP-H |
2,168 | 3010.10 |
RFQ |
Datasheet |
32-CDIP (0.900, 22.86mm) | Box | - | Active | 18 | 1 | - | Current - Unbuffered | No | Parallel | Internal | 5V, ±15V | - | ±1 (Max), ±1 (Max) | - | 0°C ~ 70°C |
|
LTC1664IN#PBFIC DAC 10BIT V-OUT 16DIP |
3,922 | 10.55 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | 10 | 4 | 19µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.6, ±0.2 | Oversampling Interpolating DAC | -40°C ~ 85°C |
|
AD7224KPZIC DAC 8BIT V-OUT 20PLCC |
2,407 | 23.18 |
RFQ |
Datasheet |
20-LCC (J-Lead) | Tube | - | Active | 8 | 1 | 20µs | Voltage - Buffered | No | Parallel | External | 11.4V ~ 16.5V, ±5V | 14.25V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
LTC1599BCG#PBFIC DAC 16BIT A-OUT 24SSOP |
2,824 | 38.18 |
RFQ |
Datasheet |
24-SSOP (0.209, 5.30mm Width) | Tube | - | Active | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 5V | 5V | ±2 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C |
|
AD7228ABNZIC DAC 8BIT V-OUT 24DIP |
2,970 | 55.65 |
RFQ |
Datasheet |
24-DIP (0.300, 7.62mm) | Tube | - | Active | 8 | 8 | 5µs, 7µs | Voltage - Buffered | No | Parallel | External | 10.8V ~ 16.5V, ±5V | 13.5V ~ 16.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
LTC1599ACN#PBFIC DAC 16BIT A-OUT 24DIP |
3,022 | 57.03 |
RFQ |
Datasheet |
24-DIP (0.300, 7.62mm) | Tube | - | Active | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | Parallel | External | 5V | 5V | ±0.35, ±0.2 | R-2R | 0°C ~ 70°C |
|
LTC1596-1AISW#PBFIC DAC 16BIT A-OUT 16SOIC |
3,698 | 64.26 |
RFQ |
Datasheet |
16-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±0.35, ±0.2 | R-2R | -40°C ~ 85°C |
|

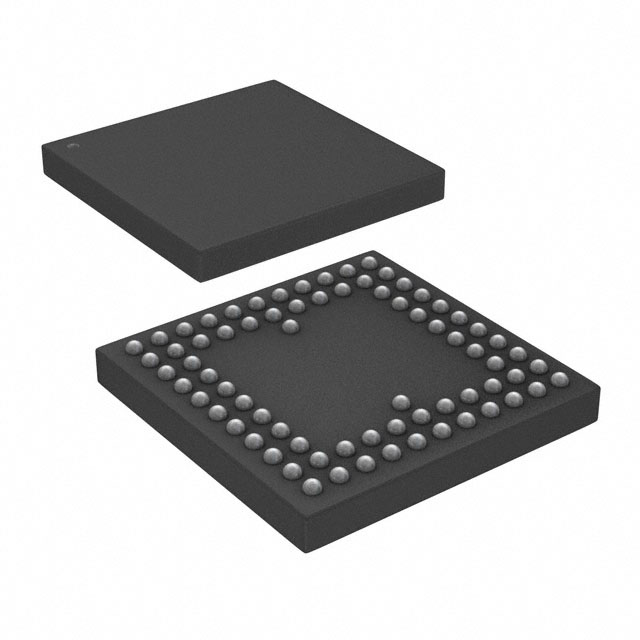

AD5516ABCZ-3IC DAC 12BIT V-OUT 74CSPBGA |
3,668 | 74.23 |
RFQ |
Datasheet |
74-LBGA, CSPBGA | Tray | - | Active | 12 | 16 | 36µs | Voltage - Unbuffered | No | SPI, DSP | External | ±4.75V ~ 15.75V, 5V | 2.7V ~ 5.25V | ±2 (Max), ±0.5 | String DAC | -40°C ~ 85°C |
|
ADDAC08CDDAC, 8-BIT, BIPOLAR |
1,514 | 1.72 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Bulk | ADDAC08 | Active | 8 | 1 | 150ns | Current - Unbuffered | Yes | - | External | ±4.5V ~ 18V | ±4.5V ~ 18V | ±0.39FSR | Multiplying DAC | 0°C ~ 70°C |
|
ADV476KN40256 X 18 COLOR PALETTE RAM-DAC |
572 | 2.33 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Bulk | ADV476 | Active | 6 | 3 | - | Current - Unbuffered | No | - | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | ±0.5 (Max), ±1 (Max) | - | 0°C ~ 70°C |
|
PM7524FPC8-BIT BUFFERED MULTIPLYING DAC |
934 | 2.61 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Bulk | - | Active | 8 | 1 | 350ns | Current - Unbuffered | Yes | Parallel | External | 5V, 15V | 5V, 15V | ±0.025 | Multiplying DAC, R-2R | -40°C ~ 85°C |
