| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82725J2202N020CMC 18MH 2A 2LN TH |
3,688 | 5.11 |
RFQ |
Datasheet |
Tray | B82725 | Active | Power Line | 2 | - | 18 mH @ 10 kHz | 2A | 270mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 1.591 L x 0.846 W (40.40mm x 21.50mm) | 1.575 (40.00mm) |
|
|
B82725J2602N040CMC 7.5MH 6A 2LN TH |
2,029 | 5.11 |
RFQ |
Datasheet |
Tray | B82725 | Active | Power Line | 2 | - | 7.5 mH @ 10 kHz | 6A | 40mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 1.591 L x 0.846 W (40.40mm x 21.50mm) | 1.575 (40.00mm) |
|
B82725A2652N020CMC 4.1MH 6.5A 2LN TH |
3,738 | 5.11 |
RFQ |
Datasheet |
Tray | B82725 | Active | Power Line | 2 | - | 4.1 mH @ 10 kHz | 6.5A | 31mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.732 L x 1.669 W (44.00mm x 42.40mm) | 0.984 (25.00mm) |
|
|
B82725J2103N020CMC 2MH 10A TH |
3,024 | 5.33 |
RFQ |
Datasheet |
Tray | B82725 | Active | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 1.591 L x 0.846 W (40.40mm x 21.50mm) | 1.575 (40.00mm) |
|
|
B82725J2103N021CMC 2.5MH 10A 2LN TH |
3,420 | 5.33 |
RFQ |
Datasheet |
Tray | B82725 | Active | Power Line | 2 | - | 2.5 mH @ 10 kHz | 10A | 15mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 1.591 L x 0.846 W (40.40mm x 21.50mm) | 1.575 (40.00mm) |
|
B82615B2102M001CMC 20MH 1A 2LN TH PFC |
2,653 | 6.99 |
RFQ |
Datasheet |
Tray | B82615 | Active | Power Line | 2 | - | 20 mH @ 10 kHz | 1A | 3Ohm (Typ) | 350V | 250V | -40°C ~ 125°C | - | - | PFC | Through Hole | 1.732 L x 1.669 W (44.00mm x 42.40mm) | 1.181 (30.00mm) |
|
|
B82615B2302M001CMC 2.5MH 3A 2LN TH PFC |
3,952 | 6.99 |
RFQ |
Datasheet |
Tray | B82615 | Active | Power Line | 2 | - | 2.5 mH @ 10 kHz | 3A | 400mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | - | PFC | Through Hole | 1.732 L x 1.669 W (44.00mm x 42.40mm) | 1.181 (30.00mm) |
|
|
B82615B2402M001CMC 1.5MH 4A 2LN TH PFC |
3,801 | 6.99 |
RFQ |
Datasheet |
Tray | B82615 | Active | Power Line | 2 | - | 1.5 mH @ 10 kHz | 4A | 220mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | - | PFC | Through Hole | 1.732 L x 1.669 W (44.00mm x 42.40mm) | 1.181 (30.00mm) |
|
B82625B2402M001CMC 400UH 4A 2LN TH PFC |
3,815 | 8.99 |
RFQ |
Datasheet |
Tray | B82625 | Active | Power Line | 2 | - | 400 µH @ 100 kHz | 4A | 120mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | Through Hole | 1.732 L x 1.669 W (44.00mm x 42.40mm) | 1.181 (30.00mm) |
|
B82625B2502M001CMC 250UH 5A 2LN TH PFC |
3,759 | 8.99 |
RFQ |
Datasheet |
Tray | B82625 | Active | Power Line | 2 | - | 250 µH @ 100 kHz | 5A | 72mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | Through Hole | 1.732 L x 1.669 W (44.00mm x 42.40mm) | 1.181 (30.00mm) |
|
|

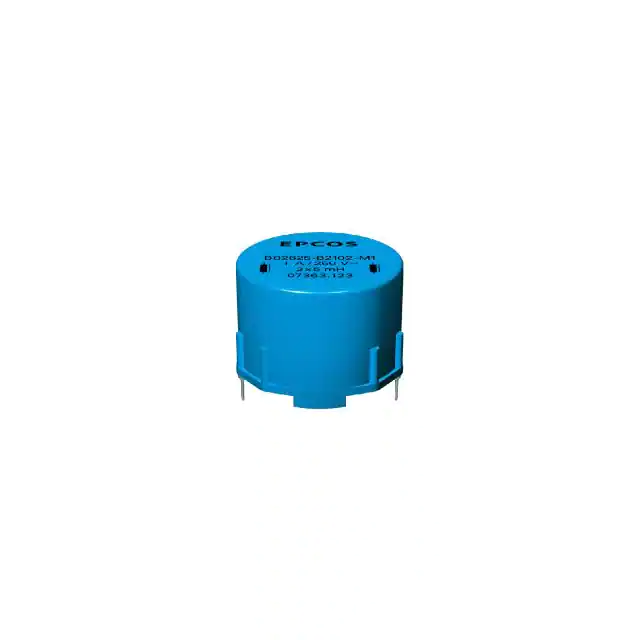

B82625B2102M001CMC 5MH 1A 2LN TH PFC |
2,097 | 8.99 |
RFQ |
Datasheet |
Tray | B82625 | Active | Power Line | 2 | - | 5 mH @ 10 kHz | 1A | 1.45Ohm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | Through Hole | 1.732 L x 1.669 W (44.00mm x 42.40mm) | 1.181 (30.00mm) |
|
|
B82625B2202M001CMC 1.2MH 2A 2LN TH PFC |
3,281 | 8.99 |
RFQ |
Datasheet |
Tray | B82625 | Active | Power Line | 2 | - | 1.2 mH @ 10 kHz | 2A | 420mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | Through Hole | 1.732 L x 1.669 W (44.00mm x 42.40mm) | 1.181 (30.00mm) |
|
|
B82625B2302M001CMC 700UH 3A 2LN TH PFC |
2,111 | 8.99 |
RFQ |
Datasheet |
Tray | B82625 | Active | Power Line | 2 | - | 700 µH @ 100 kHz | 3A | 210mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | ENEC, VDE | PFC | Through Hole | 1.732 L x 1.669 W (44.00mm x 42.40mm) | 1.181 (30.00mm) |
|
B82747S4253A040CMC 850UH 30A 3LN TH |
2,920 | 12.06 |
RFQ |
Datasheet |
Tray | B82747 | Active | Power Line | 3 | - | 850 µH @ 100 kHz | 30A | 1.9mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | UR | - | Through Hole | 2.520 Dia (64.00mm) | 1.378 (35.00mm) |
|
|
B82747S6313N061CMC 950UH 31A 3LN TH |
3,279 | 21.11 |
RFQ |
Datasheet |
Tray | B82747 | Active | Power Line | 3 | - | 950 µH @ 100 kHz | 31A | 1.5mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | - | - | Through Hole | 2.677 Dia (68.00mm) | 1.299 (33.00mm) |
|

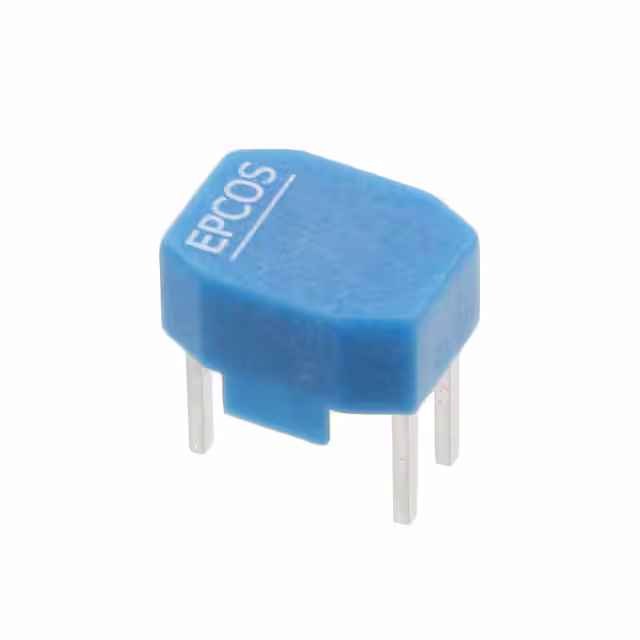

B82796C0225N265CMC 2.2MH 500MA 2LN TH |
3,991 | 0.00 |
RFQ |
Datasheet |
Bulk | B82796 | Obsolete | Signal Line | 2 | - | 2.2 mH @ 10 kHz | 500mA | 420mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | Through Hole | 0.295 L x 0.224 W (7.50mm x 5.70mm) | 0.193 (4.90mm) |
|

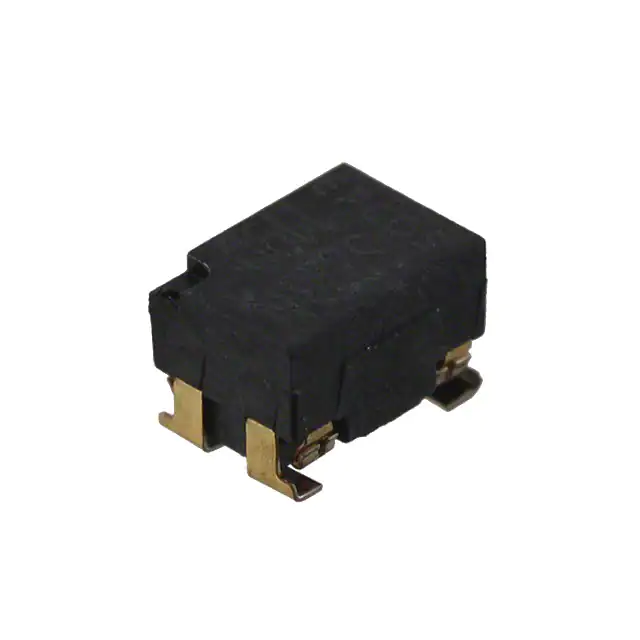

B82799S223N1CMC 22UH 250MA 2LN SMD AEC-Q200 |
2,641 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | B82799 | Obsolete | Signal Line | 2 | - | 22 µH @ 100 kHz | 250mA | 170mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | Surface Mount | 0.177 L x 0.126 W (4.50mm x 3.20mm) | 0.126 (3.20mm) |
|
|
B82799S513N1CMC 51UH 200MA 2LN SMD AEC-Q200 |
3,696 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | B82799 | Obsolete | Signal Line | 2 | - | 51 µH @ 100 kHz | 200mA | 250mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | Surface Mount | 0.177 L x 0.126 W (4.50mm x 3.20mm) | 0.126 (3.20mm) |
|
|
B82502WC10CMC 680UH 2A 2LN TH |
2,604 | 0.00 |
RFQ |
Datasheet |
Tray | B82502 | Obsolete | Power Line | 2 | - | 680 µH @ 100 kHz | 2A | 550mOhm (Typ) | 600V | 500V | - | - | - | - | Through Hole | 1.969 L x 0.886 W (50.00mm x 22.50mm) | 0.512 (13.00mm) |
|
|
B82502WC2CMC 82MH 200MA 2LN TH |
2,643 | 0.00 |
RFQ |
Datasheet |
Tray | B82502 | Obsolete | Power Line | 2 | - | 82 mH @ 10 kHz | 200mA | 45Ohm (Typ) | 600V | 500V | - | - | - | - | Through Hole | 1.969 L x 0.886 W (50.00mm x 22.50mm) | 0.512 (13.00mm) |
