| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82724A2602N001CMC 1MH 6A 2LN TH |
2,921 | 2.78 |
RFQ |
Datasheet |
Tray | B82724 | Active | Power Line | 2 | - | 1 mH @ 100 kHz | 6A | 23mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.776 (19.70mm) |
|
|
B82724A2602N041CMC 3.3MH 6A 2LN TH |
3,540 | 2.78 |
RFQ |
Datasheet |
Tray | B82724 | Active | Power Line | 2 | - | 3.3 mH @ 10 kHz | 6A | 25mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.776 (19.70mm) |
|
B82794C0106N465CMC 10MH 600MA 2LN SMD |
2,181 | 2.85 |
RFQ |
Datasheet |
Tape & Reel (TR) | B82794 | Active | Signal Line | 2 | - | 10 mH @ 10 kHz | 600mA | 700mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | Surface Mount | 0.571 L x 0.524 W (14.50mm x 13.30mm) | 0.425 (10.80mm) |
|
|
B82794C2106N465CMC 10MH 200MA 4LN SMD |
3,255 | 2.85 |
RFQ |
Datasheet |
Tape & Reel (TR) | B82794 | Active | Signal Line | 4 | - | 10 mH @ 10 kHz | 200mA | 1.4Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | Surface Mount | 0.571 L x 0.524 W (14.50mm x 13.30mm) | 0.425 (10.80mm) |
|
|
B82794C2475N465CMC 4.7MH 300MA 4LN SMD |
3,731 | 2.85 |
RFQ |
Datasheet |
Tape & Reel (TR) | B82794 | Active | Signal Line | 4 | - | 4.7 mH @ 10 kHz | 300mA | 900mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | Surface Mount | 0.571 L x 0.524 W (14.50mm x 13.30mm) | 0.425 (10.80mm) |
|

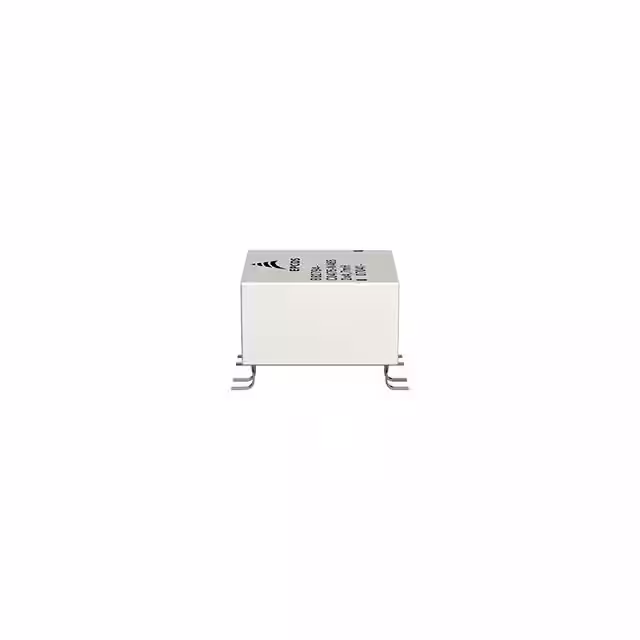

B82794C0286N465CMC 28MH 400MA 2LN SMD |
2,890 | 2.85 |
RFQ |
Datasheet |
Tape & Reel (TR) | B82794 | Active | Signal Line | 2 | - | 28 mH @ 10 kHz | 400mA | 1.2Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | Surface Mount | 0.571 L x 0.524 W (14.50mm x 13.30mm) | 0.425 (10.80mm) |
|
|
B82794C0475N465CMC 4.7MH 700MA 2LN SMD |
3,256 | 2.85 |
RFQ |
Datasheet |
Tape & Reel (TR) | B82794 | Active | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 700mA | 500mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | Surface Mount | 0.571 L x 0.524 W (14.50mm x 13.30mm) | 0.425 (10.80mm) |
|
|
B82794C0476N465CMC 47MH 300MA 2LN SMD |
3,612 | 2.85 |
RFQ |
Datasheet |
Tape & Reel (TR) | B82794 | Active | Signal Line | 2 | - | 47 mH @ 10 kHz | 300mA | 2.8Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | Surface Mount | 0.571 L x 0.524 W (14.50mm x 13.30mm) | 0.425 (10.80mm) |
|

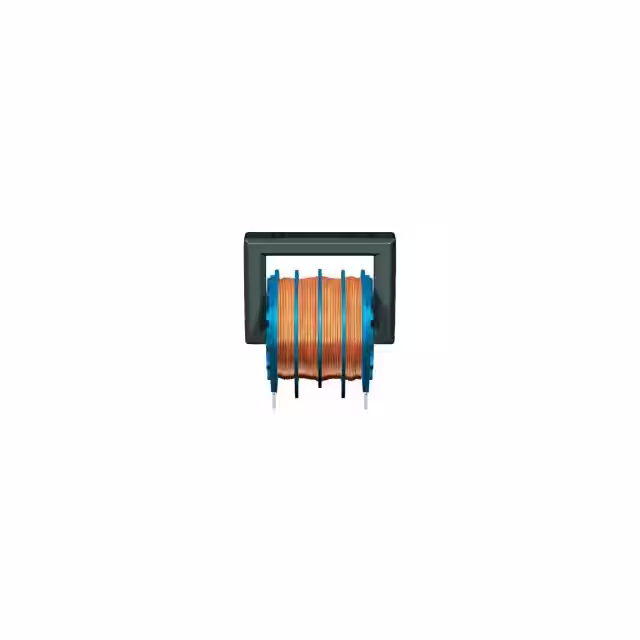

B82614R2102A030CMC 2MH 1A 2LN TH |
2,291 | 2.86 |
RFQ |
Datasheet |
Tray | B82614 | Active | Power Line | 2 | - | 2 mH @ 10 kHz | 1A | 1.3Ohm (Typ) | - | 250V | - | - | - | - | Through Hole | 1.280 L x 0.827 W (32.50mm x 21.00mm) | 1.220 (31.00mm) |
|
|
B82614R2172A030CMC 1.5MH 1.7A 2LN TH |
2,621 | 2.86 |
RFQ |
Datasheet |
Tray | B82614 | Active | Power Line | 2 | - | 1.5 mH @ 10 kHz | 1.7A | 610mOhm (Typ) | - | 250V | - | - | - | - | Through Hole | 1.280 L x 0.827 W (32.50mm x 21.00mm) | 1.220 (31.00mm) |
|
|
B82614R2202A030CMC 1MH 2A 2LN TH |
2,231 | 2.86 |
RFQ |
Datasheet |
Tray | B82614 | Active | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 430mOhm (Typ) | - | 250V | - | - | - | - | Through Hole | 1.280 L x 0.827 W (32.50mm x 21.00mm) | 1.220 (31.00mm) |
|
|
B82614R2242A030CMC 750UH 2.4A 2LN TH |
3,291 | 2.86 |
RFQ |
Datasheet |
Tray | B82614 | Active | Power Line | 2 | - | 750 µH @ 100 kHz | 2.4A | 330mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.280 L x 0.827 W (32.50mm x 21.00mm) | 1.220 (31.00mm) |
|
|
B82614R2272A030CMC 500UH 2.7A 2LN TH |
3,761 | 2.86 |
RFQ |
Datasheet |
Tray | B82614 | Active | Power Line | 2 | - | 500 µH @ 100 kHz | 2.7A | 230mOhm (Typ) | - | 250V | - | - | - | - | Through Hole | 1.280 L x 0.827 W (32.50mm x 21.00mm) | 1.220 (31.00mm) |
|
B82614R2801A030CMC 3MH 800MA 2LN TH |
2,933 | 2.86 |
RFQ |
Datasheet |
Tray | B82614 | Active | Power Line | 2 | - | 3 mH @ 10 kHz | 800mA | 1.9Ohm (Typ) | - | 250V | - | - | - | - | Through Hole | 1.280 L x 0.827 W (32.50mm x 21.00mm) | 1.220 (31.00mm) |
|
B82724A2302N021CMC 12MH 3A 2LN TH |
2,390 | 2.89 |
RFQ |
Datasheet |
Tray | B82724 | Active | Power Line | 2 | - | 12 mH @ 10 kHz | 3A | 125mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.776 (19.70mm) |
|
|
B82724A2222N020CMC 15MH 2.2A 2LN TH |
3,631 | 2.89 |
RFQ |
Datasheet |
Tray | B82724 | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 2.2A | 210mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.776 (19.70mm) |
|
|
B82724A2222N021CMC 20MH 2.2A 2LN TH |
2,984 | 2.89 |
RFQ |
Datasheet |
Tray | B82724 | Active | Power Line | 2 | - | 20 mH @ 10 kHz | 2.2A | 250mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.776 (19.70mm) |
|
B82792C0156N365COMMON MODE CHOKE LN |
3,560 | 3.02 |
RFQ |
Datasheet |
Tape & Reel (TR) | B82792 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B82792C0226N365CMC 22MH 200MA 2LN SMD |
2,340 | 3.02 |
RFQ |
Datasheet |
Tape & Reel (TR) | B82792 | Active | Signal Line | 2 | - | 22 mH @ 10 kHz | 200mA | 1.6Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | Surface Mount | 0.453 L x 0.413 W (11.50mm x 10.50mm) | 0.287 (7.30mm) |
|
B82792C0336N365CMC 33MH 100MA 2LN SMD |
3,021 | 3.02 |
RFQ |
Datasheet |
Tape & Reel (TR) | B82792 | Active | Signal Line | 2 | - | 33 mH @ 10 kHz | 100mA | 2Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | Surface Mount | 0.453 L x 0.413 W (11.50mm x 10.50mm) | 0.287 (7.30mm) |
