| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELF-15N005ACMC 500MA 2LN TH |
3,407 | 0.00 |
RFQ |
Datasheet |
Bulk | N | Obsolete | - | 2 | - | - | 500mA | 1.324Ohm (Typ) | - | - | - | - | - | - | Through Hole | 0.591 L x 0.894 W (15.00mm x 22.70mm) | 0.886 (22.50mm) |
|
|
ELF-15N006ACMC 600MA 2LN TH |
2,944 | 0.00 |
RFQ |
Datasheet |
Bulk | N | Obsolete | - | 2 | - | - | 600mA | 933mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.591 L x 0.894 W (15.00mm x 22.70mm) | 0.886 (22.50mm) |
|
|
ELF-15N007ACMC 700MA 2LN TH |
2,501 | 0.00 |
RFQ |
Datasheet |
Bulk | N | Obsolete | - | 2 | - | - | 700mA | 762mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.591 L x 0.894 W (15.00mm x 22.70mm) | 0.886 (22.50mm) |
|
|
ELF-15N008ACMC 800MA 2LN TH |
3,671 | 0.00 |
RFQ |
Datasheet |
Bulk | N | Obsolete | - | 2 | - | - | 800mA | 548mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.591 L x 0.894 W (15.00mm x 22.70mm) | 0.886 (22.50mm) |
|

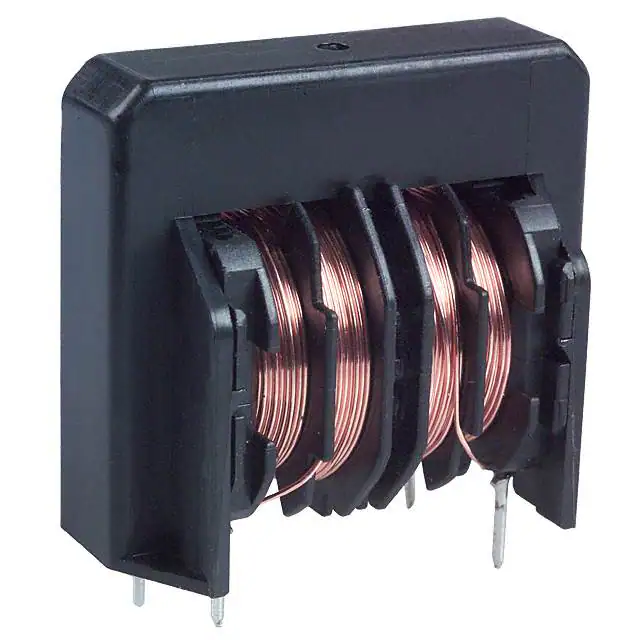

ELF-20N040ACMC 4A 2LN TH |
2,851 | 0.00 |
RFQ |
Datasheet |
Bulk | N | Obsolete | - | 2 | - | - | 4A | 33mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.787 L x 1.260 W (20.00mm x 32.00mm) | 1.181 (30.00mm) |
|
ELF-18D450BCMC 800MA 2LN TH |
3,468 | 0.00 |
RFQ |
Datasheet |
Bulk | V | Obsolete | - | 2 | - | - | 800mA | 655mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.984 L x 0.709 W (25.00mm x 18.00mm) | 1.173 (29.80mm) |
|
ELF-18D431FCMC 10MH 1A 2LN TH |
3,851 | 0.00 |
RFQ |
Datasheet |
Bulk | H | Obsolete | - | 2 | - | 10 mH @ 1 kHz | 1A | 384mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 0.945 L x 0.984 W (24.00mm x 25.00mm) | 0.807 (20.50mm) |
|
|
ELF-18D450ACMC 2A 2LN TH |
2,850 | 0.00 |
RFQ |
Datasheet |
Bulk | V | Obsolete | - | 2 | - | - | 2A | 110mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.984 L x 0.709 W (25.00mm x 18.00mm) | 1.173 (29.80mm) |
|
ELF-18D216CMC 3.9MH 1A 2LN TH |
2,697 | 0.00 |
RFQ |
Datasheet |
Bulk | V | Obsolete | - | 2 | - | 3.9 mH @ 1 kHz | 1A | 294mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 0.787 L x 0.827 W (20.00mm x 21.00mm) | 0.787 (20.00mm) |
|
ELF-18D624FCMC 33MH 800MA 2LN TH |
2,935 | 0.00 |
RFQ |
Datasheet |
Bulk | H | Obsolete | - | 2 | - | 33 mH @ 1 kHz | 800mA | 707mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 1.122 L x 1.142 W (28.50mm x 29.00mm) | 0.925 (23.50mm) |
|
ELF-18D656JCMC 1.6A 2LN TH |
2,585 | 0.00 |
RFQ |
Datasheet |
Bulk | V | Obsolete | - | 2 | - | - | 1.6A | 225mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.827 L x 1.142 W (21.00mm x 29.00mm) | 1.362 (34.60mm) |
|
|
ELF-18D608CMC 1MH 3.4A 2LN TH |
2,117 | 0.00 |
RFQ |
Datasheet |
Bulk | H | Obsolete | - | 2 | - | 1 mH @ 1 kHz | 3.4A | 45mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 1.122 L x 1.142 W (28.50mm x 29.00mm) | 0.925 (23.50mm) |
|
|
ELF-18D612CMC 22MH 1A 2LN TH |
2,834 | 0.00 |
RFQ |
Datasheet |
Bulk | H | Obsolete | - | 2 | - | 22 mH @ 1 kHz | 1A | 540mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 1.122 L x 1.142 W (28.50mm x 29.00mm) | 0.925 (23.50mm) |
|
ELF-23F003ACMC 300MA 2LN TH |
3,456 | 0.00 |
RFQ |
Datasheet |
Bulk | F | Obsolete | - | 2 | - | - | 300mA | 2.989Ohm (Typ) | - | - | - | - | - | - | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.551 (14.00mm) |
|
|
ELF-23F004ACMC 400MA 2LN TH |
3,535 | 0.00 |
RFQ |
Datasheet |
Bulk | F | Obsolete | - | 2 | - | - | 400mA | 1.77Ohm (Typ) | - | - | - | - | - | - | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.551 (14.00mm) |
|
|
ELF-23F005ACMC 500MA 2LN TH |
3,308 | 0.00 |
RFQ |
Datasheet |
Bulk | F | Obsolete | - | 2 | - | - | 500mA | 1.219Ohm (Typ) | - | - | - | - | - | - | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.551 (14.00mm) |
|
|
ELF-23F006ACMC 600MA 2LN TH |
3,933 | 0.00 |
RFQ |
Datasheet |
Bulk | F | Obsolete | Power Line | 2 | - | - | 600mA | 949mOhm (Typ) | - | - | -20°C ~ 115°C | - | - | - | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.551 (14.00mm) |
|
|
ELF-23F007ACMC 700MA 2LN TH |
3,745 | 0.00 |
RFQ |
Datasheet |
Bulk | F | Obsolete | - | 2 | - | - | 700mA | 704mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.551 (14.00mm) |
|
|
ELF-23F008ACMC 800MA 2LN TH |
2,922 | 0.00 |
RFQ |
Datasheet |
Bulk | F | Obsolete | - | 2 | - | - | 800mA | 590mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.551 (14.00mm) |
|
|
ELF-23F009ACMC 900MA 2LN TH |
3,378 | 0.00 |
RFQ |
Datasheet |
Bulk | F | Obsolete | - | 2 | - | - | 900mA | 468mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.551 (14.00mm) |
