| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

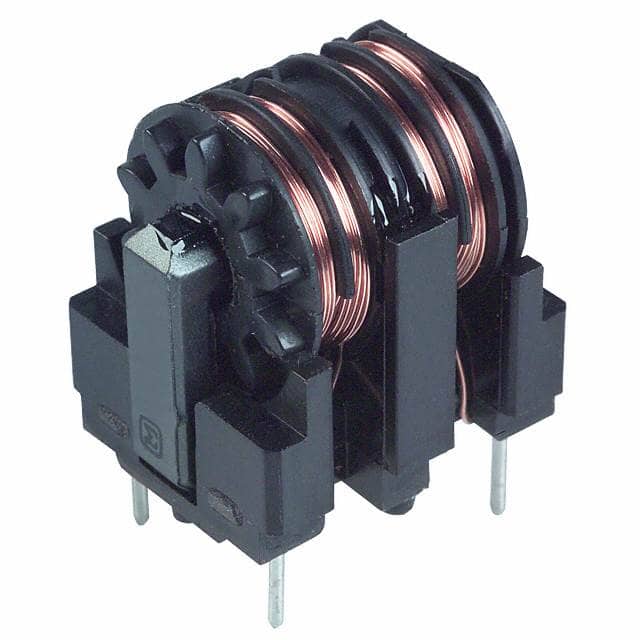

ELF-16M080ACMC 800MA 2LN TH |
256 | 2.30 |
RFQ |
Datasheet |
Bulk | M | Obsolete | - | 2 | - | - | 800mA | 400mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.591 L x 0.709 W (15.00mm x 18.00mm) | 0.807 (20.50mm) |
|
ELF-18D604FCMC 4.7MH 2.5A 2LN TH |
3,346 | 2.40 |
RFQ |
Datasheet |
Bulk | H | Obsolete | - | 2 | - | 4.7 mH @ 1 kHz | 2.5A | 87mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 1.122 L x 1.142 W (28.50mm x 29.00mm) | 0.925 (23.50mm) |
|
ELF-18D666ACMC 2.8A 2LN TH |
3,120 | 2.76 |
RFQ |
Datasheet |
Bulk | V | Obsolete | - | 2 | - | - | 2.8A | 58mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.827 L x 1.142 W (21.00mm x 29.00mm) | 1.362 (34.60mm) |
|

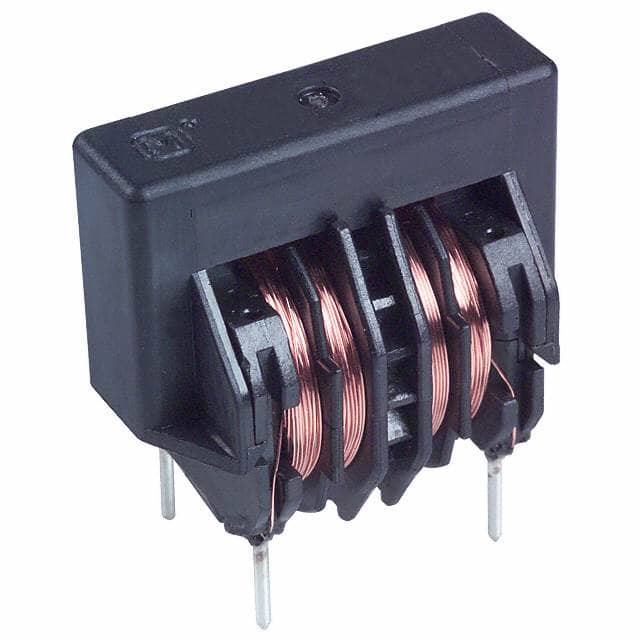

ELF-17N008ACMC 800MA 2LN TH |
200 | 2.86 |
RFQ |
Datasheet |
Bulk | N | Obsolete | - | 2 | - | - | 800mA | 548mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.591 L x 0.894 W (15.00mm x 22.70mm) | 0.886 (22.50mm) |
|

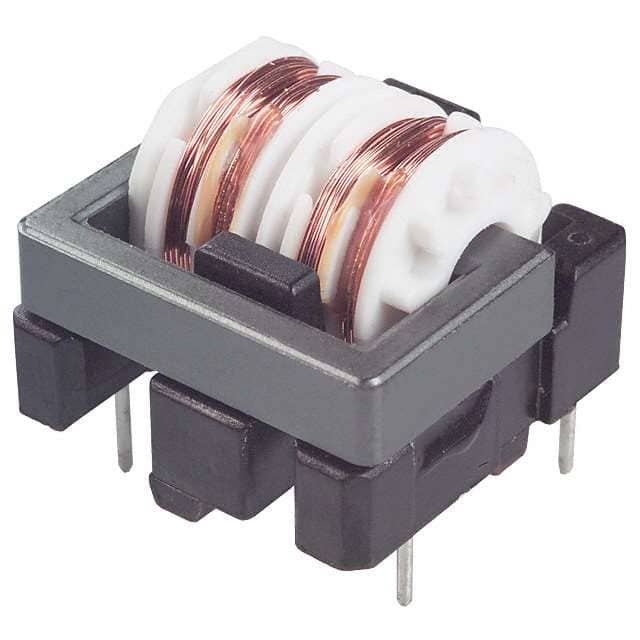

ELF-18D270CCMC 1.5A 2LN TH |
3,477 | 2.88 |
RFQ |
Datasheet |
Bulk | H | Obsolete | - | 2 | - | - | 1.5A | 162mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.787 L x 0.827 W (20.00mm x 21.00mm) | 0.787 (20.00mm) |
|
|
ELF-18D270GCMC 600MA 2LN TH |
173 | 2.89 |
RFQ |
Datasheet |
Bulk | H | Obsolete | - | 2 | - | - | 600mA | 782mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.787 L x 0.827 W (20.00mm x 21.00mm) | 0.787 (20.00mm) |
|
ELF-19N004ACMC 400MA 2LN TH |
122 | 2.97 |
RFQ |
Datasheet |
Bulk | N | Obsolete | - | 2 | - | - | 400mA | 2.72Ohm (Typ) | - | - | - | - | - | - | Through Hole | 0.709 L x 1.083 W (18.00mm x 27.50mm) | 1.083 (27.50mm) |
|
ELF-21C006ACMC 600MA 2LN TH |
493 | 3.62 |
RFQ |
Datasheet |
Bulk | C | Obsolete | Power Line | 2 | - | - | 600mA | 790mOhm (Typ) | - | 250V | -20°C ~ 115°C | - | - | - | Through Hole | 0.846 L x 0.965 W (21.50mm x 24.50mm) | 0.689 (17.50mm) |
|
ELF-18D850UCMC 1.2A 2LN TH |
3,448 | 4.11 |
RFQ |
Datasheet |
Bulk | V | Obsolete | - | 2 | - | - | 1.2A | 469mOhm (Typ) | - | - | - | - | - | - | Through Hole | 1.417 L x 1.004 W (36.00mm x 25.50mm) | 1.575 (40.00mm) |
|

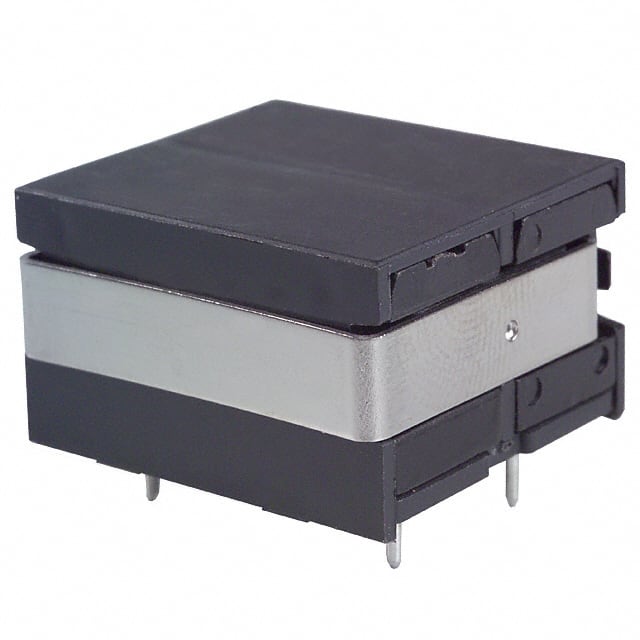

ELF-23F010ACMC 1A 2LN TH |
3,141 | 4.12 |
RFQ |
Datasheet |
Bulk | F | Obsolete | - | 2 | - | - | 1A | 328mOhm (Typ) | - | - | - | - | - | - | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.551 (14.00mm) |
|
|
ELF-18D603FCMC 5.6MH 2.2A 2LN TH |
2,241 | 4.33 |
RFQ |
Datasheet |
Bulk | H | Obsolete | - | 2 | - | 5.6 mH @ 1 kHz | 2.2A | 111mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | Through Hole | 1.122 L x 1.142 W (28.50mm x 29.00mm) | 0.925 (23.50mm) |
|
EXC-28CG900UCMC 130MA 4LN 90 OHM SMD |
2,677 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EXC28 | Active | Signal Line | 4 | 90 Ohms @ 100 MHz | - | 130mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.079 L x 0.039 W (2.00mm x 1.00mm) | 0.024 (0.60mm) |
|
|
EXC-28CE201UCMC 130MA 4LN 200 OHM SMD |
3,558 | 0.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EXC28 | Active | Signal Line | 4 | 200 Ohms @ 100 MHz | - | 130mA | 2.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.079 L x 0.039 W (2.00mm x 1.00mm) | 0.024 (0.60mm) |
|
EXC-14CH350UCMC 100MA 2LN 35 OHM SMD |
3,602 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EXC14 | Active | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 1.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.033 L x 0.026 W (0.85mm x 0.65mm) | 0.020 (0.50mm) |
|
EXC-14CP121UCMC 300MA 2LN 120 OHM SMD |
2,931 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | EXC14 | Active | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 300mA | 500mOhm | 5V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.033 L x 0.026 W (0.85mm x 0.65mm) | 0.020 (0.50mm) |
|
|
EXC-14CP221UCMC 200MA 2LN 220 OHM SMD |
3,279 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | EXC14 | Active | Signal Line | 2 | 220 Ohms @ 100 MHz | - | 200mA | 700mOhm | 5V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.033 L x 0.026 W (0.85mm x 0.65mm) | 0.020 (0.50mm) |
|
|
EXC-14CE650UCMC 130MA 2LN 65 OHM SMD |
2,554 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | EXC14 | Active | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 130mA | 2.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.033 L x 0.026 W (0.85mm x 0.65mm) | 0.018 (0.45mm) |
|
EXC-34CE201UCMC 200MA 2LN 200 OHM SMD |
3,066 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | EXC34 | Active | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 200mA | 1Ohm | 5V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) |
|
|
EXC-34CE900UCMC 250MA 2LN 90 OHM SMD |
2,487 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | EXC34 | Active | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 250mA | 800mOhm | 5V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) |
|
|
EXC-14CG120UCMC 130MA 2LN 12 OHM SMD |
3,383 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | EXC14 | Active | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 130mA | 2Ohm | 5V | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.033 L x 0.026 W (0.85mm x 0.65mm) | 0.020 (0.50mm) |
