| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

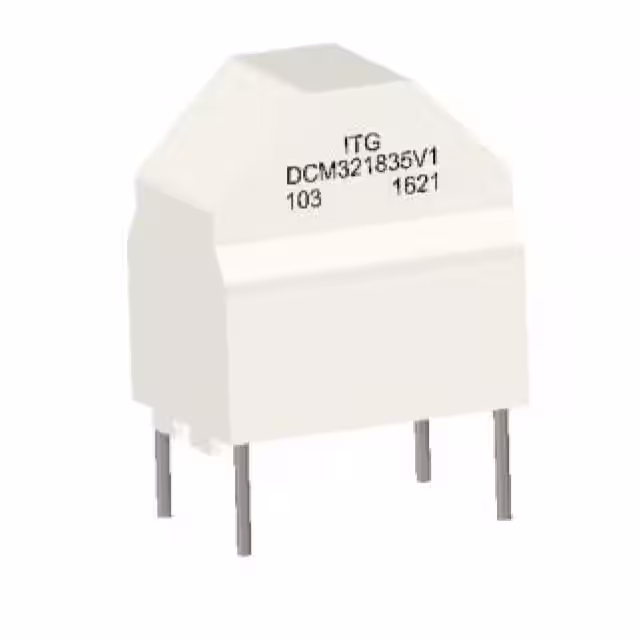

DCM321835V1-332NHFCMC 3.3MH 4A 2LN TH |
3,104 | 6.00 |
RFQ |
Datasheet |
Tray | DCM321835V | Active | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 70mOhm | - | 250V | -55°C ~ 130°C | - | - | - | Through Hole | 1.280 L x 0.728 W (32.50mm x 18.50mm) | 1.398 (35.50mm) |
|
|
DCM321835V1-182NHFCMC 1.8MH 6A 2LN TH |
3,740 | 6.00 |
RFQ |
Datasheet |
Tray | DCM321835V | Active | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | 36mOhm | - | 250V | -55°C ~ 130°C | - | - | - | Through Hole | 1.280 L x 0.728 W (32.50mm x 18.50mm) | 1.398 (35.50mm) |
|

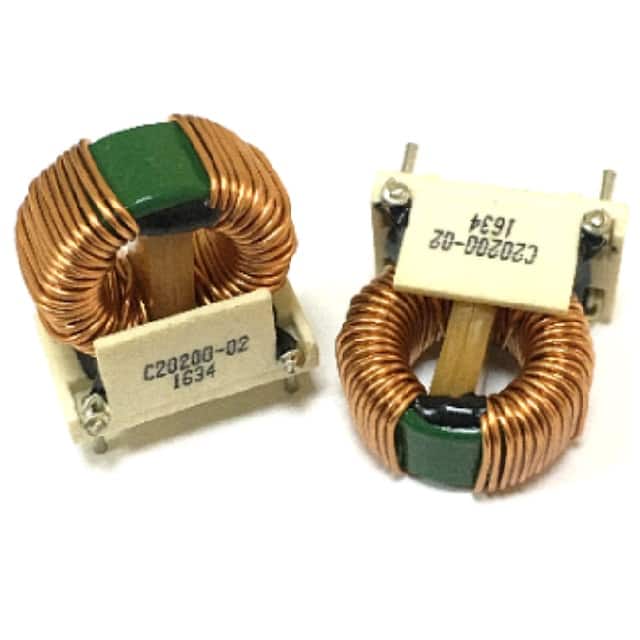

C20200-04CMC 10MH 2.4A 2LN TH |
2,469 | 6.50 |
RFQ |
Datasheet |
Tray | C20200 | Active | Power Line | 2 | - | 10 mH @ 1 kHz | 2.4A | 170mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 1.200 L x 0.610 W (30.48mm x 15.50mm) | 1.200 (30.48mm) |
|
C20200-12CMC 8MH 5.6A 2LN TH |
2,448 | 6.50 |
RFQ |
Datasheet |
Tray | C20200 | Active | Power Line | 2 | - | 8 mH @ 1 kHz | 5.6A | 55mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 1.450 L x 0.811 W (36.83mm x 20.60mm) | 1.450 (36.83mm) |
|
|
C20200-11CMC 12MH 4A 2LN TH |
3,581 | 6.50 |
RFQ |
Datasheet |
Tray | C20200 | Active | Power Line | 2 | - | 12 mH @ 1 kHz | 4A | 110mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 1.350 L x 0.811 W (34.29mm x 20.60mm) | 1.450 (36.83mm) |
|
|
C20200-10CMC 20MH 1A 2LN TH |
2,562 | 6.50 |
RFQ |
Datasheet |
Tray | C20200 | Active | Power Line | 2 | - | 20 mH @ 1 kHz | 1A | 210mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 1.350 L x 0.811 W (34.29mm x 20.60mm) | 1.450 (36.83mm) |
|
|
C20200-22CMC 500UH 14A 2LN TH |
2,067 | 6.56 |
RFQ |
Datasheet |
Tray | C20200 | Active | Power Line | 2 | - | 500 µH @ 1 kHz | 14A | 5mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 1.500 L x 0.866 W (38.10mm x 22.00mm) | 1.530 (38.86mm) |
|
|
C20200-06CMC 5MH 3.7A 2LN TH |
2,139 | 6.60 |
RFQ |
Datasheet |
Tray | C20200 | Active | Power Line | 2 | - | 5 mH @ 1 kHz | 3.7A | 70mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 1.200 L x 0.610 W (30.48mm x 15.50mm) | 1.200 (30.48mm) |
|
|
C20200-08CMC 1MH 10A 2LN TH |
3,291 | 6.70 |
RFQ |
Datasheet |
Tray | C20200 | Active | Power Line | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 1.200 L x 0.610 W (30.48mm x 15.50mm) | 1.200 (30.48mm) |
|
|
C20200-13CMC 5MH 8.9A 2LN TH |
2,650 | 7.75 |
RFQ |
Datasheet |
Tray | C20200 | Active | Power Line | 2 | - | 5 mH @ 1 kHz | 8.9A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 1.450 L x 0.811 W (36.83mm x 20.60mm) | 1.500 (38.10mm) |
|

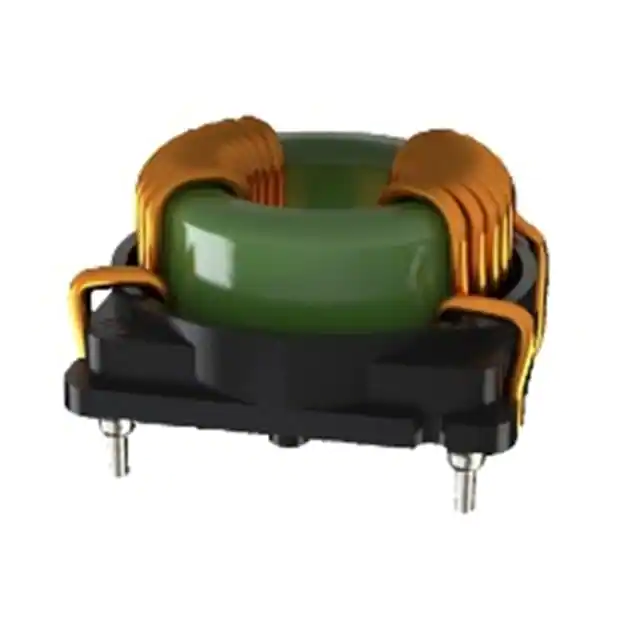

C301313A-103NHFCMC 10MH 2.2A 2LN TH |
2,919 | 7.80 |
RFQ |
Datasheet |
Tray | C301313A | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 2.2A | 197mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.043 L x 1.012 W (26.50mm x 25.70mm) | 0.728 (18.50mm) |
|
|
C301313A-102NHFCMC 1MH 8.2A 2LN TH |
3,657 | 7.80 |
RFQ |
Datasheet |
Tray | C301313A | Active | Power Line | 2 | - | 1 mH @ 10 kHz | 8.2A | 14mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.102 L x 1.012 W (28.00mm x 25.70mm) | 0.748 (19.00mm) |
|
|
C301313A-202NHFCMC 2MH 5.6A 2LN TH |
3,526 | 7.80 |
RFQ |
Datasheet |
Tray | C301313A | Active | Power Line | 2 | - | 2 mH @ 10 kHz | 5.6A | 30mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.083 L x 1.012 W (27.50mm x 25.70mm) | 0.748 (19.00mm) |
|
|
C301313A-502NHFCMC 5MH 3.3A 2LN TH |
2,662 | 7.80 |
RFQ |
Datasheet |
Tray | C301313A | Active | Power Line | 2 | - | 5 mH @ 10 kHz | 3.3A | 87mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.063 L x 1.012 W (27.00mm x 25.70mm) | 0.728 (18.50mm) |
|
|
C301313A-302NHFCMC 3MH 4.5A 2LN TH |
2,729 | 7.80 |
RFQ |
Datasheet |
Tray | C301313A | Active | Power Line | 2 | - | 3 mH @ 10 kHz | 4.5A | 47mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.083 L x 1.012 W (27.50mm x 25.70mm) | 0.728 (18.50mm) |
|
|
C301313A-203NHFCMC 20MH 1.6A 2LN TH |
3,659 | 7.80 |
RFQ |
Datasheet |
Tray | C301313A | Active | Power Line | 2 | - | 20 mH @ 10 kHz | 1.6A | 370mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.043 L x 1.012 W (26.50mm x 25.70mm) | 0.728 (18.50mm) |
|
|

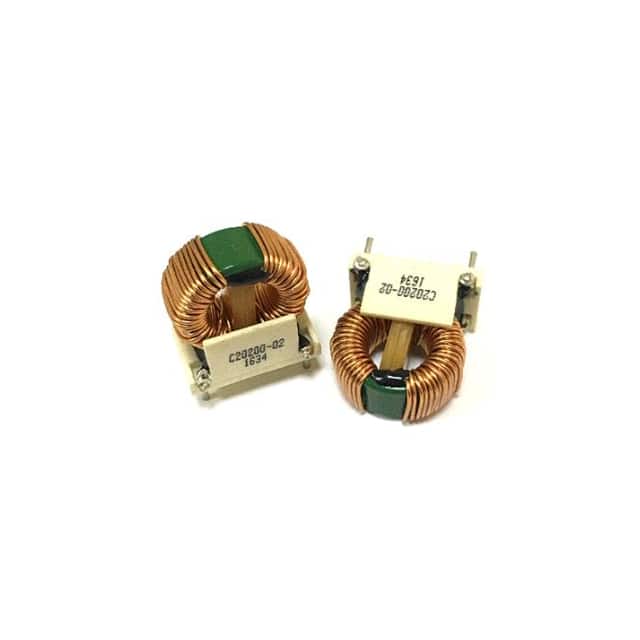

C20200-14CMC 2.5MH 12.5A 2LN TH |
3,048 | 7.80 |
RFQ |
Datasheet |
Tray | C20200 | Active | Power Line | 2 | - | 2.5 mH @ 1 kHz | 12.5A | 11mOhm | - | - | -55°C ~ 105°C | - | - | - | Through Hole | 1.450 L x 0.811 W (36.83mm x 20.60mm) | 1.500 (38.10mm) |
