| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

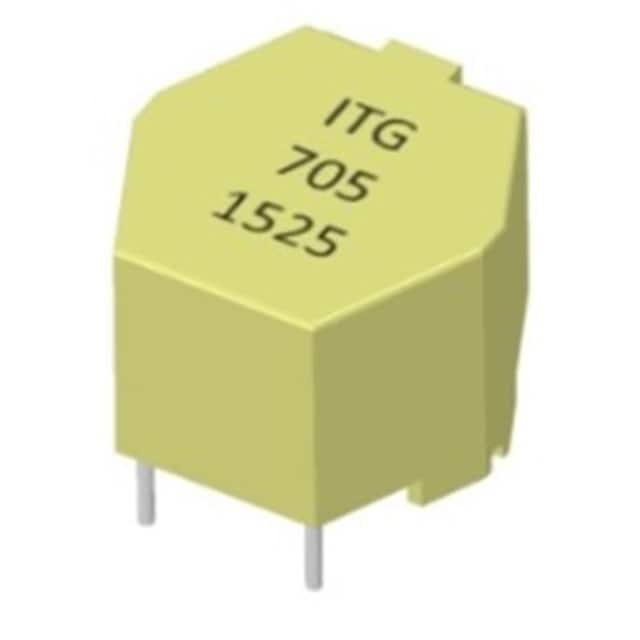

DCM181713H-153NHFCMC 15MH 500MA 2LN TH |
2,202 | 4.17 |
RFQ |
Datasheet |
Tray | DCM181713H | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 780mOhm | - | - | -55°C ~ 130°C | - | - | - | Through Hole | 0.709 L x 0.689 W (18.00mm x 17.50mm) | 0.512 (13.00mm) |
|
|
DCM181713H-273NHFCMC 27MH 400MA 2LN TH |
3,021 | 4.17 |
RFQ |
Datasheet |
Tray | DCM181713H | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 400mA | 1.2Ohm | - | - | -55°C ~ 130°C | - | - | - | Through Hole | 0.709 L x 0.689 W (18.00mm x 17.50mm) | 0.512 (13.00mm) |
|
|
DCM181713H-103NHFCMC 10MH 700MA 2LN TH |
2,500 | 4.17 |
RFQ |
Datasheet |
Tray | DCM181713H | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 700mA | 500mOhm | - | - | -55°C ~ 130°C | - | - | - | Through Hole | 0.709 L x 0.689 W (18.00mm x 17.50mm) | 0.512 (13.00mm) |
|
|
DCM181713H-682NHFCMC 6.8MH 1.2A 2LN TH |
3,437 | 4.17 |
RFQ |
Datasheet |
Tray | DCM181713H | Active | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.2A | 280mOhm | - | - | -55°C ~ 130°C | - | - | - | Through Hole | 0.709 L x 0.689 W (18.00mm x 17.50mm) | 0.512 (13.00mm) |
|

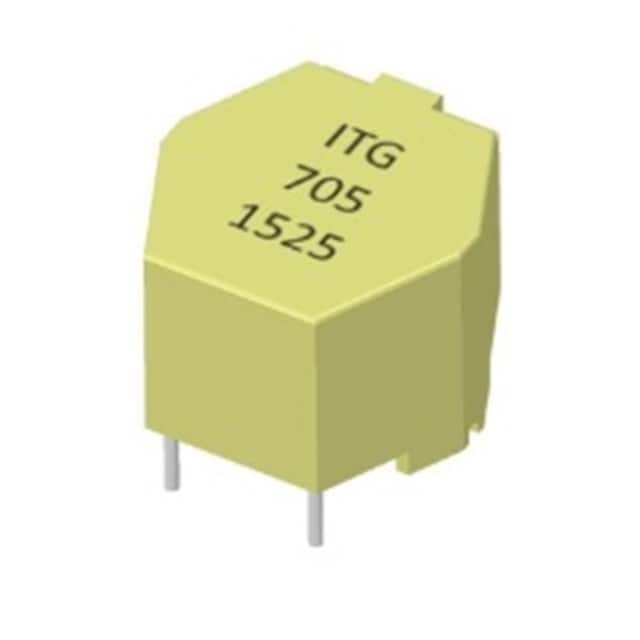

DCM282818H-502NHFCMC 5MH 4A 2LN TH |
3,429 | 5.00 |
RFQ |
Datasheet |
Tray | DCM282818H | Active | Power Line | 2 | - | 5 mH @ 10 kHz | 4A | 85mOhm | - | - | -55°C ~ 130°C | - | - | - | Through Hole | 1.102 L x 1.102 W (28.00mm x 28.00mm) | 0.709 (18.00mm) |
|

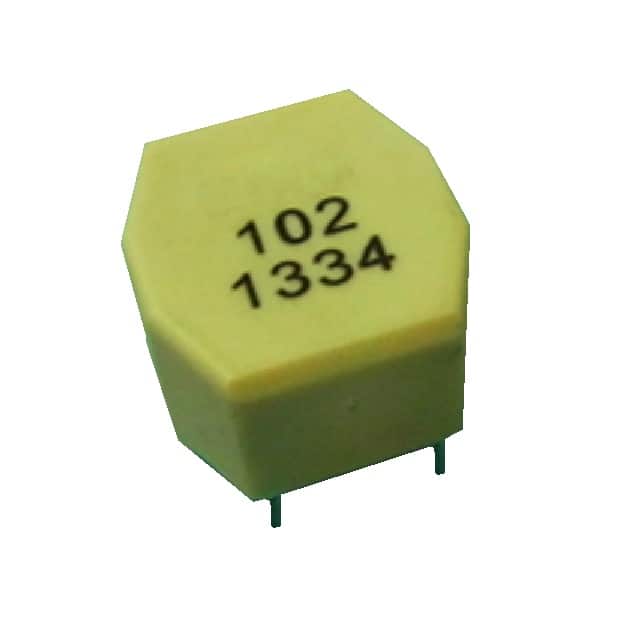

DCM232315H-222NHFCMC 2.2MH 3A 2LN TH |
2,311 | 5.05 |
RFQ |
Datasheet |
Tray | DCM232315H | Active | Power Line | 2 | - | 2.2 mH @ 10 kHz | 3A | 65mOhm | - | - | -55°C ~ 130°C | - | - | - | Through Hole | 0.906 L x 0.906 W (23.00mm x 23.00mm) | 0.610 (15.50mm) |
|
|
DCM232315H-102NHFCMC 1MH 5A 2LN TH |
2,600 | 5.05 |
RFQ |
Datasheet |
Tray | DCM232315H | Active | Power Line | 2 | - | 1 mH @ 10 kHz | 5A | 35mOhm | - | - | -55°C ~ 130°C | - | - | - | Through Hole | 0.906 L x 0.906 W (23.00mm x 23.00mm) | 0.610 (15.50mm) |
|
|
DCM232315H-203NHFCMC 20MH 700MA 2LN TH |
3,108 | 5.05 |
RFQ |
Datasheet |
Tray | DCM232315H | Active | Power Line | 2 | - | 20 mH @ 10 kHz | 700mA | 520mOhm | - | - | -55°C ~ 130°C | - | - | - | Through Hole | 0.906 L x 0.906 W (23.00mm x 23.00mm) | 0.610 (15.50mm) |
|

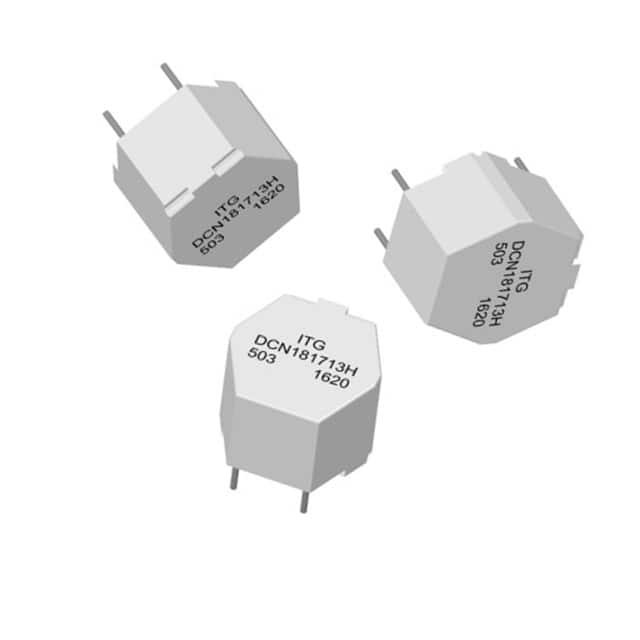

DCN181713H-682HFCMC 6.8MH 1.8A 2LN TH |
3,683 | 6.00 |
RFQ |
Datasheet |
Tray | DCN181713H | Active | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.8A | 89mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.709 L x 0.689 W (18.00mm x 17.50mm) | 0.512 (13.00mm) |
|
|
DCN181713H-222HFCMC 2.2MH 3.5A 2LN TH |
2,104 | 6.00 |
RFQ |
Datasheet |
Tray | DCN181713H | Active | Power Line | 2 | - | 2.2 mH @ 10 kHz | 3.5A | 33mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.709 L x 0.689 W (18.00mm x 17.50mm) | 0.512 (13.00mm) |
|
|
DCN181713H-273HFCMC 27MH 1.1A 2LN TH |
3,471 | 6.00 |
RFQ |
Datasheet |
Tray | DCN181713H | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 1.1A | 410mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.709 L x 0.689 W (18.00mm x 17.50mm) | 0.512 (13.00mm) |
|
|
DCN181713H-102HFCMC 1MH 5.4A 2LN TH |
3,042 | 6.00 |
RFQ |
Datasheet |
Tray | DCN181713H | Active | Power Line | 2 | - | 1 mH @ 10 kHz | 5.4A | 16mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.709 L x 0.689 W (18.00mm x 17.50mm) | 0.512 (13.00mm) |
|
|
DCN181713H-701HFCMC 700UH 6.5A 2LN TH |
2,800 | 6.00 |
RFQ |
Datasheet |
Tray | DCN181713H | Active | Power Line | 2 | - | 700 µH @ 10 kHz | 6.5A | 10mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.709 L x 0.689 W (18.00mm x 17.50mm) | 0.512 (13.00mm) |
|
DCN181320V1-153HFCMC 15MH 1.2A 2LN TH |
3,739 | 6.20 |
RFQ |
Datasheet |
Tray | DCN181320V | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 1.2A | 210mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.728 L x 0.531 W (18.50mm x 13.50mm) | 0.807 (20.50mm) |
|
|
DCN181320V1-102HFCMC 1MH 5.4A 2LN TH |
3,371 | 6.20 |
RFQ |
Datasheet |
Tray | DCN181320V | Active | Power Line | 2 | - | 1 mH @ 10 kHz | 5.4A | 16mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.728 L x 0.531 W (18.50mm x 13.50mm) | 0.807 (20.50mm) |
|
|
DCN181320V1-701HFCMC 700UH 6.5A 2LN TH |
3,640 | 6.20 |
RFQ |
Datasheet |
Tray | DCN181320V | Active | Power Line | 2 | - | 700 µH @ 10 kHz | 6.5A | 10mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.728 L x 0.531 W (18.50mm x 13.50mm) | 0.807 (20.50mm) |
|
|
DCN181320V1-682HFCMC 6.8MH 1.8A 2LN TH |
2,086 | 6.20 |
RFQ |
Datasheet |
Tray | DCN181320V | Active | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.8A | 89mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.728 L x 0.531 W (18.50mm x 13.50mm) | 0.807 (20.50mm) |
|
|
DCN181320V1-273HFCMC 27MH 1.1A 2LN TH |
3,509 | 6.20 |
RFQ |
Datasheet |
Tray | DCN181320V | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 1.1A | 410mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.728 L x 0.531 W (18.50mm x 13.50mm) | 0.807 (20.50mm) |
|
|
DCN181320V1-103HFCMC 10MH 1.4A 2LN TH |
3,288 | 6.20 |
RFQ |
Datasheet |
Tray | DCN181320V | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 1.4A | 120mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.728 L x 0.531 W (18.50mm x 13.50mm) | 0.807 (20.50mm) |
|
|
DCN181320V1-222HFCMC 2.2MH 3.5A 2LN TH |
3,915 | 6.20 |
RFQ |
Datasheet |
Tray | DCN181320V | Active | Power Line | 2 | - | 2.2 mH @ 10 kHz | 3.5A | 33mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.728 L x 0.531 W (18.50mm x 13.50mm) | 0.807 (20.50mm) |
