| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

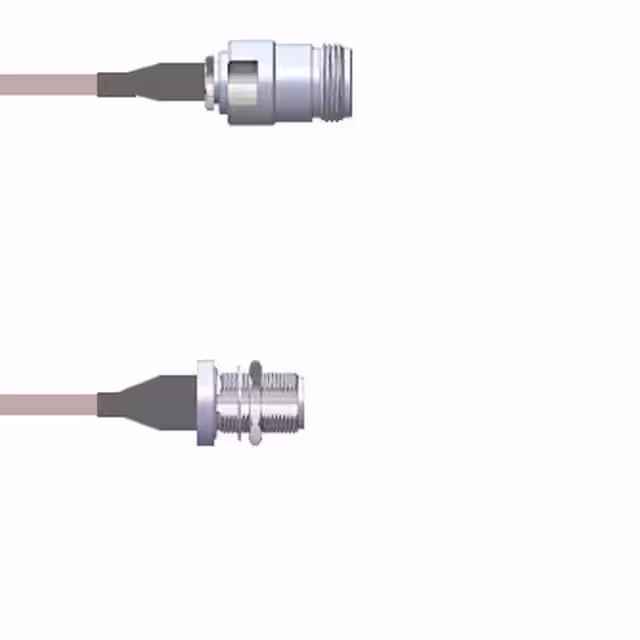

Q-1V022000R024iCBL ASSY N-TYP JACK RG316 DB 24 |
3,830 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

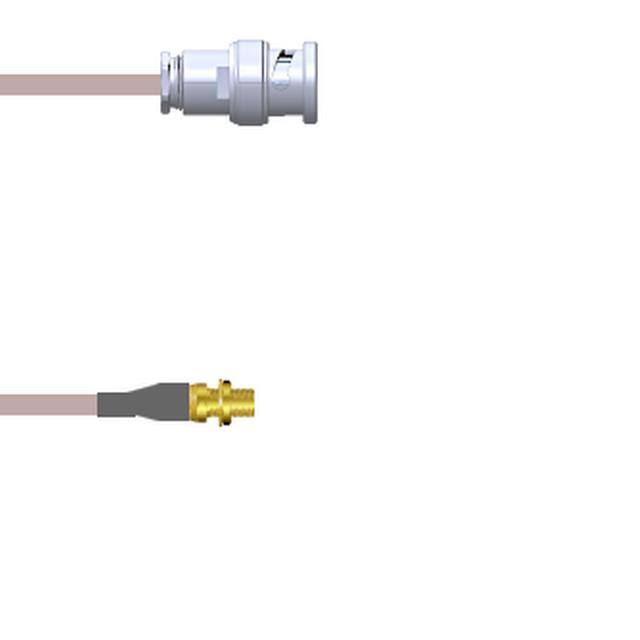

Q-0I0100001009iCBL ASY BNC-MCX P-J RG178 9 |
2,467 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug | Male | Free Hanging (In-Line) | - | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

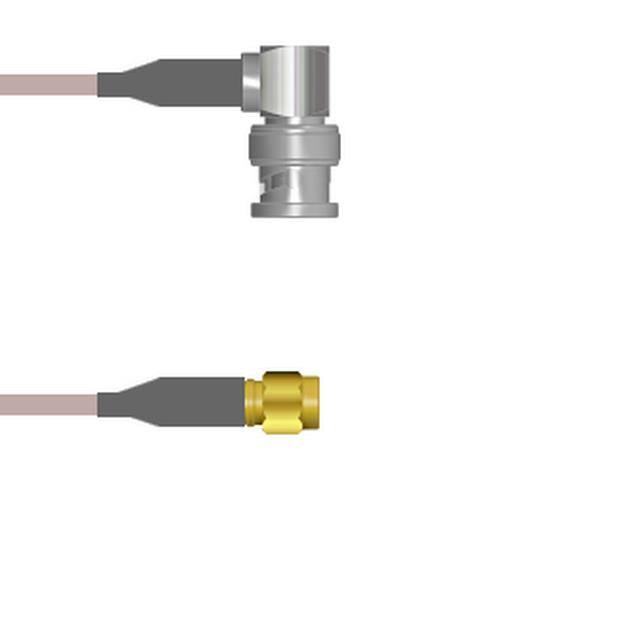

Q-0F03F000H003MCBL ASSY BNC-SMA PLUG RG142 3M |
2,847 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug, Right Angle | Male | - | - | SMA Plug | Male | - | - | 118.1 (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

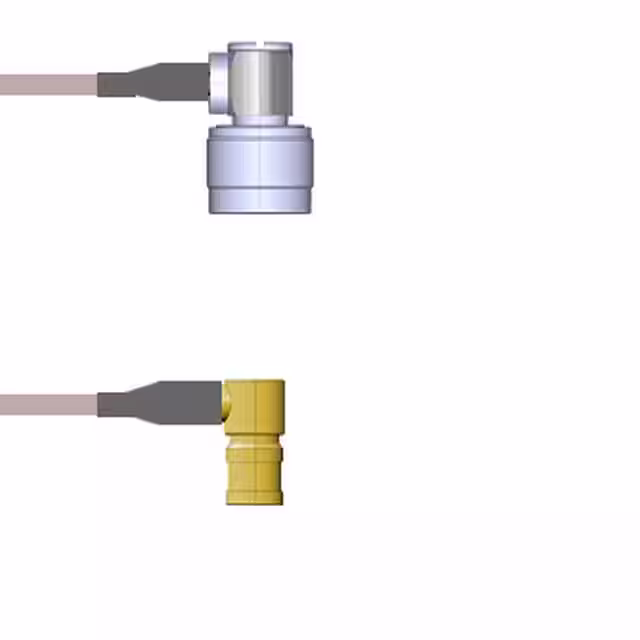

Q-2D03T000R009iCBL ASSY SMB-N PLUG RG316 DB 9 |
2,833 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 9.000 (228.60mm) | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0I04D00012.5MCBL ASY BNC-TNC P-J RG178 2.5M |
3,622 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4 (2.5m) 8.2' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

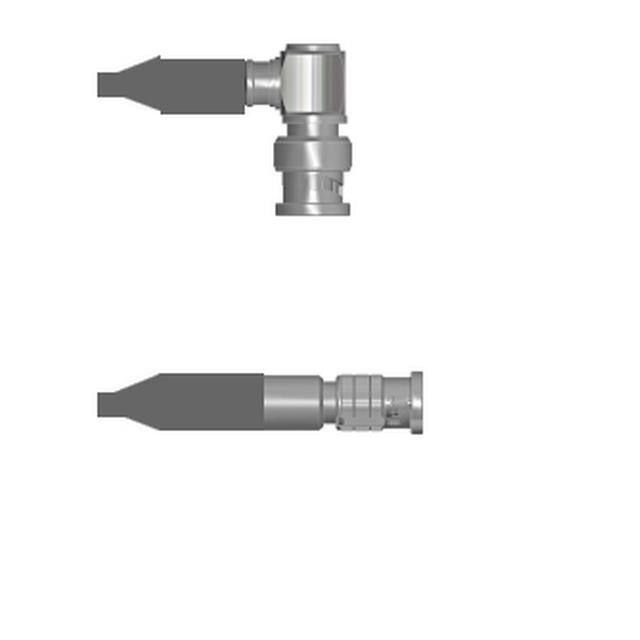

Q-62064000K036iCBL ASSY BNC-HD-BNC PLUG 36 |
3,613 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug, Right Angle | Male | - | - | HD-BNC Plug | Male | - | - | 36.00 (914.40mm) | Belden 4855R | - | - | 75 Ohms | 18 GHz | Black | Shielded | - |
|

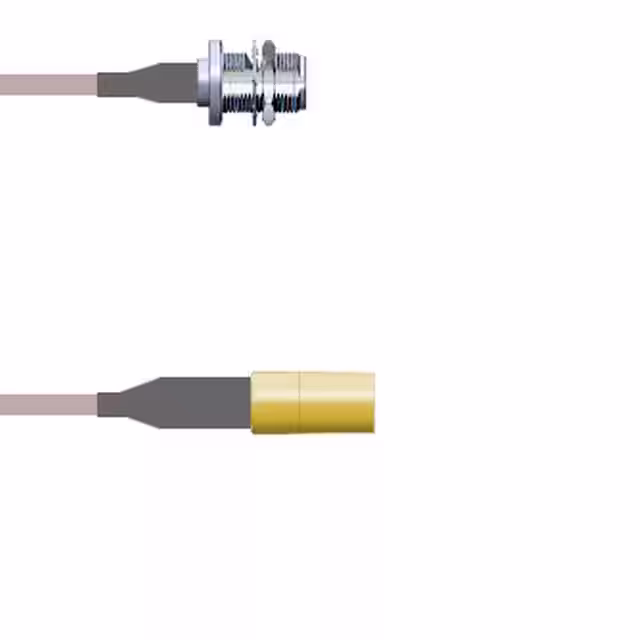

Q-2103Z000R012iCBL ASY SMB-N P-J RG316 DB 12 |
3,197 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00 (304.80mm) | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-0J00P0003018iCBL ASSY BNC-HD-BNC RG174 18 |
3,148 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00 (457.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0200I00010.5MCBL ASY BNC J TO P RG178 19.69 |
2,149 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | - | - | BNC Plug | Male | - | - | 19.69 (500.00mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

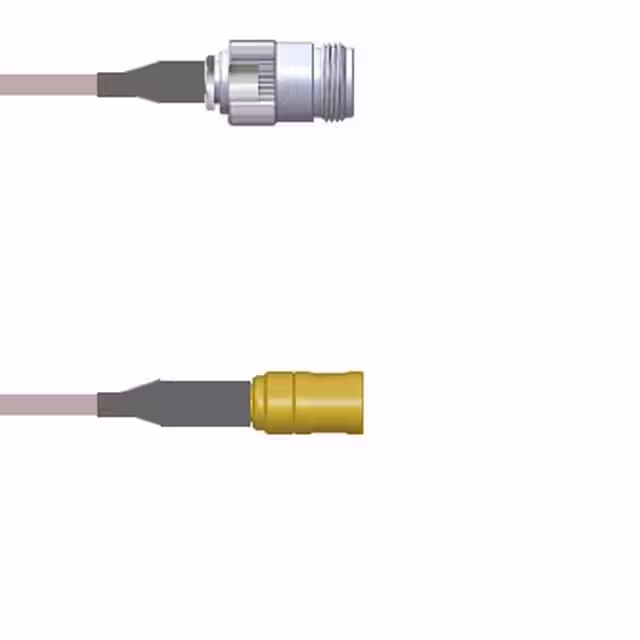

Q-2003W00052.5MCBL ASY SMB-N P-J RG316 2.5M |
3,300 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | - | - | N-Type Jack | Female | - | - | 98.4 (2.5m) 8.2' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

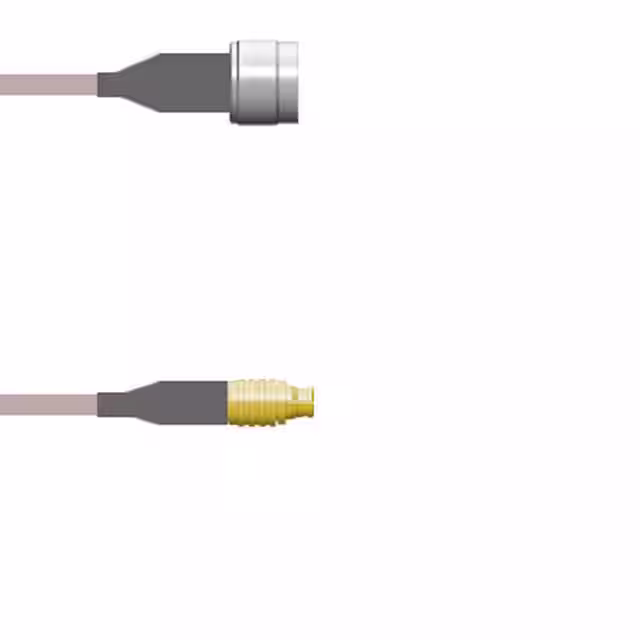

Q-2I0440005012iCBL ASSY SMP-N PLUG RG316 12 |
2,054 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMP to N-Type | SMP Plug | Male | - | - | N-Type Plug | Male | - | - | 12.00 (304.80mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

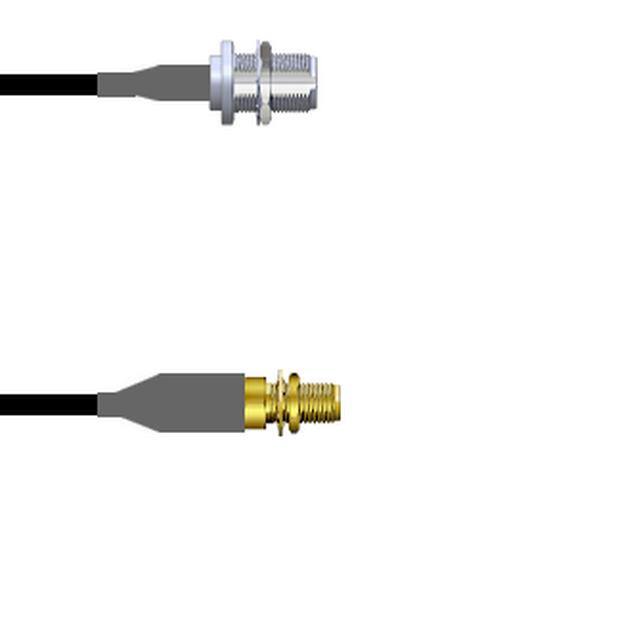

Q-26032000M012iCBL ASSY SMA-N JACK 12 |
2,370 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00 (304.80mm) | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

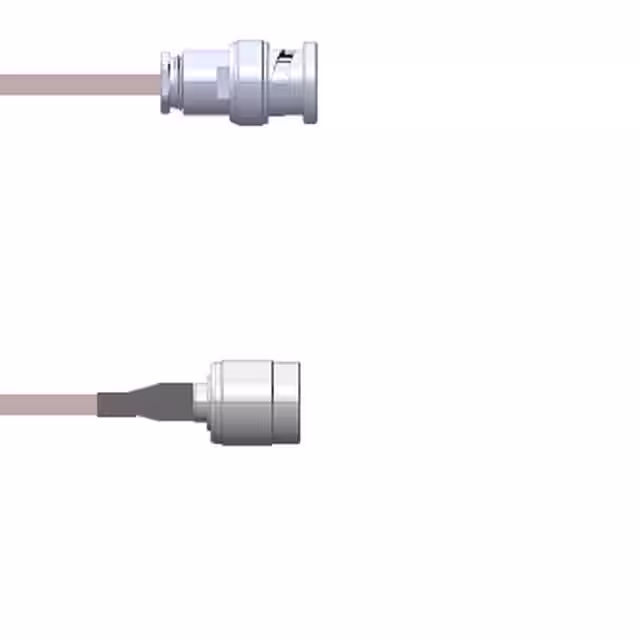

Q-0I0510001048iCBL ASSY BNC-TNC PLUG RG178 4' |
3,689 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | - | - | TNC Plug | Male | - | - | 48.0 (1.2m) 4.0' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

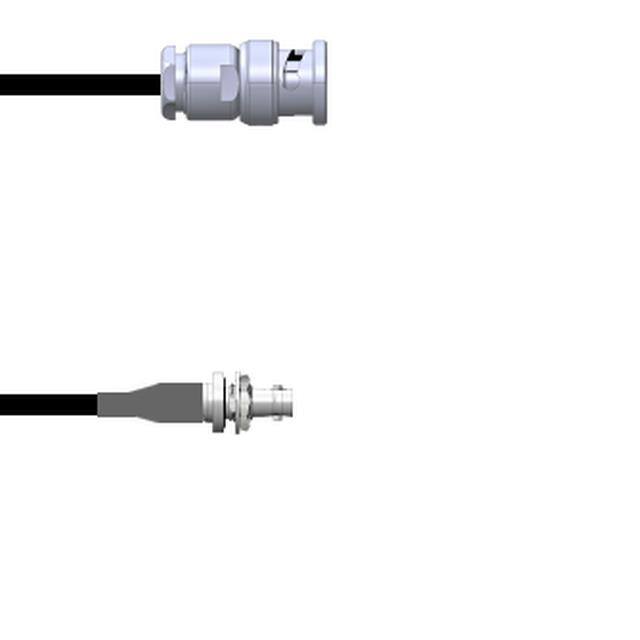

Q-0J00P0003009iCBL ASSY BNC-HD-BNC P-J RG174 9 |
3,334 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

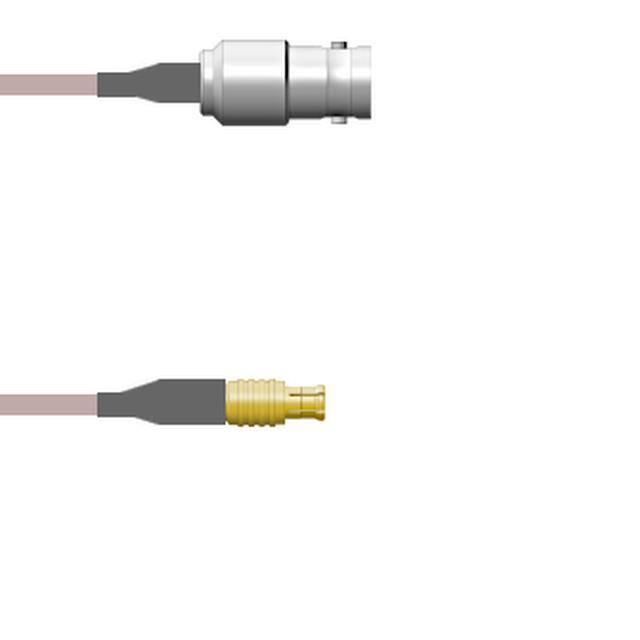

Q-0201B0001048iCBL ASY BNC-MCX J TO P RG178 4' |
3,604 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | - | - | MCX Plug | Male | - | - | 48.0 (1.2m) 4.0' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

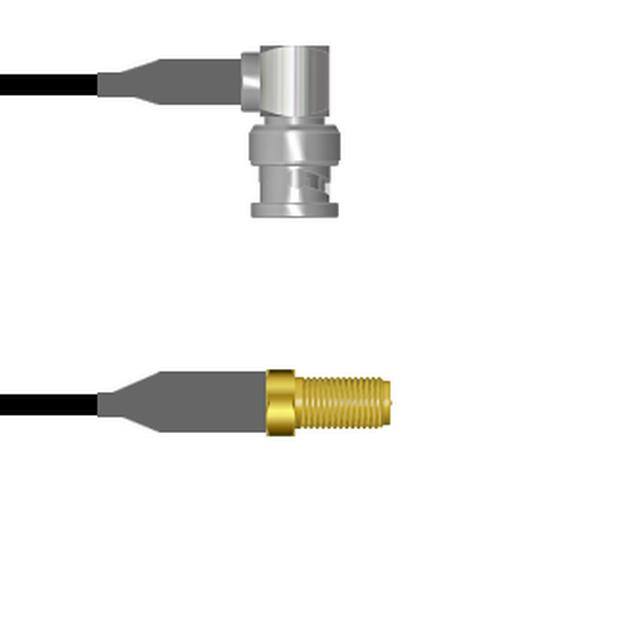

Q-0E0720008018iCBL ASSY RP-SMA-BNC J-P RG58 18 |
2,018 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Jack | Male | - | - | BNC Plug, Right Angle | Male | - | - | 18.00 (457.20mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

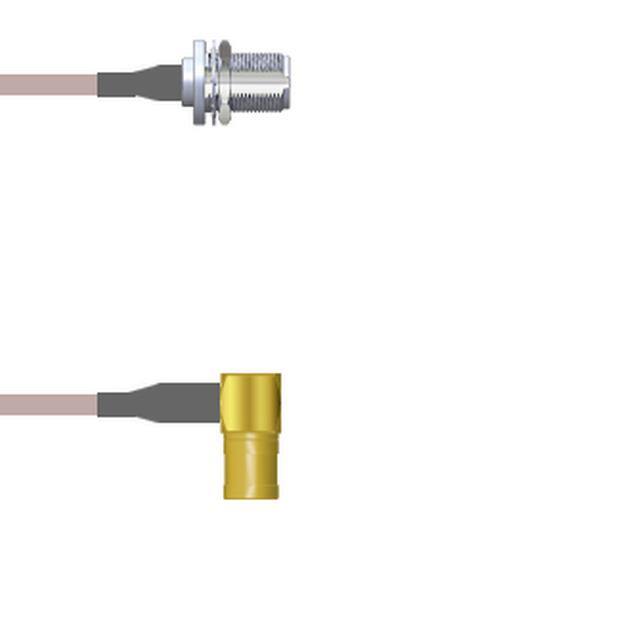

Q-1Z03R0001024iCBL ASSY SMB-N P TO J RG178 24 |
3,277 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

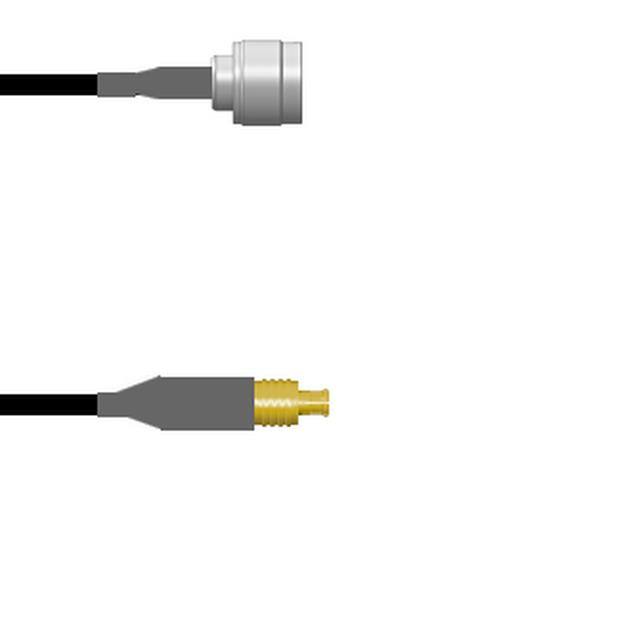

Q-2N01E0008024iCBL ASSY MCX-N PLUG RG58 24 |
2,333 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug | Male | - | - | N-Type Plug | Male | - | - | 24.00 (609.60mm) | RG-58 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-2000P00032.5MCBL ASY HD-BNC-N JK RG174 2.5M |
3,835 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-1V053000R2.5MCBL ASSY N TO TNC RG316 DB 2.5M |
2,173 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Plug | Male | - | - | 98.4 (2.5m) 8.2' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
