| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

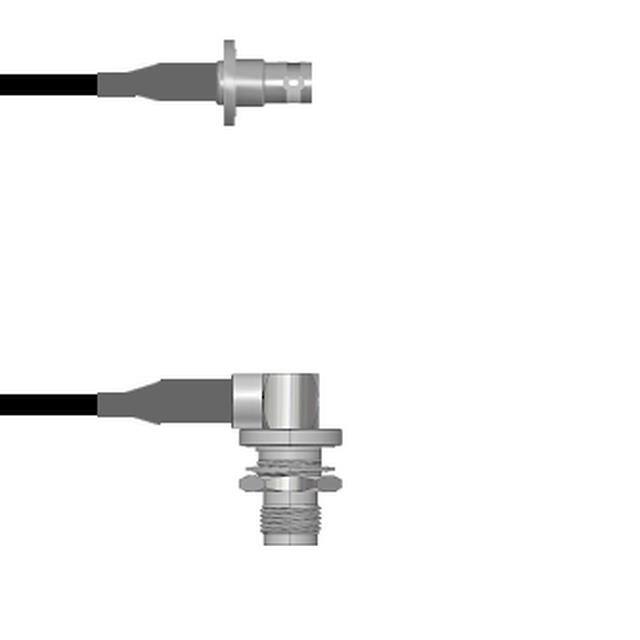

Q-080490008084iCBL ASSY BNC-TNC JACK RG58 7' |
2,653 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0 (2.1m) 7.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

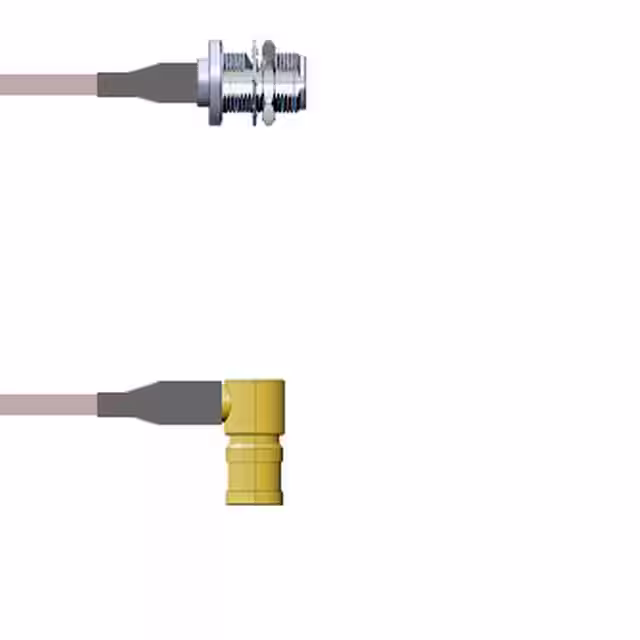

Q-2103T000R048iCBL ASY SMB-N P-J RG316 DB 4' |
2,759 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0 (1.2m) 4.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

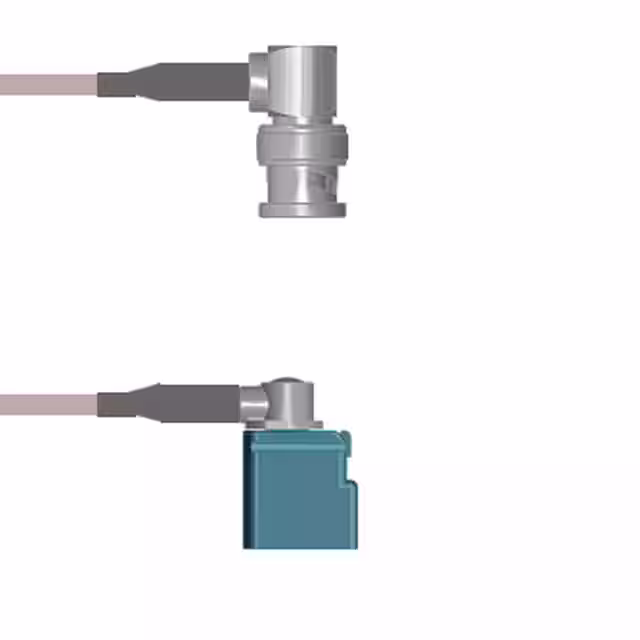

Q-0D05C0005.25MCBL ASSY BNC-FAKRA RG316 9.843 |
3,838 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Plug, Right Angle | Male | - | - | Fakra Jack, Right Angle | Female | - | - | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|

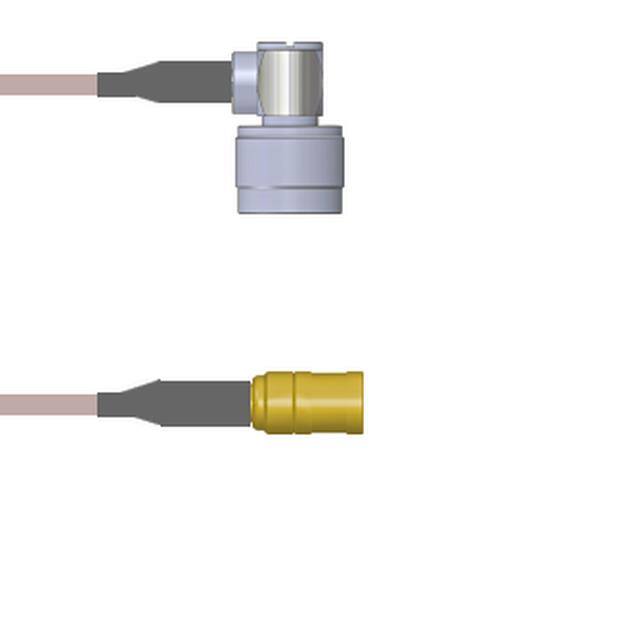

Q-2C03W0005072iCBL ASSY SMB-N PLUG RG316 6' |
2,911 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Plug | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 72.0 (1.8m) 6.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

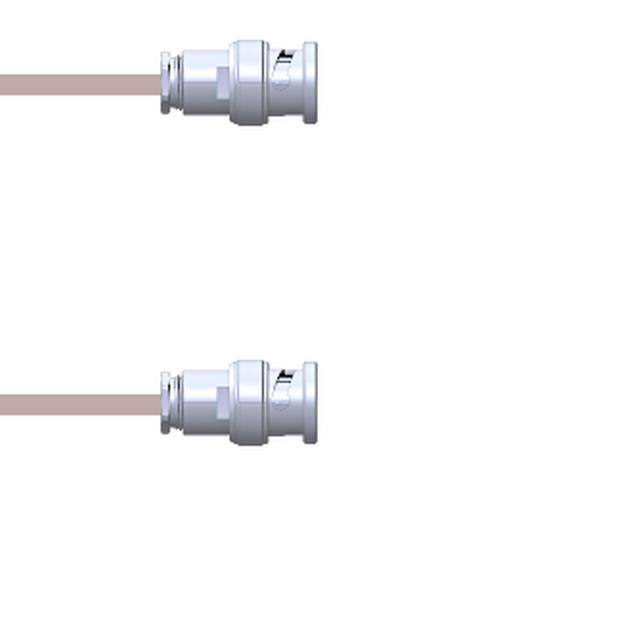

Q-0I00I0001072iCBL ASSY BNC PLUG RG178 6' |
3,042 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 72.0 (1.8m) 6.0' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

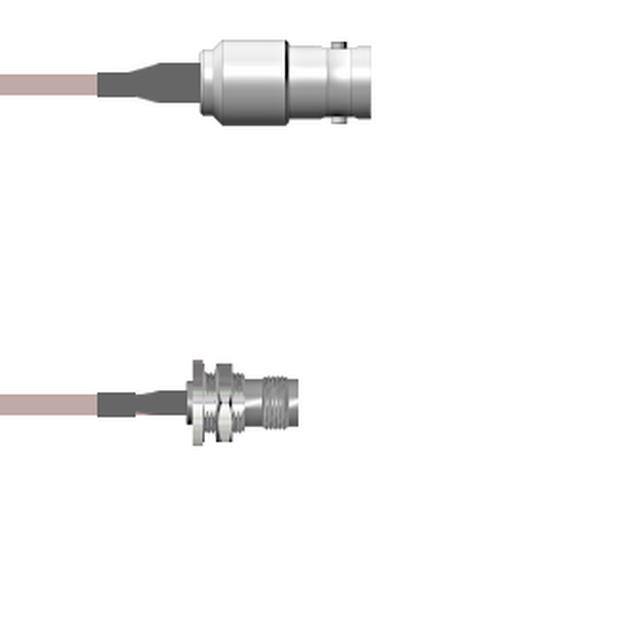

Q-0204C0001.25MCBL ASSY BNC-TNC JK RG178 9.843 |
2,478 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

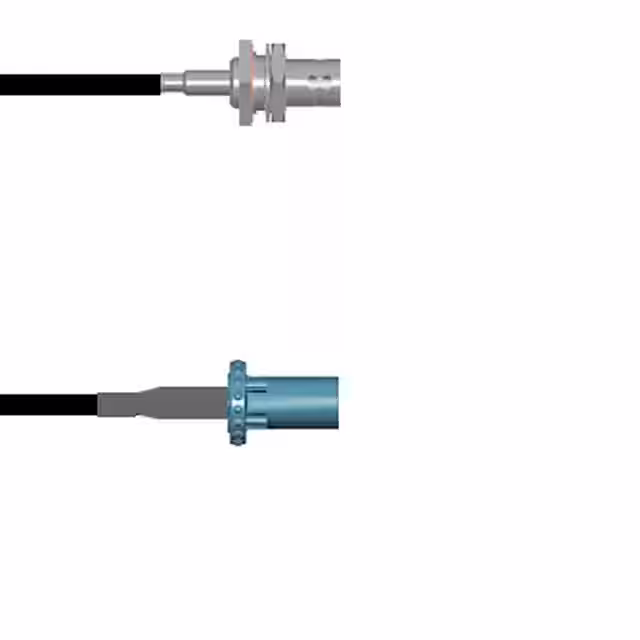

Q-0405A00031.5MCBL ASSY BNC-FAKRA RG174 1.5M |
3,265 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Plug | Male | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

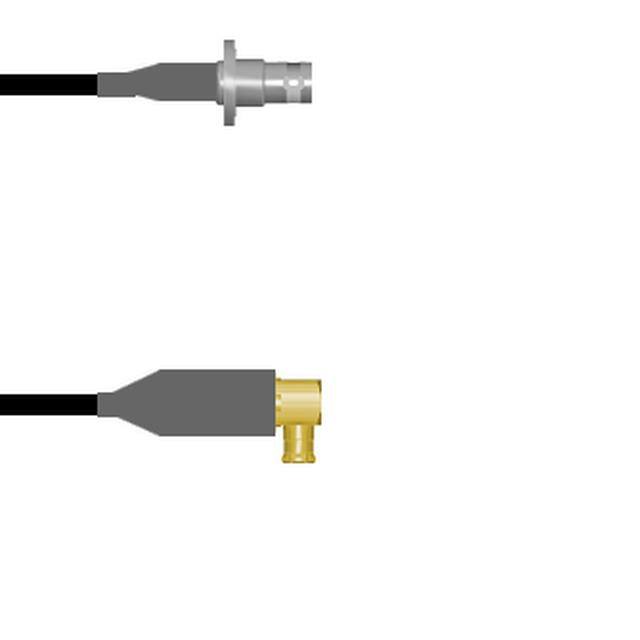

Q-080180008.25MCBL ASSY BNC-MCX J-P RG58 9.843 |
2,890 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

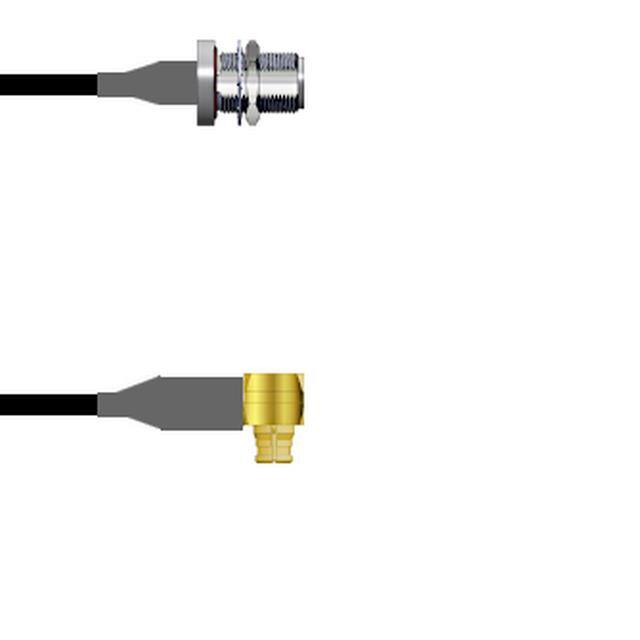

Q-1T0420003002MCBL ASY SMP-N PLG TO JK RG174 2M |
2,654 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMP to N-Type | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

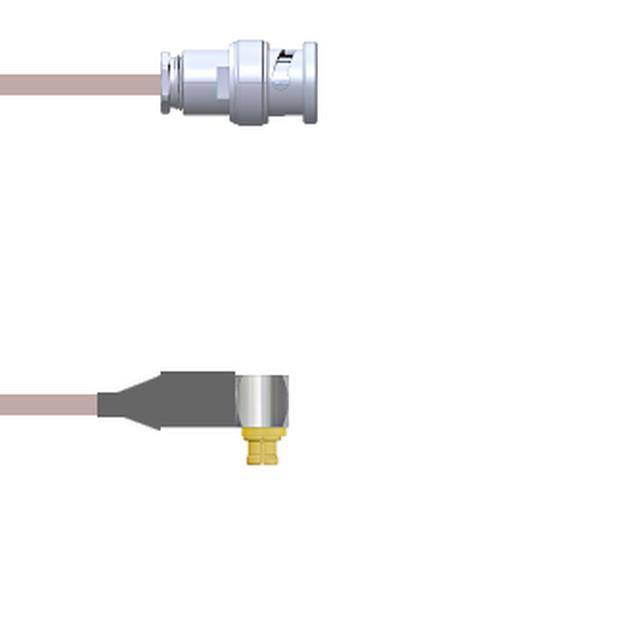

Q-0I04600011.5MCBL ASSY BNC-SMPM PLG RG178 1.5M |
2,599 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMPM | BNC Plug | Male | - | - | SMPM Plug, Right Angle | Male | - | - | 59.1 (1.5m) 4.9' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

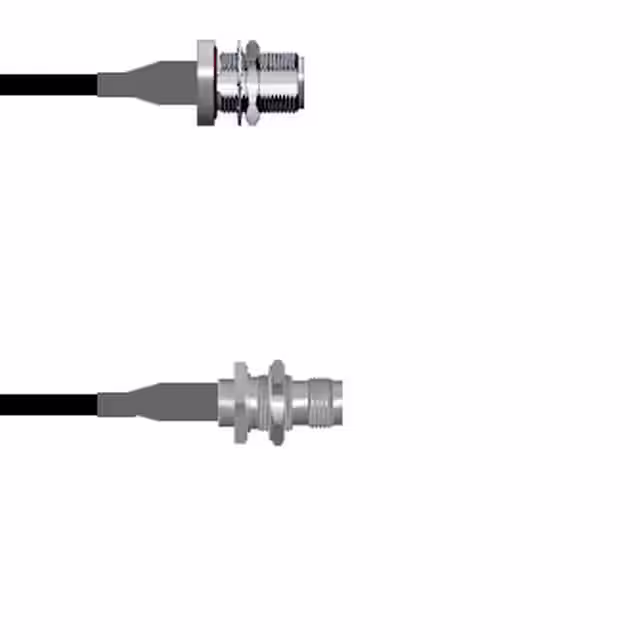

Q-1T04F0003002MCBL ASSY N TO TNC JACK RG174 2M |
3,036 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

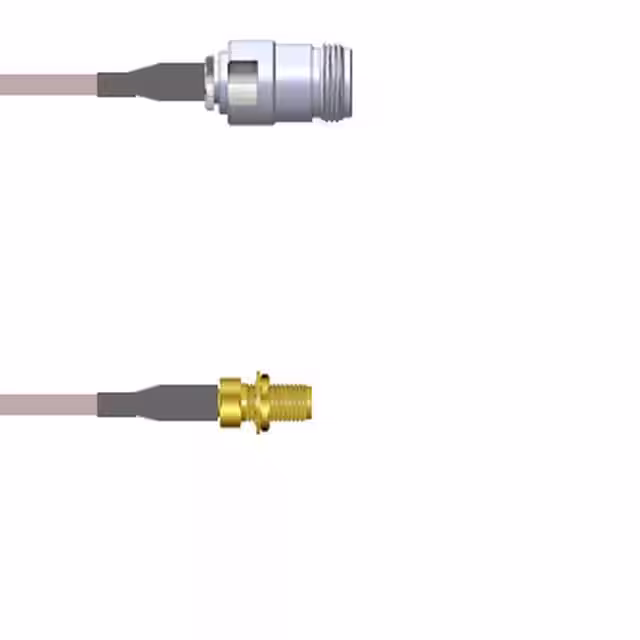

Q-1V02X000R.75MCBL ASSY SMA-N JACK RG316 29.53 |
3,381 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

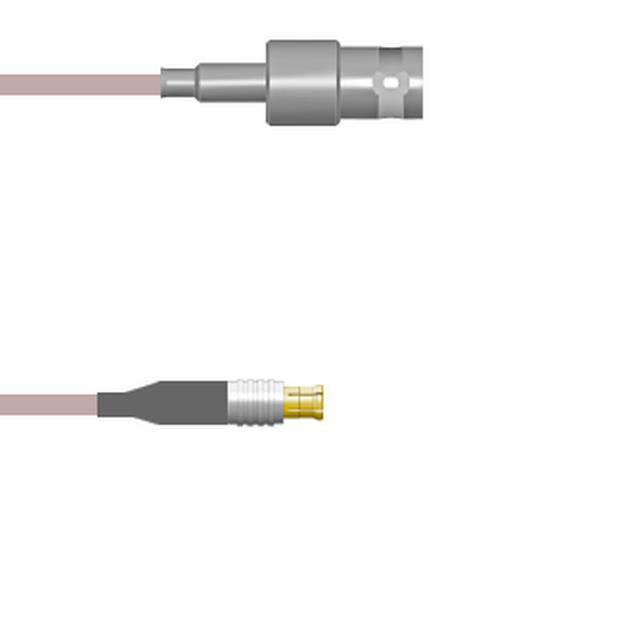

Q-0301F0005.25MCBL ASSY BNC-MCX RG316 9.843 |
3,799 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Jack | Female | - | - | MCX Plug | Male | - | - | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

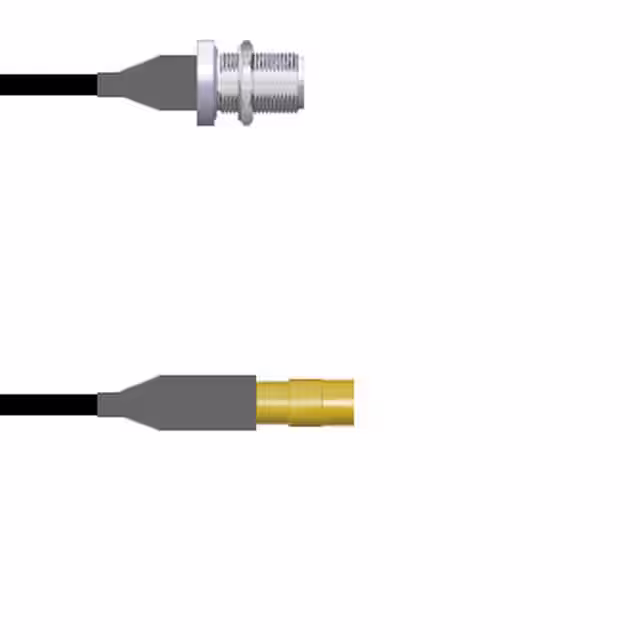

Q-1U01J0003003iCBL ASSY MMCX-N JACK RG174 3 |
2,852 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.000 (76.20mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

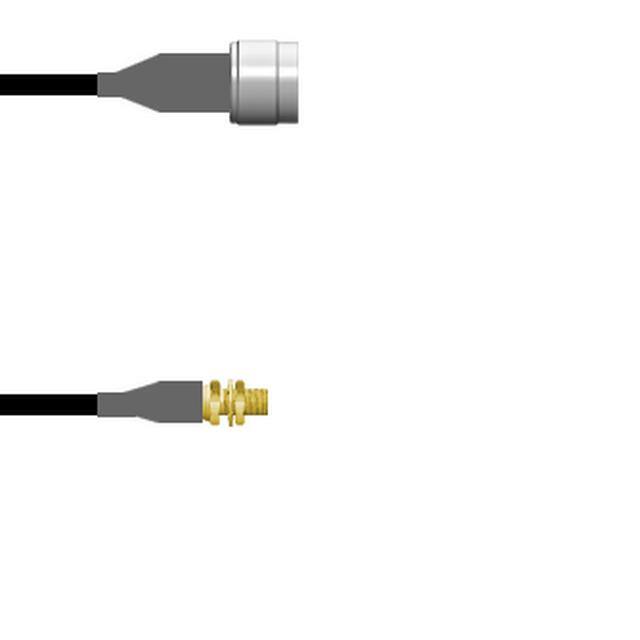

Q-2I01100030.5MCBL ASY MCX-N J-P RG174 19.69 |
2,860 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

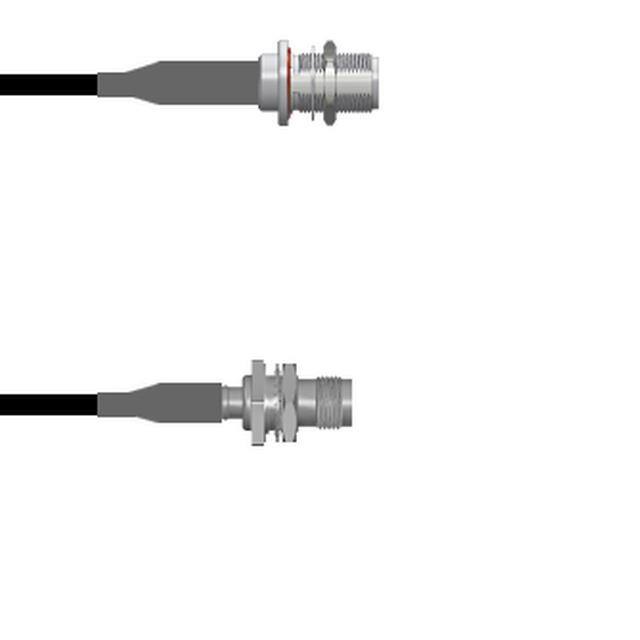

Q-1X04I0008108iCBL ASSY N TO TNC JACK RG58 9' |
3,747 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

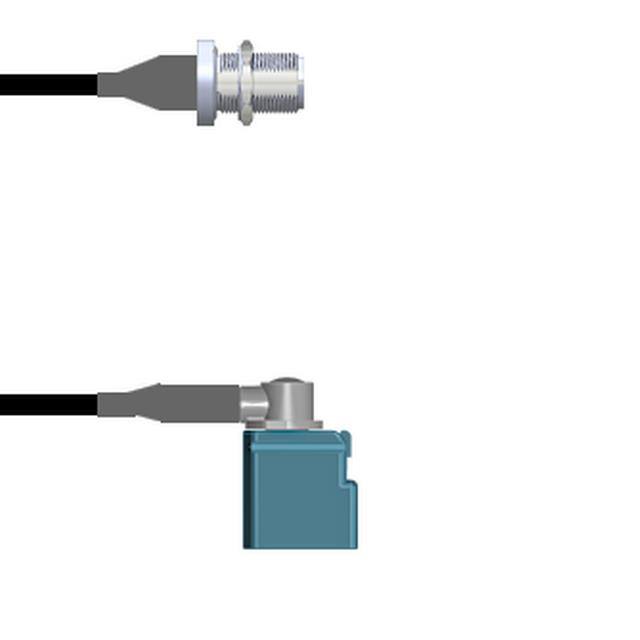

Q-1U05C0003060iCBL ASSY N-FAKRA JACK RG174 5' |
2,155 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to Fakra | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 60.0 (1.5m) 5.0' | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

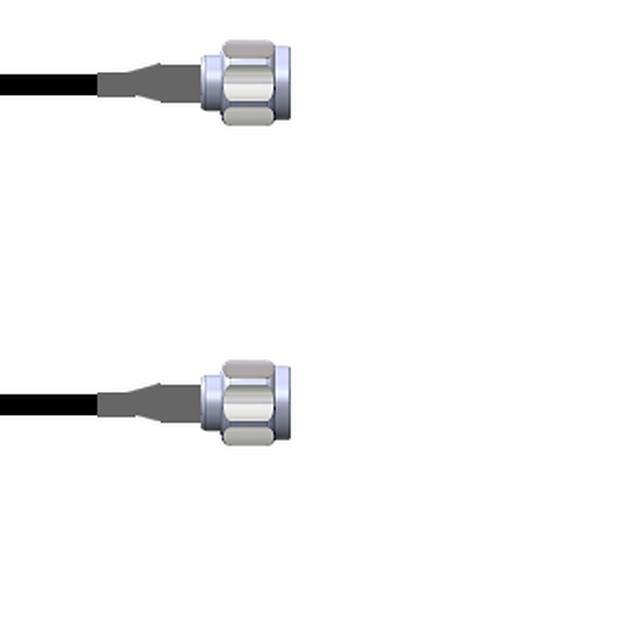

Q-2O02O000D060iCBL ASSY N-TYPE PLUG 5' |
3,531 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 60.0 (1.5m) 5.0' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

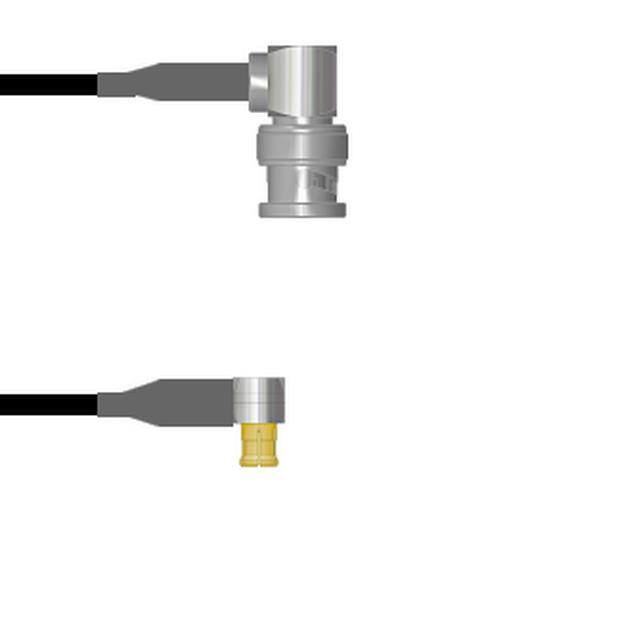

Q-0D01A0003036iCBL ASSY BNC-MCX PLUG RG174 36 |
3,194 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug, Right Angle | Male | - | - | MCX Plug, Right Angle | Male | - | - | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-2L0740013072iCBL ASSY N TO TNC PLUG 6' |
3,373 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Plug | Male | - | - | 72.0 (1.8m) 6.0' | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
