| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

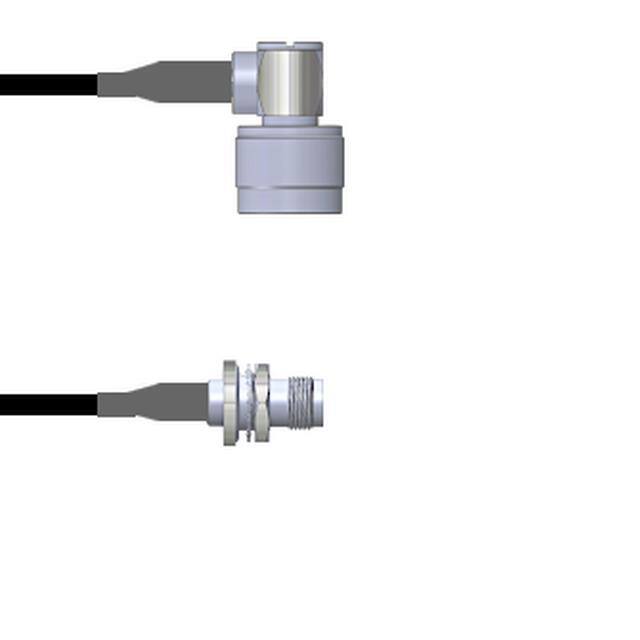

Q-2C04E0003009iCBL ASY N TO TNC P-J RG174 9 |
2,446 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000 (228.60mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

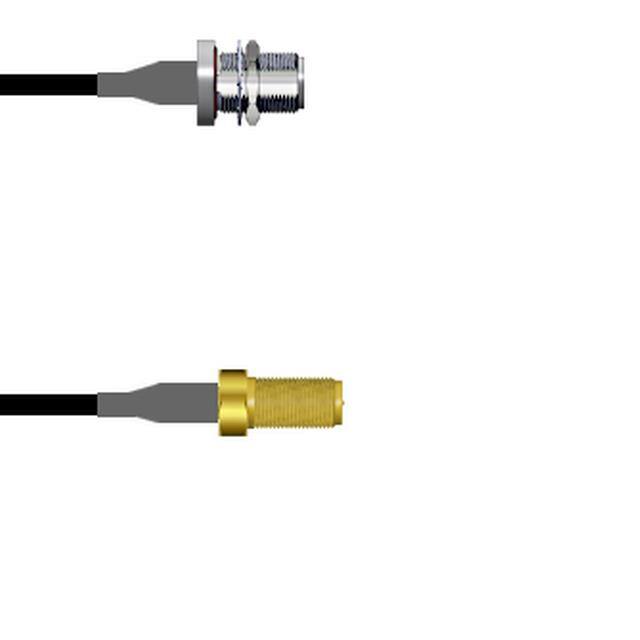

Q-1T07100030.5MCBL ASY RP-SMA TO N RG174 19.69 |
2,998 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

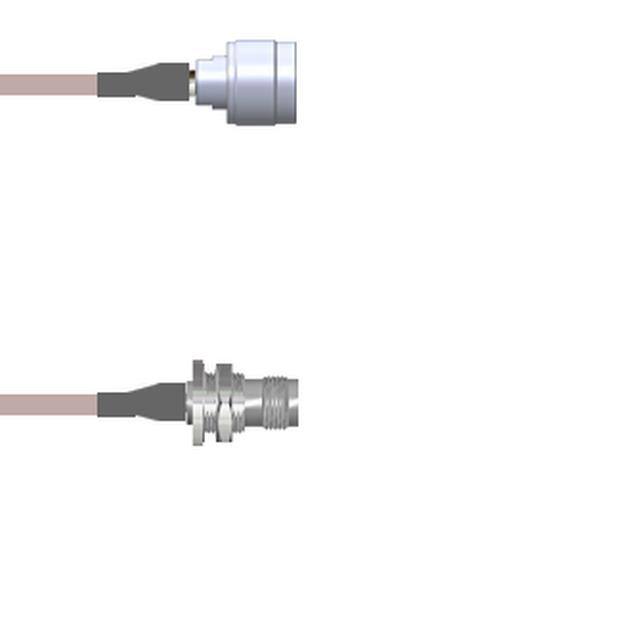

Q-2H04D0001024iCBL ASY N TO TNC P-J RG178 24 |
3,654 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-178 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

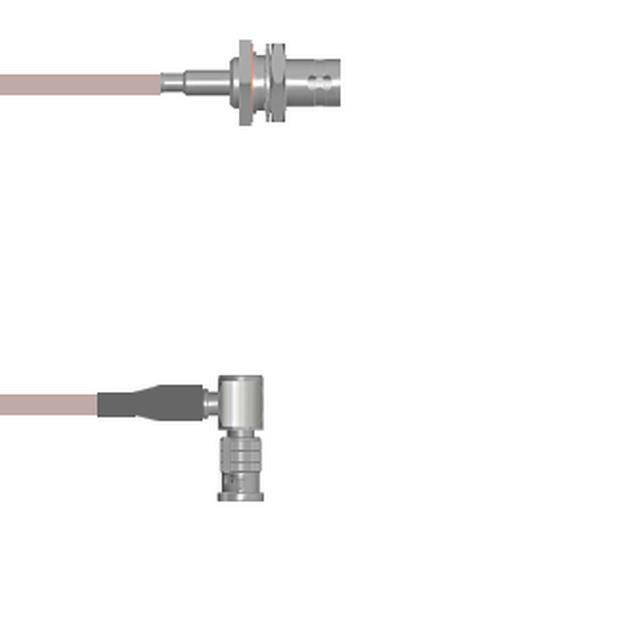

Q-0405G0005006iCBL ASSY BNC-HD-BNC J-P RG316 6 |
3,275 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

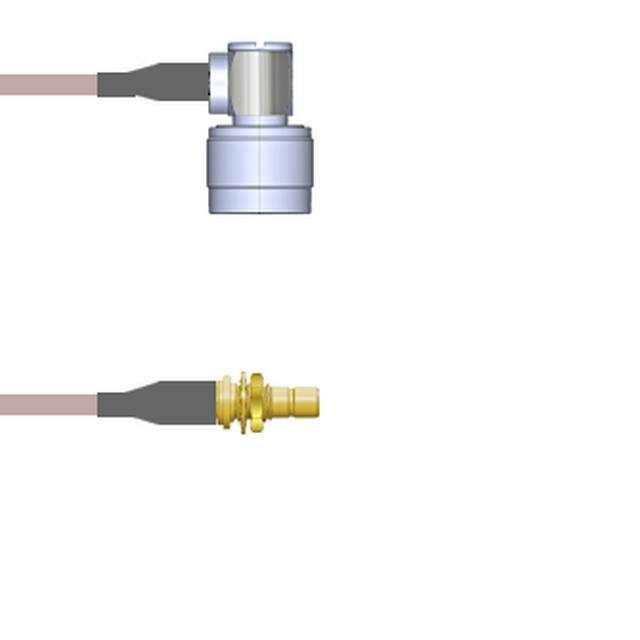

Q-2D03O000R2.5MCBL ASSY SMB-N J-P RG316 DB 2.5M |
3,413 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

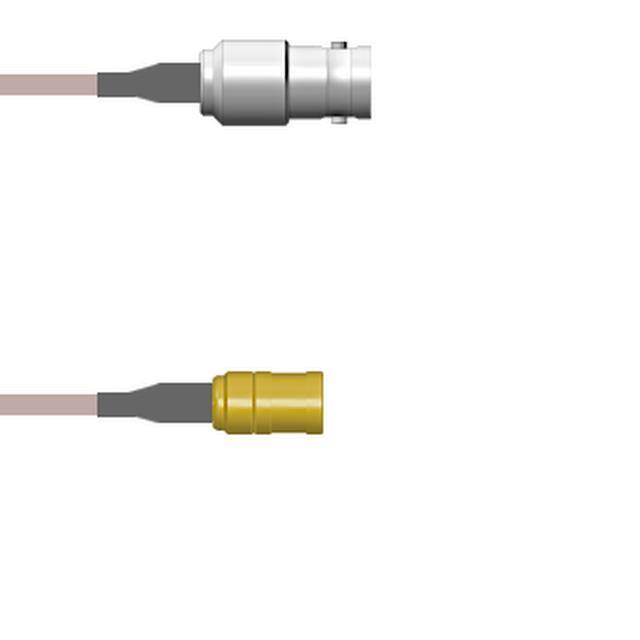

Q-020600001048iCBL ASY BNC-SMB J TO P RG178 4' |
3,241 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | - | - | SMB Plug | Male | - | - | 48.0 (1.2m) 4.0' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

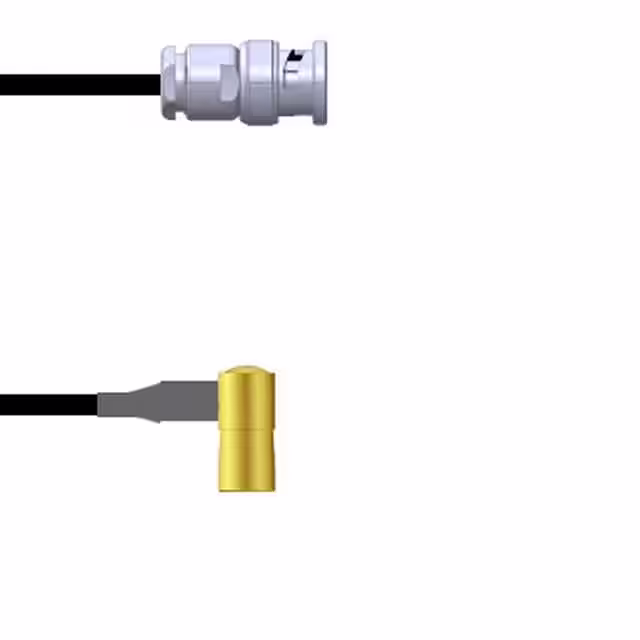

Q-0J03S0003018iCBL ASSY BNC-SMB PLUG RG174 18 |
3,964 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | - | - | SMB Plug, Right Angle | Male | - | - | 18.00 (457.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

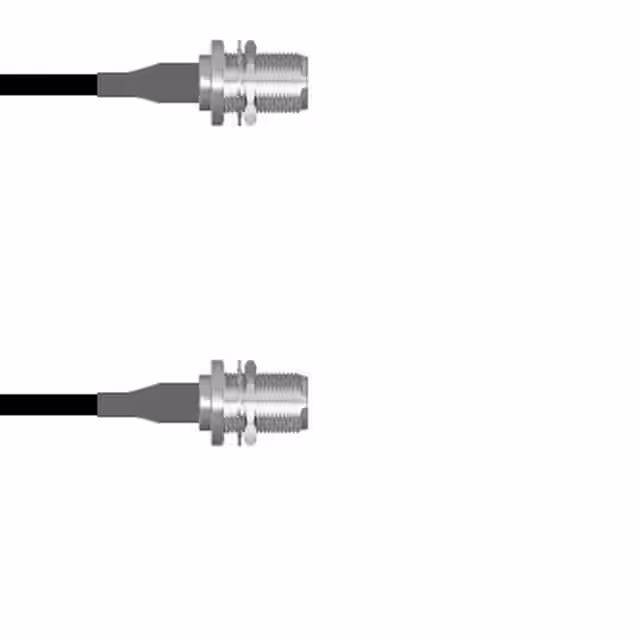

Q-23023000D.75MCBL ASSY N-TYPE JACK 29.53 |
2,100 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 29.53 (750.00mm) | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

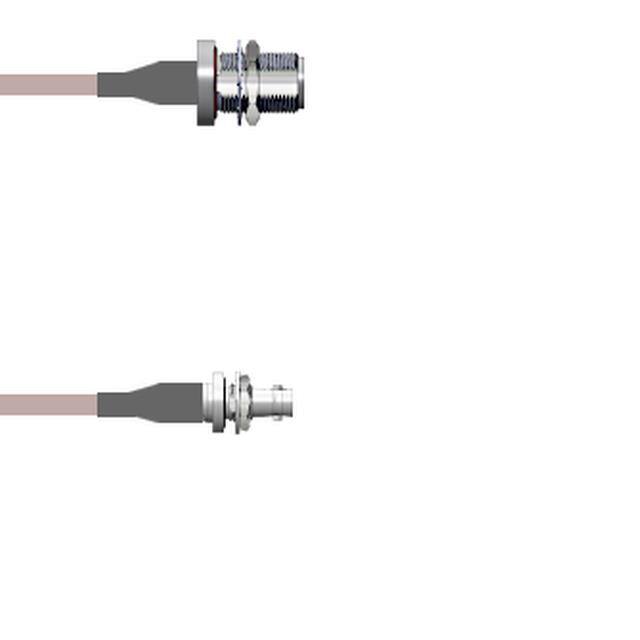

Q-1T00P00050.5MCBL ASY HD-BNC TO N RG316 19.69 |
2,605 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69 (500.00mm) | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

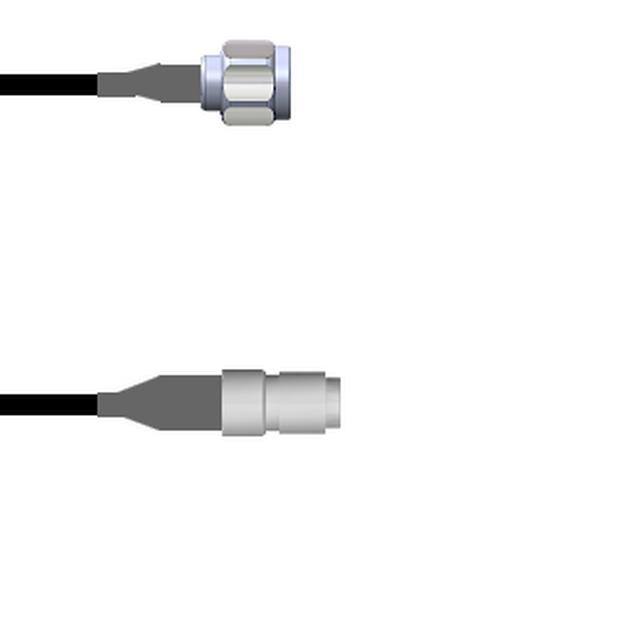

Q-2O065000D006iCBL ASSY N-TYPE PLUG 6 |
2,728 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | 1.0/2.3 to N-Type | 1.0/2.3 Plug | Male | - | - | N-Type Plug | Male | - | - | 6.000 (152.40mm) | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

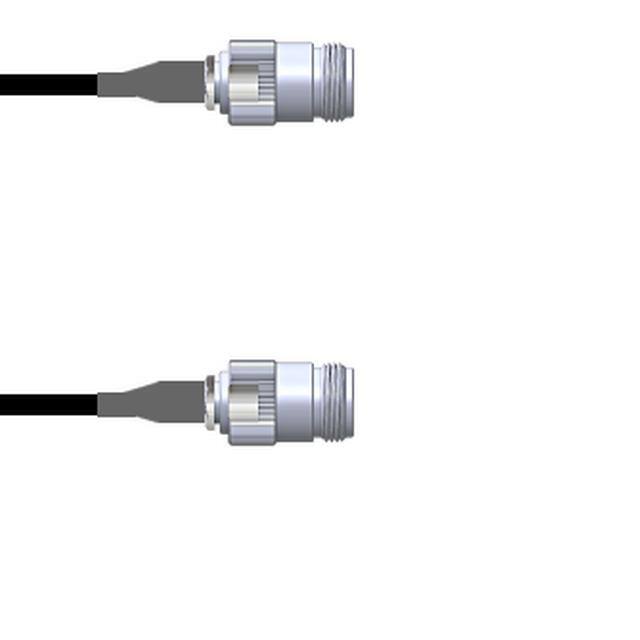

Q-200200003012iCBL ASSY N-TYPE JACK RG174 12 |
3,824 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | - | - | N-Type Jack | Female | - | - | 12.00 (304.80mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

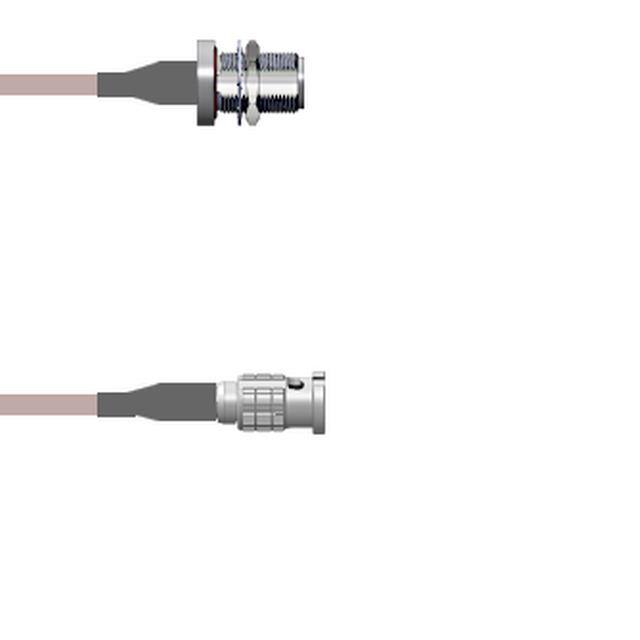

Q-1T00V0005108iCBL ASSY HD-BNC TO N RG316 9' |
2,936 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0 (2.7m) 9.0' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

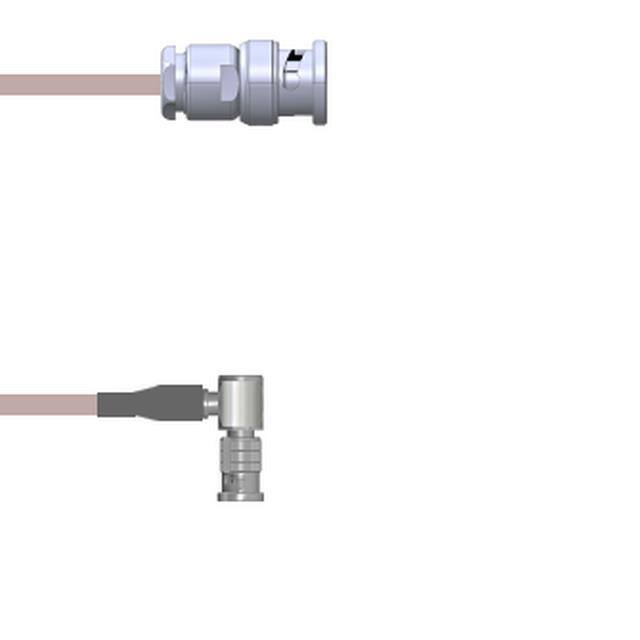

Q-0J05G0005.75MCB ASY BNC-HD-BNC P RG316 29.53 |
3,210 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | - | - | HD-BNC Plug, Right Angle | Male | - | - | 29.53 (750.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

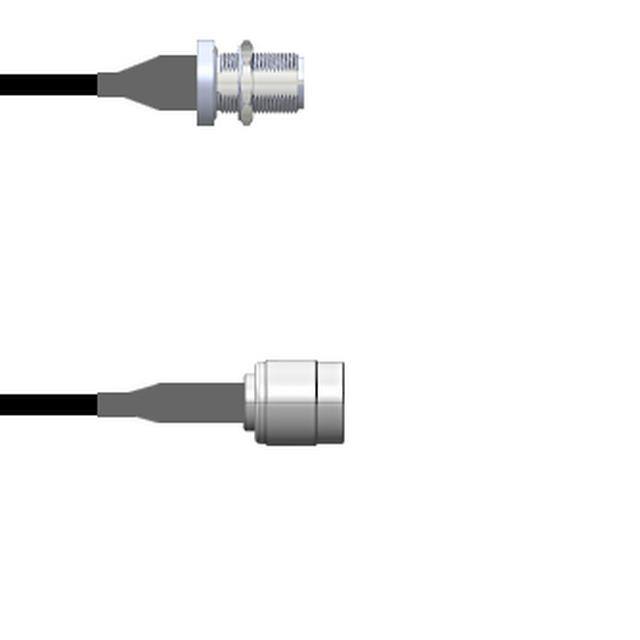

Q-1U0520003012iCBL ASY N-TNC J-P RG174 12 |
3,239 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

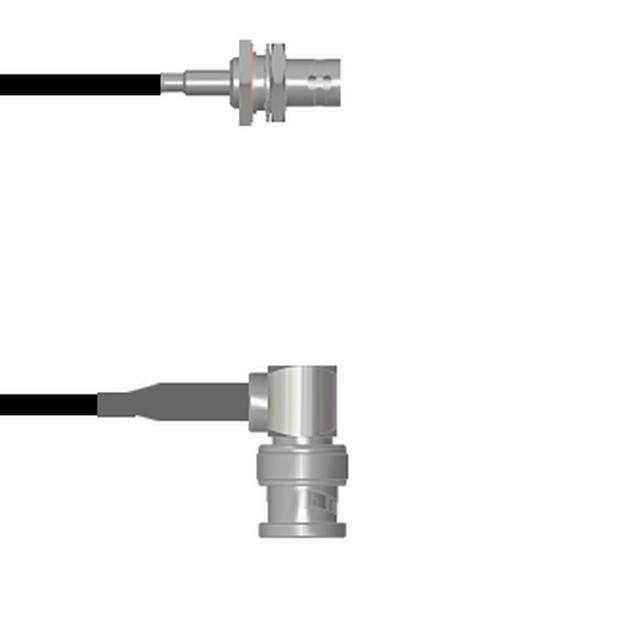

Q-0400D0003060iCBL ASSY BNC JCK TO PLG RG174 5' |
2,566 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0 (1.5m) 5.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

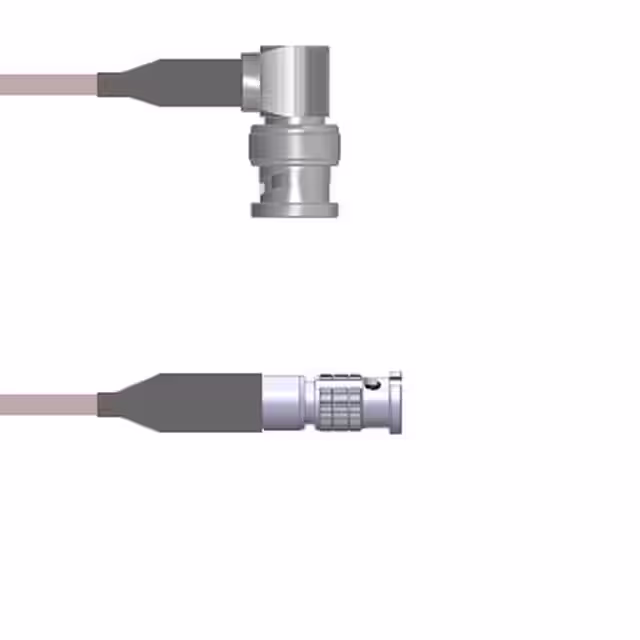

Q-0F00Y000H018iCBL ASSY BNC-HD-BNC PL RG142 18 |
3,112 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug, Right Angle | Male | - | - | HD-BNC Plug | Male | - | - | 18.00 (457.20mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

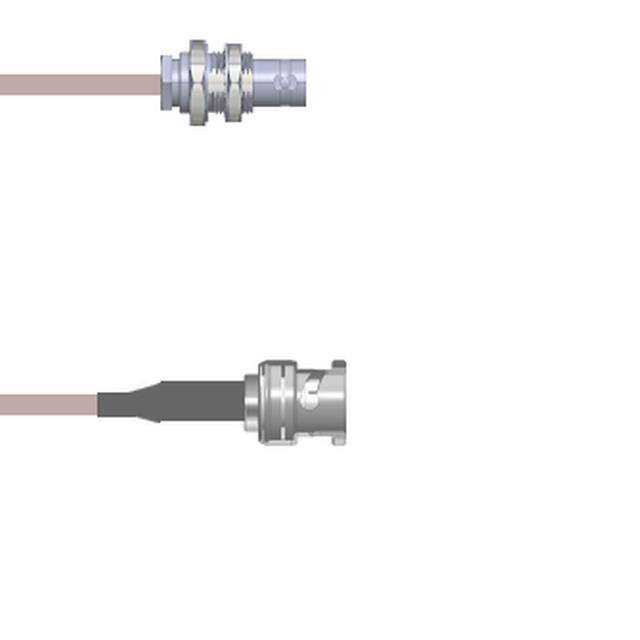

Q-0700K000R1.5MCBL ASY BNC J TO P RG316 DB 1.5M |
3,862 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug | Male | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - |
|
Q-2O02O000D072iCBL ASSY N-TYPE PLUG 6' |
3,974 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 72.0 (1.8m) 6.0' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

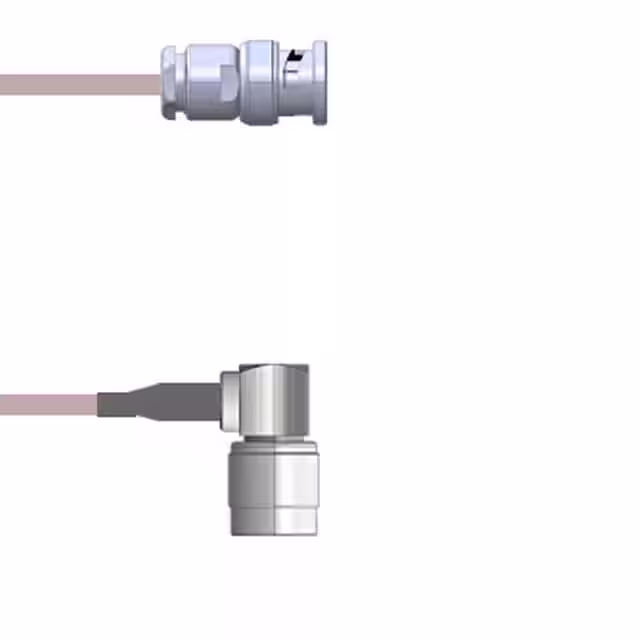

Q-0J04T0005060iCBL ASSY BNC-TNC PLUG RG316 5' |
2,285 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Plug | Male | - | - | TNC Plug, Right Angle | Male | - | - | 60.0 (1.5m) 5.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

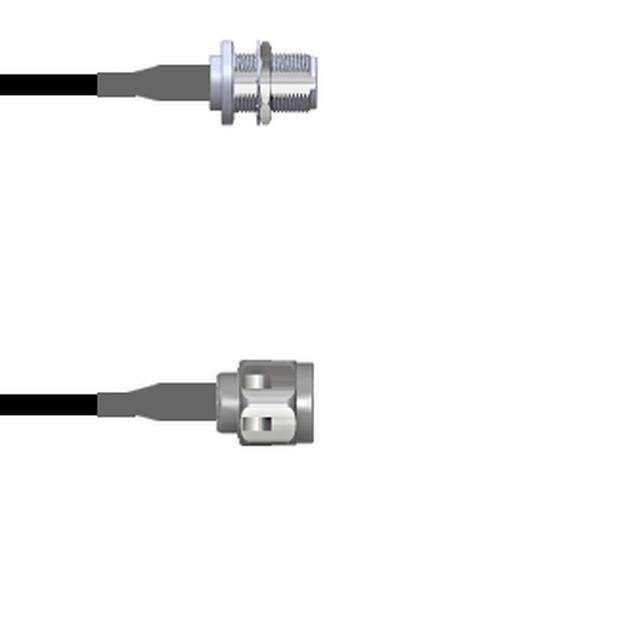

Q-2602K000M012iCBL ASSY N-TYPE JACK TO PLUG 12 |
3,501 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | LMR 240 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
