| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

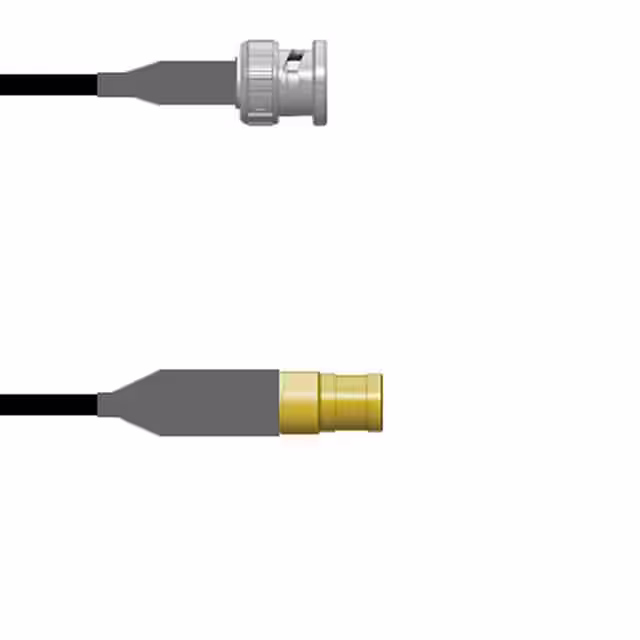

Q-0L03X0008009iCBL ASSY BNC-SMB PLUG RG58 9 |
2,084 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Plug | Male | - | - | SMB Plug | Male | - | - | 9.000 (228.60mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

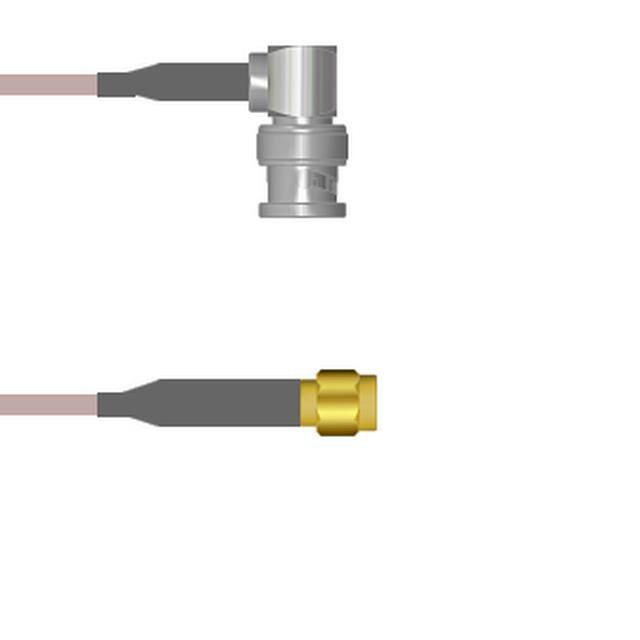

Q-0D0680005001MCBL ASSY RP-SMA-BNC PLG RG316 1M |
2,097 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Plug | Female | - | - | BNC Plug, Right Angle | Male | - | - | 39.4 (1.0m) 3.3' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

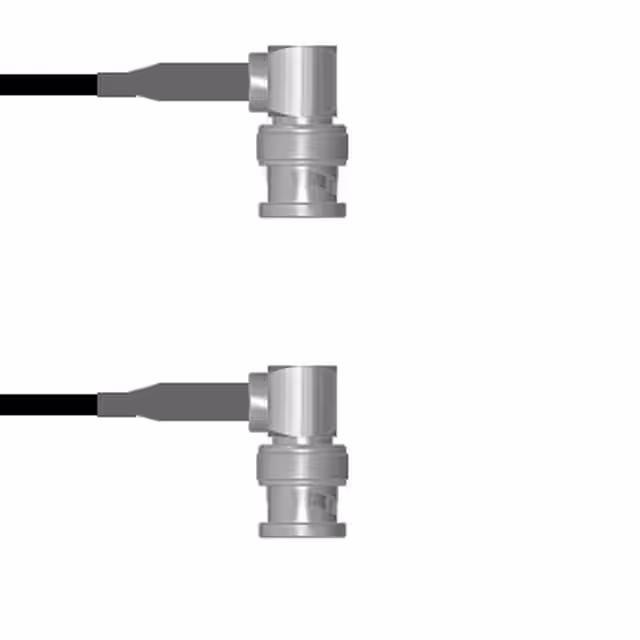

Q-0D00D0003.75MCBL ASSY BNC PLUG RG174 29.53 |
2,233 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 29.53 (750.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

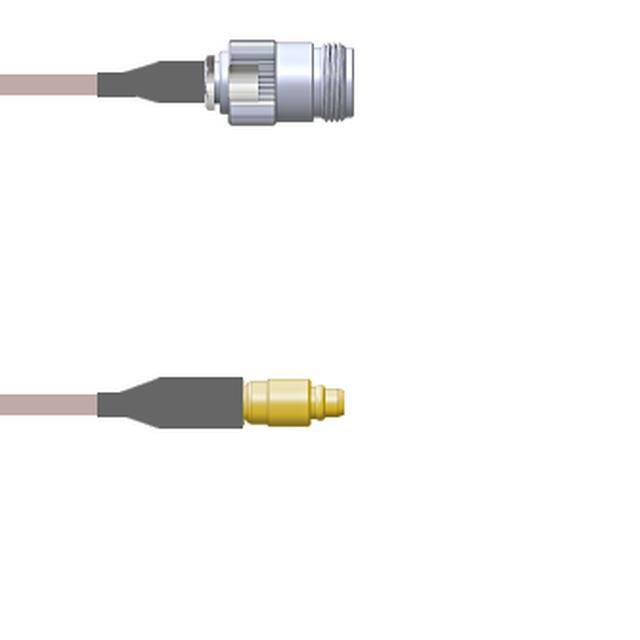

Q-2001Q0005048iCBL ASSY MMCX-N P TO J RG316 4' |
2,874 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Plug | Male | - | - | N-Type Jack | Female | - | - | 48.0 (1.2m) 4.0' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

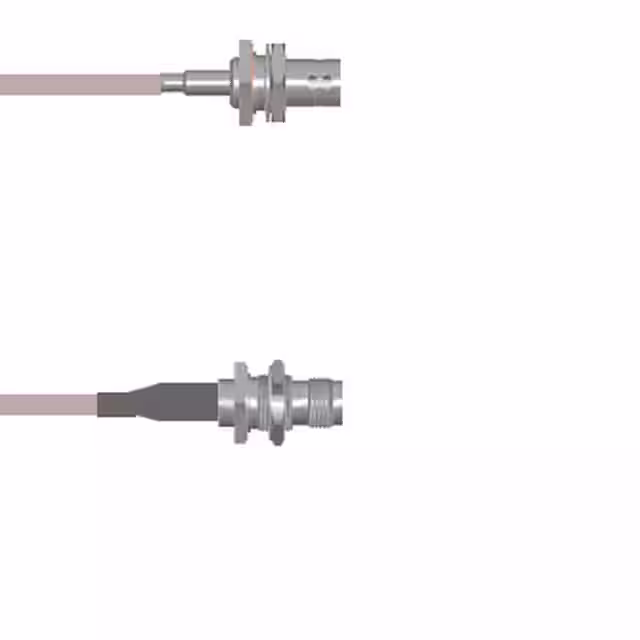

Q-0404F0005.25MCBL ASSY BNC-TNC JK RG316 9.843 |
3,671 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

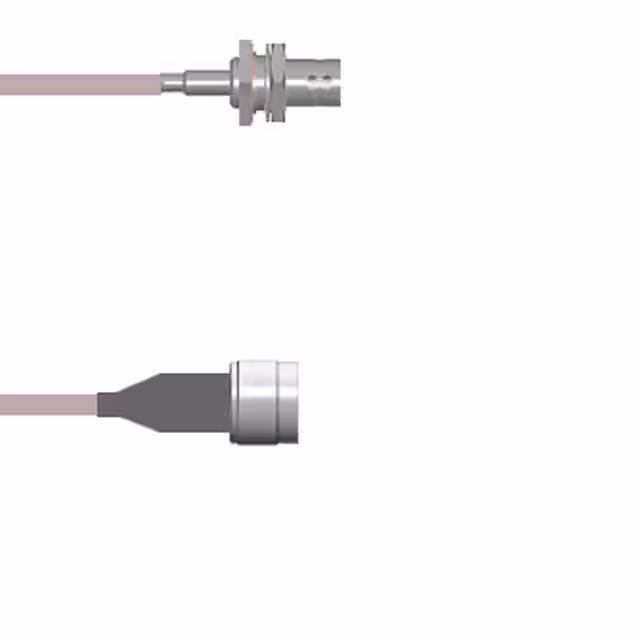

Q-0402I00051.5MCBL ASSY BNC-N-TYPE RG316 1.5M |
3,733 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

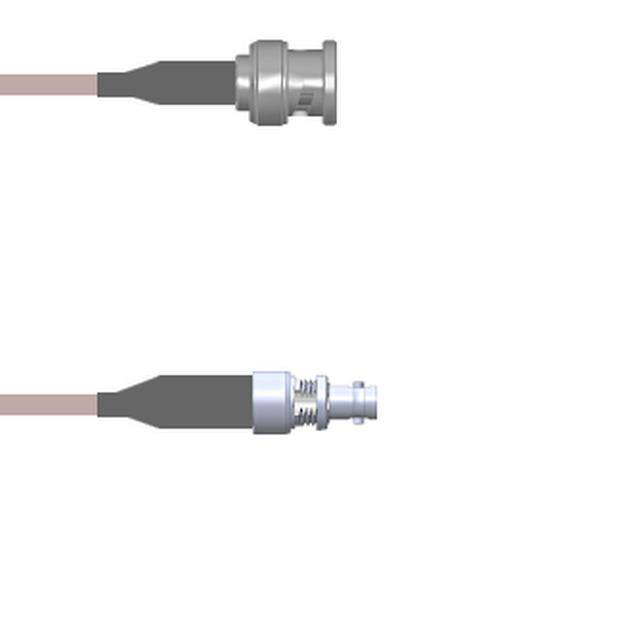

Q-0M00S000H084iCBL ASSY BNC-HD-BNC P-J RG142 7' |
3,650 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0 (2.1m) 7.0' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

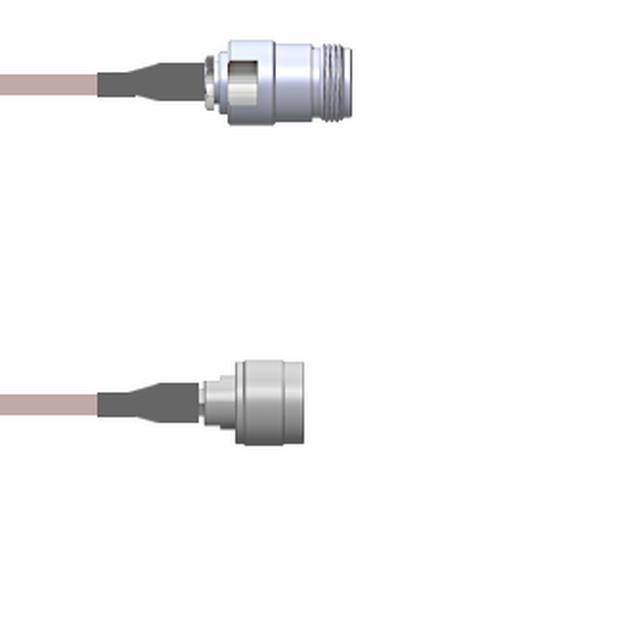

Q-1V02M000R024iCBL ASSY N-TYPE J-P RG316 DB 24 |
3,053 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to N-Type | N-Type Jack | Female | - | - | N-Type Plug | Male | - | - | 24.00 (609.60mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

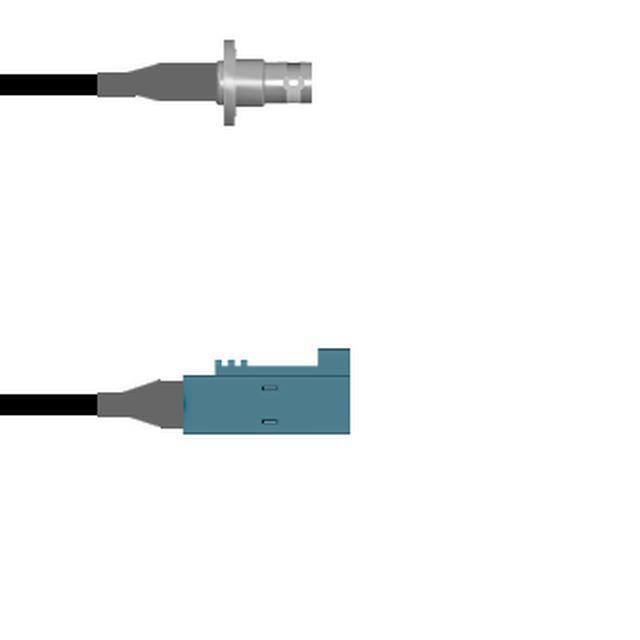

Q-0805F0008072iCBL ASSY BNC-FAKRA JACK RG58 6' |
2,315 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack | Female | Free Hanging (In-Line) | - | 72.0 (1.8m) 6.0' | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

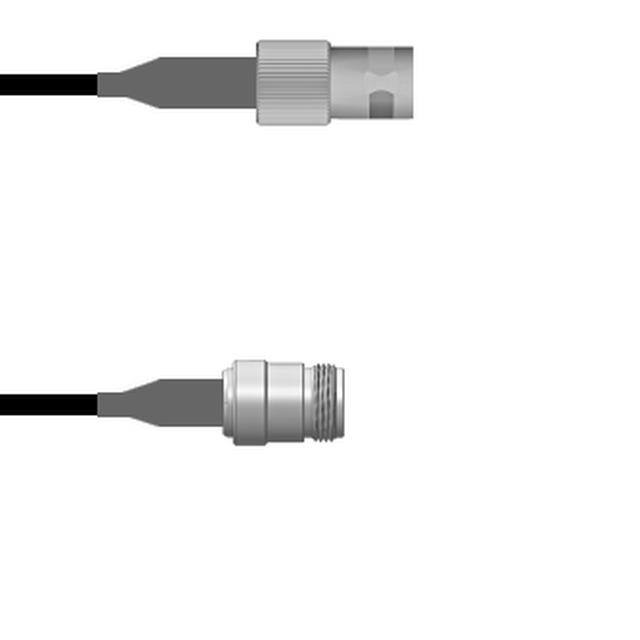

Q-0901W0008.75MCBL ASY BNC-N-TYP JK RG58 29.53 |
2,416 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to N-Type | BNC Jack | Female | - | - | N-Type Jack | Female | - | - | 29.53 (750.00mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

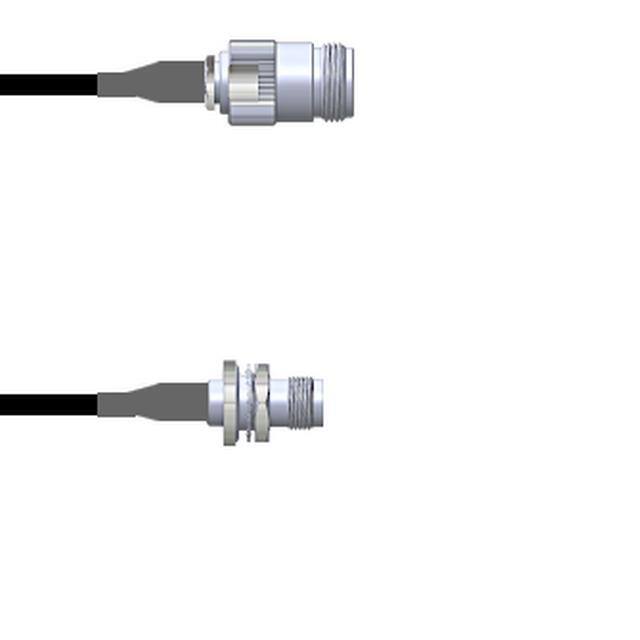

Q-2004E0003072iCBL ASSY N TO TNC JACK RG174 6' |
3,136 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0 (1.8m) 6.0' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - |
|

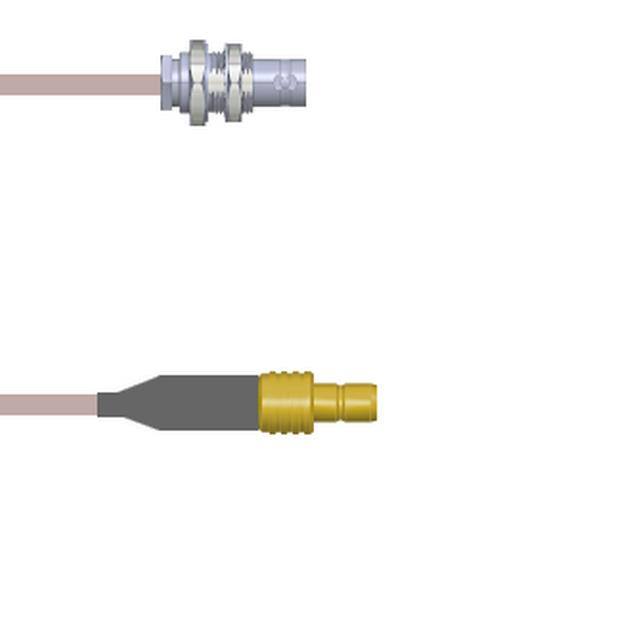

Q-0703N000R018iCBL ASSY BNC-SMB JK RG316 DB 18 |
2,431 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Jack | Female | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - |
|

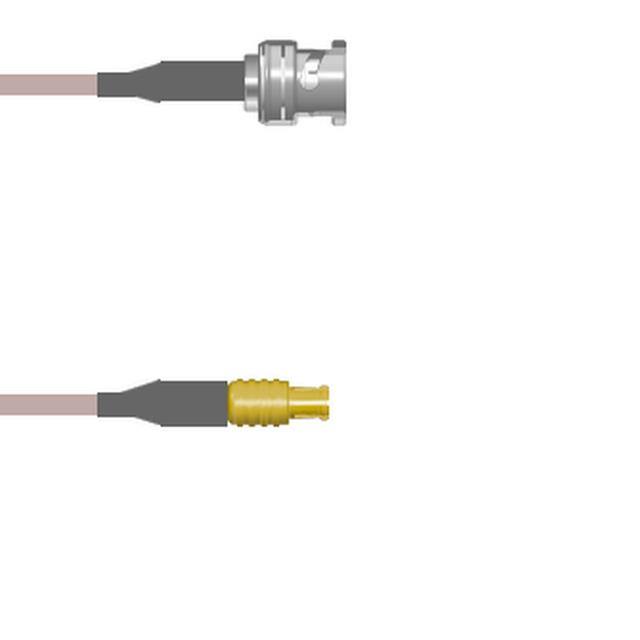

Q-0K01D000R0.5MCB ASY BNC-MCX P RG316 DB 19.69 |
2,747 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MCX | BNC Plug | Male | - | - | MCX Plug | Male | - | - | 19.69 (500.00mm) | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

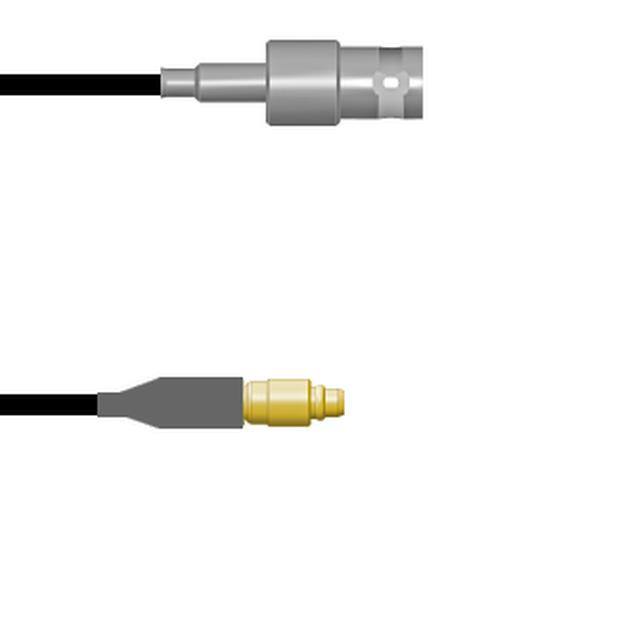

Q-0301Q0003003MCBL ASY BNC-MMCX J TO P RG174 3M |
2,441 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | - | - | MMCX Plug | Male | - | - | 118.1 (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0303H0005072iCBL ASSY BNC-SMB JACK RG316 6' |
3,965 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Free Hanging (In-Line) | - | SMB Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0 (1.8m) 6.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|
Q-2O00X000D006iCBL ASSY HD-BNC TO N PLUG 6 |
2,504 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug | Male | - | - | N-Type Plug | Male | - | - | 6.000 (152.40mm) | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

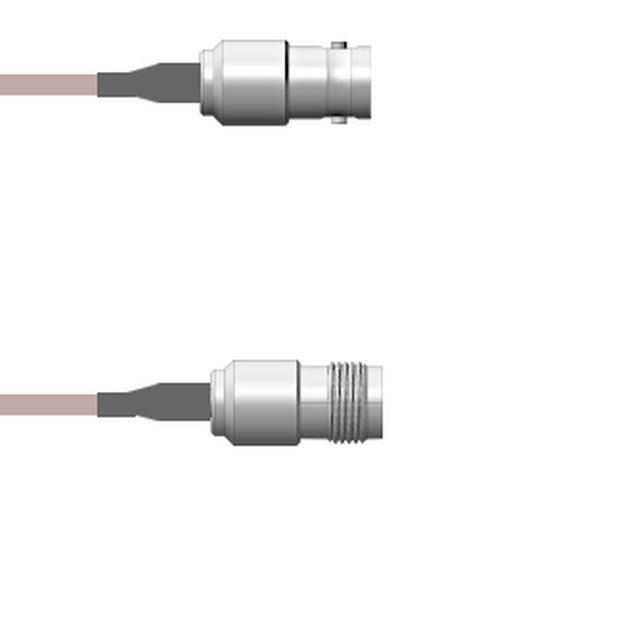

Q-0204B0001006iCBL ASSY BNC-TNC JACK RG178 6 |
2,622 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | - | - | TNC Jack | Female | - | - | 6.000 (152.40mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

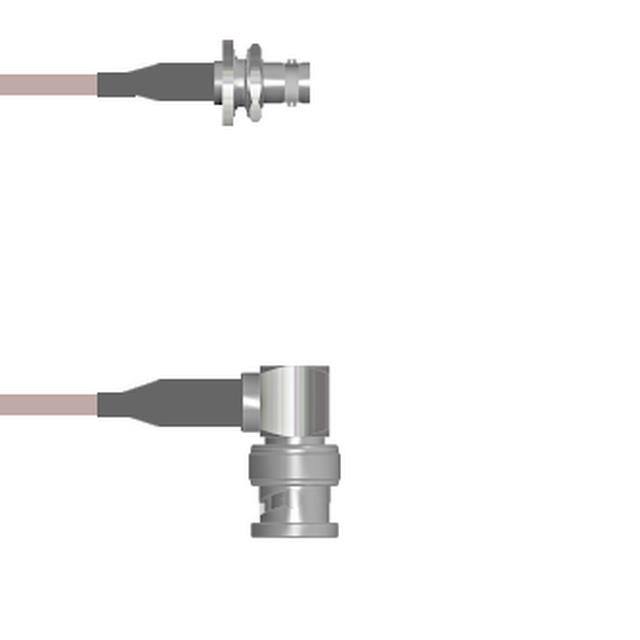

Q-0A00F000H2.5MCBL ASY BNC JK TO PLG RG142 2.5M |
3,598 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 98.4 (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

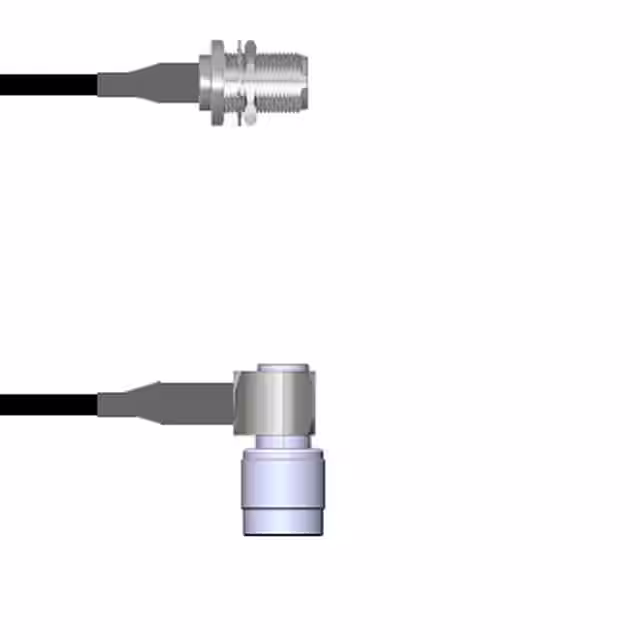

Q-2304V000D.25MCBL ASSY N TO TNC J TO P 9.843 |
2,127 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843 (250.00mm) | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
Q-2O00X000D084iCBL ASSY HD-BNC TO N PLUG 7' |
3,837 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug | Male | - | - | N-Type Plug | Male | - | - | 84.0 (2.1m) 7.0' | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
