| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

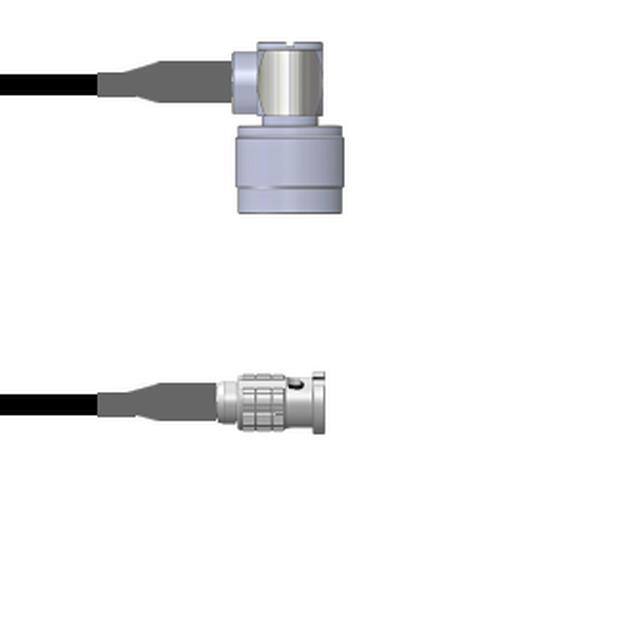

Q-2C00V0003003MCBL ASSY HD-BNC TO N PL RG174 3M |
2,496 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | HD-BNC to N-Type | HD-BNC Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 118.1 (3.0m) 9.8' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

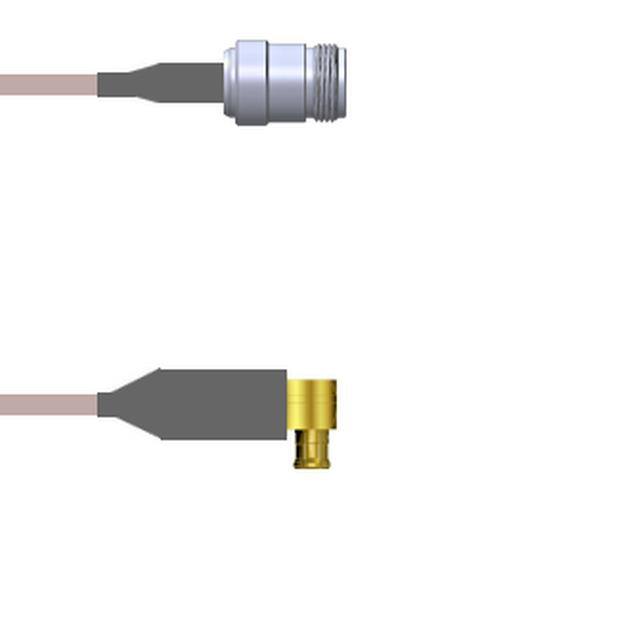

Q-24019000H1.5MCBL ASY MCX-N P-J RG142 1.5M |
2,859 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Plug, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 59.1 (1.5m) 4.9' | RG-142 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

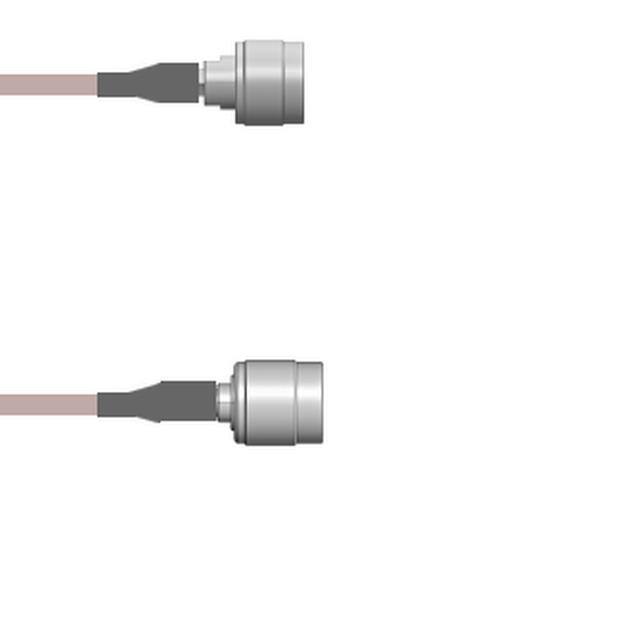

Q-2M053000R006iCBL ASSY N TO TNC PL RG316 DB 6 |
2,807 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Plug | Male | - | - | TNC Plug | Male | - | - | 6.000 (152.40mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

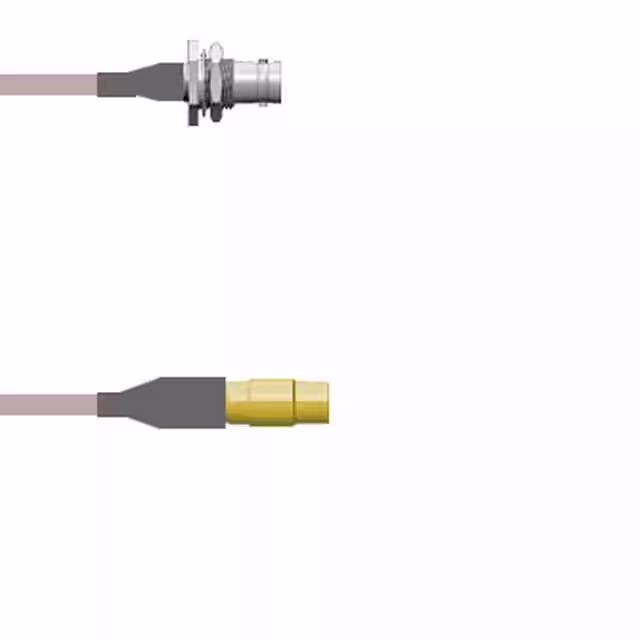

Q-0101G00010.5MCBL ASY BNC-MMCX JK RG178 19.69 |
3,457 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Jack | Female | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

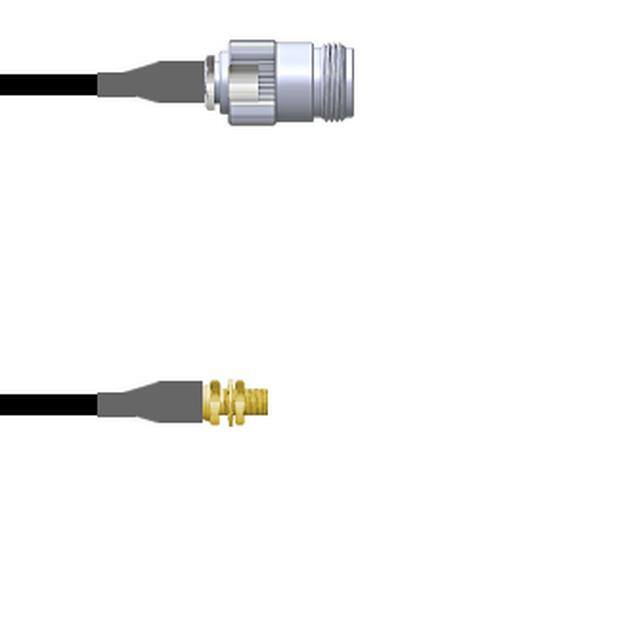

Q-200110003060iCBL ASSY MCX-N JACK RG174 5' |
2,867 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MCX to N-Type | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 60.0 (1.5m) 5.0' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

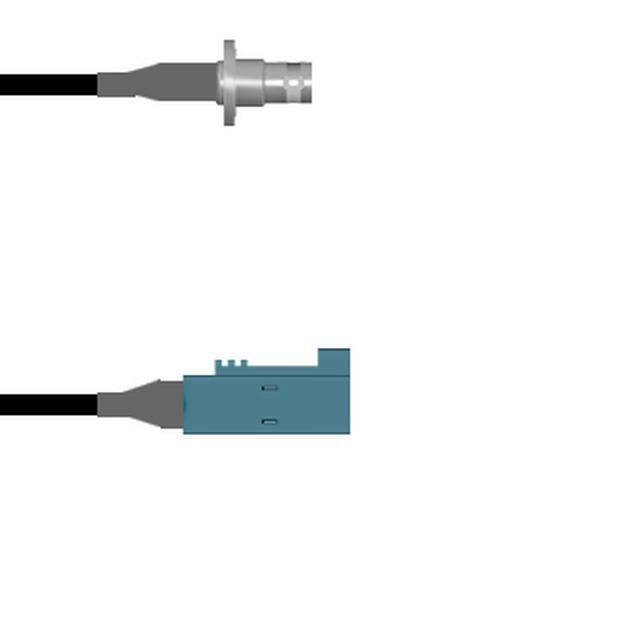

Q-0805F0008009iCBL ASSY BNC-FAKRA JACK RG58 9 |
3,961 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack | Female | Free Hanging (In-Line) | - | 9.000 (228.60mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - |
|

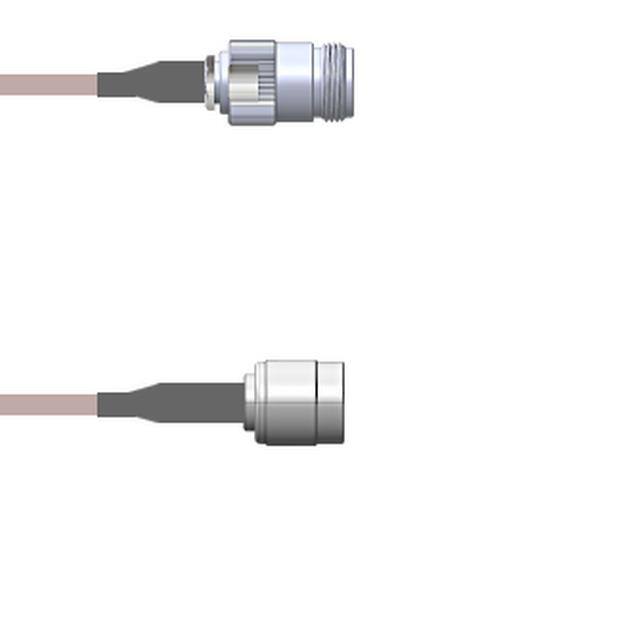

Q-200520005.25MCBL ASSY N TO TNC RG316 9.843 |
3,204 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | N-Type to TNC | N-Type Jack | Female | - | - | TNC Plug | Male | - | - | 9.843 (250.00mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - |
|

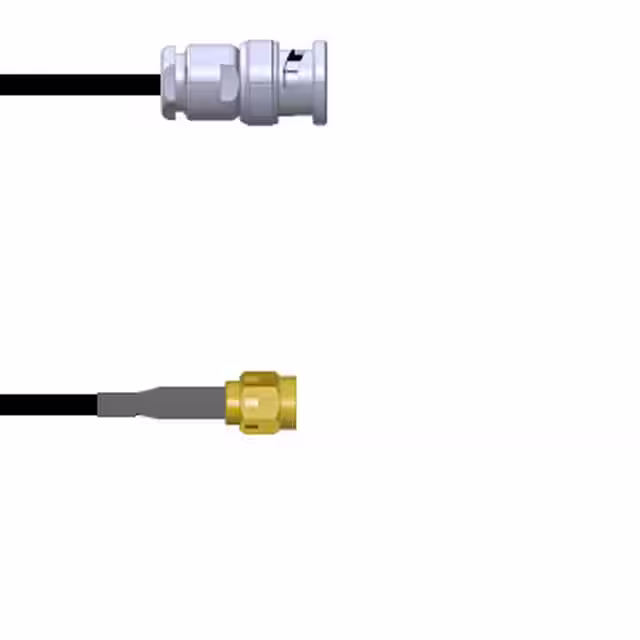

Q-0J03B0003036iCBL ASSY BNC-SMA PLUG RG174 36 |
2,138 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | - | - | SMA Plug | Male | - | - | 36.00 (914.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

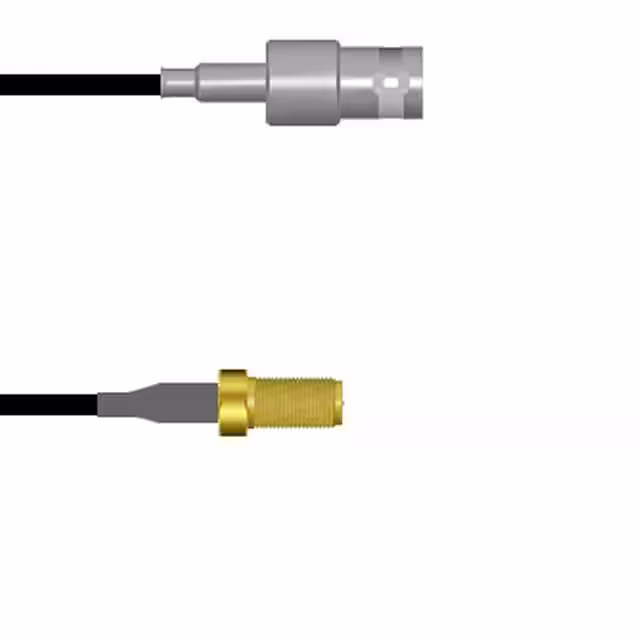

Q-030710003003iCBL ASSY RP-SMA-BNC JCK RG174 3 |
3,077 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to BNC | RP-SMA Jack | Male | - | - | BNC Jack | Female | - | - | 3.000 (76.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

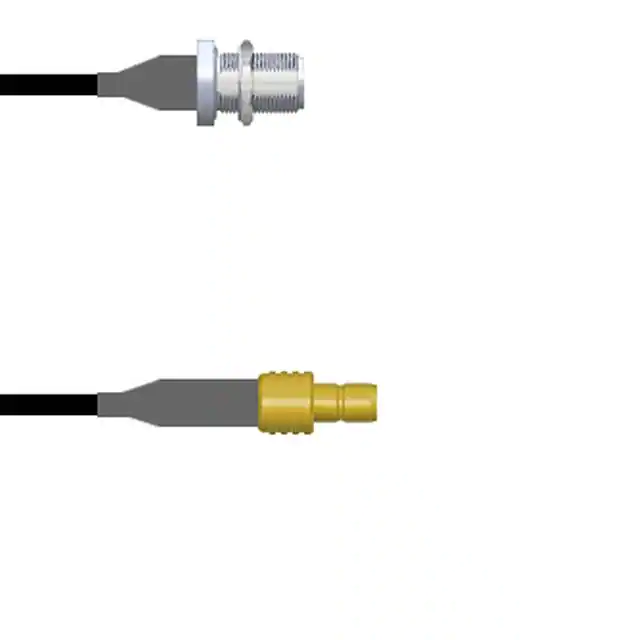

Q-1U03L0003002MCBL ASSY SMB-N JACK RG174 2M |
2,972 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7 (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

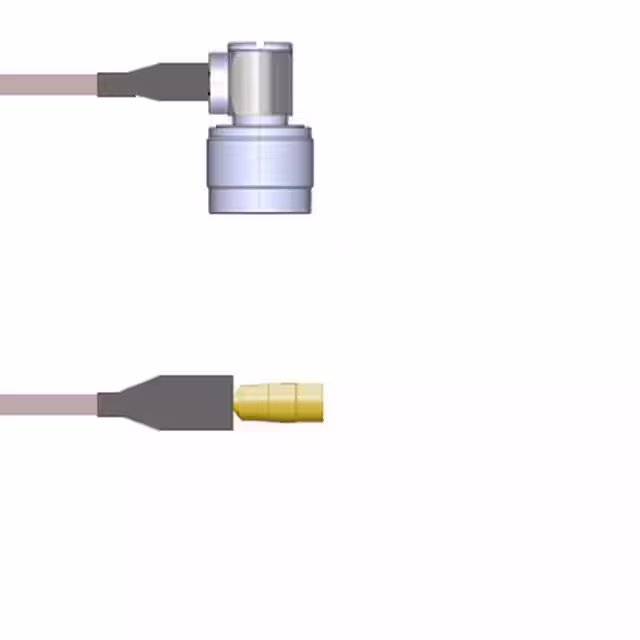

Q-2D01L000R036iCBL ASSY MMCX-N J-P RG316 DB 36 |
3,631 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | - | - | N-Type Plug, Right Angle | Male | - | - | 36.00 (914.40mm) | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - |
|

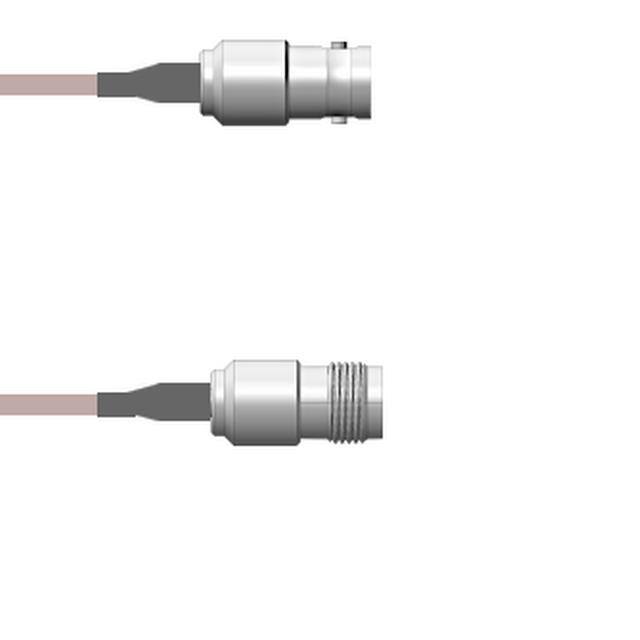

Q-0204B00010.5MCBL ASSY BNC-TNC JK RG178 19.69 |
3,236 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | - | - | TNC Jack | Female | - | - | 19.69 (500.00mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

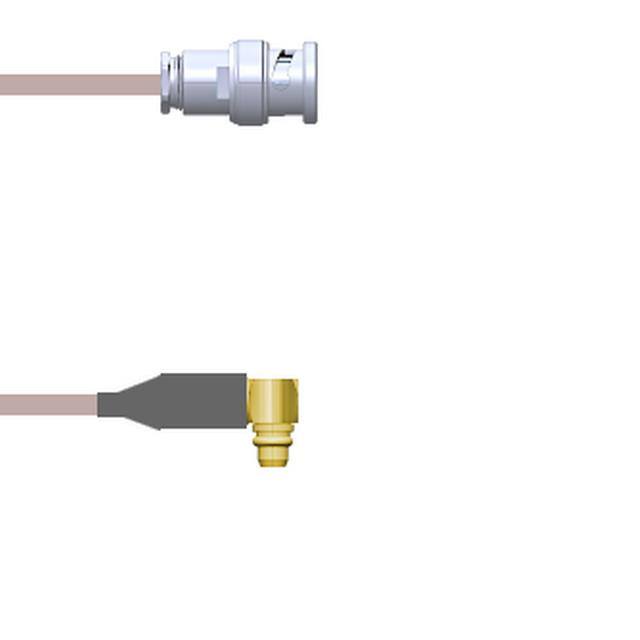

Q-0I01M0001001MCBL ASSY BNC-MMCX PLUG RG178 1M |
3,287 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to MMCX | BNC Plug | Male | - | - | MMCX Plug, Right Angle | Male | - | - | 39.4 (1.0m) 3.3' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

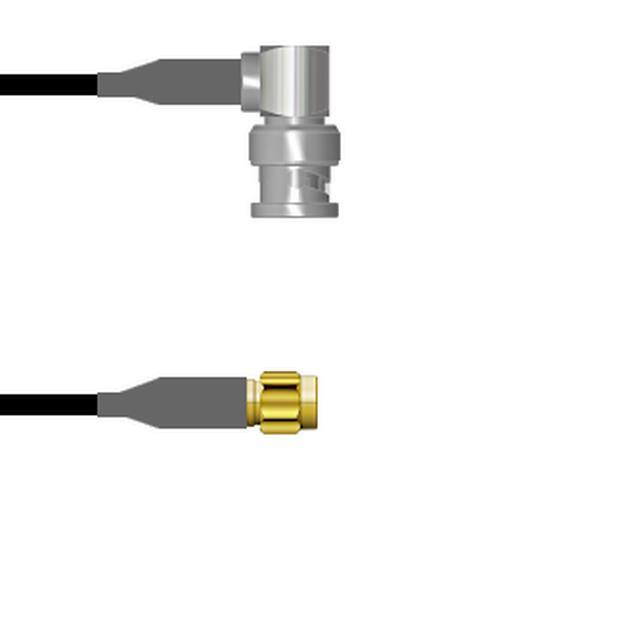

Q-0E03D0008084iCBL ASSY BNC-SMA PLUG RG58 7' |
2,729 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug, Right Angle | Male | - | - | SMA Plug | Male | - | - | 84.0 (2.1m) 7.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

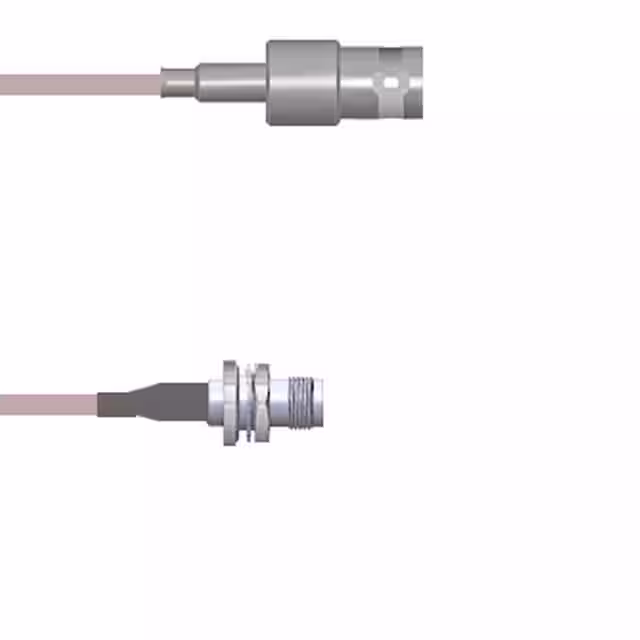

Q-0304E0005024iCBL ASSY BNC-TNC JACK RG316 24 |
3,785 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00 (609.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

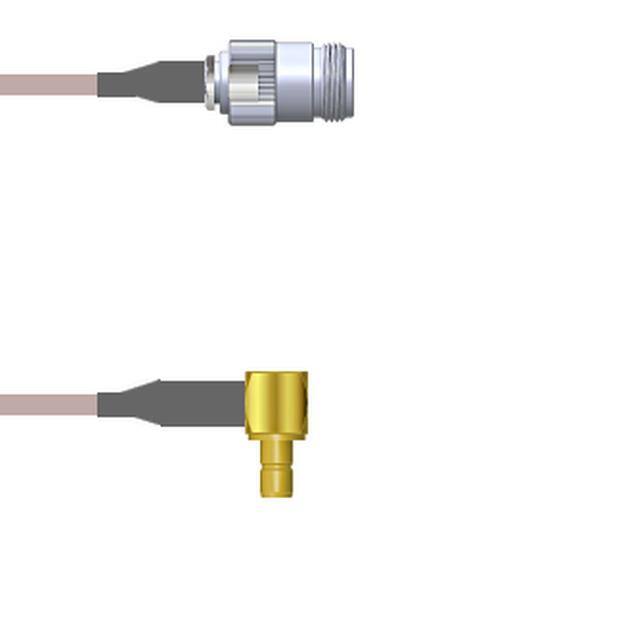

Q-2003I0005001MCBL ASSY SMB-N JACK RG316 1M |
2,736 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | SMB to N-Type | SMB Jack, Right Angle | Male | - | - | N-Type Jack | Female | - | - | 39.4 (1.0m) 3.3' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

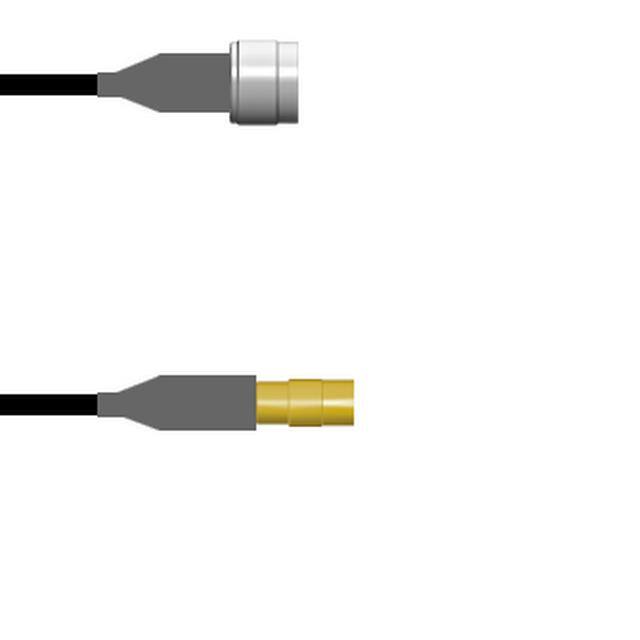

Q-2I01J0003.75MCBL ASSY MMCX-N J-P RG174 29.53 |
2,323 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | MMCX to N-Type | MMCX Jack | Female | - | - | N-Type Plug | Male | - | - | 29.53 (750.00mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|

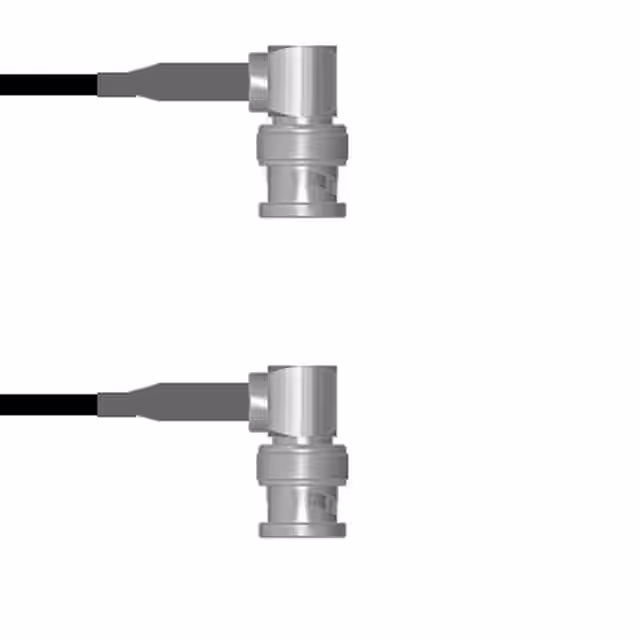

Q-0D00D0003024iCBL ASSY BNC PLUG RG174 24 |
3,410 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug, Right Angle | Male | - | - | BNC Plug, Right Angle | Male | - | - | 24.00 (609.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|

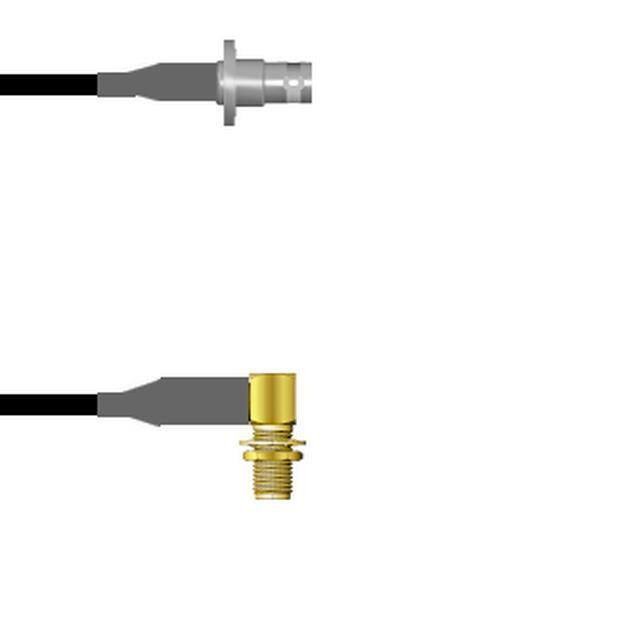

Q-0802R0008.25MCBL ASSY BNC-SMA JCK RG58 9.843 |
2,081 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843 (250.00mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
|
Q-0403W0003018iCBL ASY BNC-SMB J TO P RG174 18 |
2,173 | 0.00 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - |
